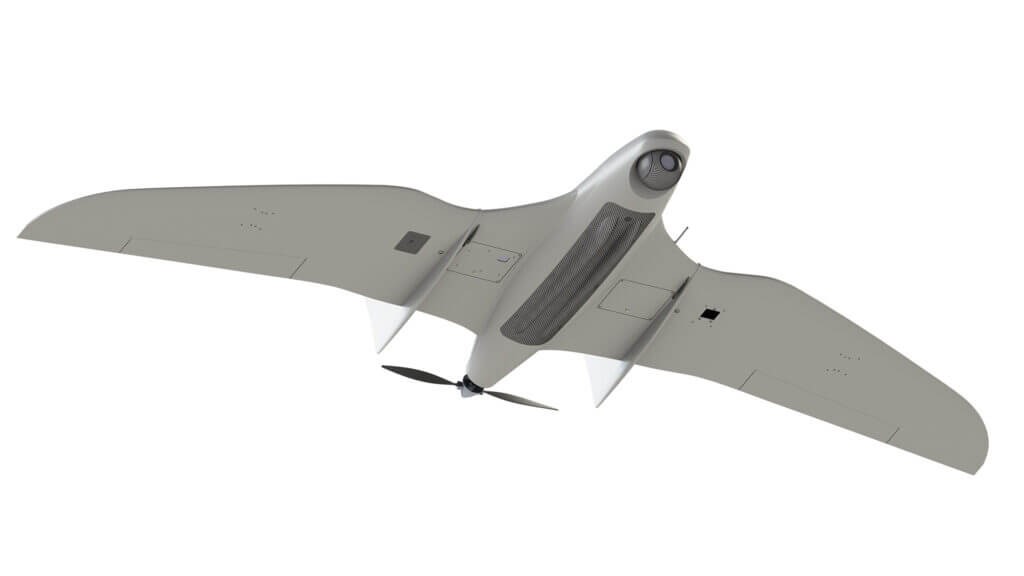

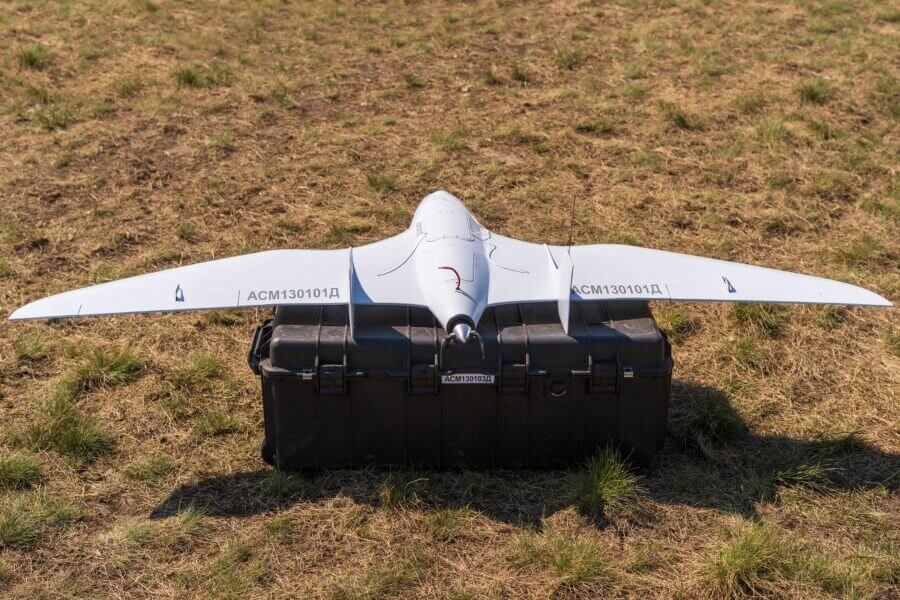

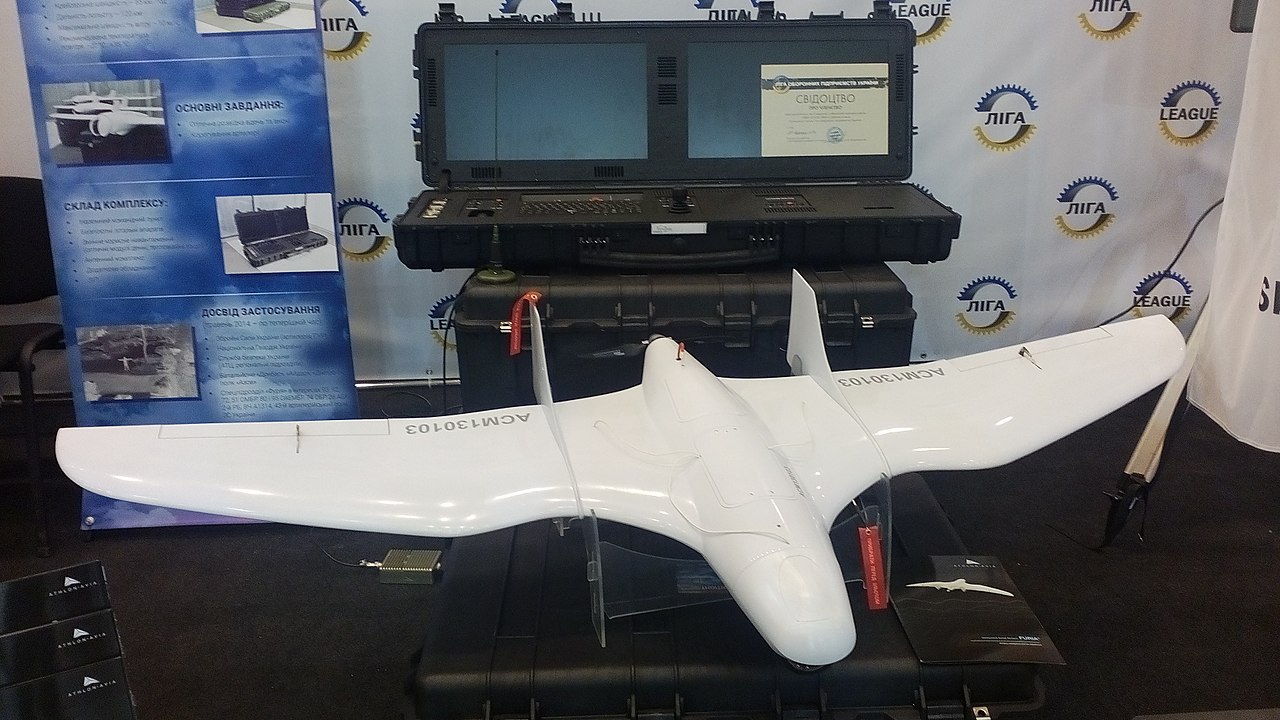

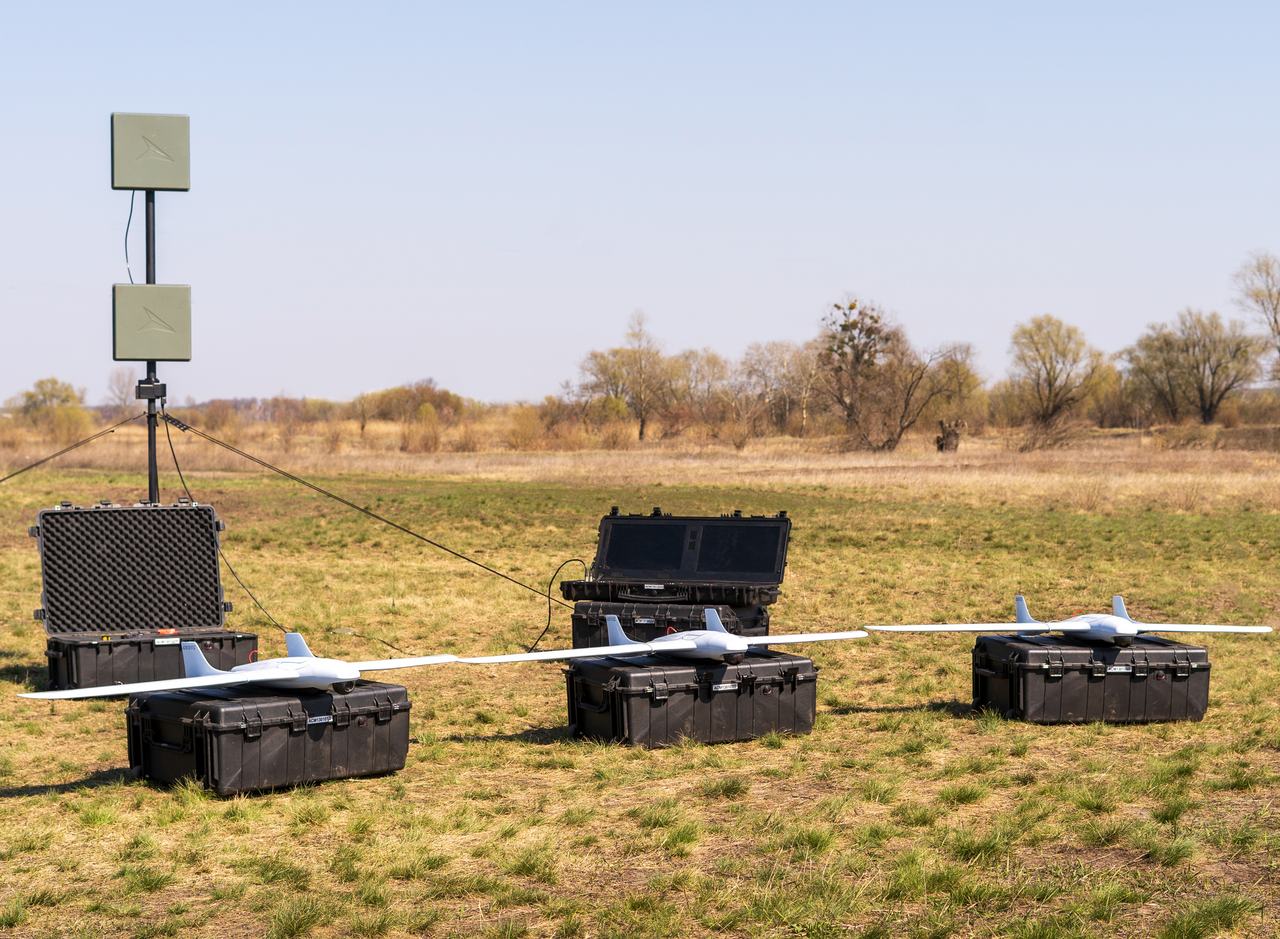

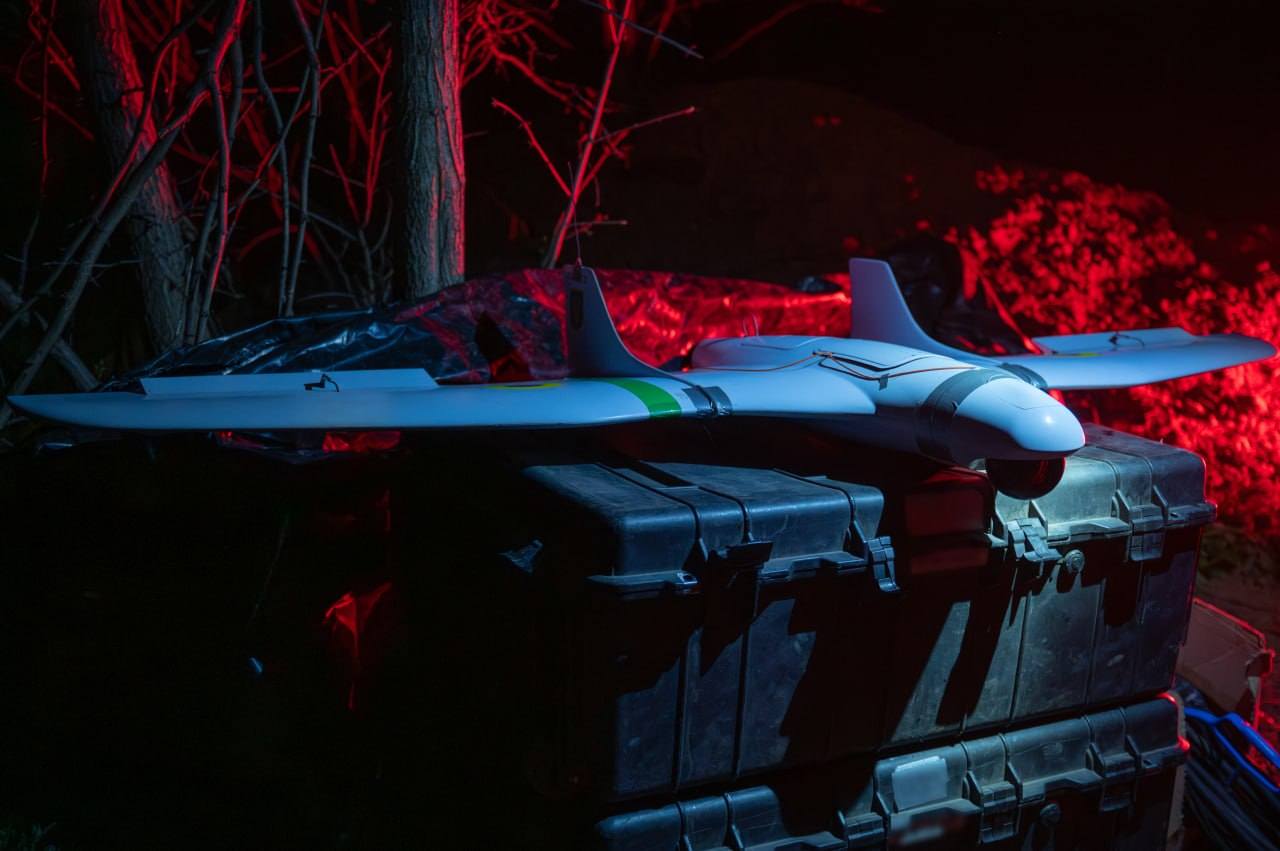

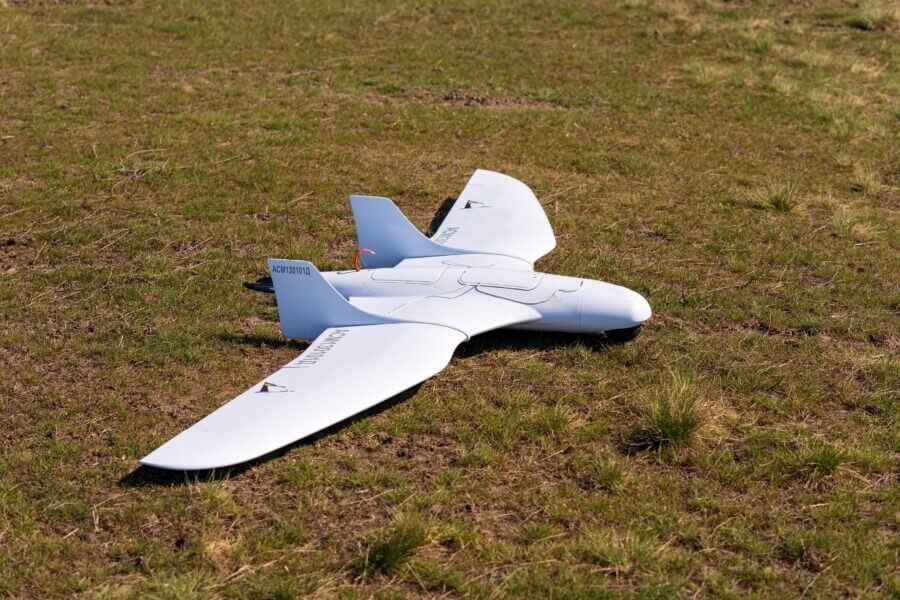

A1-CM Furia Ukrainian Unmanned Aerial Vehicle (UAV)
A1-CM Furia
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
A1-CM Furia Ukrainian Unmanned Aerial Vehicle (UAV)
Designation
A1-CM Furia
Alternate Designation
A1-CM Furia
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
LLC SPC Athlon Avia
Date of Introduction
2014
Description
The A1-CM Furia Ukrainian Unmanned Aerial Vehicle (UAV) has been developed and manufactured by LLC SPC Athlon Avia since 2014. During this time, more than 100 systems of various modifications have been produced for the needs of the Armed Forces of Ukraine, the National Guard of Ukraine, and the Security Service of Ukraine. In 20192020, the UAS passed a full spectrum of state tests and was adopted by the Armed Forces of Ukraine. Since 2014 the system is widely used during the Joint Forces Operation in eastern Ukraine to conduct aerial reconnaissance and artillery fire adjustment.
Air & Air Defense Specifications
Engine
Electric
Range
50.0 km
System
Alternate Designation
A1-CM Furia
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
LLC SPC Athlon Avia
Autonomy
Semiautomatic guided, autonomous, camera guided mode
Crew
Unmanned
Payload Capacity
INA
Features
Features: automatic control system, an inertial navigation system, a satellite navigation system, air pressure receiver, parachute system, electrical power plant, command line telemetry hardware, back up control channel hardware, onboard information system, onboard navigation lights
Launching System
Elastic or mechanical catapult
Recovery System
Parachute, as a plane
Dimensions
Length
900 mm
Width
2,000 mm
Height
INA
Maximum Takeoff Weight
5.5 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Maximum Speed
INA
Cruising Speed
65 km/h
Service Ceiling
INA
Maximum Range
50 km
Endurance
INA
Image Sources
Notes
https://athlonavia.com/en/furia/; https://spnfa.ir/20240119/%D9%BE%D9%87%D9%BE%D8%A7%D8%AF-%D8%A7%D9%88%DA%A9%D8%B1%D8%A7%DB%8C%D9%86%DB%8C-%D8%AF%D8%B1-%D8%AC%D8%B1%DB%8C%D8%A7%D9%86-%D8%B1%D9%87%DA%AF%DB%8C%D8%B1%DB%8C-%D9%85%D9%87%D9%85%D8%A7%D8%AA-%D8%AE%D9%88%D8%AF-%D8%B1%D8%A7-%D8%A8%D9%87-%DB%8C%DA%A9-%D8%A7%D9%86%D8%A8%D8%A7%D8%B1-%D9%86%D9%81%D8%AA-%D8%AF%D8%B1-%D8%A7%D8%B3%D8%AA%D8%A7%D9%86-%D8%A8%D8%B1%DB%8C%D8%A7%D9%86%D8%B3%DA%A9-%D8%B1%D9%88%D8%B3%DB%8C%D9%87-%D9%BE%D8%B1%D8%AA%D8%A7%D8%A8-%DA%A9%D8%B1%D8%AF-19396389.html; https://athlonavia.com/en/gallery/; https://www.militaryfactory.com/aircraft/detail.php?aircraft_id=2474;
Details
Country of Origin
Ukraine
Category
UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.9 m
Width
2 m
Height
—
Weight
5.5 kg
