MAN SX45 German 8x8 Heavy High Mobility Truck
MAN SX45
Heavy Utility Truck
Other
Basic Information
Name
MAN SX45 German 8x8 Heavy High Mobility Truck
Designation
MAN SX45
Alternate Designation
MAN SX45
Equipment Type
Heavy Utility Truck
Manufacturer
MAN
Date of Introduction
2007
Description
MAN SX45 Heavy High Mobility Truck.
Ground Specifications
Crew
2
Engine
Diesel (440 hp)
Active Protection
None
System
Alternative Designation
MAN SX45
Type
Heavy High Mobility Truck
Manufacturer
MAN
Configuration
8x8
Crew
2
Cargo Capacity
3 Tons
Dimensions
Length
10.5 m
Width
2.55 m
Height
3.92 m
Weight, Empty
13 tons
Maximum Load Weight
16 tons
Automotive
Engine Name
MAN D2066 LFG
Engine Type
Diesel
Engine Power
440 hp
Cruising Range
750 km
Speed, Maximum Road
88 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
40 %
Vertical Step
0.6 m
Trench
1.9 m
Fording Depth
up to 1.5 m
Protection
Hull Armor

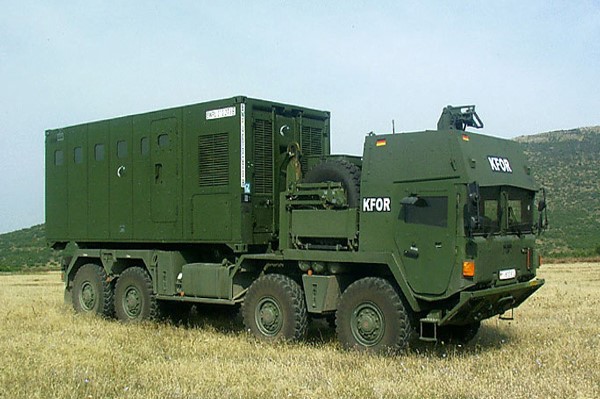

The MAN SX45 is also available with an integrated armored cab, which provides protection against 7.62x51 mm armor-piercing rounds, artillery shell splinters and withstands 8 kg anti-tank mine blast. An integrated cab can be equipped with remotely controlled weapon stations, fitted with a 12.7 mm heavy machine gun or 40 mm automatic grenade launcher.
Applique Armor
The MAX SX family has a modular cab, which can be fitted with add-on armor protection kit. This kit was jointly developed by MAN and Krauss-Maffei Wegmann. It provides protection against 7.62x39 mm rounds, artillery shell splinters, grenades, small anti-personnel mines. Armored modules are attached to the outside of the cab. Armored kit can be installed within 10 hours in field conditions.
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
Germany
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.5 m
Width
2.55 m
Height
3.92 m
Weight
16000 kg
Operators (2)
Eastern Europe
Northern Europe
