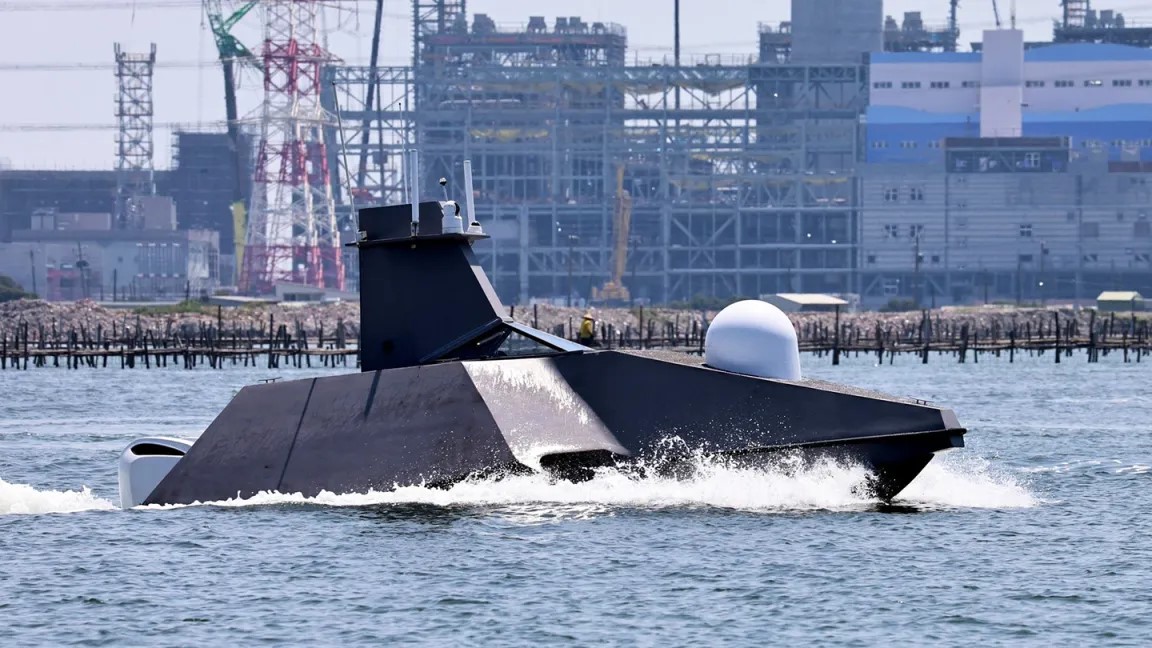

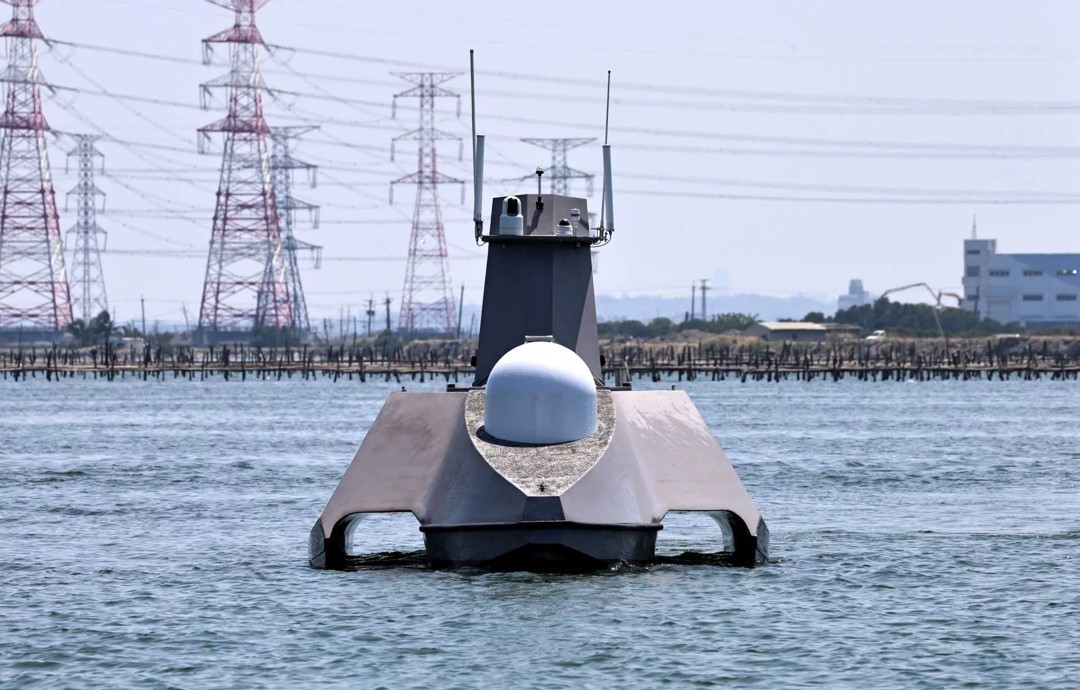

Endeavor Manta Taiwanese Autonomous Surface Vehicle (ASV)

Endeavor Manta

Autonomous Surface Vehicle (ASV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Endeavor Manta Taiwanese Autonomous Surface Vehicle (ASV)
Designation
Endeavor Manta
Alternate Designation
Endeavor Manta
Equipment Type
Autonomous Surface Vehicle (ASV)
Manufacturer
CSBC Corporation
Date of Introduction
2025
Description

The Endeavor Manta is a Taiwanese Autonomous Surface Vehicle (ASV) designed for high-speed attacks on hostile fleets approaching Taiwan's coastline. This vessel is equipped with a variety of advanced technologies, including an electro-optic/infrared (EO/IR) pod, night-vision equipment, planar search radar, an automatic identification system (AIS), and an artificial intelligence (AI) system for target recognition. To counter electronic warfare threats, the Endeavor Manta features analog signal filtering and digital signal frequency modulation. It is capable of operating in swarms and features autonomous navigation with collision avoidance capabilities. Additionally, it possesses AI-driven target recognition capabilities and has undisclosed anti-hijacking functions, which likely include a self-destruction mechanism to prevent capture by enemy forces. The Endeavor Manta is specifically designed for operations in the Taiwan Strait, where its trimaran hull design enhances stability and performance in the challenging sea conditions commonly encountered in that area.

Naval & Littoral Specifications
Beam 3.70 m
System
Alternative Designation Endeavor Manta
Type Autonomous Surface Vehicle (ASV)
Builder CSBC Corporation
Crew Unmanned
Payload 1 ton
Communications The Endeavor Manta is equipped with multiple communication modes that include 4G, satellite communications (satcom), and very-high-frequency (VHF) and ultra-high frequency (UHF) radio frequencies.
Dimensions
Length 8.6 m
Height INA
Beam 3.7 m
Draft INA
Displacement, Full Load 5 tons
Propulsion System
Engine Name INA
Engine Type 2 x outboard engines
Engine Power 250 hp each engine
Fuel Capacity 180 liters
Maximum Range 250 km
Maximum Speed 35 knots
Main Weapon System
Note In addition to two lightweight torpedoes that can be launched from stern torpedo portholes, the USV can be armed with a 400–500 kg high-explosive warhead in the hull.
Protection
Hull Trimaran hull
Countermeasures INA
Details
Country of Origin Taiwan
Category Naval
Naval
Filter Label
E
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
8.6 m
Width
3.7 m
Height
Weight
5000 kg
Operators (1)
Taiwan
