Patria SKY Finnish Unmanned Aerial Vehicle (UAV)
Patria SKY
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Patria SKY Finnish Unmanned Aerial Vehicle (UAV)
Designation
Patria SKY
Alternate Designation
Patria SKY
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Patria
Date of Introduction
2024
Description

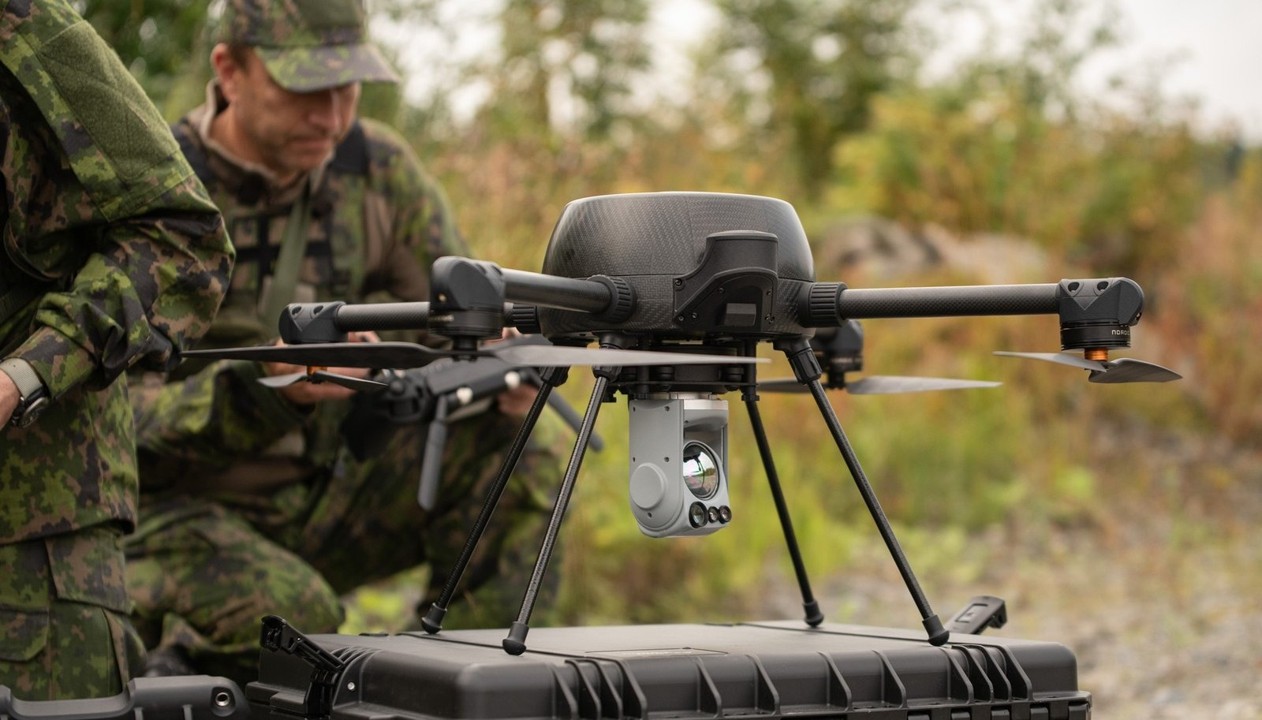

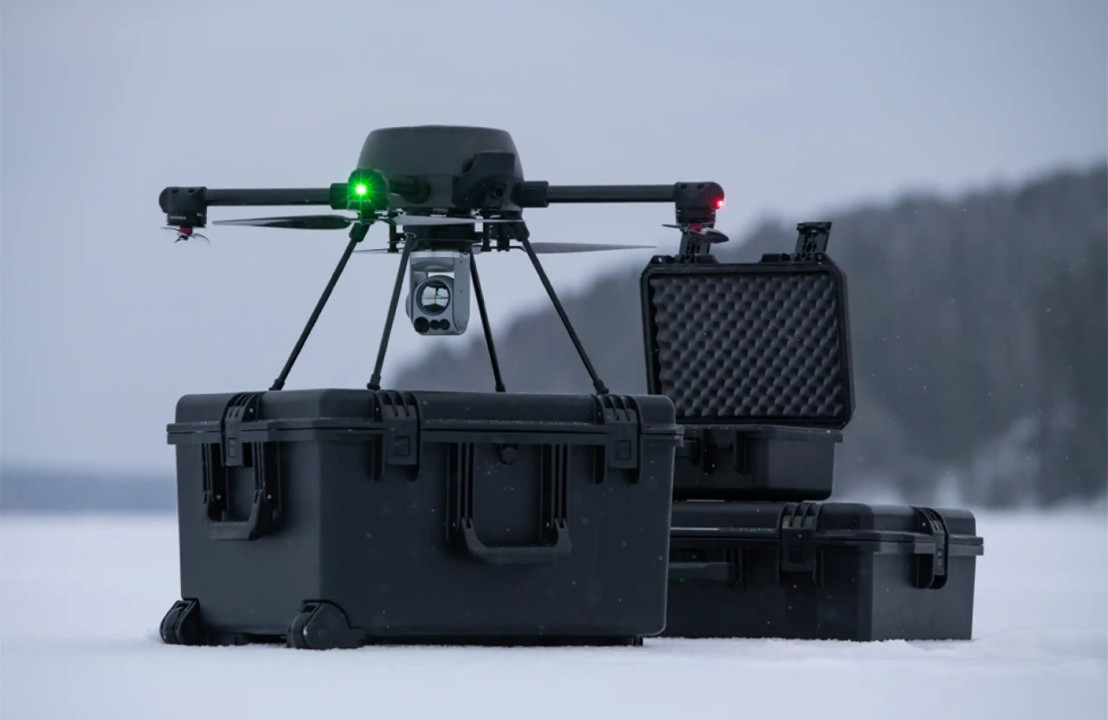

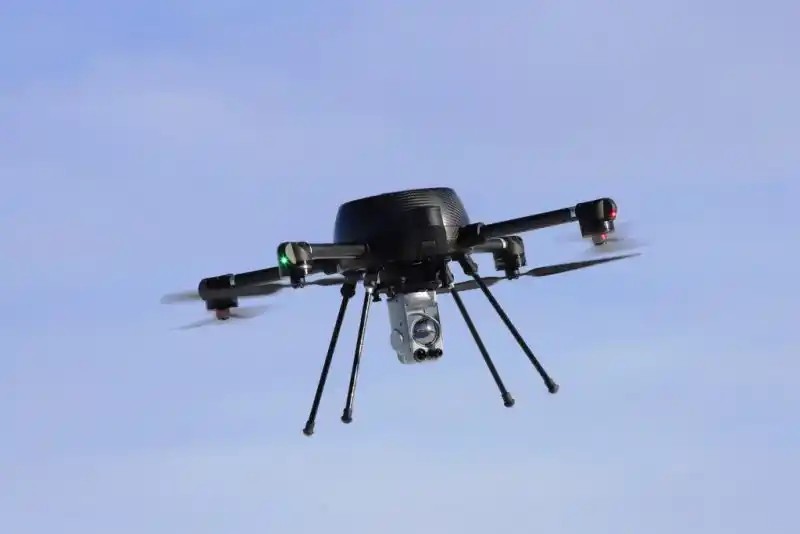

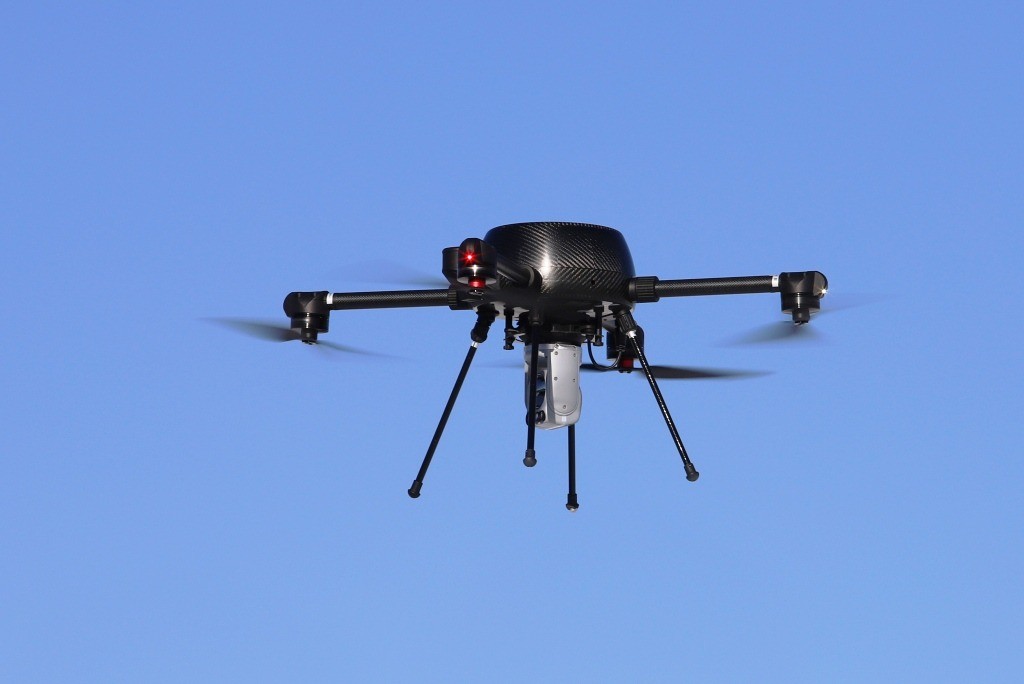

The Patria SKY Finnish Unmanned Aerial Vehicle (UAV) The Patria Sky is a quadcopter made of a near cylindrical body that contains batteries, electronics and carries the payload under its belly. Four legs are fixed to the body to allow stand-off distance from the ground to host the payload, while four arms each one carrying an electric motor at the end are fixed at 90° one from each other. Each motor activates a two-blade 18×6.5-inch carbon fiber propeller with quick locks looking downwards, drone dimensions being 580x580x370 mm, the Lithium-Polymer battery allowing an endurance of up to 64 minutes.
Air & Air Defense Specifications
Engine
Battery: Lithium Polymer (LiPo)
Max Speed
80.0 km/h
Range
40.0 km
Endurance
64.00 hrs
Payload Capacity
1 kg
System
Alternate Designation
Patria SKY
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Patria

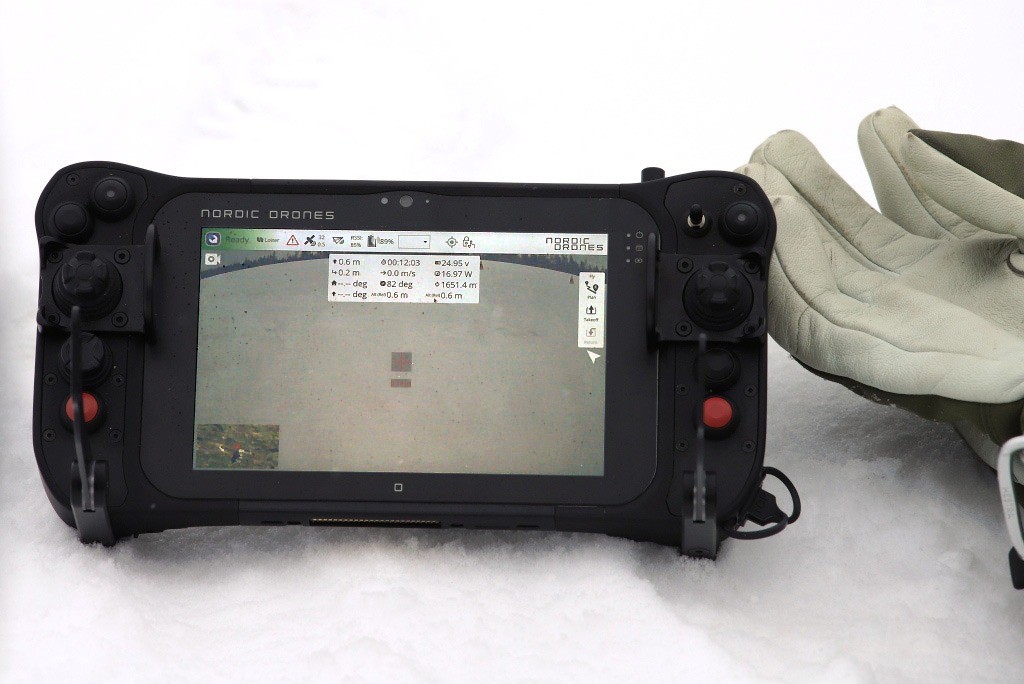

Ground Control Station
7-inch, 750 cd/m² screen usable with gloves.
IP65 rated with drop protection up to 1.5 m.
Physical switches for all critical flight functions.
Software integrated by Nordic Drones Oy.
MIL-STD-810G qualified.
Battery hot-swap capability.
Live feed: operator can monitor UA image and control EO/IR gimbal.
Near real-time data routing.
Payload Capacity
1.5 kg (standard) / 2.5 kg (brochure figure)
Payloads
Nextvision Dragoneye 2: 115 g day/night optronic gimbal; 1280×720 day channel (x40 zoom); 640×480 LWIR uncooled sensor (x4 zoom); static and moving object tracking, detection, classification.
Nextvision Raptor: Higher resolution; 1920×1080 day (x40 optical zoom, x2 digital zoom); 1280×720 LWIR (x8 optical zoom).
Compatible with other payloads via modular attachment system.
Tether Capability
Tether station provided by Elistair (France)
Two options: Light-T 4 (70 m height) and Safe-T 2 (100 m height).
Dimensions
Length
580 mm
Width
580 mm
Height
370 mm
Weight, Empty
2.2 kg
Maximum Takeoff Weight
6.5 kg
Automotive
Engine Name
INA
Engine Type
Battery: Lithium Polymer (LiPo)
Engine Power
INA
Maximum Speed
80 km/h
Cruise Speed
INA
Maximum Controlled Operational Range
15 km
Maximum Range
40 km
Service Ceiling
INA
Endurance
64 min
Details
Country of Origin
Finland
Category
UAVs
Air > UAVs
Filter Label
P
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.58 m
Width
0.58 m
Height
0.37 m
Weight
6.5 kg
Operators (1)
Finland
