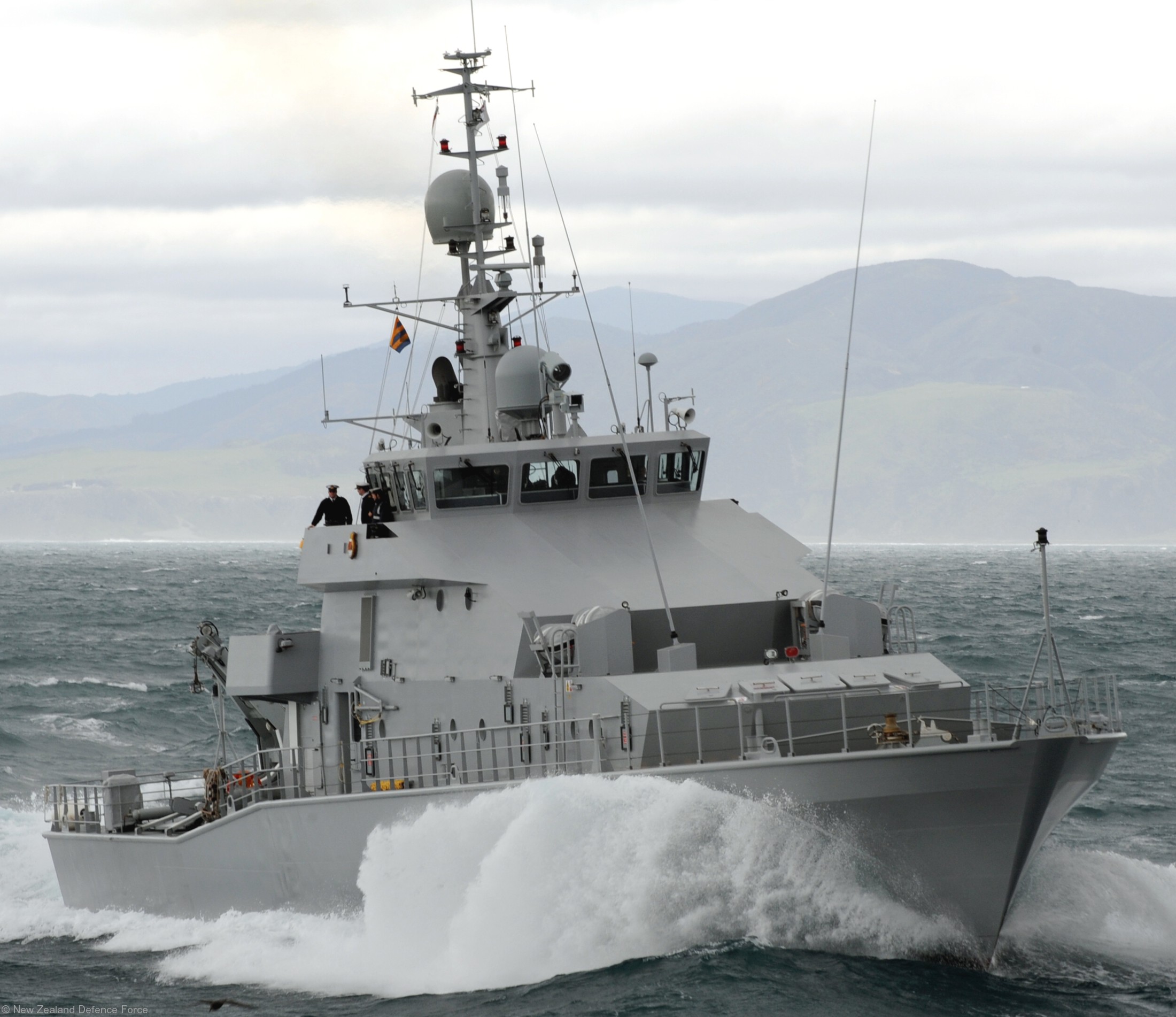

Lake Class New Zealand Inshore Patrol Vessel (IPV)
Inshore Patrol Vessel (IPV)
Other
Basic Information
Name
Lake Class New Zealand Inshore Patrol Vessel (IPV)
Designation
—
Alternate Designation
Lake Class Inshore Patrol Vessel (IPV), Patrol Ship
Equipment Type
Inshore Patrol Vessel (IPV)
Manufacturer
—
Date of Introduction
2009
Description
The Lake-class inshore patrol vessel is a ship class of inshore patrol vessels (IPVs) of the Royal New Zealand Navy (RNZN) which replaced the RNZN's Moa-class patrol boats in 2007–2008. All four vessels are named after New Zealand lakes. Following long-running Navy retention problems, two of the four vessels docked and inactive for long periods between 2013 and 2018. In June 2019 the New Zealand Government announced that two of the patrol vessels would be withdrawn from service, and they were decommissioned in October that year.
Naval & Littoral Specifications
Crew
36
Beam
9.00 m
Draft
2.90 m
Variants

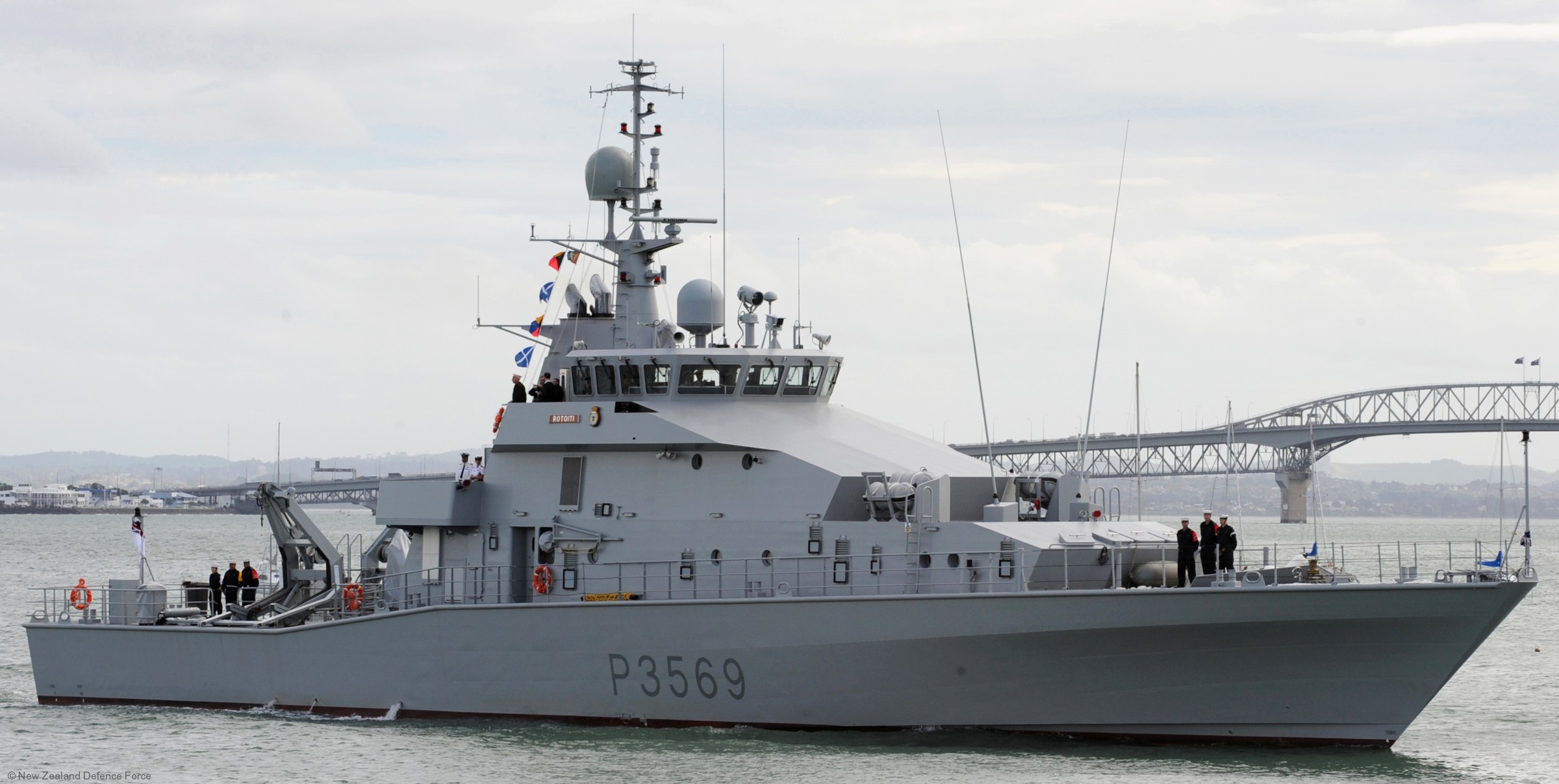

HMNZS Rotoiti (P3569)
Commissioned 17 April 2009 - decommissioned 17 October 2019

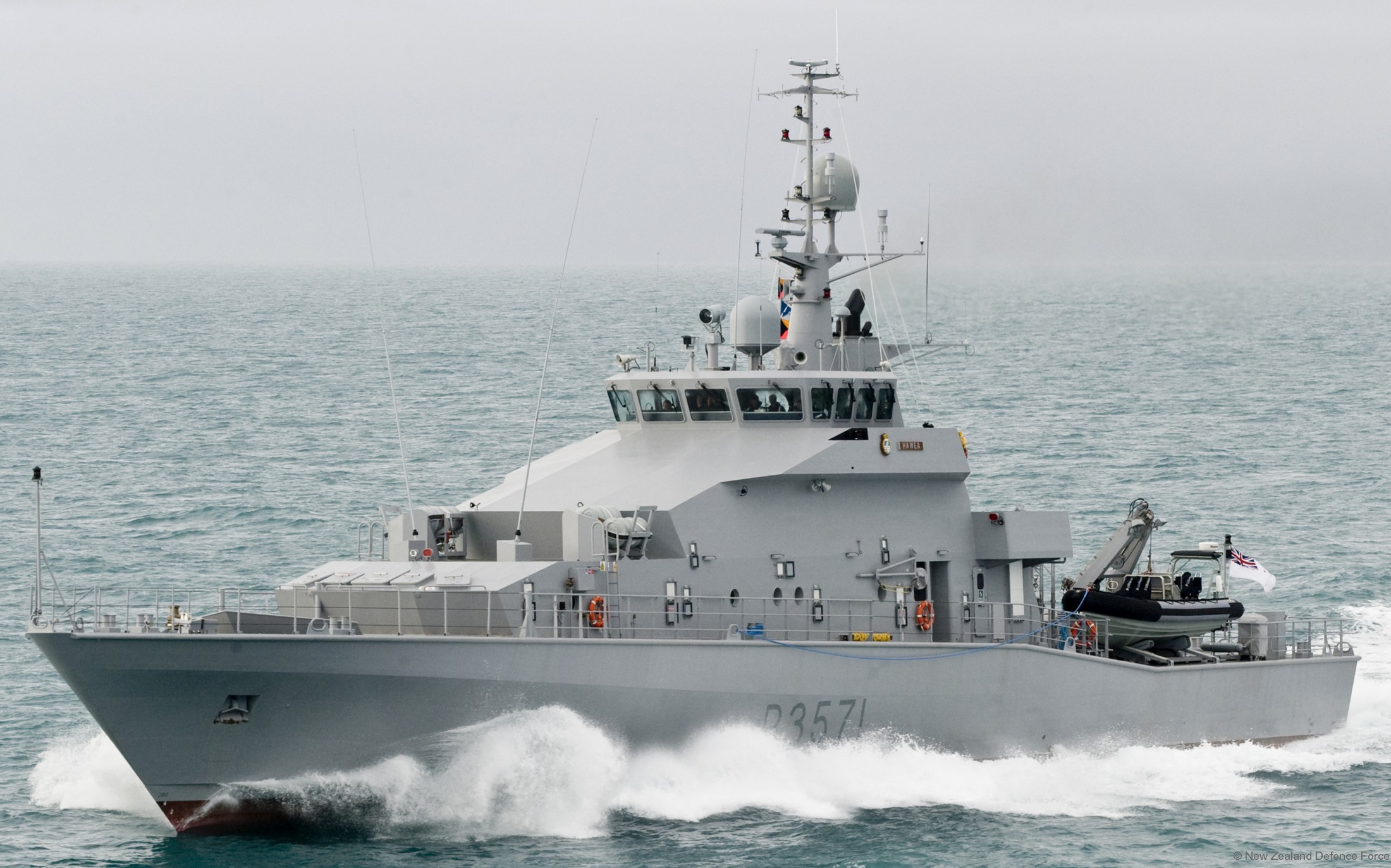

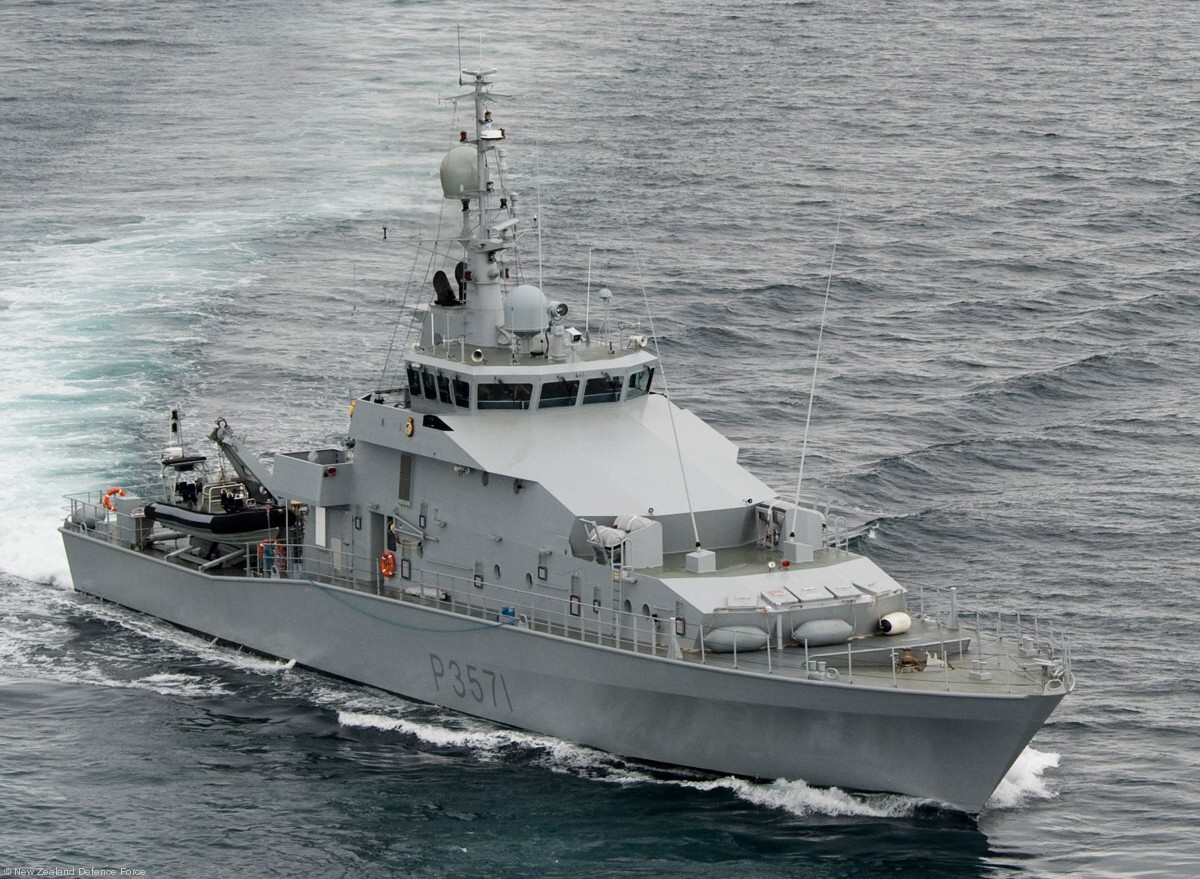

HMNZS Hawea (P3571)
Commissioned 1 May 2009 - in active service
HMNZS Pukaki (P3568)
Commissioned 14 May 2009 - decommissioned 17 October 2019
HMNZS Taupo (P3570)
Commissioned 29 May 2009 - in active service
System
Alternative Designation
Lake Class Inshore Patrol Vessel (IPV), Patrol Ship
Type
Inshore Patrol Vessel (IPV)
Builder
BAE Systems Australia (then Tenix Shipbuilding), Whangarei
Crew
36 x vessel crew
Cargo Capacity
INA
IPV Mission
The IPVs will normally be used for inshore tasks within 24 nautical miles (44 km; 28 mi) of the coastline to intercept mission targets, such as illegal fishing trawlers, etc. Planned vessel endurance is 290 patrol days per year.
Sea State
Conducts standard patrol missions in sea state 4, and can survive in sea state 8.
Dimensions
Length
55 m
Beam
9 m
Draft
2.9 m
Displacement, Standard
INA
Displacement, Full Load
340 tons
Propulsion System
Engine Name
Two MAN B&W 12VP185 engines
Engine Type
Diesel
Engine Power
2 x 2,500 kW / 3,400 hp
Maximum Range
3,000 nm (5,600 km; 3,500 mi)
Maximum Speed
25 knots (46 km/h; 29 mph)
Patrol Speed
16 knots (30 km/h; 18 mph)
Endurance
8-10 days
Armament
Machine Gun
Name
M2HB QCB .50 caliber Browning Machine Gun
Type
Heavy Machine Gun
Caliber
12.7 mm
Quantity
3 ea (can be mounted at either forward or aft pivots)
Length
1,654 mm
Barrel Length
1,143 mm
Weight
38 kg
Action
Short recoil-operated
Rate of Fire
450–600 rounds/min
Muzzle Velocity
890 m/s
Maximum Firing Range
7,400 m
Effective Firing Range
1,800 m
Feed System
Belt-fed
Sights
Iron Sights
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7×99mm NATO
Basic Load
INA
Boats and Landing Craft
Rigid-Hulled Inflatable Boat (RHIB)
The IPV can carry 3 x Rigid-Hulled Inflatable Boats (RHIBs)
Protection
Hull Armor
INA
Countermeasures
INA
NBC Water Washdown System
Yes
Image Sources
Notes
https://www.babcockinternational.com/news/babcock-and-nzdf-partnership-to-deliver-15m-injection-into-nz-economy/; https://defense-studies.blogspot.com/2016/11/new-zealand-to-phase-out-four-inshore.html; https://www.fijivillage.com/f/NZ-to-deploy-a-Navy-Inshore-Patrol-Vessel-to-Fiji-for-three-months-2k5r9s/; https://defense-studies.blogspot.com/2016/11/new-zealand-to-phase-out-four-inshore.html;
Details
Country of Origin
New Zealand
Category
Naval
Naval
Filter Label
L
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
55 m
Width
—
Height
—
Weight
—
Operators (1)
New Zealand
