IRM Zhuk Russian Amphibious Engineer Reconnaissance Vehicle
IRM Zhuk
Armored Reconnaissance Vehicle
Other
Basic Information
Name
IRM Zhuk Russian Amphibious Engineer Reconnaissance Vehicle
Designation
IRM Zhuk
Alternate Designation
IRM Zhuk
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
Uralvagonzavod
Date of Introduction
1980
Description

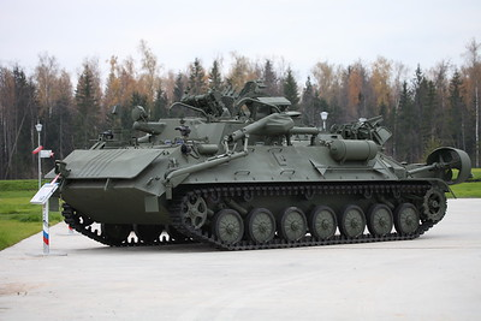

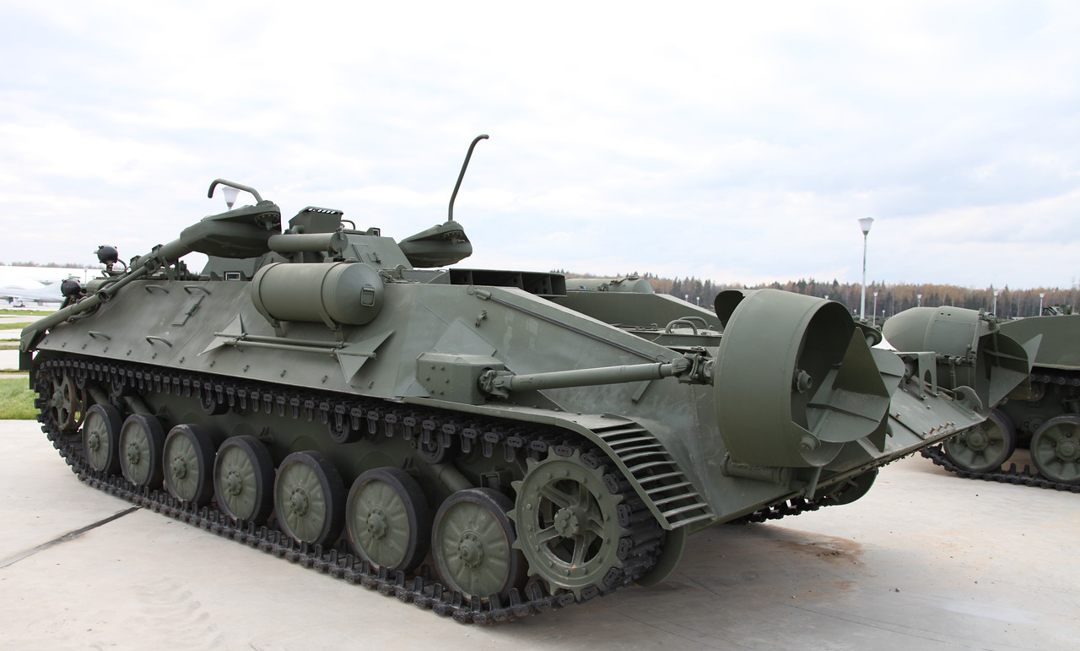

The IRM Zhuk Russian Engineer Reconnaissance Vehicle conducts reconnaissance of routes, fords, water barriers (velocity, depth, underwater obstacles, and bottom profile and density), ice, mapping, and overall terrain trafficability. Its chassis employs components of the BMP-1 IFV. It has two propellers on the rear of the hull for propulsion in the water. A wave deflector covers the front of the hull. The IRM has an emergency extraction/self-recovery system available which allows the vehicle to quickly extract itself when stuck in the mud, etc. without having the crew exit the vehicle. The system consists of two racks of 12 rockets each mounted on the rear deck between the propellers. This rocket propulsion system is especially valuable if the vehicle is stuck when under enemy fire.
Ground Specifications
Crew
6
Mobility Type
Tracked
Main Weapon
7.62 mm PKT General-Purpose Machine Gun
Engine
Inline 6-Cylinder Diesel (300 hp)
Max Speed
52.0 km/h
Range
500.0 km
Variants
IPR
Very similar to the IRM except it has a folding snorkel on the rear deck.
System
Alternative Designation
IRM Zhuk
Type
Engineer Reconnaissance Vehicle
Manufacturer
UVZ
Description
Based on the BMP-1 chassis, however, with 7 road wheels instead of the BMP-1's 6 wheels.
Crew
6 (commander, driver, and 4 dismount able engineers)
Navigation System
TNA-3 inertial land navigation system
Mine Detection
RShM-2 mine detection system, plus RVM-2M, IMP-2 and RVM-2 hand-held mine detectors.The RShM-2 river-type wide-span mine detector can detect ferromagnetic materials at a depth of up to 300 mm with the vehicle moving at speeds of 3 to 5 km/h.
Echo-Sounding
an EIR echo-sounder providing an accurate determination of water depth from 0.5 to 20 m
Aiming Circle
PAB-2M aiming circle
Engineer Reconnaissance Periscope
PIR-451 retractable engineer reconnaissance periscope 1.5 m long (of which 0.75 m can be raised) and a DSP-30 rangefinder to carry out basic survey operations from within the vehicle.
Note
According to Russian sources, the IRM can carry out land route reconnaissance at a typical speed of 8 to 10 km/h and mine fields at the rate of 5 km/h. A water barrier 100 m wide can be covered in five minutes.
Dimensions
Length
8.30 m
Width
3.15 m
Height
2.42 m
Weight
18,000 kg
Ground Clearance
0.40 m
Ground Pressure
0.69 kg/cm² (67666 Pa) (9.81 psi)
Automotive
Engine Name
Type UTD-20
Engine Type
In line-6, water cooled, diesel
Engine Power
300 hp at 2,000 rpm
Power-to-Weight Ratio
16.67 hp/t
Fuel Capacity
600 liters
Electrical System
24 V
Steering
clutch and brake
Suspension
torsion bar
Maximum Land Speed
52 km/h
Maximum Amphibious Speed
10 km/h
Range
500 km
Gradient
INA
Vertical Obstacle
0.65 m
Trench
2.3 m
Amphibious

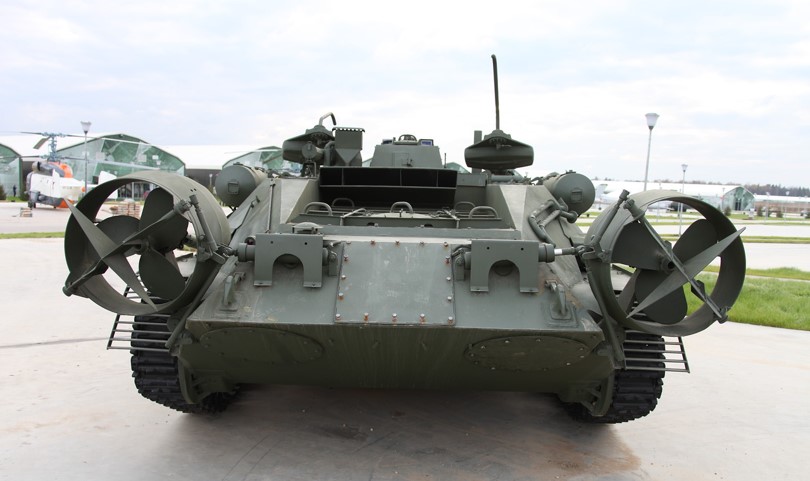

The vehicle is fully amphibious and, when travelling, the hull superstructure may carry a folded-down snorkel mast approximately 10 m long which is erected when the vehicle operates fully submerged; this mast is not always carried. When floating, the vehicle is driven and steered by two three-bladed, cowled propellers mounted one either side at the rear. A trim vane is fitted at the front of the vehicle and this is extended prior to amphibious operations.
Communications
Radio
Name
Onboard and 2 dismountable R-147
Main Weapon System
System
Name
1 × 7.62 mm PKT General-Purpose Machine Gun
Type
General-Purpose Machine Gun
Caliber
7.62 mm
Length
1,098 mm
Barrel Length
1,098 mm
Weight
10.5 kg
Action
Gas-operated, open bolt
Rate of Fire
700–800 rounds/min
Muzzle Velocity
855 m/s
Maximum Firing Range
4,000 m
Effective Firing Range
1,500 m
Feed System
Non-disintegrating metal 50 round belts in 100 and 200/250 round ammunition boxes
Sights
Iron Sights
Ammunition
Type
Rifle
Caliber
7.62 mm
Cartridge
7.62×54mmR
Basic Load
INA
Protection
Hull Armor
The all-welded steel-armoured hull of the IRM provides the occupants with protection from small-arms fire.
Armor, Applique
INA
Armor, Explosive Reactive
INA
NBC Protection
Collective protection system
Self entrenching blade
No
Smoke Equipment
Vehicle engine exhaust smoke system (VEESS)
Details
Country of Origin
Russia
Category
Reconnaissance Vehicles
Land > Infantry Vehicles > Reconnaissance Vehicles
Filter Label
I
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.3 m
Width
3.15 m
Height
2.42 m
Weight
18000 kg
Operators (1)
Russia
