QSZ-92 (Type 92) Chinese 9mm/5.8mm Semi-Automatic Pistol

QSZ-92

Pistol
Spotted an error? Sign in to suggest an edit.
QSZ-92 (Type 92) Chinese 9mm/5.8mm Semi-Automatic Pistol
Other

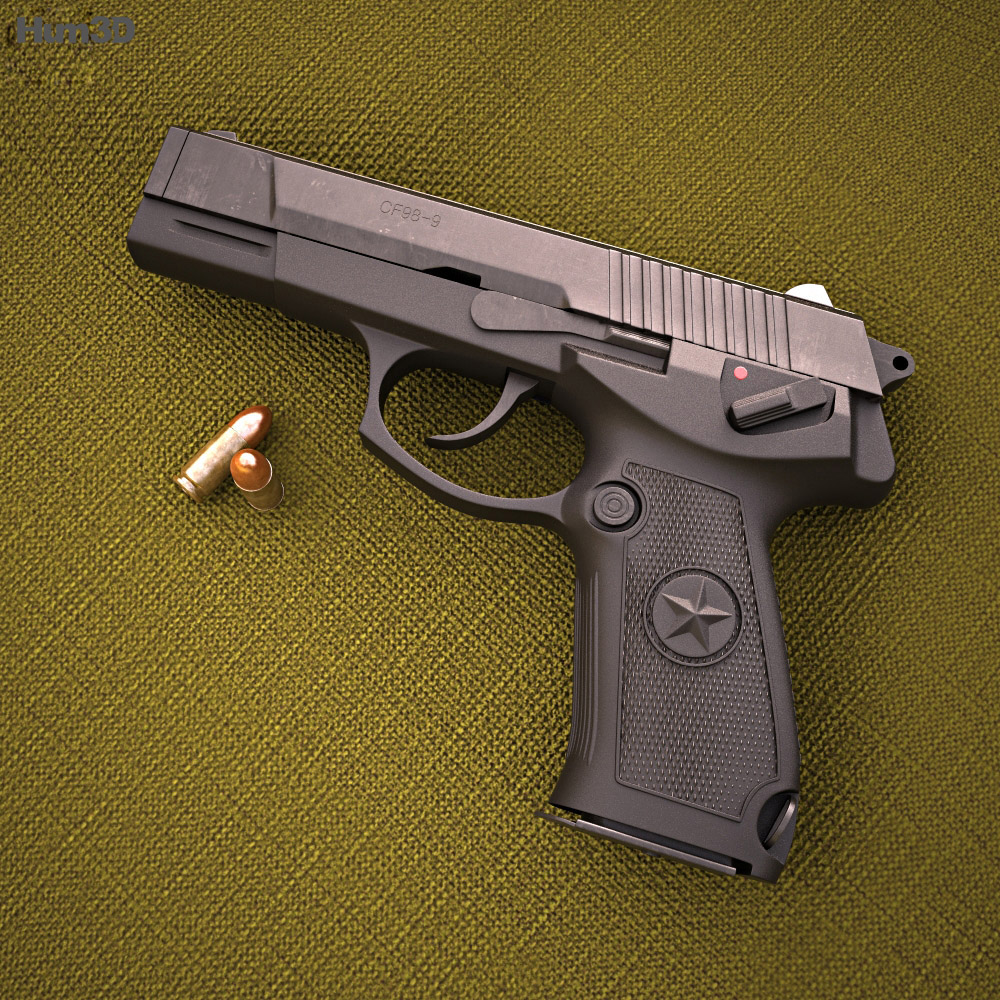

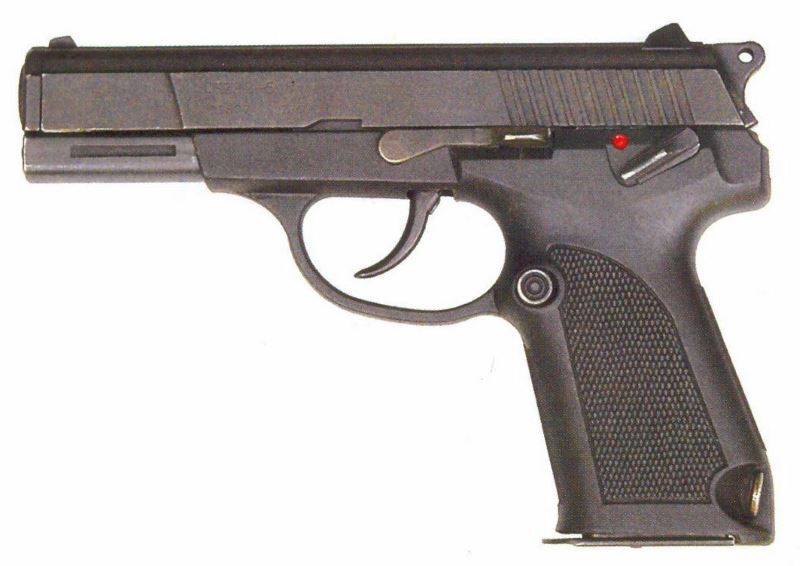

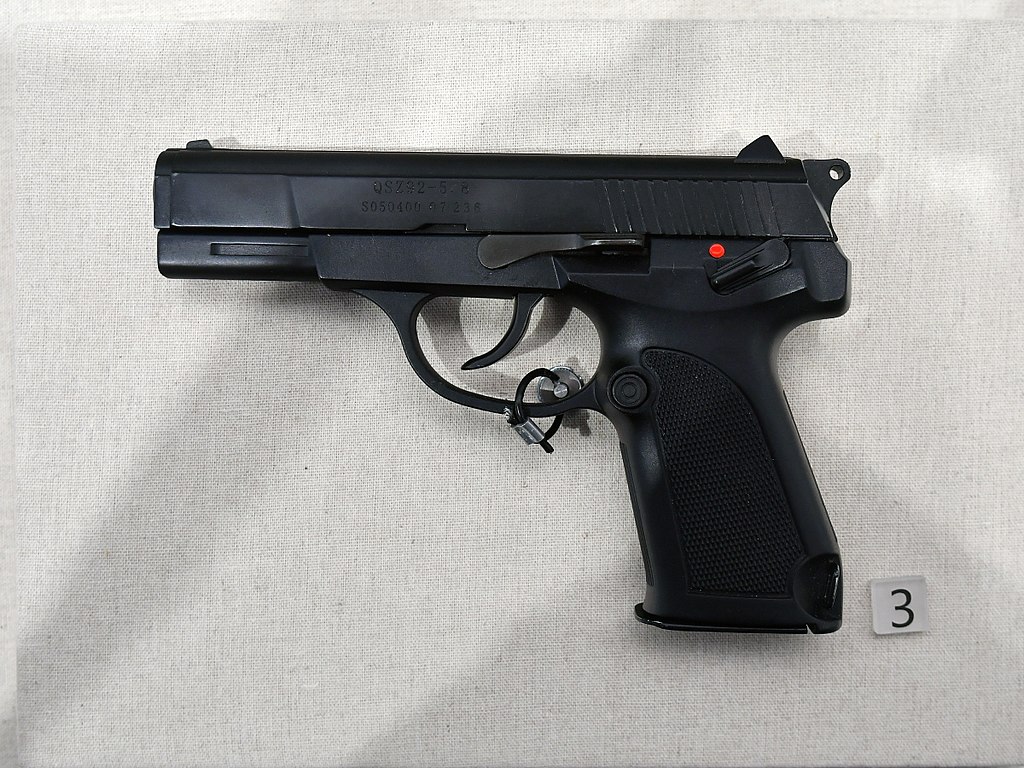

QSZ-92_Pistol(B).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
QSZ-92 (Type 92) Chinese 9mm/5.8mm Semi-Automatic Pistol
Designation
QSZ-92
Alternate Designation
QSZ-92; Type 92
Equipment Type
Pistol
Manufacturer
Changfeng Machine Shop
Date of Introduction
1996
Description

The Type 92 / QSZ-92 is a modern military pistol that is now a standard sidearm of the Chinese People’s Liberation Army (PLA) and many police organizations inside China. Designed during the early 1990s and currently manufactured by state-owned ordnance organizations, it is now available in two externally similar, but internally different versions. The first one, intended for military use inside China, is the QSZ92-5.8. It is chambered for indigenous 5.8×42 DAP-5.8 ammunition, which is loaded with pointed, steel-core bullets. The second version, known as QSZ92-9, is primarily intended for police use and is chambered for ubiquitous 9×19 Luger ammunition, which is known in Chinese service as DAP92-9. The latter version is also manufactured for commercial, and export sales as NORINCO NP-42 and CF-98, with slight variations in markings and external appearance. The CF-98 is also available chambered for 7.62×25 Tokarev ammunition.

Variants
QSZ-92 basic variant, which chambers the bottlenecked 5.8x21mm DAP92 ammunition or 9×19mm Parabellum. Its R50 value is smaller than 5 cm, R100 value smaller than 11 cm. Its failure rate is lower than 2 out of 1000 and its lifespan is 3000 rounds.
QSZ-92-5.8 Military version for PLA infantry and officer.
QSZ-92-9 Police version.
QSZ-92G redesigned variant with improved reliability, ergonomics and under-rail for attachments. barrel life span is increased to 10,000 rounds.
QSZ-92G-5.8 Military version.
QSZ-92G-9 Police version.
CF98 export variant chambering 9×19mm Parabellum with a lifespan of 8000 rounds.
NP42 redesigned export variant chambering 9×19mm Parabellum with a lifespan of 10000 rounds, staggered-feed capacity of 15/10 rounds, and a decreased failure rate of 1 out of 1000. Its accuracy has been improved, with a R50 value of smaller than 4 cm and R100 value of less than 9 cm.
CS/LP5 compact pistol chambered in 9mm with 7 round magazines and a service life of 8,000 rounds.
NP34 Same version, except with a service life of 10,000 rounds and sold with 13 round magazines.
System
Alternate Designation QSZ-92; Type 92
Caliber 9mm / 5.8mm
Type Semi-Automatic Pistol
Manufacturer Changfeng Machine Shop
Length 190 mm
Barrel Length 111 mm
Width 35 mm
Height 135 mm
Weight 760 g
Action Short recoil, locked breech, rotating barrel lock
Muzzle Velocity 350 m/s
Effective Firing Range 50 m
Feed System Detachable box magazine; capacities:15 rounds (9×19mm) / 20 rounds (5.8×21mm)
Sights Fixed, 3-dot type
Ammunition
Type Rifle
Caliber 9mm / 5.8mm
Cartridge 9×19mm Parabellum / 5.8×21mm DAP92
Basic Load 15 Rounds
Image Sources
Notes https://modernfirearms.net/en/handguns/handguns-en/china-semi-automatic-pistols/tip-92-qsz-92-eng/; https://www.wikiwand.com/en/QSZ-92; https://3dmodels.org/3d-models/qsz-92/;
Details
Country of Origin China
Category Land
Land
Filter Label
Q
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.19 m
Width
0.04 m
Height
0.14 m
Weight
0.76 kg
Operators (5)
China
Bangladesh
Cambodia
Guinea
South Sudan
