Azmat Class Pakistani Fast Attack Craft

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Azmat Class Pakistani Fast Attack Craft
Designation
Alternate Designation
Equipment Type
Manufacturer
Date of Introduction
2012
Description

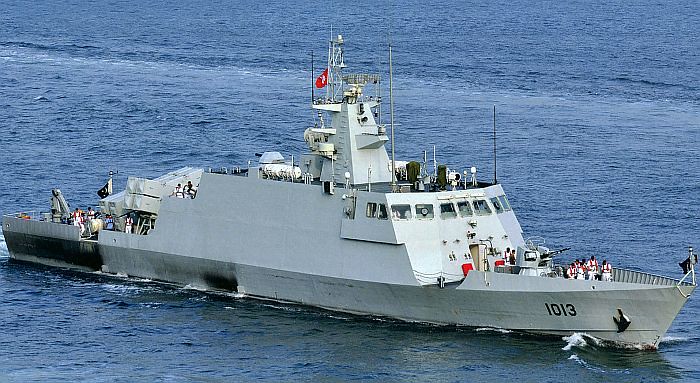

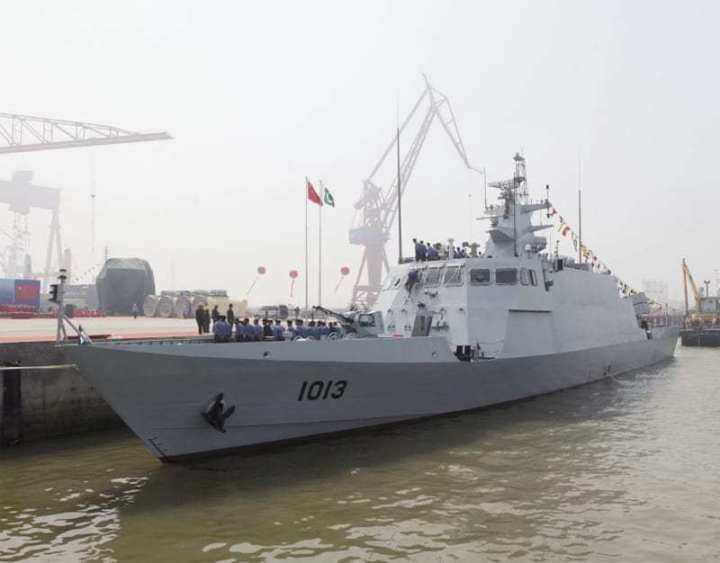

PNS Azmat is the lead ship of the Azmat class fast attack crafts of the Pakistan Navy and is based on the Chinese Type 037II Houjian-class missile boat. Azmat was commissioned on 24 April 2012 at Tianjin, China after being launched on 20 September 2011. It has the pennant number 1013. PNS Azmat is considered by many[citation needed] as a stealth boat, due to its hull and design, even though it was not so designed. The small fast attack craft is a green water vessel and does not have blue water capabilities, and so it is mostly used to patrol the coast, and to assist the Coast Guard in any special operations that require extensive firepower. PNS Azmat is equipped with eight C-802 anti-ship cruise missiles, carried in two quadruple missile containers. The vessel uses a fully automatic 23 mm gun. The decision to install the 23 mm gun was due to lack of hull space, which meant less storage area for 75-100 mm rounds required for larger guns and weight requirements. Also a 23 mm gun is much easier to maintain than larger 75 mm to 100 mm guns. For its defensive capabilities, Azmat uses a CIWS. Also, the boat's speed itself is also considered as a defense system, as it can outmaneuver older, less maneuverable anti-ship missiles.

Naval & Littoral Specifications
Crew 12
Displacement 560.00 tonnes
Beam 8.76 m
Draft 2.46 m
Max Speed 30.0 knots
Variants
Azmat Commissioned: 2012 Status: Active
Dehshat Commissioned: 2014 Status: Active
Himmat Commissioned: 2017 Status: Active
System
Alternative Designations PNS Azmat (Azmat Class)
Class and Type Fast attack craft
Builder China State Shipbuilding Corporation, Xingang
Mission The fast attack craft can be deployed in maritime patrol, anti-surface warfare, anti-air warfare, search-and-rescue (SAR) and anti-piracy missions.
Crew 12-14 ea
Dimensions
Length 62.97 m
Beam 8.76 m
Draft 2.46 m
Displacement 560 tons
Automotive
Engine Name INA
Engine Type Diesel
Engine Power INA
Number of Engines 4 ea
Propellers Fixed Pitch Propellers (FPPs) through a pair of two propulsion shafts.
Maximum Speed 30 knots
Maximum Range 1,000 nm
Gun Weapon Systems
Gun Weapon System #1
Name 1 x AK-630
Type Close-In Weapon System (CIWS)
Caliber 30 mm
Configuration In "630", "6" means 6 barrels and "30" means 30 mm.
Mission The system's primary purpose is defense against anti-ship missiles and other precision guided weapons. However it can also be employed against fixed or rotary wing aircraft, ships and other small craft, coastal targets, and floating mines.
Turret It is mounted in an enclosed automatic turret.
Radar 1 x MR-123 radar and television detection and tracking.
Barrel Length 1,629 mm (total) 1,460 mm (rifled)
Width 1,240 mm (mount ring)
Weight Gun mount: 1,000 kg (2,200 lb) (AK-630) 1,800 kg (4,000 lb) (AK-630M) 2,500 kg (5,500 lb) (AK-630M-2) External nodes: 800 kg (1,800 lb) (AK-630) 2000 rounds in belt: 1,918 kg (4,228 lb)
Height 1,070 mm (42 in) (above deck)
Crew 1
Barrels 6
Action Gas-operated rotary cannon
Elevation +88° ... -12° (50°/sec)
Traverse ±180° (70°/sec)
Rate of Fire 4,000–5,000 rounds/min
Effective Firing Range 4,000 m (aerial) 5,000 m (maritime)
Muzzle Velocity 880–900 m/s
Maximum Firing Range the projectiles self-destruct past 5,000 m range.
Feed System Belt: 2,000 rounds (additional 1,000 rounds in reserve feed bin.
Sights Radar / TV-optical
Gun Weapon System #1 Ammunition
Shell HEI-Frag, Frag-T
Caliber 30×165mm AO-18
Shell Weight 0.39 kg
Basic Load INA
Missile System
Name 2 x C-802
Type Anti-Ship Cruise Missile
Manufacturer China Aerospace Science and Industry Corporation
Proliferation Widely Proliferated
In Service 1998-Present
Engine TRI 60-2 turbojet
Maximum Range 65 nautical miles (120 km)
Guidance System Inertial navigation/active radar homing terminal guidance
Note The C-802 which is a export variant of the YJ-83 (NATO: CSS-N-8 Saccade)
Protection
Hull INA
NBC Washdown Yes
Note The boat's speed itself is also considered as a defense system, as it can outmaneuver older, less maneuverable anti-ship missiles.
Details
Country of Origin Pakistan
Category Naval
Naval
Filter Label
A
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
62.97 m
Width
Height
Weight
Operators (1)
Pakistan
