TBR-115 Chinese VHF transceiver
TBR-115
VHF Radio
Other
Basic Information
Name
TBR-115 Chinese VHF transceiver
Designation
TBR-115
Alternate Designation
TBR-115
Equipment Type
VHF Radio
Manufacturer
—
Date of Introduction
1992
Description
The TBR-115 Chinese VHF transceiver is a result of Sino-American technology transfer taken place in early 80s during so-called “Honeymoon” period. It is modeled after Racal 4720 and is designed to equip battalion-company- platoon level commanding personal in infantry, artillery, airborne and marine units, replacing 861(A), 862(A), 823, 7011 transceivers and other similar radios. It also could communicate with 861, 823, 884, 7011 and other transceiver working within its frequency range. With the technology transfer, design work was started in mid 80s and the machine was certified in early 90s, likely in 1992. It is still current PLA equipment as of 2008. However, TBR-115 is starting to phase out of PLA front line units.
Ground Specifications
Crew
1
System
Alternative Designation
TBR-115
Type
VHF Transceiver
Crew
1 ea
Frequency
It works within 40.000 to 59.975 MHz with 800 possible channels (25KHz between channels).
Preset Channels
It is controlled by a microprocessor with frequency syntheses and 10 programmed channels.
Output Power
The radio’s power output has two levels. High output level is no less than 1W, and low output level is about 0.2W.
Antenna
it uses a 1.3 meter rod type antenna.

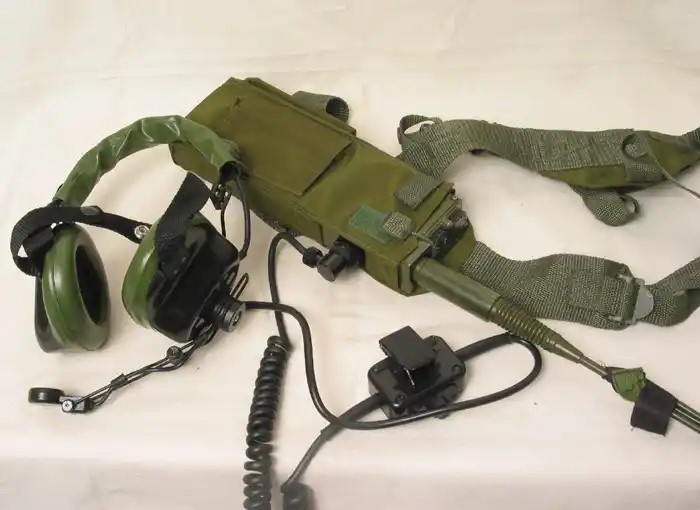

Headset
Yes
Speaker
Yes
Communication Distance
INA
Battery

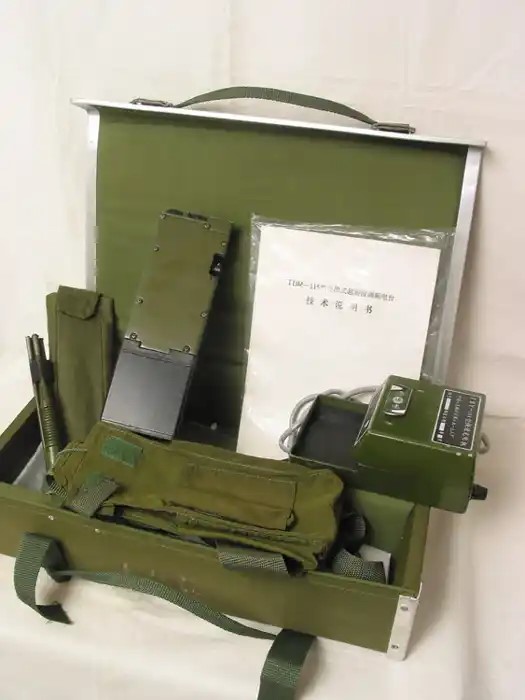

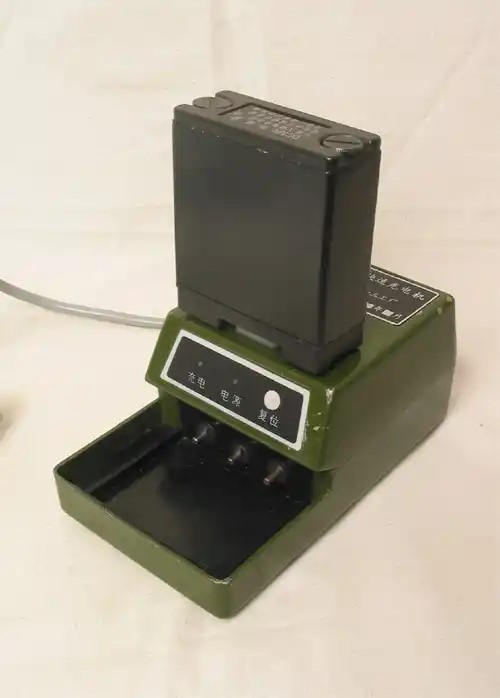

The radio is powered by a 12V NiCad or NiMH rechargeable battery pack. An automatic battery charger is supplied with radio. When the battery power is dropped beyond operational voltage, there is an audio beep and LCD flashes to remind operator to change the battery pack.
Note
This radio transceiver is designed to be carried by infantry battalion-company- platoons level commanding personals without need of a radio operator.

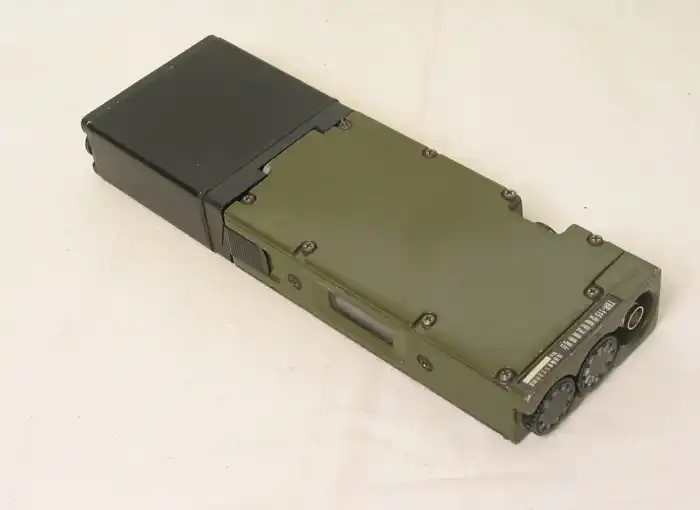

Dimensions
Length
240 mm
Width
78 mm
Height
32 mm
Weight, Combat
1.9 kg
Details
Country of Origin
China
Category
Very High Frequency (VHF) Radios
Land > Communication Equipment > Very High Frequency (VHF) Radios
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.24 m
Width
0.08 m
Height
0.03 m
Weight
1.9 kg
Operators (1)
China
