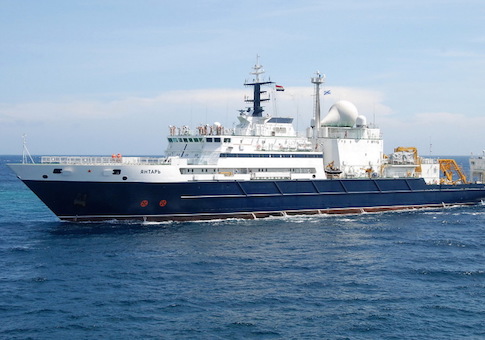

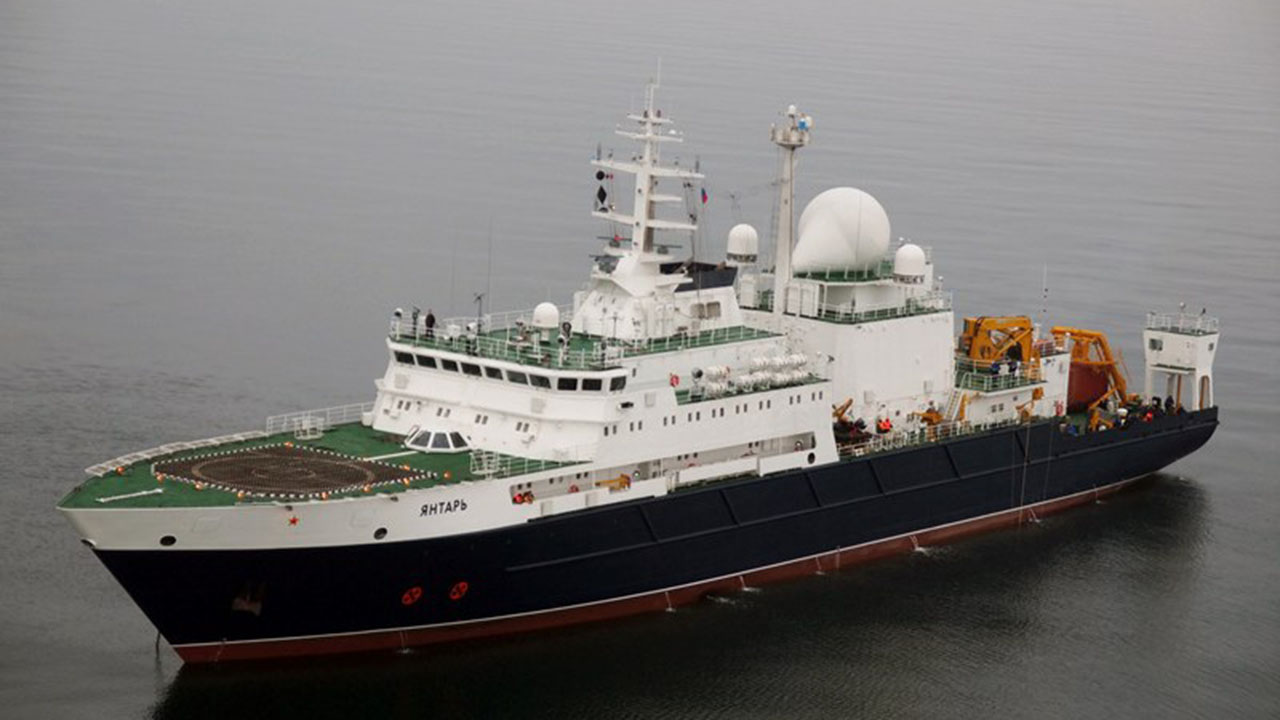

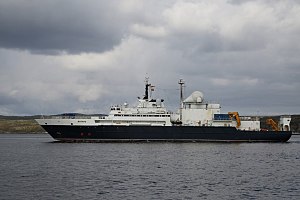

Yantar Class (Project 22010 Class) Russian Intelligence Collection Ship

Yantar Class

Intelligence-Collection and Missile-Range Instrumentation Ship
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Yantar Class (Project 22010 Class) Russian Intelligence Collection Ship
Designation
Yantar Class
Alternate Designation
Yantar Class; Project 22010 Class
Equipment Type
Intelligence-Collection and Missile-Range Instrumentation Ship
Manufacturer
Date of Introduction
2015
Description

The Yantar Class is a special purpose intelligence collection ship built for the Russian Navy. The ship has been operated by the Russian Navy's Main Directorate of Underwater Research (GUGI) since 2015 and is reportedly a spy ship. The vessel's home port is Severomorsk, where it is attached to the Northern Fleet. A sister Project 22010-class ship "Almaz" is also under construction. Yantar was designed by the CMDB Almaz Design Bureau in St. Petersburg, and the hull was laid down on 8 July 2010. It was launched in December 2012 and concluded its sea trials in May 2015. The ship has a length of 108 meters (354 ft) and a full displacement of 5,736 tons. It uses diesel-electric propulsion for a top speed of approximately 15 knots (28 km/h; 17 mph). It officially has a complement of 60. The ship was built at the Yantar Shipyard in Kaliningrad. Yantar can act as a mothership to mini-subs. The United States Navy has stated that the submersibles are able to sever cables miles beneath the ocean's surface. The submersibles are reportedly capable of operating at depths of up to 6,000 meters (20,000 ft). The submersibles are reportedly the project 16810 Rus-class submersible and the project 16811 Konsul-class submersible. According to Alexei Burilichev, head of the Russian Defense Ministry's deepwater research department, Yantar is an oceanic research complex. Yantar has been reported in position near undersea telecommunications cables. In 2015, Yantar was spotted off the coast of Guantánamo Bay, Cuba. In summer 2016, Yantar was anchored outside the Nuuk, Greenland. In 2017, Yantar was active in the eastern Mediterranean, near an undersea cable linking Israel to Cyprus. It was also reportedly used to recover "secret equipment" from crashed Su-33 and MiG-29 aircraft. On 23 November 2017, upon order of Russian President Vladimir Putin, Yantar and the specialists of the Russian Navy's 328th expedition search and rescue unit were sent to Argentina's coast to search for the Argentine submarine ARA San Juan that went missing on 15 November 2017. In Summer 2018, she was deployed to the Mediterranean off the Syrian coast. In November 2019, Yantar visited Trinidad and Tobago.

Naval & Littoral Specifications
Crew 60
Beam 17.20 m
Variants
Yanter Commissioned: 2012 Status: Active Fleet: INA
Almaz Under Construction as of February 2021.
System
Alternative Designation Yantar Class; Project 22010 Class
Type Intelligence Collection Ship
Builder Yantar Shipyard
Crew 60 ea
Dimensions
Length 107.8 m
Beam 17.2 m
Draft INA
Displacement, Full Load 5,736 tons
Propulsion System
Engine Name INA
Engine Type 2 × Electric Motors
Engine Power 3400 hp each
Main Generators 4 × 1600 kW diesel generators
Auxiliary Generators 2 × 1080 kW diesel generators
Propellers 2 azipods with fixed pitch propellers
Bow Thrusters 2
Maximum Range 8,000 nmi (15,000 km; 9,200 mi)
Maximum Speed 15 kn (28 km/h; 17 mph)
Endurance 60 days
Main Weapon System
Note There is no unclassified information available about the Weapon Systems onboard the Yantar Class Vessels.
Onboard Aviation Facilities
Facilities 1 x Helipad
Helicopters 1 x Heliopter (Name: INA)
Boats and Landing Craft Carried
Autonomous Underwater Vehicles (AUV) 2 x deep-diving autonomous underwater vehicles
AUV #1 1 x Rus-class (Project 16810)
AUV#2 1 x Konsul-class (Project 16811)
Protection
Hull Armor INA
Electronic Warfare INA
Decoys INA
NBC Protection Yes
Details
Country of Origin Russia
Category Naval
Naval
Filter Label
Y
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
107.8 m
Width
Height
Weight
Operators (1)
Russia
