IF1200 American Unmanned Aerial Vehicle (UAV)

IF1200

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.

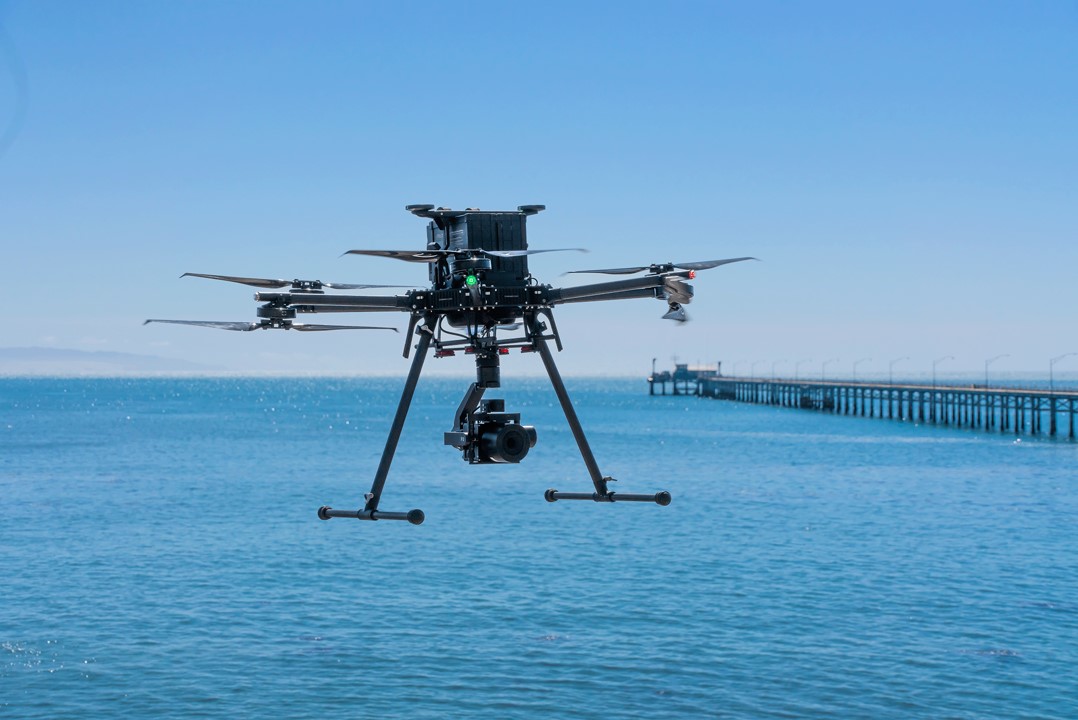

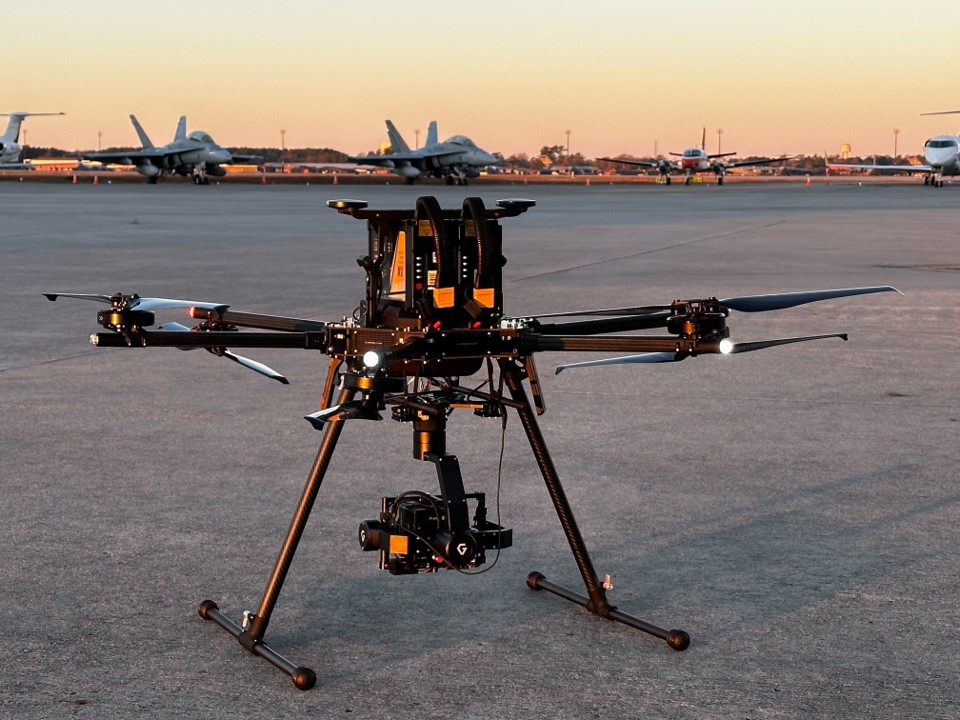

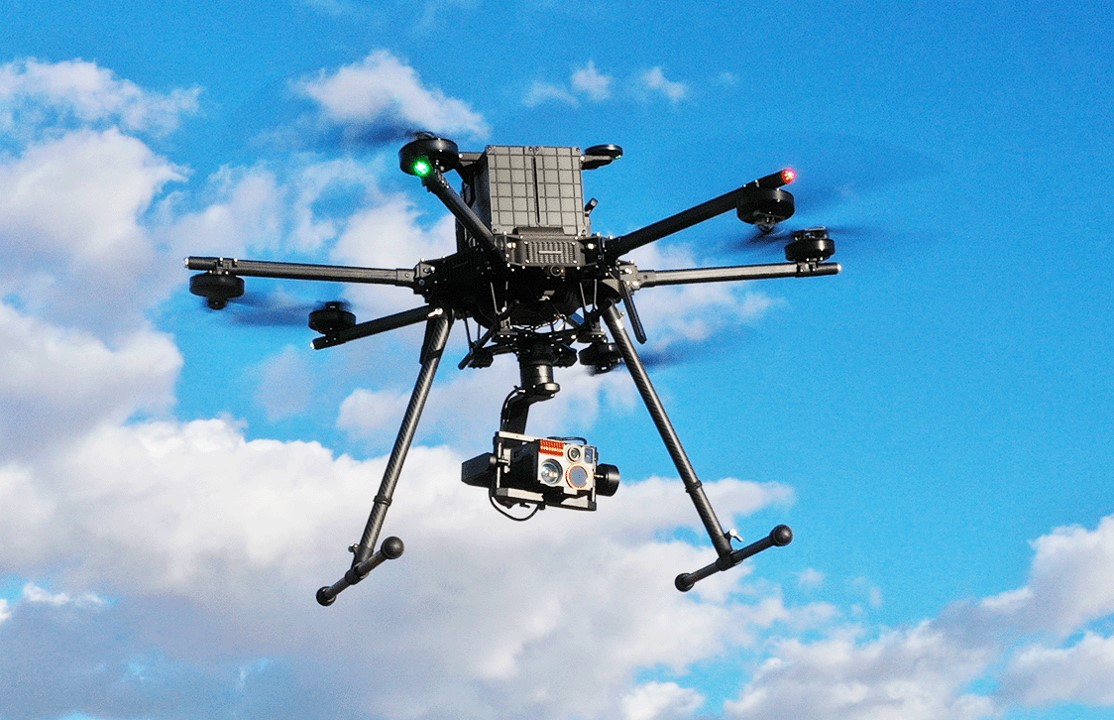

IF1200 American Unmanned Aerial Vehicle (UAV)
Other
IF1200 American UAV (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
IF1200 American Unmanned Aerial Vehicle (UAV)
Designation
IF1200
Alternate Designation
IF1200
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Inspired Flight
Date of Introduction
2023
Description

The IF1200 American Unmanned Aerial Vehicle (UAV) is designed for repeatable and robust workflows in the most demanding applications including, but not limited to, powerline inspections, precise LiDAR mapping, aerial photogrammetry, rapid emergency response, vital government tasks, and so much more. The IF1200 enables users to complete their objectives safely while vastly improving operational efficiency and bottom-line.

Air & Air Defense Specifications
Engine Battery
Payload Capacity 8 kg
System
Alternate Designation IF1200
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Inspired Flight
Payload Capacity 8.7 kg
Flight Modes Position Hold: Automatically holds altitude and position, manually change position; Loiter: Holds altitude and position, precision manual movements using GPS; Auto: Executes pre-defined waypoint mission; RTL: Auto returns to takeoff location and lands; Land: Auto land while maintaining horizontal position; Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
Dimensions
Diagonal Size (propeller center to center) 1,025 mm
Unfolded Size (flight ready, WxLxH) 65.5 x 154 x 76.5 cm
Folded Size (stow, WxLxH) 47.5 x 49.5 x 47 cm
Empty Weight (w/o batteries) 7.8 kg
Weight w/ Batteries 16.3 kg
Max Gross Takeoff Weight 25 kg
Transport Case Size (WxLxH) 64.8 x 64.8 x 58.4 cm
Transport Case Weight (w/ aircraft) 29 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Max Ascent Speed 5 m/s
Max Descent Speed 2.5 m/s
Max Air Speed 25 m/s
Max Wind Resistance 12 m/s, 15 m/s gusts
Service Ceiling (with given payload) .9 km (12,800 ft) w/ 4kg, 2.2 km (7,200 ft) w/ 8.7 kg
Image Sources
Notes https://uavcoach.com/if800-tomcat/; https://www.linkedin.com/in/bobby-calizon-a80a95a9; https://www.grepow.com/tag/uav-battery.html?page=3;
Details
Country of Origin United States
Category UAVs
Air > UAVs
Filter Label
I
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
25 kg
Operators (1)
United States
