Eagle IV Swiss 4x4 Reconnaissance Vehicle

Eagle IV

Armored Reconnaissance Vehicle

Spotted an error? Sign in to suggest an edit.

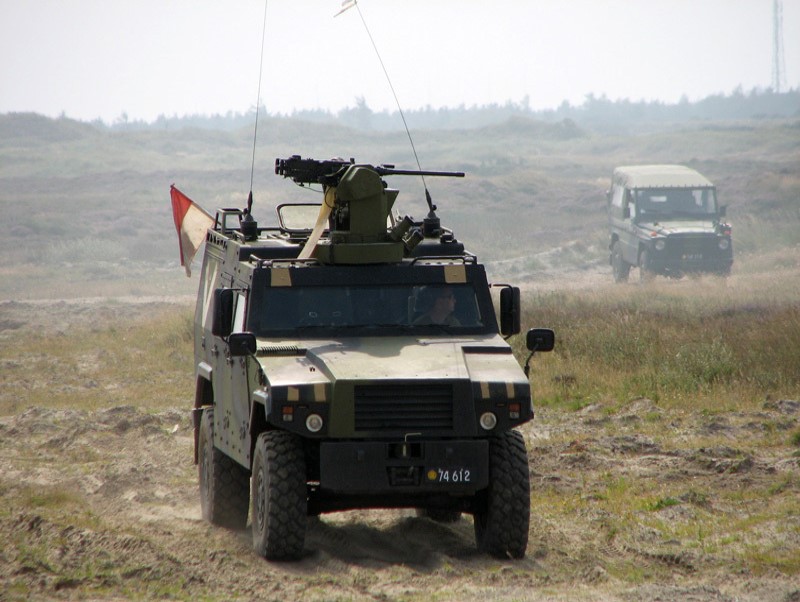

Eagle IV Swiss 4x4 Reconnaissance Vehicle — Eagle_IV_Military_Tactical_Vehicle(C).jpgTRADOC ODIN WEG

Basic Information

Name

Eagle IV Swiss 4x4 Reconnaissance Vehicle

Designation

Eagle IV

Alternate Designation

Eagle IV

Equipment Type

Armored Reconnaissance Vehicle

Manufacturer

General Dynamics European Land Systems-Mowag, Kreuzlingen, Switzerland General Dynamics European land Systems-Germany, Kaiserslautern, Germany

Date of Introduction

2003

Description

The Eagle IV Swiss 4x4 Reconnaissance Vehicle is suited as a platform for mission roles such as reconnaissance, surveillance, command or military police tasks. It is based on the advanced Mowag Duro 3 chassis technology with roll stabilizer and the De-Dion axle system. Along with the permanent all-wheel drive system, the roll stabilizer and axle system help give the vehicle high off- and on-road mobility. The Eagle IV is also capable of carrying a high payload with a low gross vehicle weight. It can be equipped with an NBC overpressure system, central tire inflation system (CTIS), winch, mission-specific cargo module and an optional EURO IV engine. The vehicle can also be fitted with an overhead weapon station.

Ground Specifications

Crew 4

Mobility Type Wheeled (4x4)

Main Weapon 7.62-mm machine gun

Engine 5.9 liter (360 cu in) turbo common rail 4-stroke diesel (250 hp)

Active Protection None

Max Speed 120.0 km/h

Range 480.0 km

Variants

Eagle I INA

Eagle II Reconnaissance Vehicle This variant is slightly heavier than the Eagle I with a better power-to-weight ratio. The chassis is based on the enhanced capability vehicle (ECV) Humvee. It is fitted with a metal and composite armor shell capable of withstanding NATO Standard Agreement (STANAG) Level II or III threats. A Mowag armored MBk2 observation cupola is fitted.

Eagle III Artillery Forward Observation Vehicle This vehicle is used for target surveillance, acquisition, observation, reconnaissance and patrol missions. It carries a crew of four (driver, surveyor, forward observer and signals operator). Panoramic bulletproof windows ring the vehicle, which is fitted with a raised roof. It is protected by high-hardness armored steel and composite armor. Additional mine protection is available as an option.

Eagle IV Military Tactical Vehicle The military tactical vehicle is suited as a platform for mission roles such as reconnaissance, surveillance, command or military police tasks. It is based on the advanced Mowag Duro 3 chassis technology with roll stabilizer and the De-Dion axle system. Along with the permanent all-wheel drive system, the roll stabilizer and axle system help give the vehicle high off- and on-road mobility.

Eagle V This is a further development of the Eagle IV with a larger payload capacity, internal volume and increased crew protection, while providing the same mobility. The vehicles can be optimized for different missions with the application of modular add-on kits. It is available in 4 x 4 and 6 x 6 variants. The former was made public in 2010 and the latter in 2012. The two variants are about 80 percent common.

Eagle BAT ambulance This ambulance accommodates an emergency doctor, rescue assistant and a driver/paramedic. The vehicle permits patient transport and emergency treatment under protection.

Eagle V 6 x 6 The is a 6 x6 compact off-road vehicle powered by a six-cylinder turbo-diesel engine coupled to a five-speed automatic transmission and a two-stage transfer case.

VERO robotics kit Developed by Ruag Defence in Switzerland, this is a robotics kit that can be retrofitted onto the Eagle IV, among other vehicles.

System

Alternative Designation Eagle IV

Type Reconnaissance Vehicle

Manufacturer General Dynamics European Land Systems-Mowag, Kreuzlingen, Switzerland General Dynamics European land Systems-Germany, Kaiserslautern, Germany

Family Eagle Series

Crew 4 (driver, commander, signals operator, observer)

Passenger Capacity INA

Dimensions

Length 5.40 m

Width 2.16 m

Height 2.40 m

Weight, Combat 7,400 kg

Weight, Empty 5,000 kg

Weight, Gross 8,500 kg

Payload 2,200 kg

Automotive

Engine Name 1 x Cummins ISBe

Engine Type 5.9 liter (360 cu in) turbo common rail 4-stroke diesel

Engine Power 250 hp (184 kW)

Fuel Capacity 180 liters

Transmission Allison 1000 5-speed automatic

Acceleration 11 sec (0-50 kph, 0-31 mph)

Range 480 km

Speed, Maximum Road 120 km/h

Speed, Average Cross INA

Speed Maximum Swim Not Amphibious

Fording Depth 0.8 m

Gradient 60 percent

Side Slope 40 percent

Vertical Step 0.5 m

Trench 0.5 m

Turning Diameter 16.5 m

Main Gun

Note 1 x 7.62-mm machine gun facing forward in turret. Name of 7.62mm Machine Gun: INA

Fire Control

Name INA

Computerized FCS No

Main Gun Stabilization No

Protection

Hull Armor Protection against 5.56-mm and 7.62-mm ball ammo from 33 yds (30 m) and up; and protection against 7.62-mm steel jacket ammo from 109 yds (100 m) and up

Turret Armor Protection against 5.56-mm and 7.62-mm ball ammo from 33 yds (30 m) and up; and protection against 7.62-mm steel jacket ammo from 109 yds (100 m) and up

Applique Armor Available, The Eagle IV is armored with composite plates mounted to the inner face of aluminum plates to provide a high-level of ballistic protection. A non-armored version is also available.

Explosive Reactive Armor No

Active Protection System No

Mine Clearing No

NBC Protection Yes, Overpressure System

Smoke Equipment Yes, 6 x smoke-grenade launchers facing rear from turret

Image Sources

Notes https://www.armyrecognition.com/wheeled_armoured_vehicles_swiss_switzerland_army_u/eagle_iv_4_wheeled_armoured_vehicle_data_sheet_description_information_intelligence_identification_p.html; https://www.militarytoday.com/trucks/mowag_eagle_iv.htm;

Details

Country of Origin Switzerland

Category Reconnaissance Vehicles

Land > Infantry Vehicles > Reconnaissance Vehicles

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

5.4 m

Width

2.16 m

Height

2.4 m

Weight

7400 kg

Operators (3)

Germany

Denmark

Switzerland
