RABDAN RECOVERY Emirati 8x8 Armored Recovery Vehicle
RABDAN RECOVERY
Armored Recovery Vehicle
Other
Basic Information
Name
RABDAN RECOVERY Emirati 8x8 Armored Recovery Vehicle
Designation
RABDAN RECOVERY
Alternate Designation
RABDAN RECOVERY
Equipment Type
Armored Recovery Vehicle
Manufacturer
Al Jasoor
Date of Introduction
2025
Description

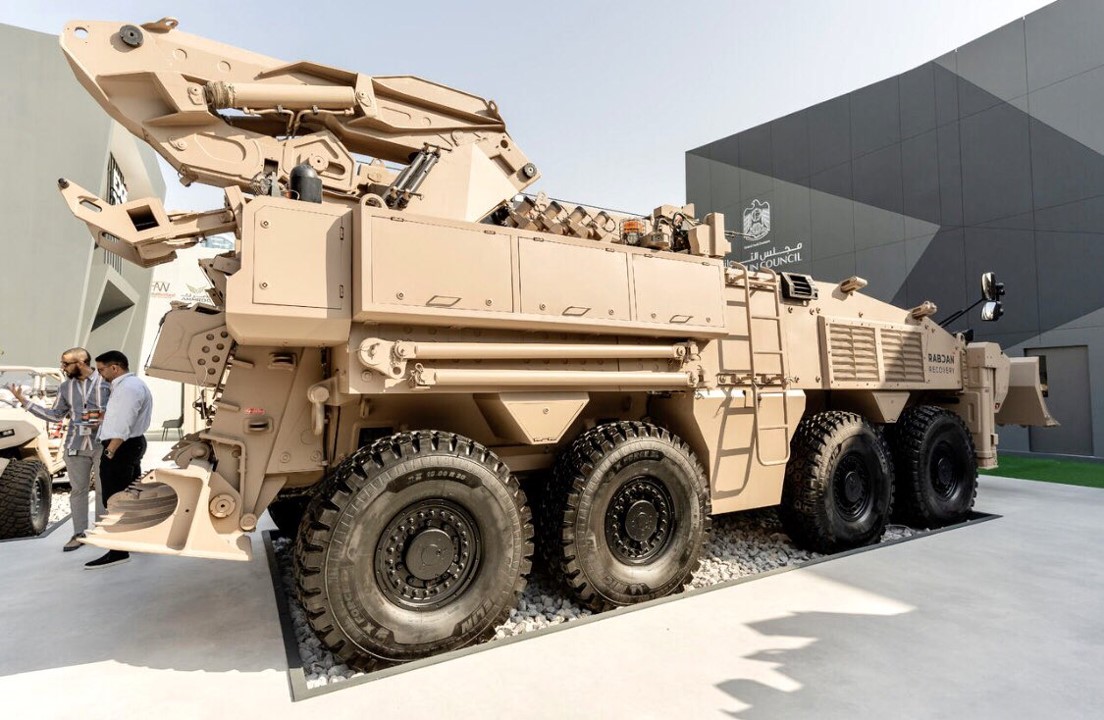

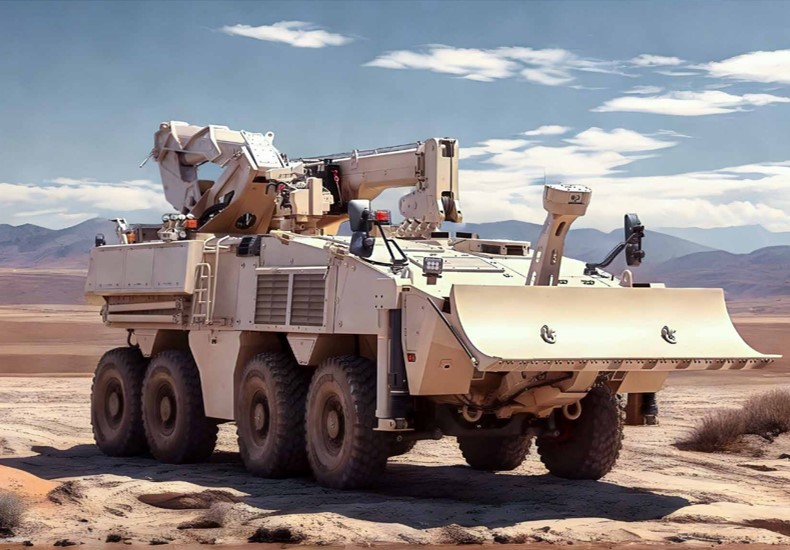

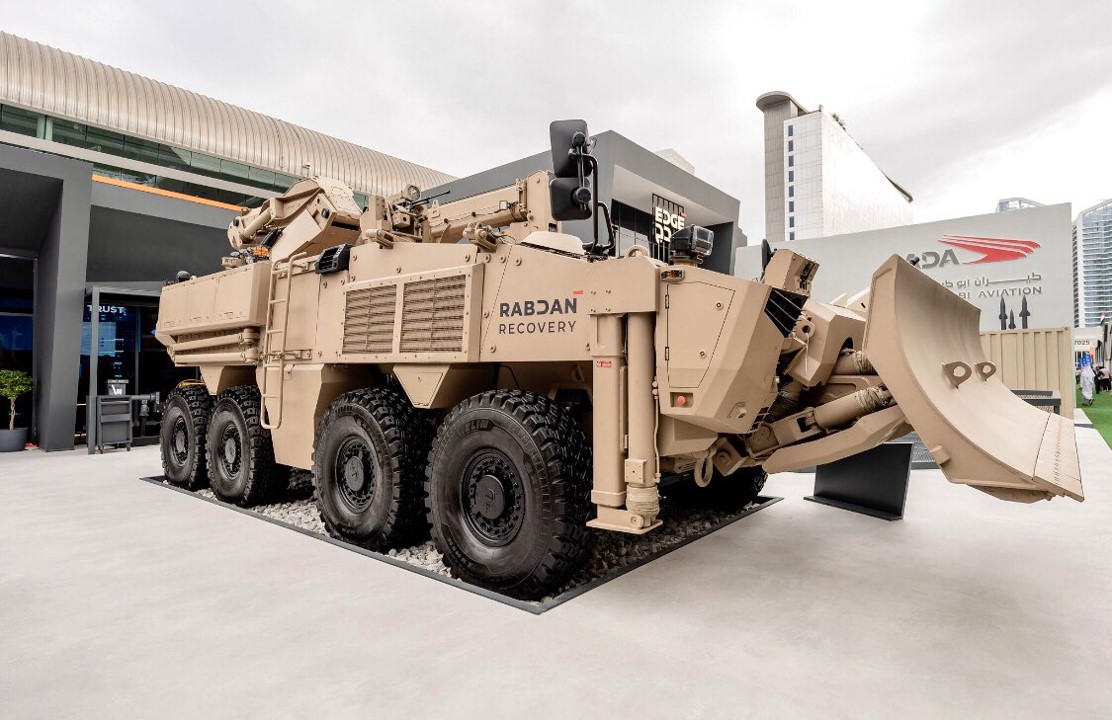

The RABDAN RECOVERY Emirati 8x8 Armored Recovery Vehicle is equipped with a long boom crane specifically designed to dismount, carry, and place turret systems, power packs, and protection kits, even under the harshest battlefield conditions. Additionally, with its specialized lifting and towing equipment, the 8x8 Recovery Vehicle can tow another 8x8 vehicle that has a missing first axle. It is highly capable of performing ground operations with its dozer blade and can effectively handle challenging recovery scenarios.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Engine
Turbocharged Diesel (720 hp)
Max Speed
90.0 km/h
Range
700.0 km
System
Alternative Designation
RABDAN RECOVERY
Type
Armored Recovery Vehicle
Manufacturer
Al Josoor
Configuration
8x8
Crew
3 ea
Recovery Winch
Hydraulic-operated winch with a pulling capacity of 35 tons, which can be doubled to 70 tons using a snatch block. It features both manual and remote control options.
Auxiliary Winch
Hydraulic Operated, 1 ton pulling capacity.
Telescopic Crane
Nominal crane capacity: 25 meter-tons ;
Maximum Horizontal Reach: greater than 6 meters;
Maximum Vertical Reach: greater than 8 meters;
Rotation Angle: 360 degrees ;
Control Options: Wired and Wireless
Optional Equipment
Radio and Intercommunication System Command, Control, Communications, Computers, and Intelligence (C4I) Navigation System (GPS/INS).
Note
Hydraulically operated side stabilizer legs and a rear anchor blade are used for leveling and stabilizing the vehicle during recovery operations. It also includes a portable generator, welding machine, Oxy-Fuel cutting kit, a set of snatch blocks and shackles, maintenance tools, stowage racks, and more.
Dimensions
Length
10.5 m
Width
3.35 m
Height
4.0 m
Weight, Combat
40,000 kg
Automotive
Engine Name
INA
Engine Type
Turbo Charged, Intercooled, Diesel
Engine Power
720 hp
Maximum Range
700 km
Maximum Speed
90 km/h
Amphibious
No
Climbing Capability
60%
Side Slope
30%
Ground Clearance
0.45 m
Vertical Obstacle Crossing (with recovery equipment)
0.6 m
Trench Crossing
2.0 m
Main Weapon System
Note
.
Protection
Armor
The 8x8 Recovery Vehicle has high ballistic and
mine protection and is designed to protect its crew
from the highest threats whilst on their mission to
safely and efficiently recover vehicles in battlefields
conditions.
Applique Armor
INA
NBC Protection
CBRN Filtration System
Smoke Equipment
Yes
Details
Country of Origin
United Arab Emirates
Category
Survivability
Land > Survivability
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.5 m
Width
3.35 m
Height
4 m
Weight
40000 kg
Operators (1)
United Arab Emirates
