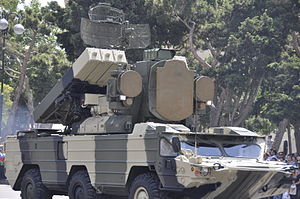

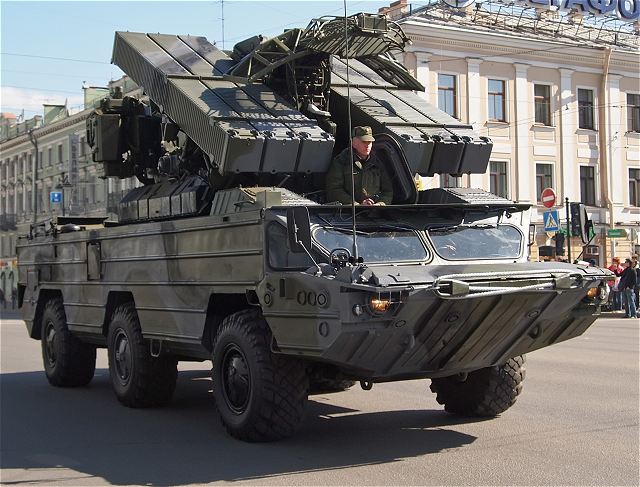

9K33 Osa (SA-8 Gecko) Russian 6x6 Amphibious Short-Range Tactical Surface-to-Air Missile System

9K33 Osa (SA-8 Gecko)

Short-Range Surface-to-Air Missile System
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
9K33 Osa (SA-8 Gecko) Russian 6x6 Amphibious Short-Range Tactical Surface-to-Air Missile System
Designation
9K33 Osa (SA-8 Gecko)
Alternate Designation
9K33 Osa (SA-8 Gecko)
Equipment Type
Short-Range Surface-to-Air Missile System
Manufacturer
Znamya Truda Plant
Date of Introduction
1971
Description

Hezbollah Proliferation. The 9K33 Osa (SA-8 Gecko) Russian 6x6 Amphibious Short-Range Tactical Surface-to-Air Missile System is a Russian-made highly mobile, low-altitude, short-range tactical surface-to-air missile system. "9K33" is its GRAU designation. The development program was protracted with major redesigns of both the missile and launch platform required. Extensive range testing of the Osa for the Land Forces was conducted at a test range in Kazakhstan in 1965 where many of the faults of the original system were discovered. The modified system was named Osa-M with most of the individual systems having to be redesigned and also many of the developing agencies changed. The Russian Army accepted the OSA-M for service in 1972. Series production of the system began in 1971. The SA-8 Gecko is intended for the defense on troops on the march and in mobile combat, as well as of strategic ground facilities against airstrikes delivered by manned or unmanned air vehicles flying at low and medium altitudes. All versions of the SA-8 Gecko feature an all-in-one 9A33 transporter erector launcher and radar(TELAR) vehicles which can detect, track and engage aircraft independently or with the aid of regimental surveillance radars.

Ground Specifications
Crew 5
Mobility Type Wheeled (6x6)
Main Weapon 6 x 9M33 Surface-to-Air Missile (SAM)
Engine Diesel (300 hp)
Active Protection None
Amphibious Yes
Max Speed 50.0 km/h
Range 500.0 km
Variants
SA-8 Gecko Began development in 1960 and was introduced in 1971-1972 with four exposed 9M33 missiles per TELAR and a maximum range of 12 km.
SA-N-4 Gecko Introduced in 1972 and is the naval version of the system with two 9M33M missiles on a Zif-122 retractable rotating launcher and improved performance. It has been installed on Gepard class frigate, Kara class guided missile cruisers, Kiev class VTOL cruisers and also the Kirov, Slava and Krivak classes.
SA-8B Gecko (OSA-AK) With TELAR 9A33BM2, the 9K33M2 "OSA-AK" was introduced in 1975 with the new six-missile box launcher, each 9M33M2 missile being a sealed round.
SA-8B Mod 0 / 9K33M3 "Osa-AKM" / Gecko Mod 1 With TELAR 9A33BM3 and missiles, the 9K33M3 was introduced in 1980 with the maximum range extended to 15 km (9.3 mi) and maximum altitude to 12 km (40,000 ft) as explained above. Most OSA-AKM systems also feature an IFF antenna.
Saman and Saman-M (Russian Саман – adobe) is a development of the Osa\Osa-M system into target drones, used for testing and training with air defense systems, including SAMs.
Osa-AKM w/ Polish and Czech Mods) Upgraded version of the SA-8B Gecko Mod-1 - Poland and Czech Republic made a local modification of SA-8 Gecko.
System
Alternative Designation 9K33 Osa (SA-8 Gecko)
Type Short-Range Tactical Surface-to-Air Missile System
Manufacturer Znamya Truda Plant
Family INA
Proliferation Hezbollah
In Service 1971-Present
Crew 5 ea
Chassis BAZ-5937
Displacement Time INA
Emplacement Time INA
Fire on the Move No, The Osa can not launch missiles on the move. It launches them from stationary position or from short stops.
Airborne Yes
Amphibious Yes
Note A battery of Osa consists of 4 combat vehicles and 2 reloading vehicles.
Dimensions
Length 9.1 m
Width 2.78 m
Height 4.20 m (radar mast stowed)
Weight, Combat 18 kg
Ground Pressure INA
Ground Clearance 400 mm
Automotive
Engine Name 2D20B Diesel
Engine Type Diesel
Engine Power 300 hp
Maximum Range 500 km
Speed, Maximum Road 50 km/h
Speed, Average Cross INA
Speed Maximum Swim 8 km/h
Gradient INA
Side Slope INA
Vertical Step 0.5
Trench 1.2
Fording Depth Amphibious
Communications
Tactical Radio Azart-P (4km), Azart-N (12km), and Azart-BM (40km).
Missile System
Launcher
Name 9A33 Transporter Erector Launcher and Radar (TELAR) Vehicle
Type TELAR
Note There is also a reloading vehicle, which is based on a similar BAZ-5939 chassis. It carries 18 reload missiles in containers and is fitted with a crane. All six missiles are reloaded within 5 minutes.
Missile
Name 6 x 9M33 Surface-to-Air Missile (SAM)
Type Surface-to-Air Missile (SAM)
Manufacturer Znamya Truda Plant
Missile Types Fired 9M33, 9M33M1, 9M33M2, 9M33M3, 9A33BM3
Length 3,158 mm
Diameter 209.6 mm
Missile Weight 170 kg
Warhead Type FRAG-HE
Detonation Mechanism Contact and proximity
Guidance System RF CLOS
Propellant Solid propellant rocket motor
Operational Range 15 km
Maximum Flight Altitude 4 km
Minimum Altitude over Land 50 m
Minimum Altitude over Water 25 m
Speed 1,020 m/s
Boost Time 2 seconds boost, then 15 seconds sustain
Steering System Dual-thrust rocket motor.
Accuracy 5.0 m
Basic Load 6 x 9M33 Surface-to-Air Missile (SAM)
Fire Control
Fire Control System
Name INA
Computerized FCS Yes
Direct Fire Yes
Indirect Fire Yes
Optics Infrared night-vision systems for commander and driver.
IFF Capable Yes
Target Acquisition and Fire Control Radar
Name Land Roll
Type Target acquisition and command guidance radar for the SA-8 Gecko
Band, Surveillance G-H (6-8 GHz)
Maximum Range, G-Band Surveillance Radar 20-30 km
Band, Tracking Radar J Band (14.2-14.8 GHz)
Maximum Range, H-Band Guidance Radar Radar 20-25 km
Band, Guidance Radar I Band (8-10 GHz)
Maximum Range, J-Band Detection Radar 20 km
Traverse Left 180 deg
Traverse Range 360 deg
Traverse Right 180 deg
Note #1 The normal SA-8 battery deployment consists of four SA-8 /Land Roll vehicles and one command vehicle. The SA-8 regiment headquarters consists of a Long Track radar or Thick Skin-B radar vehicle, as well as one command vehicle.
Note #2 The radar folds back 90 degrees to reduce the overall height of the vehicle for air transport or high-speed road travel.
Protection
Hull Armor INA
Turret Armor INA
Applique Armor No
Explosive Reactive Armor No
Active Protection System No
Mine Clearing No
Self-Entrenching Blade No
NBC Protection Yes, collective overpressure protection with air filtration
Smoke Equipment INA
Details
Country of Origin Russia
Filter Label
9
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.1 m
Width
2.78 m
Height
4.2 m
Weight
18 kg
Operators (19)
Russia
Ukraine
Poland
India
Belarus
Algeria
Armenia
Azerbaijan
Bulgaria
Cuba
Ecuador
Georgia
Greece
Jordan
Libya
Romania
Syria
Turkmenistan
Non-State Actors
