ACMAT ALTV French 4x4 Light Utility Vehicle
ACMAT ALTV
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
ACMAT ALTV French 4x4 Light Utility Vehicle
Designation
ACMAT ALTV
Alternate Designation
ACMAT ALTV; Airtransportable Vehicule Tactique Leger
Equipment Type
—
Manufacturer
—
Date of Introduction
2008
Description
The ALTV Light Tactical Vehicle is available with a two-door (ALTV SC) or four-door (ALTV DC) cab. An open-cab version (ALTV Torpedo) for special forces is also available. The vehicle has a payload capacity of 1.3 - 1.4 t, depending on the version. A cargo area in the rear can be used to carry troops, cargo, shelters, or standard ISO pallets. It is fitted with benches for troop transportation. The ALTV can carry up to 10 men both in the cab and cargo area. Bars and canvas cover for the cargo area are optional. The ALTV can be armed with a ring-mounted 7.62-mm or 12.7-mm machine gun, or a 40-mm automatic grenade launcher. The vehicle can be also used as a weapon carrier for anti-tank or anti-aircraft missiles. The engine compartment is equipped with a snorkel system for making shallow water crossings.
Ground Specifications
Crew
1
Troop Capacity
1
Engine
2.5 liter, in-line 4, turbocharged, 4 stroke, diesel (190 hp)
Active Protection
None
Variants

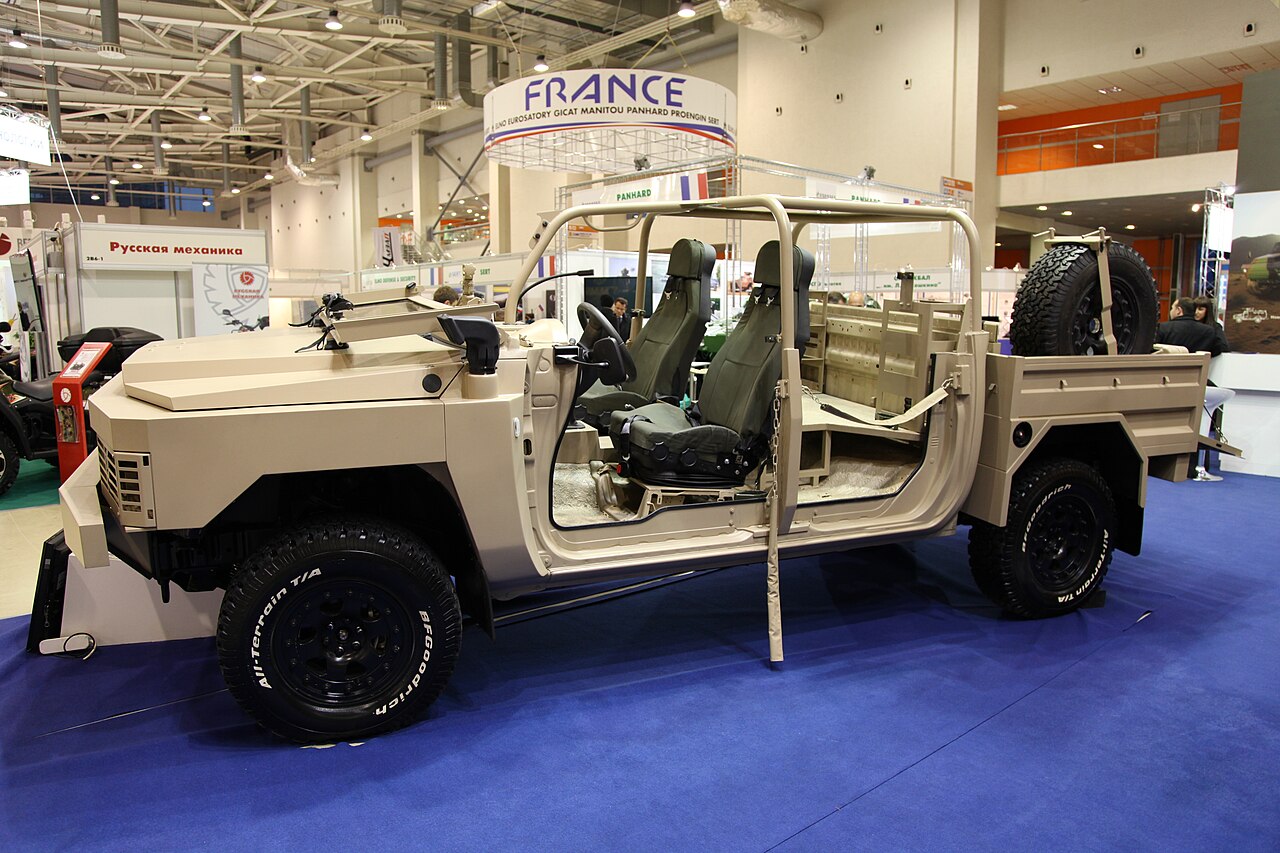

Torpedo
Open cab version. Missions include utility, fire support, reconnaissance and border surveillance, as well as recovery, cargo / troop / personnel transport, patrol, and ambulance. Anti-mine protection Level 1. he ALTV Torpedo can be fitted with 24-volt pre-equipment for radio communication systems. A self-recovery electric winch of 3,800 kg pulling force can be added at the front of the chassis.
ALTV SAN
Field ambulance version.
Crew: 2 in cab
Rear: 2 seats with 12 stretcher, or 1 folding seat with 4 stretchers
Length 5.47 m
Width 1.90 m
Height 2.50 m
ALT SW
Enclosed station wagon version.

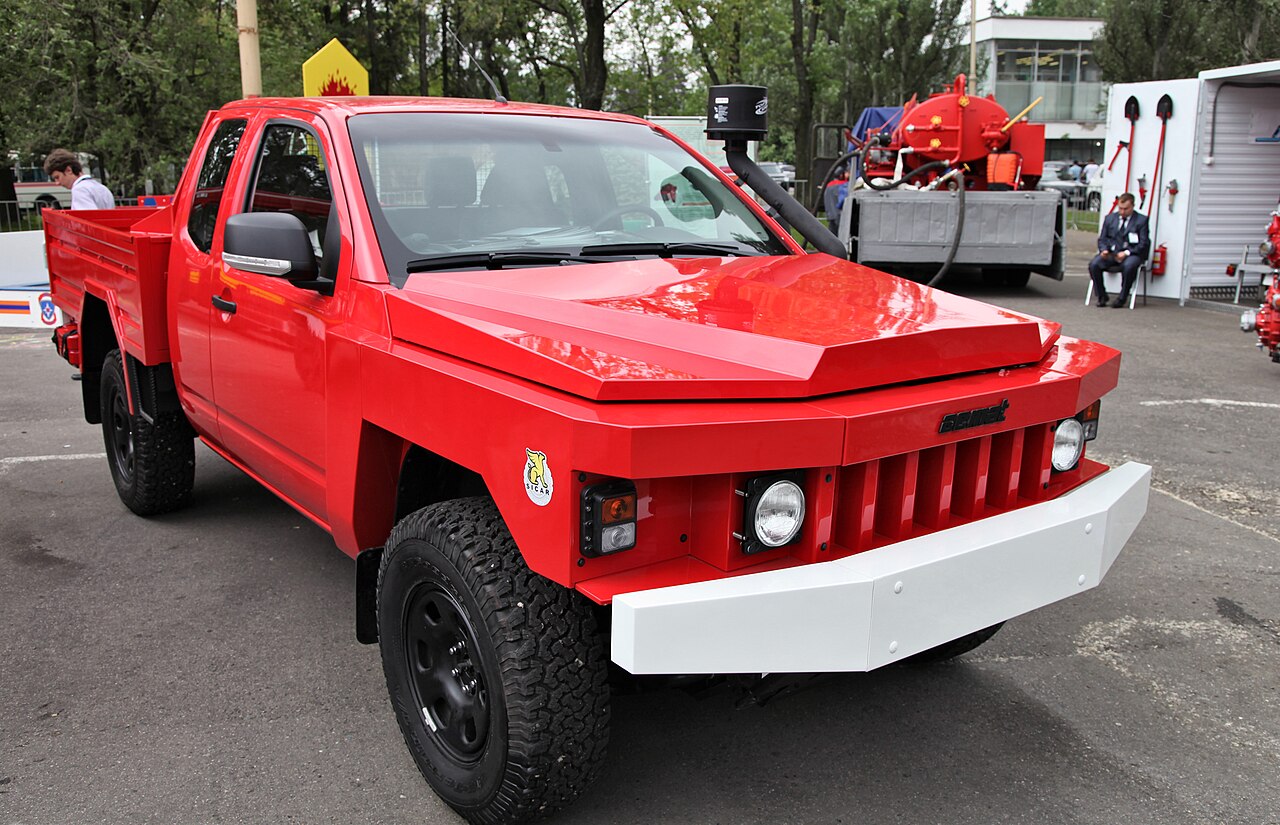

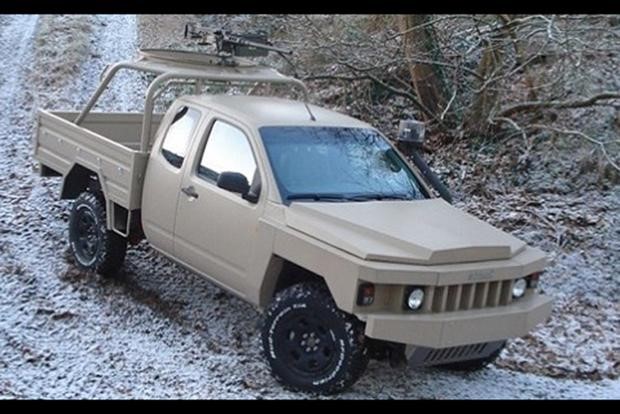

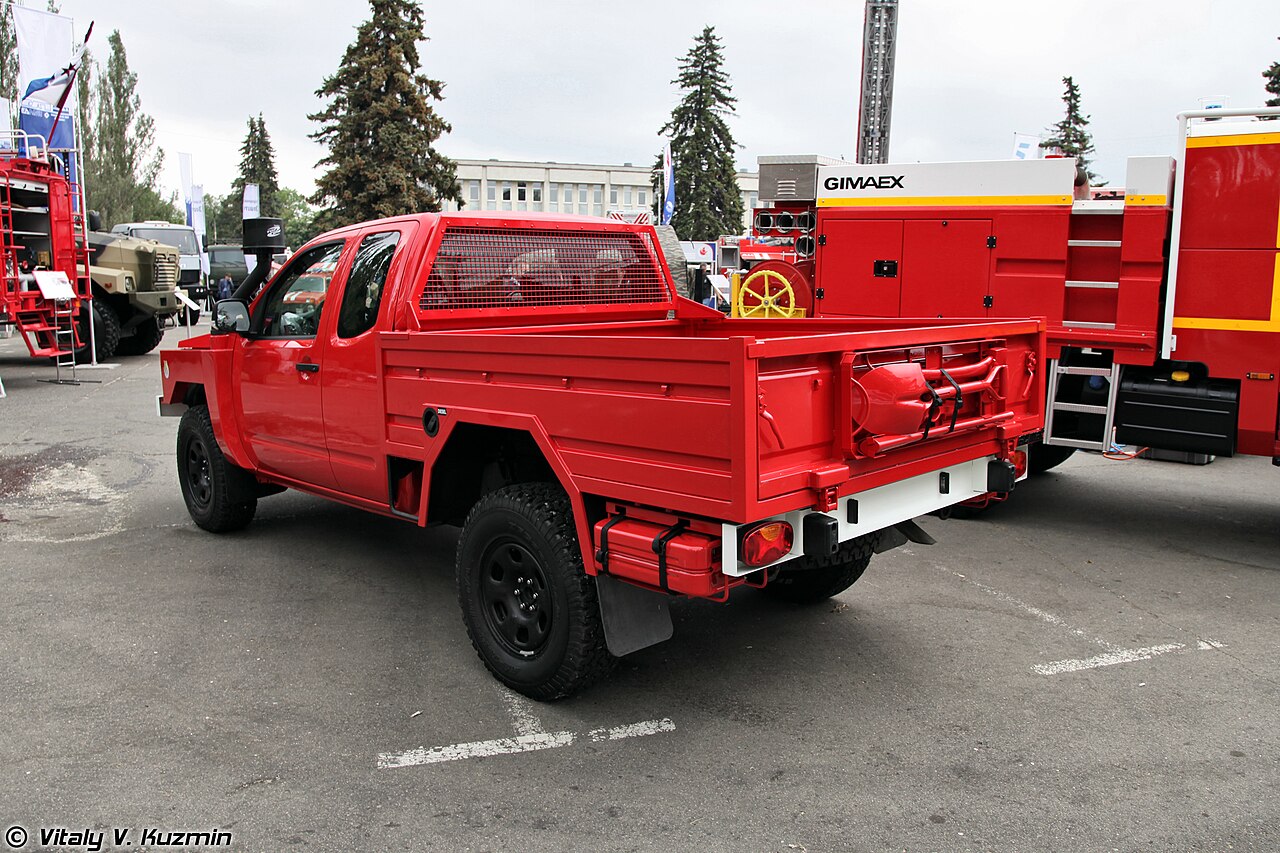

ALT SC
Two door version.

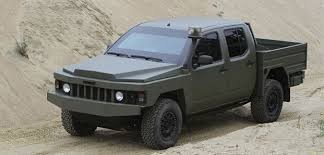

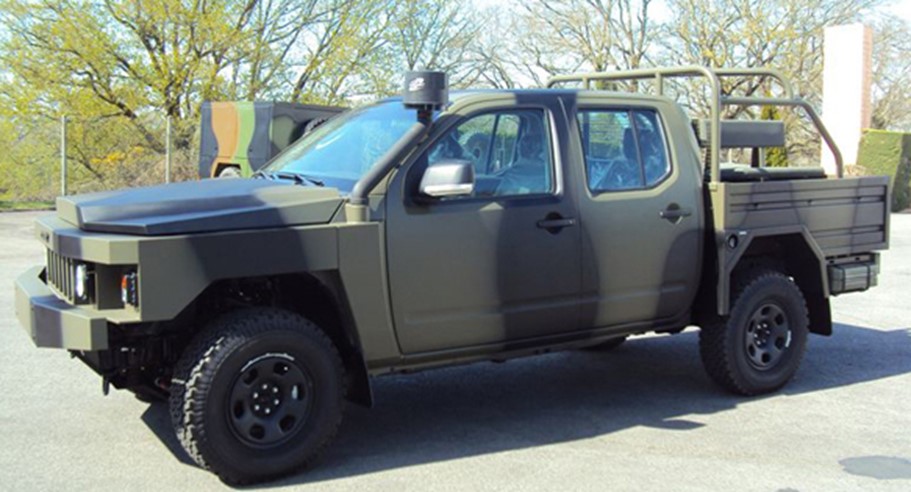

ALTV DC
Four door version.
System
Alternative Designation
ACMAT ALTV; Airtransportable Vehicule Tactique Leger
Description
Light tactical vehicle/military pickup truck with multiple configurations
Crew
1 driver
Brake system (front)
Ventilated discs with ABS
Brake system (rear)
Drums with ABS
Cooling
Water
Number of Axles
2 ea
Number of Tires
4 ea
Payload
1.4 tons
Troop Capacity
1 driver + 9 passengers ea
Weight, Gross Vehicle
3.5 mt
Wheels Central Tire Pressure Regulation System
Optional
Wheels Size
245/75R16 in
Drinking Water
78 liters
Run Flat Tires
Optional
Winch
Optional
Electrical System
24 Volt
Dimensions
Length, Chassis Overall
5.3 m
Width, Overall
1.9 m
Height, Overall
1.77 m
Weight
2.1 tons
Mobility
Mobility, Air Lift
C-130 Hercules, TRANSALL C-160, Airbus A400
Mobility, Slingload
CH-47 Chinook helicopter
Moblity, Para-drop
Yes
Automotive
Engine Type
2.5 liter, in-line 4, turbocharged, 4 stroke, diesel
Range, Cruising
800 with main tanks, 1600 with auxiliary tanks km
Engine Power
190 hp
Fording Depth
0.5 m without preparation; 1.2 m with preparation
Speed, Maximum Road
170 km/h
Ground Clearance
260 mm
Turning Radius
6.65 m
Gradient
80 %
Side Slope
40 %
Vertical Step
0.35 m
Climatic Range
-12C to +55C
Cooling
Water
Fuel
Fuel Capacity Main Tank
80 liters
Fuel capacity Auxiliary Tank
80 liters
Communications
Radio systems
24-volt pre-equipment for radio communication systems.
Armament
Armament
The ACMAT ALTV can be outfitted with assorted weapons ring mounts, machine gun swivel mounts, or reconfigured as weapons carriers.
Weapon 1
Name
General purpose machine gun
Type
Ring mounted and/or swivel mounted
Caliber
7.62 mm
Weapon 2
Name
Heavy machine gun
Type
Ring mounted
Caliber
12.7 mm
Weapon 3
Caliber
40 mm
Name
Automatic grenade launcher
Protection
Armor, Applique
Optional. NATO STANAG 4569 Level 1: Protection against 5.56- and 7.62-mm, hand grenade blasts and anti-personnel mine explosions under the hull.
Armor, Explosive Reactive
No
Armor, Turret Front
No
Active Protection System
No
NBC Protection
No
Smoke Equipment
No
Survivability Equipment
No
Details
Country of Origin
France
Category
Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
3500 kg
Operators (13)
France
Benin
Burkina Faso
Chad
Congo, Republic of the
Côte d'Ivoire
Equatorial Guinea
Gabon
Mali
Mauritania
Morocco
Niger
Togo
