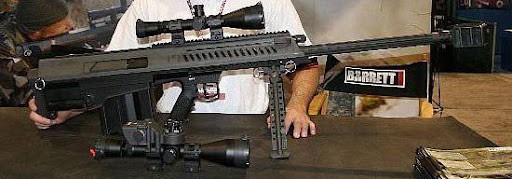

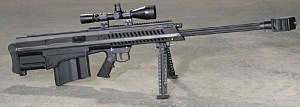

Barrett XM500 American Semi-Automatic Sniper Rifle

XM500

Sniper Rifle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Barrett XM500 American Semi-Automatic Sniper Rifle
Designation
XM500
Alternate Designation
XM500
Equipment Type
Sniper Rifle
Manufacturer
Barrett Firearms Manufacturing
Date of Introduction
2006
Description

The Barrett XM500 is a gas-operated, semi-automatic sniper rifle/anti-materiel rifle currently in development by the Barrett Firearms Company. It is fed by a 10-round detachable box magazine situated behind the trigger in a bullpup configuration. Based on the design of the Barrett M82/M107 .50-caliber sniper rifle, it is intended to be a lighter, more compact alternative to the M82. Since the XM500 has a stationary barrel (instead of the recoiling-barrel design of the M82), it will likely have somewhat better accuracy. As with its predecessor, it comes with a removable, adjustable bipod mounted under the barrel, and a top-mounted Picatinny rail for the attachment of a scope or other accessory. XM500 rifle is the most recent creation of the famous American Barrett Firearms co. This rifle, first shown in 2006, is intended to provide a lighter and more compact alternative to the popular Barrett M82 "Light fifty" rifle, which is widely used by military and law enforcement forces around the world. The new weapon will provide better accuracy (because of its stationary, non-recoiling barrel) and the same range as Light Fifty, while being lighter and significantly shorter, thanks to its bullpup layout. According to available information, this rifle is developed primarily for US Armed forces and is still in the development/prototype stage. Barrett XM500 long-range sniper / anti-material rifle is a gas-operated, semiautomatic rifle. The gas chamber and piston are located above the barrel. Barrel is locked using a rotary bolt. Stock is of bullpup layout and made of metal, with rubber butt plate. A rifle is fitted with detachable lightweight bipods, adjustable for height. There are no open sights as of now, but the rifle is fitted with an integral Picatinny rail on the top of the receiver, so any type of sights can be installed using appropriate mounting interfaces.

Variants
M107-A1 Product improvement of the M82A1A. Improvements include: reduction in weight by 5 pounds; cylindrical titanium muzzle brake; titanium barrel key/recoil buffer system in order to operate with a Barrett suppressor; functional modifications to increase durability and ease of operation. Barrett introduced this variant in 2013
M107 The M107 variant is also called the Light Fifty for its .50 BMG (12.7×99mm NATO) chambering and significantly lighter weight compared to previous applications and the 15% heavier base M82 model.
System
Alternate Designation XM500
Type Sniper Rifle
Manufacturer Barrett Firearms Manufacturing
Action Gas-operated, rotating bolt
Fire Mode Semi-automatic only
Feed System 10-round detachable box magazine
Rate of Fire 20.0 rd/min
Muzzle Velocity 853 m/s
Effective Firing Range 1,800 m
Dimensions
Length, Overall 1200 mm
Weight, Empty without Magazine 12 kg
Ammunition
Ammunition (Option 1)
Name Raufoss Grade A (match)(DODIC A606) (USMC)
Type Standard operating round
Caliber/Length 12.7x99 mm (.50 cal)
Muzzle Velocity 854.0 m/s
Range, Maximum, with Scope 1800.0 m
Ammunition (Option 2)
Name MP NM140 (Nammo) MK211 Mod 0
Caliber/Length 12.7-mm x 99 (.50 cal)
Armor Penetration 11 mm at 45 degrees at 1,000 m
Fragmentation 20 fragments after hitting 2 mm steel
Incendiary Effect Ignition of JP4 and JP8
Muzzle Velocity 915.0 m/s
Range, Maximum, with Scope 1800.0 m
Accuracy less than 15 cm at 550 m
Ammunition (Option 3)
Name AP-S NM173 (Nammo)
Type Armor piercing
Caliber/Length 12.7-mm x 99 (.50 cal)
Armor Penetration 11 mm at 30 at 1,500 m mm
Muzzle Velocity 915.0 m/s
Range, Maximum, with Scope 1800.0 m
Accuracy less than 15 cm at 550 m
Ammunition (Option 4)
Name M903 (Olin)
Type Saboted Light Armor Penetrator (SLAP) (actual bullet is tungsten .30 inch penetrator wrapped in a .50-cal plastic sabot)
Bullet 12.7- mm x 99 (.50 cal)
Armor Penetration 19 mm (.75 in) at 1,500 m
Muzzle Velocity 1014.0 m/s
Range, with Scope 1500.0 m
Accuracy INA
Ammunition (Option 5)
Name M8
Type Armor piercing incendiary
Armor Penetration 20 mm at 100 m
Caliber/Length 12.7-mm x 99 (.50 cal)
Muzzle Velocity 881.0 m/s
Range, Maximum, with Scope 1800.0 m
Accuracy less than 25 cm at 550 m
Ammunition (Option 6)
Name M20
Type API-T
Caliber/Length 12.7-mm x 99 (.50 cal)
Armor Penetration 20 mm at 100 m
Muzzle Velocity 887.0 m/s
Accuracy less than 25 cm at 550 m
Ammunition All
Combat Load 30, typical rds
Type Ball, AP, AP-I, API-T, Tracer, SLAP, MP
Sights
Night Sight
Available Yes
Available Yes.
Magnification 10x42
Sights #1
Name Unertl
Type Optical (matches trajectory of .50-cal Raufoss Grade A)
Magnification 10x
Sights #2
Name Swarovski
Type Optical (with ranging reticle)
Magnification 10x42
Sights #3
Name Barrett Optical Ranging System (BORS)
Type Ballistic Computer. This add-on device couples to the telescope, in place of the rear scope ring. It can then adjust for range, air temperature, round used, and other factors.
Notes A commonly associated scope is the Leupold Mark 4; but it can also work with other scopes.
Image Sources
Notes INA;
Details
Country of Origin United States
Category Sniper Rifles
Land > Infantry Weapons > Sniper Rifles
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
United States
