STRIX Australia Unmanned Aerial Vehicle (UAV)

STRIX

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
STRIX Australia Unmanned Aerial Vehicle (UAV)
Designation
STRIX
Alternate Designation
STRIX
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
BAE systems Australia and Innovaero (AUS)
Date of Introduction
2023
Description

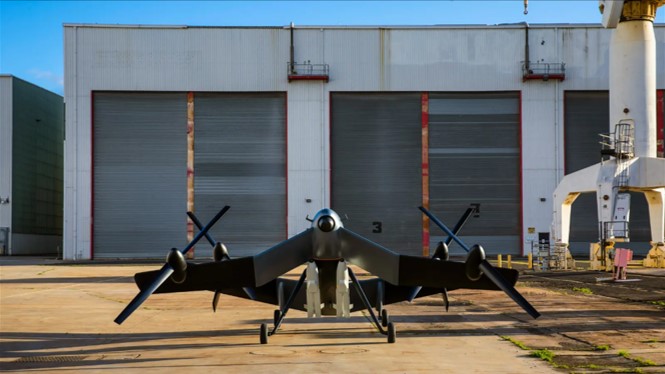

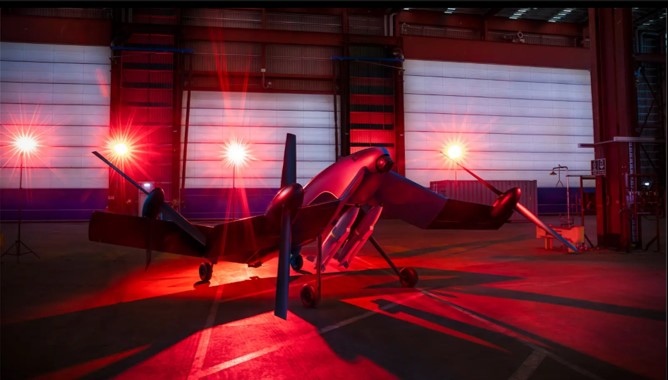

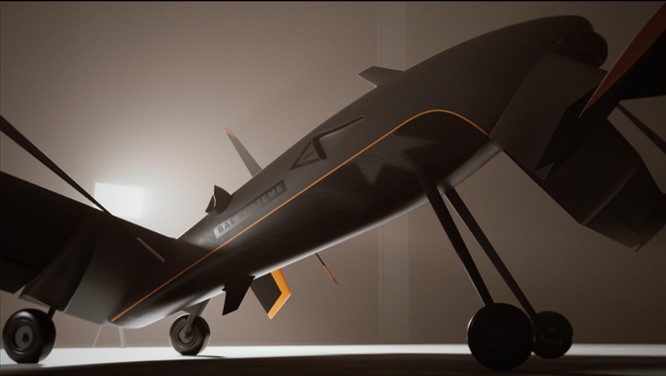

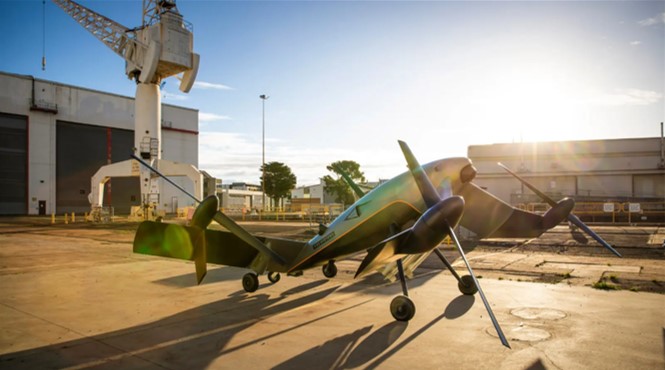

The STRIX Australia Unmanned Aerial Vehicle (UAV) is a game-changing Vertical Take-Off and Landing (VTOL) platform, combining payload, range, and versatility for long-range fires or autonomous strike missions. Incorporating disruptive technologies, it offers affordability, flexibility, and upgradability against evolving threats. Designed for rapid deployment and multi-mission capability, STRIXTM fits into a standard 20ft shipping container, with VTOL ensuring the airfield independence. It carries a 160kg payload over 800km, operates in high-risk environments, and supports rotary wing assets. Our proven lineage in autonomous systems is demonstrated through our work on developing vehicle management systems for platforms such as MQ-28A Ghost Bat and development of the M113 optionally crewed combat vehicle Program.

Air & Air Defense Specifications
Max Speed 200.0 km/h
Cruise Speed 140.0 km/h
Range 800.0 km
Payload Capacity 160 kg
System
Alternate Designation STRIX
Type Unmanned Aerial Vehicle (UAV)
Manufacturer BAE systems Australia and Innovaero (AUS)
Payload Capacity 160 kg
Autonomous Targeting Capabilities BAE Systems has not disclosed specific details regarding the autonomous strike capabilities it claims the STRIX VTOL possesses.

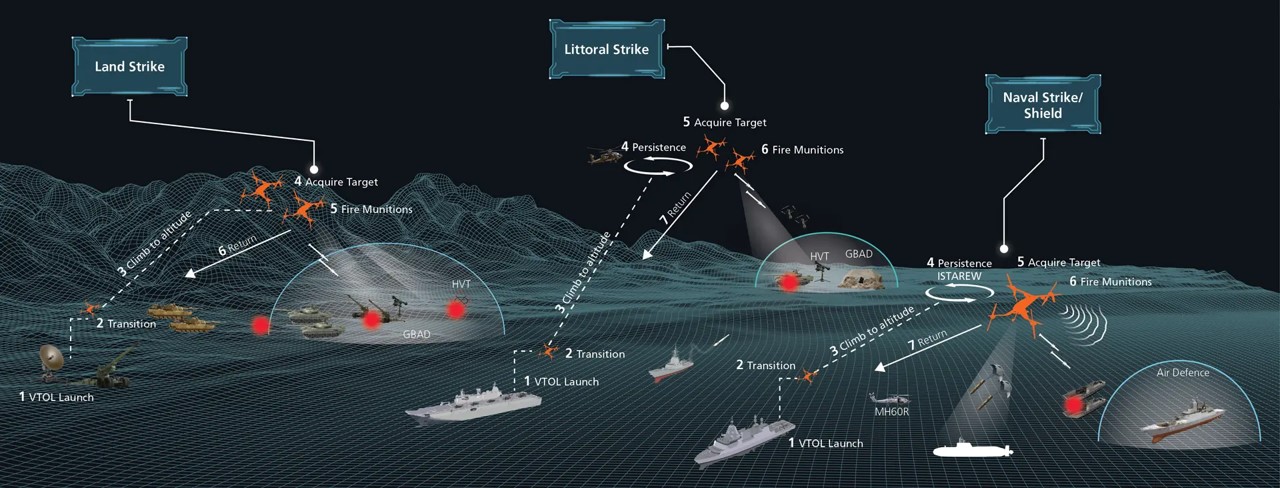

Cooperative Combat Operations: According to BAE Systems, the STRIX VTOL is designed to operate alongside other rotary platforms, both manned and unmanned, in an auxiliary role.
Dimensions
Collapsed Footprint 2.6m x 4.5m
Maximum Takeoff Weight 950 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Maximum Speed 200 knots
Cruise Speed 140 knots
Range @ 50kg payload 1,510 km
Range @ 160kg payload 800 km
Range @ 200kg payload 540 km
Altitude Ceiling 4,500 m
Cruise Altitude 610 - 4,500 m
Endurance with 50kg payload 5.25 hours
Endurance with 160kg payload 3 hours
Details
Country of Origin Australia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
950 kg
Operators (1)
Australia
