UMZ-K Russian 8x8 Multipurpose Minelaying Vehicle

UMZ-K

Modular Pack Mine System (MOPMS)

Spotted an error? Sign in to suggest an edit.

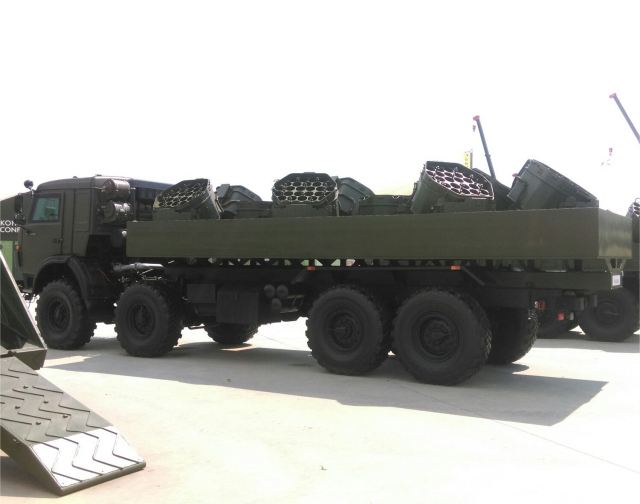

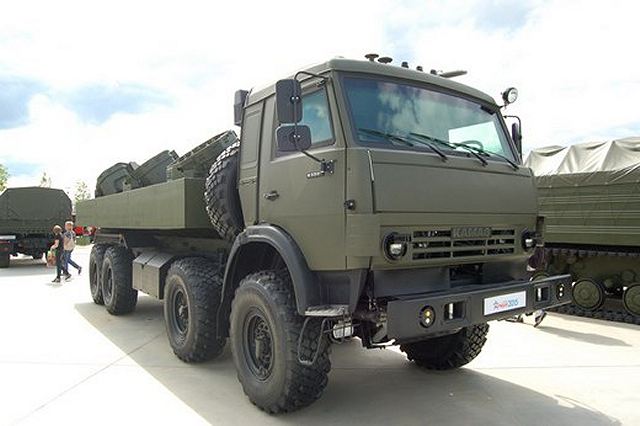

UMZ-K Russian 8x8 Multipurpose Minelaying Vehicle — UMZ-KMinelayer(A).jpgTRADOC ODIN WEG

Basic Information

Name

UMZ-K Russian 8x8 Multipurpose Minelaying Vehicle

Designation

UMZ-K

Alternate Designation

UMZ-K

Equipment Type

Modular Pack Mine System (MOPMS)

Manufacturer

—

Date of Introduction

2015

Description

Named the UMZ-K, it differs from its predecessor, the UMZ layer, first of all in its wheeled chassis. Unlike the UMZ, which is mounted atop a ZIL-131B cargo truck chassis, the new system is based on that of a KamAZ-63501.

Ground Specifications

Crew 1

Engine Diesel (360 hp)

Active Protection None

NBC Protection Yes

System

Alternative Designation UMZ-K

Type Multipurpose Minelaying Vehicle

Manufacturer INA

Family UMZ Series

In Service 2015-Present

Crew 1 + 2 men

Payload Capacity 15,000 kg.

Towing Capacity 12,000 kg

Launcher The platform of the truck sits six multiple payload rotary launchers with fixed elevation mechanisms.

Tilt Angle The tilt angle is 50 degrees, while its horizontal coverage is 90 degrees.

Basic Mine Load 180 clusters

Types of Mines antipersonnel (PFM, POM), anti-paratrooper (PDM) or antitank mines (PTM).

Maximum Length of Minefield antipersonnel mines (PFM) – 3,200 meters; antipersonnel mines (POM) – 5,000 meters; antitank mines (PTM) – 600 meters.

Minefield Dimensions The minefields it creates are 15 meters deep and 240 meters wide. Its mine-laying speed is up to 40 km per hour.

Dimensions

Length 9.3 m

Width 2.5 m

Height 3.25 m

Weight, Combat 11.4 tons

Automotive

Engine Name KamAZ-740.50.360

Engine Type Diesel

Engine Power 360 hp

Cruising Range 1,000 km

Speed, Maximum Road 95 km/h

Speed, Average Cross INA

Speed Maximum Swim Not Amphibious

Gradient 60 %

Side Slope 40 %

Vertical Step 0.6 m

Trench 0.6 - 1.4 m

Fording Depth 1.75 m

Protection

Armor It is also proposed with concealed built-in internal armor

Applique Armor Available

Active Protection System No

Mine Clearing No

Self-Entrenching Blade No

NBC Protection Yes

Smoke Equipment No

IR Signature No

Image Sources

Notes https://www.pinterest.com/pin/326088829262805539/; https://www.armyrecognition.com/weapons_defence_industry_military_technology_uk/russia_defense_industry_unveils_new_umz-k_multipurpose_mine-laying_vehicle_at_army-2015_12706155.html;

Details

Country of Origin Russia

Category Mine Laying Equipment

Land > Engineer Systems > Counter-Mobility > Mine Laying Equipment

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

9.3 m

Width

2.5 m

Height

3.25 m

Weight

11400 kg

Operators (1)

Russia
