HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System
HQ-22
Long-Range Air Defense Missile System
Other
Basic Information
Name
HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System
Designation
HQ-22
Alternate Designation
HQ-22; NATO: SA-20; FK-3
Equipment Type
Long-Range Air Defense Missile System
Manufacturer
—
Date of Introduction
2017
Description

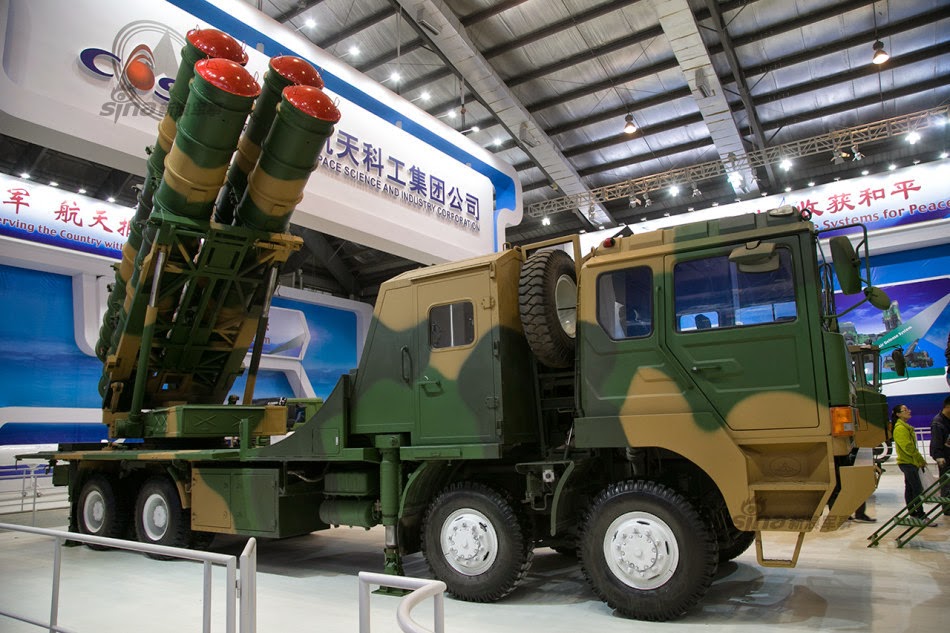

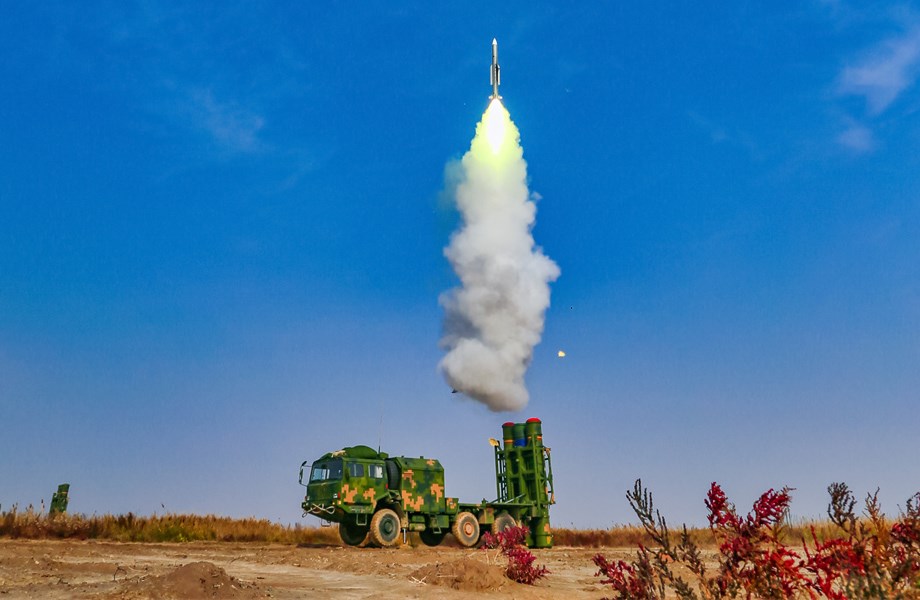

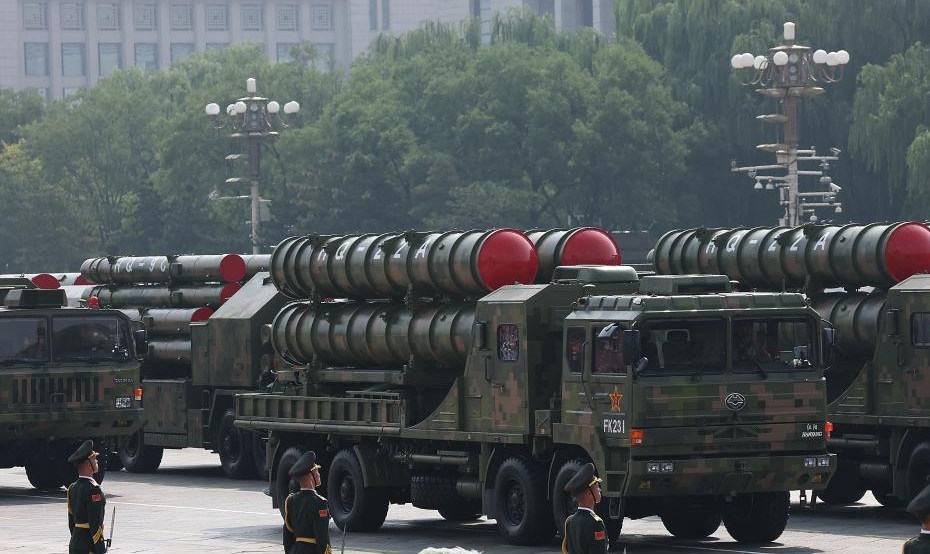

The HQ-22 (SA-20) Chinese Long-Range Air Defense Missile System, also known as FK-3, is a long-range air defense system developed by China to engage a wide range of aerial targets at ranges of up to 170 kilometers. The missile system has been designed to engage fourth-generation aircraft, helicopters, cruise missiles, and drones, as well as a variety of aerodynamic threats. Besides, the new weapon system has been designed to withstand electronic countermeasures and operate in heavy jamming environments. This new air defense system relies on 8x8 vehicles that transport four vertically launched missiles each. The HQ-22 long-range surface-to-air missile system was unveiled at the 2016 China Airshow.
Ground Specifications
Mobility Type
Wheeled (8x8)
Active Protection
None
Range
170.0 km
System
Alternative Designation
HQ-22; NATO: SA-20; FK-3
Type
Long-Range Air Defense Missile System
Crew
INA
Chassis

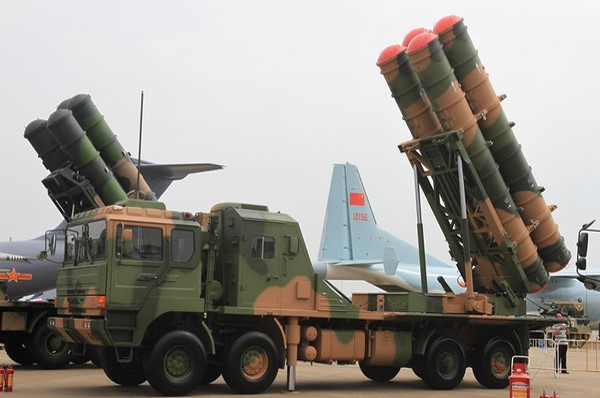

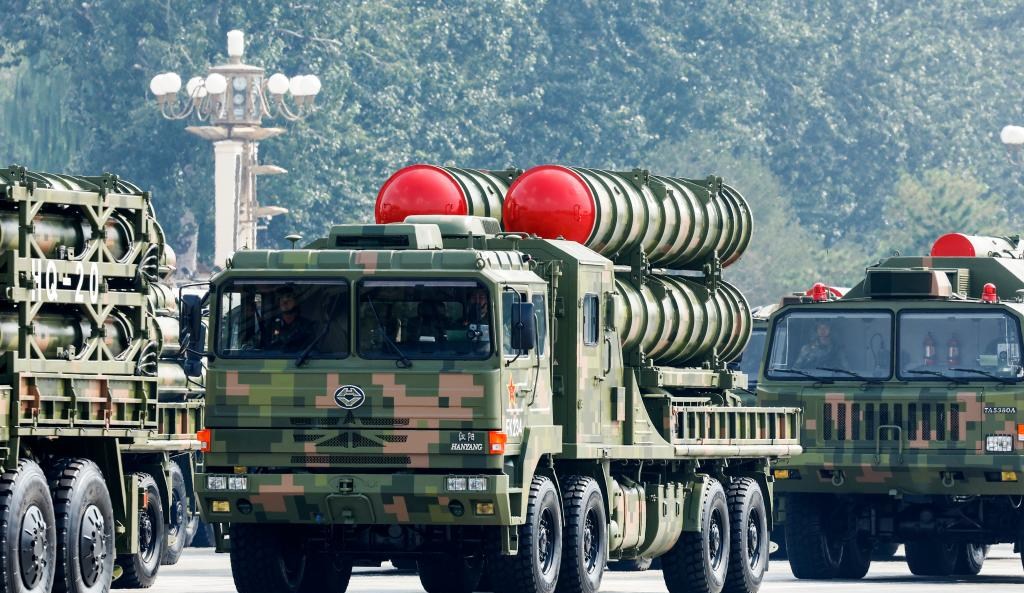

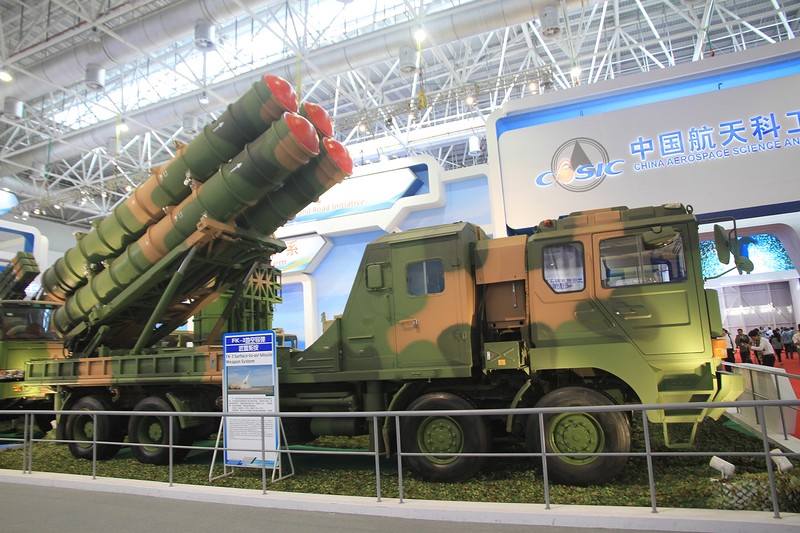

The launcher is based on a Hanyang special chassis with 8x8 configuration.
Mission
The HQ-22 air defense system can engage aircraft, helicopters, UAVs, ballistic and cruise missiles.
Displacement Time
INA
Emplacement Time
INA
Note
A typical battery of HQ-22 includes 3 launcher vehicles. A battery can engage 6 air targets simultaneously.
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
INA
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Cruising Range
INA
Maximum Road Speed
INA
Speed Maximum Swim
Not Amphibious
Missile System
Name
INA
Missile Length
7 m
Missile Diameter
0.7 m
Missile Weight
1 300 kg
Warhead Type
HE-FRAG
Warhead Weight
180 kg
Guidance System
Semi-Active GPS
Maximum Ceiling
27 km
Maximum Range
100 km
Note
The complex (three PU) is able to fire 12 missiles on six targets simultaneously.
Fire Control
Fire Control System
Name
INA
Computerized FCS
Yes
Direct Fire
No
Indirect Fire
Yes
Radar
Name
INA
Protection
Hull Armor
INA
Applique Armor
No
Explosive Reactive Armor
No
Active Protection System
No
NBC Protection
INA
Smoke Equipment
No
Image Sources
Notes
https://armyrecognition.com/defense_news_august_2020_global_security_army_industry/serbia_plans_to_acquire_chinese_fk-3_air_defense_missile_systems.html; https://mil.in.ua/en/news/china-shipped-the-modern-air-defense-systems-to-serbia-media/; https://en.topwar.ru/174060-zenitki-raznyh-urovnej-v-ssha-o-zakupke-serbiej-kitajskih-zrk-vmesto-rossijskih.html;
Details
Country of Origin
China
Category
Radar Guided Missile Systems
Land > Air Defense > Radar Guided Missile Systems
Filter Label
H
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.7 m
Height
—
Weight
—
Operators (1)
China
