VBTP-MR Guarani Brazilian 6x6 Amphibious Armored Personnel Carrier (APC)

VBTP-MR Guarani

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VBTP-MR Guarani Brazilian 6x6 Amphibious Armored Personnel Carrier (APC)
Designation
VBTP-MR Guarani
Alternate Designation
VBTP-MR Guarani
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Developed through a strategic partnership between Iveco Defense Vehicles (an Italian manufacturer) and the Brazilian Army's Technology Center (CTEx).
Date of Introduction
2013
Description

The VBTP-MR Guarani Brazilian 6x6 Amphibious Armored Personnel Carrier (APC) represents Brazil's commitment to modernizing its ground forces with a versatile, multi-mission platform designed for rapid deployment and high mobility across diverse terrain and aquatic environments. The Guarani has demonstrated operational effectiveness in Brazil's internal security operations, particularly under Operation Agata, where its mobility and amphibious capabilities enabled patrol of difficult terrain and river crossings in remote border areas. The vehicle is designed for multiple operational roles, including: Rapid troop transport and deployment; Peacekeeping and humanitarian operations; Counterinsurgency and border security; Urban security and traffic control; NBC reconnaissance and protection; Fire support and reconnaissance missions. The vehicle excels in hybrid warfare scenarios, peacekeeping operations, and counterinsurgency environments. However, as a lightweight APC, it is not designed for direct engagement against main battle tanks or heavily armed infantry fighting vehicles, and faces vulnerabilities in high-intensity conflicts against near-peer adversaries employing modern anti-tank guided missiles and armed drones. The Guarani remains the most advanced armored vehicle currently in production in South America, representing a significant achievement in Brazilian defense manufacturing and industrial capacity.

Ground Specifications
Crew 3
Mobility Type Wheeled (6x6)
Main Weapon 30mm Mk44 Bushmaster II automatic cannon
Engine Turbocharged Diesel (338 hp)
NBC Protection Yes
Range 600.0 km
Variants
VBTP Guarani Standard, basic transport
VBCI Guarani 30mm turret version
VBE/CP Guarani Command post
VBE/Mort Guarani 120mm mortar carrier
VBE/Recon Guarani 105mm reconnaissance variant
VBE/CDT Guarani Fire control center
VBE/Communications Guarani Command and control
VBE/Workshop Guarani Maintenance
VBE/Relief Guarani Logistics
VBTE/Ambulance Guarani Medical evacuation
VBR-MR 8×8 Guarani Planned 8-wheel variant for Brazilian Marines
Guarani Air Defense Variant A newly unveiled air defense variant, displayed at LAAD 2025 in November 2025, integrates the SAAB RBS 70 surface-to-air missile system with three ready-to-launch missiles, providing short-range air defense against drones, helicopters, low-flying aircraft, and cruise missiles.
System
Alternative Designation VBTP-MR Guarani
Type Amphibious Armored Personnel Carrier (APC)
Manufacturer Developed through a strategic partnership between Iveco Defense Vehicles (an Italian manufacturer) and the Brazilian Army's Technology Center (CTEx).
Configuration 6x6
Crew 3 ea
Passengers 8 ea
Note Personnel enter and exit via rear doors or roof hatches, with the vehicle featuring modern battlefield management systems for navigation, positioning, and mission planning.
Dimensions
Length 6.91 m
Width 2.7 m
Height 2.34 m
Weight, Empty 14.5 tons
Weight, Combat 18.3 tons
Automotive
Engine Name Iveco FPT (or Cursor 9)
Engine Type Turbocharged diesel engine
Engine Power 338 hp
Maximum Range 600 to 800 kilometers at 70 km/h cruise speed
Maximum Land Speed 90 to 110 km/h

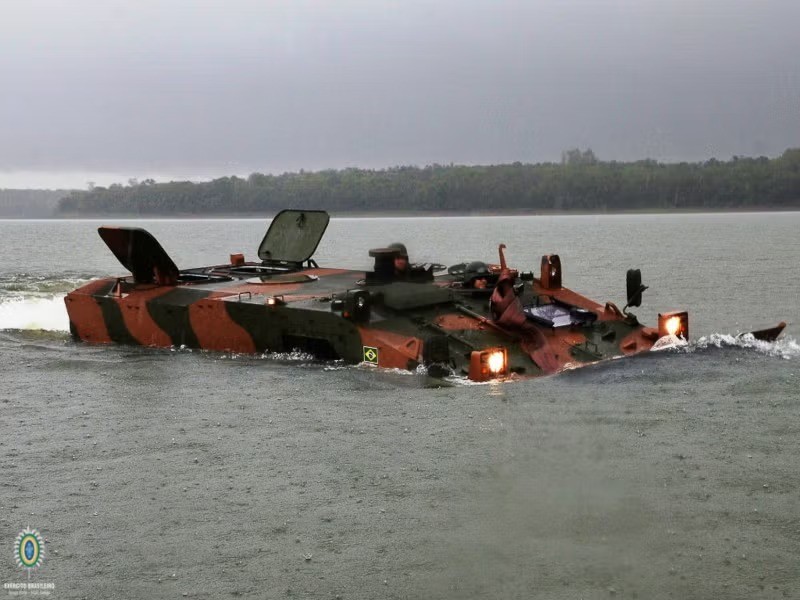

Amphibious The Guarani maintains full amphibious capability without additional preparation for shallow water crossings. Preparation equipment: Front stabilizing system, two Bosch Rexroth A2FM80 propellers, and bilge pumps located in engine and troop compartments When equipped with stabilizers and flotation devices, the vehicle can maintain firing capability while crossing rivers. This amphibious feature is particularly important for operations in Brazil's geography, dominated by rivers, wetlands, and tropical terrain, and represents a significant advantage absent in many comparable vehicles of its class.
Amphibious Speed 9 to 10 km/h using water jets (when prepared with stabilizers)
Gradient 60 deg
Side Slope 30 deg
Vertical Step 0.5 m
Trench INA
Fording 0.43 m
Turning Radius 9-10.8 m
Main Weapon System
Standard Configurations The Guarani's modular design permits installation of diverse weapon systems: Remotely controlled 12.7mm M2HB heavy machine gun; 7.62mm MAG coaxial machine gun; 40mm automatic grenade launcher.

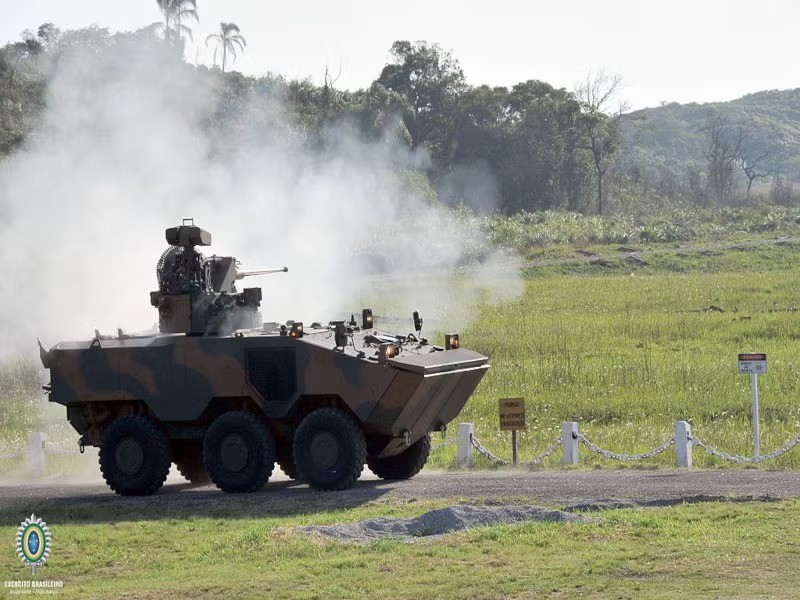

Advanced Configurations The primary advanced configuration features the Elbit UT30 remote-controlled turret, armed with a 30mm Mk44 Bushmaster II automatic cannon and a 7.62mm coaxial machine gun. This turret, developed by Elbit's Brazilian subsidiary AEL Sistemas, offers: 360-degree traverse capability; Elevation/depression range: -15 to +60 degrees; Firing rate: Up to 600 rounds per minute; Effective range: 3,000 meters; Fire control: Laser rangefinder, day/night thermal vision, automatic target tracking, and stabilization. The firing system incorporates a computerized control system enabling high-precision shooting during vehicle movement in continuous, burst, or intermittent modes. Additional features include laser alert systems against external threats and sniper detection capabilities.
Protection
Armor The Guarani features ballistic protection based on a high-hardness monocoque steel hull, with protection levels varying by configuration: Standard configuration: STANAG 4569 Level 2 protection; Enhanced configuration (Philippine variant): STANAG 4569 Level 3 protection.
Applique Armor Optional upgrade capability: Modular armor packages to achieve STANAG 4569 Level 4. The vehicle is pre-configured for additional armor mounting points, allowing operators to tailor protection levels based on operational requirements and threat assessments.
NBC Protection Yes
Smoke Equipment 8 x 76mm smoke grenade launchers
Details
Country of Origin Brazil
Category Land
Land
Filter Label
V
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.91 m
Width
2.7 m
Height
2.34 m
Weight
18300 kg
Operators (3)
Brazil
Lebanon
Philippines
