Pars 6x6

Pars 6x6

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Pars 6x6
Designation
Pars 6x6
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
FNSS
Date of Introduction
2018
Description

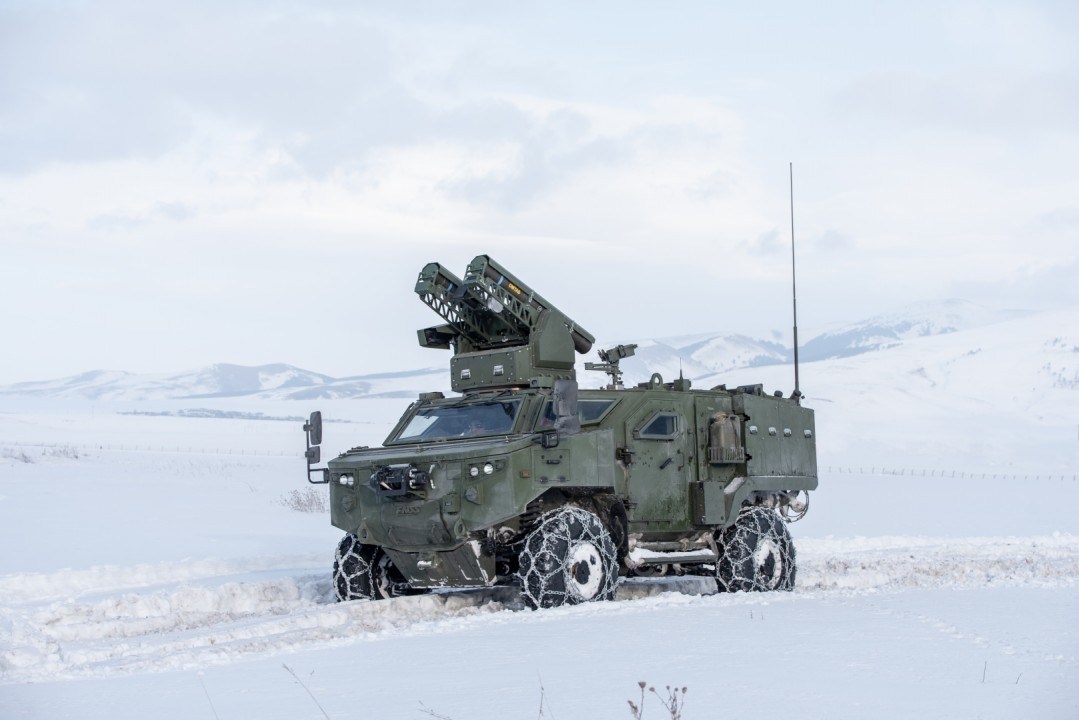

The Pars is a family of high mobility, amphibious, all-wheel drive multipurpose armored vehicles developed by FNSS to meet the requirements of the Turkish Armed Forces and a wide range of export customers. The Pars and the Otokar ARMA wheeled armored vehicle family are competing to receive orders for the Turkish Armed Forces. The Pars 6x6 is a 18-ton class armored vehicle designed to transport a crew of three-man (driver, gunner and commander) and seven infantrymen. It can be equipped with a variety of turrets and weapon stations to provide fire support to dismounted troops. It is powered by a 500-hp Euro 3 diesel engine developing a top speed of 100 kph. The Pars 6x6 has been designed to be air transportable by C-130, A400, C-17 and C-5 aircraft.

Ground Specifications
Crew 3
Troop Capacity 7
Mobility Type Wheeled (6x6)
Max Speed 100.0 km/h
Range 1000.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Origin Turkiye
Contractor FNSS
Initial Operational Capability (IOC) 2018
Total Production ?
Specifications (Deagel)
Crew 3
Troops 7
Wheel Drive 6
Wheels 6
Degree — Approach Angle 50 °
Degree — Departure Angle 45 °
Dimensions — Ground Clearance 400 millimeter
Dimensions — Height 2.2 meter
Dimensions — Length 6.6 meter
Dimensions — Width 2.7 meter
Mass — Combat Weight 18,144 kilogram
Mass — Empty Weight 13,161 kilogram
Mass — Payload 4,985 kilogram
Percentage — Gradient 70 %
Percentage — Side Slope 60 %
Performance — Ditch Crossing Ability 1.8 meter
Performance — Fording Depth 1.5 meter
Performance — Max Range 1,000 kilometer
Performance — Step Climbing Ability 0.70 meter
Power — Power 500 hp
Speed — Top Speed 100 kph
Speed — Top Swimming Speed 10 kph
Variants
Variant 1 Pars 4x4
Variant 2 Pars 8x8
Variant 3 Pars 6x6
Details
Country of Origin Turkey
Sources

deagel.com: https://www.deagel.com/x/x/a002638

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.6 m
Width
2.7 m
Height
2.2 m
Weight
18144 kg
Related Equipment (1)
Variant of

Pars

Pars

Wheeled Armored VehiclesTurkey
View details
Operators (1)
Oman
