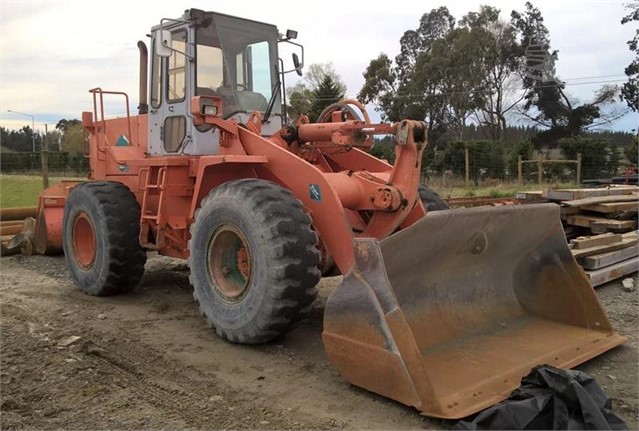

Hitachi LX120 Japanese Super Wheel Loader
Hitachi LX120
Super Wheel Loader
Other
Basic Information
Name
Hitachi LX120 Japanese Super Wheel Loader
Designation
Hitachi LX120
Alternate Designation
Hitachi LX120
Equipment Type
Super Wheel Loader
Manufacturer
Hitachi
Date of Introduction
2018
Description
Widely Proliferated Super Wheel Loader
Ground Specifications
Crew
1
Engine
Diesel
System
Alternative Designation
Hitachi LX120
Type
Super Wheel Loader
Manufacturer
Hitachi
Crew
1 ea
Dimensions
Length With Bucket On Ground
7,610mm
Width Over Tires
2,520mm
Height To Top Of Cab
3,300mm
Wheelbase
3,030mm
Hinge Pin - Max Height
3,890mm
Reach At Max Lift And Dump
1,080mm
Ground Clearance
435mm
Operating Weight
12,712kg
Static Tipping Weight
9,595.8kg
Automotive
Engine Name
6068T
Engine Type
Diesel
Net Power
108.2kw
Power Measured
2,200rpm
Max Torque
570Nm
Displacement
6.8L
6.8L
Aspiration
Turbocharged
Fuel Capacity
249L
Turning Radius
6,060mm
Operating Voltage
12V
Rear Axle Oscillation
26 degrees
Tire Size
20.5x25
Transmission Type
Power Shift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
37.1km/h
Max Speed - Reverse
24.5km/h
Bucket
Dump Clearance At Max Raise
2730mm
Bucket Capacity - Heaped
2.3m3
Bucket Capacity - Struck
2.01m3
Breakout Force
130.81kN
Hydraulic System
Relief Valve Setting
19305.4kPa
Pump Flow Capacity
231L/min
Raise Time
5.8sec
Dump Time
1.7sec
Lower Time
3.5sec
Pump Type
Gear
Protection
Hull Armor
None
Applique Armor
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
INA
Smoke Equipment
No
Image Sources
Notes
https://www.heavy-equipmentmanual.com/products/hitachi-lx120-2-wheel-loader-full-complete-service-repair-manual-download; https://www.rollerauction.com/auctions/7814/lot/53011-dresser-s710-loader-4-cylinder-diesel-169-24-pneumatic-tires-92-bucket-showing-33-hours-no-key-s-n-okhbal5100085-inoperable;
Details
Country of Origin
Japan
Category
Land
Land
Filter Label
H
Classification
Domain
Ground
Equipment Status
Active
Operators (3)
United States
Japan
Australia
