Yak Swiss 6x6 Multi-Role Armored Vehicle
Yak
Multipurpose Armored Vehicle
Other
Basic Information
Name
Yak Swiss 6x6 Multi-Role Armored Vehicle
Designation
Yak
Alternate Designation
Yak
Equipment Type
Multipurpose Armored Vehicle
Manufacturer
MOWAG and Rheinmetall
Date of Introduction
2007
Description

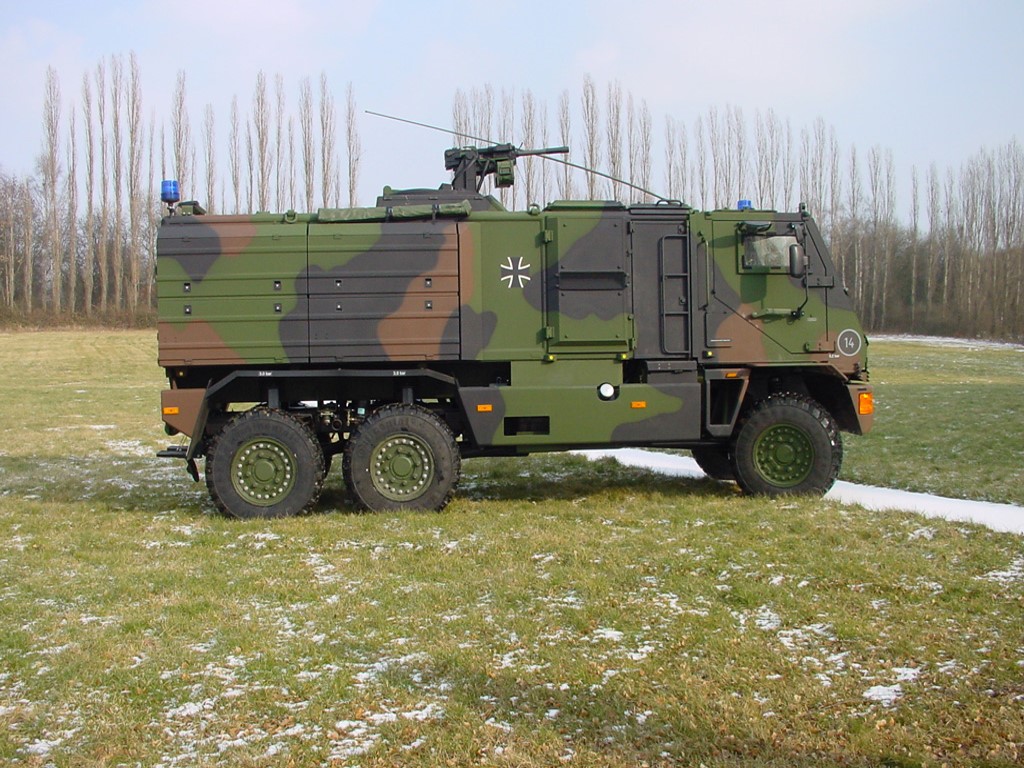

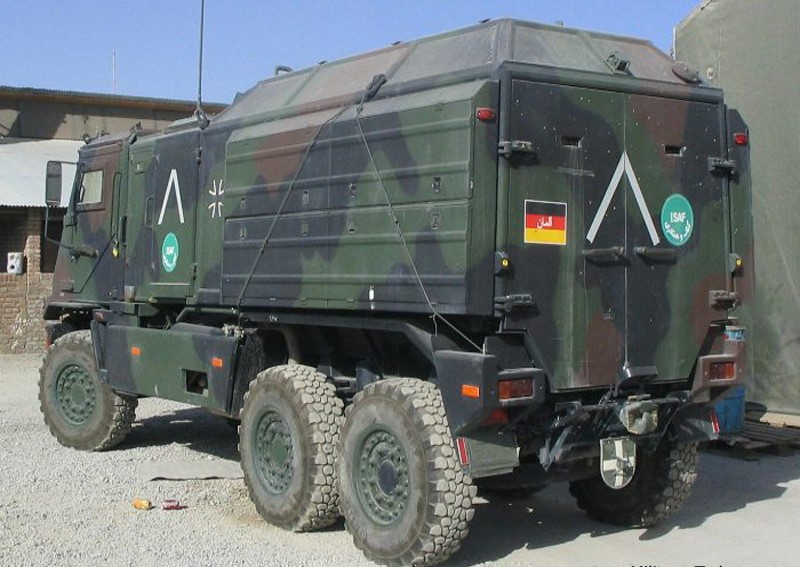

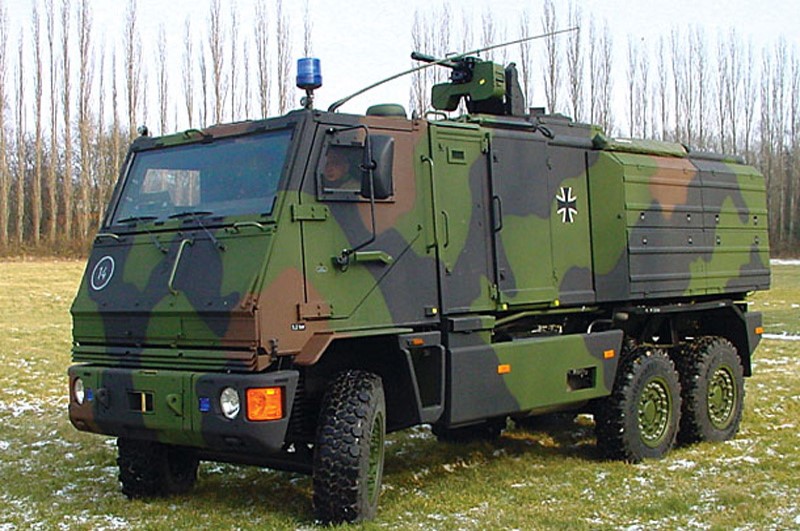

The Yak is an armored multipurpose vehicle designed and manufactured and assembled in Germany and Switzerland. The vehicles are designed to provide a user with one vehicle family that can be used to perform multiple C2 and support functions. The Yak is based on the MOWAG DURO III chassis, which reduces the cost of maintenance and through life logistics support.
Ground Specifications
Crew
2
Engine
6-Cylinder Turbocharged Diesel (250 hp)
Max Speed
100.0 km/h
Range
700.0 km
Variants
YAK Ambulance
The emergency ambulance, or Mobile Medical Team Vehicle as it is officially called, is provided with a full range of specialist medical equipment plus four individual seats down the left side of the rear module and a single stretcher position on the right side.
Bio-YAK
used for NBC reconnaissance.
YAK EOD
used to dispose of mines, IEDs, and unexploded ordnance.
YAK Luna
used as a control post for the LUNA UAV.
YAK MP
used for military police operations.
System
Alternative Designation
Yak
Type
Multi-Role Armored Vehicle
Manufacturer
MOWAG and Rheinmetall
Configuration
6x6
Crew
2 ea
Passenger Capacity
12 ea
Airlift Capability
This transport vehicle can be airlifted by the C-130, C-160 or A400M military transport aircraft.
Dimensions
Length
6.715 m
Width
2.42 m
Height
2.92 m
Weight, Standard
6,500 kg
Weight, Combat
12,900 kg
Wheelbase
3.53 m + 1.15 m
Ground Clearance
0.4 m
Automotive
Engine Name
Cummins ISBe 250
Engine Type
6 cylinders, turbocharged, diesel
Engine Power
250 hp at 2,500 rpm
Fuel Capacity
180 liters
Maximum Speed
100 km/h
Range
700 km
Gearbox
Allison S 2000
Transfer Box
MOWAG 2 S 22 synchronised two-level with spin-resistant Torsen longitudinal differential
Steering
ZF Servocom 8095 ball and nut type
Suspension
coil springs, gas pressure shock-absorbers, and Cellasto overload springs
Electrical System
24V
Brakes
dual-circuit pneumatic/hydraulic disc with ABS
Tires
335/80 R20 with RFIs
Gradient
60%
Side Slope
30%
Angle of Departure
47°
Angle of Approach
47°
Fording
1.2m
Vertical Obstacle
0.50 m
Turning Radius
8 m
Main Weapon System
Note
The vehicle can be fitted with a roof-mounted remotely controlled weapon station, armed with 7.62 mm machine gun or 40 mm automatic grenade launcher.
Fire Control
Name
INA
Computerized FCS
None
Day Camera
Rheinmetall Vingeye CCD day camera
Thermal Camera
Thales Thermal Imaging Module (TIM) thermal camera
Protection
Hull Armor
Baseline protection is against 7.62 mm rounds and artillery shell splinters. Vehicle can withstand 6 kg anti-tank mine blast under any wheel.
Applique Armor
Protection level of cabin and shelter can be adapted using add-on armor to suit specific mission requirements.
Explosive Reactive Armor
No
Mine Clearing
No
NBC Protection
The Yak is fitted with NBC protection system.
Smoke Equipment
INA
Image Sources
Notes
https://www.militarytoday.com/apc/rheinmetall_yak_images.htm; http://www.sixmania.fr/en/mowag-motorwagenfabric-ag/; https://www.armyrecognition.com/milipol_2011_show_daily_news_pictures_video_uk/rheinmetall_german_industry_at_milipol_2011_a_multifaceted_partner_for_multifaceted_operations.html;
Details
Country of Origin
Switzerland
Category
Wheeled Heavy Armored Vehicles
Land > Heavy Armored Vehicles > Wheeled Heavy Armored Vehicles
Filter Label
Y
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.72 m
Width
2.42 m
Height
2.92 m
Weight
12900 kg
Operators (2)
Germany
Switzerland
