John Deere 5045E American Utility Tractor
John Deere 5045E
Utility Tractor
Other
Basic Information
Name
John Deere 5045E American Utility Tractor
Designation
John Deere 5045E
Alternate Designation
John Deere 5045E
Equipment Type
Utility Tractor
Manufacturer
John Deere
Date of Introduction
2023
Description

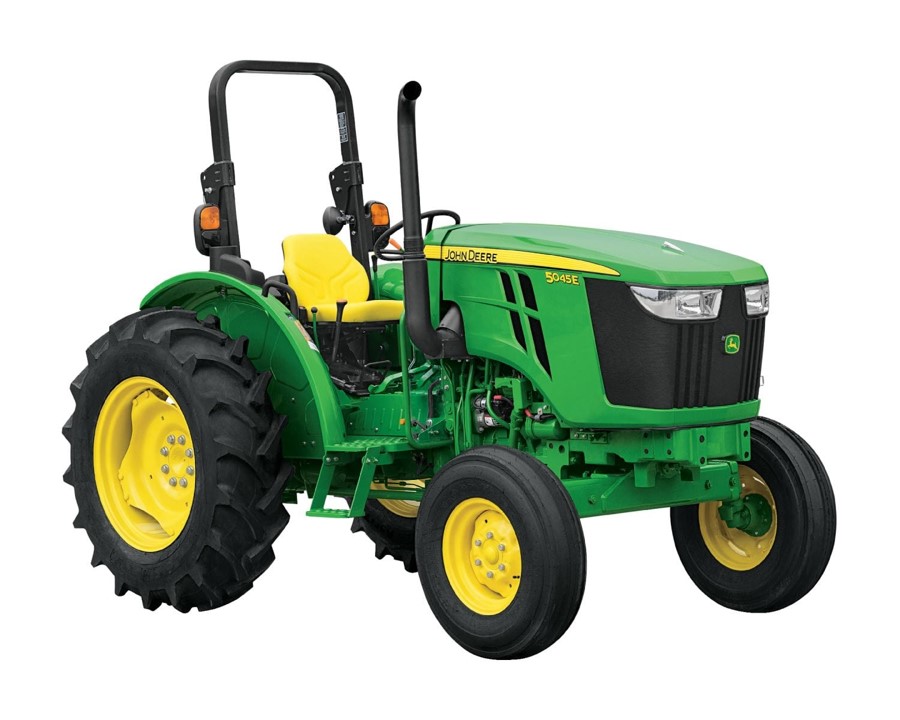

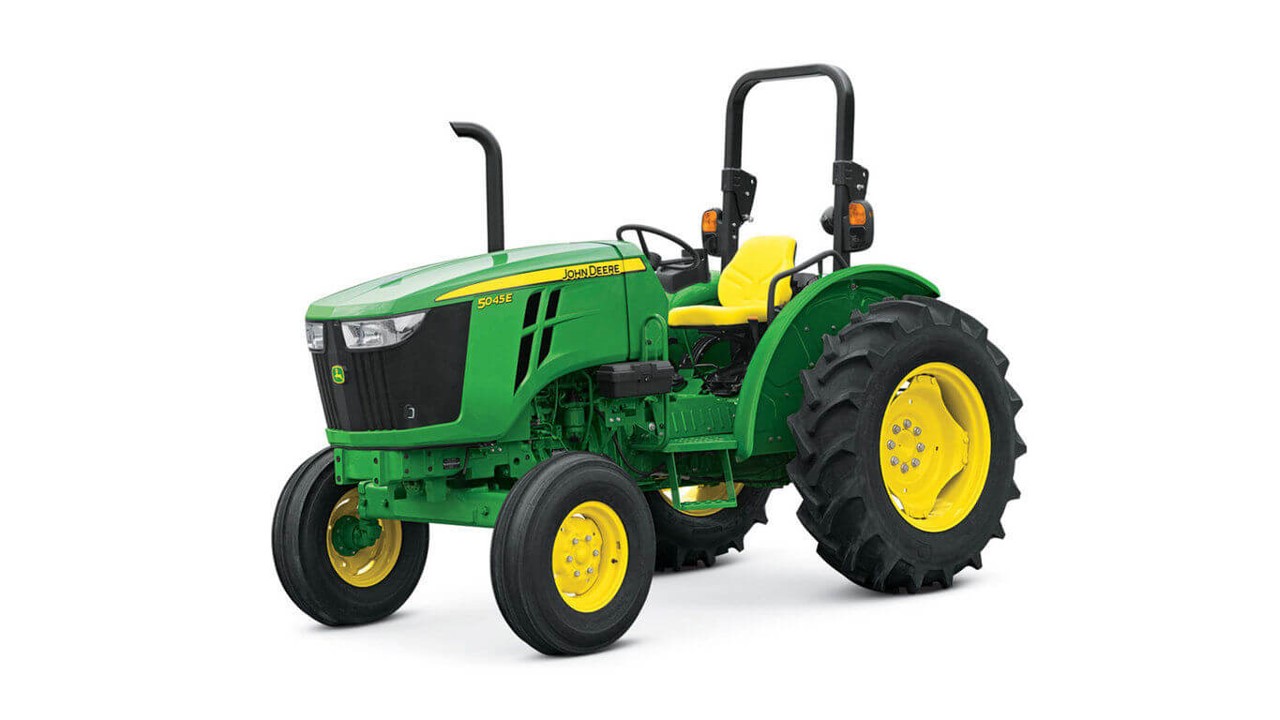

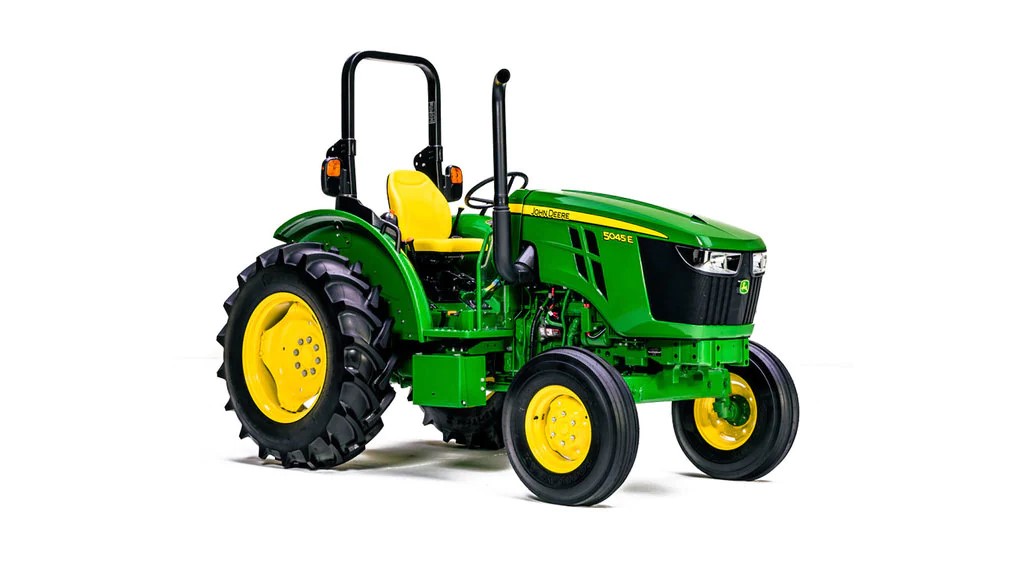

The John Deere 5045E American Utility Tractor. Operator comfort is important regardless of the application. Improving the 5E 3-Cylinder Tractor models, the hand throttle has been relocated to the right-hand console. This is 30.5 cm (12-in.) closer to the operator and within easy reach versus the previous location on the center-hand console. Operators may also notice the additional legroom provided by the repositioned loader controls, providing a more enjoyable experience.
Ground Specifications
Crew
1
Mobility Type
Wheeled (2WD)
Engine
3-Cylinder Diesel (2100 hp)
System
Alternative Designation
John Deere 5045E
Type
Utility Tractor
Manufacturer
John Deer
Configuration
2WD
Crew
1 ea
Rear Hitch Capacity
1,448 kg
Dimensions
Length
3,639 mm
Width
2,050 mm
Height
INA
Weight
2,525 kg
Automotive
Engine Name
John Deere PowerTech 3029
Engine Type
3 cylinders: 2.9 L
Engine Power
At 2100 rpm: 37.4 kW
50 hp
Maximum PTO power
@ 1800 RPM:
Open Station - 28.5kw (38hp)
Transmission
The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. Transmission durability is enhanced with the pressure-lubricated top shaft, allowing an operator to achieve performance from one working season to the next. Additionally, this in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement. The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds, and is characterized a synchronized while depressing the clutch.
Fuel Tank
72.5 L
Protection
Armor
None
Applique Armor
No
NBC Protection
No
Image Sources
Notes
https://www.deere.com/en/tractors/utility-tractors/5-family-utility-tractors/5050e-utility-tractor/; https://www.sloans.com/catalog/new-john-deere-ag/mid-tractor-and-hay-equipment/utility-tractors-and-loaders/utility-tractors/5-series-utility-tractors/5045e-utility-tractor; https://www.deere.asia/en/tractors/5-family-utility-tractors/5055e-utility-tractor/;
Details
Country of Origin
United States
Category
Tractors
Land > Engineer Systems > Tractors
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
3.64 m
Width
2.05 m
Height
—
Weight
2525 kg
Operators (1)
United States
