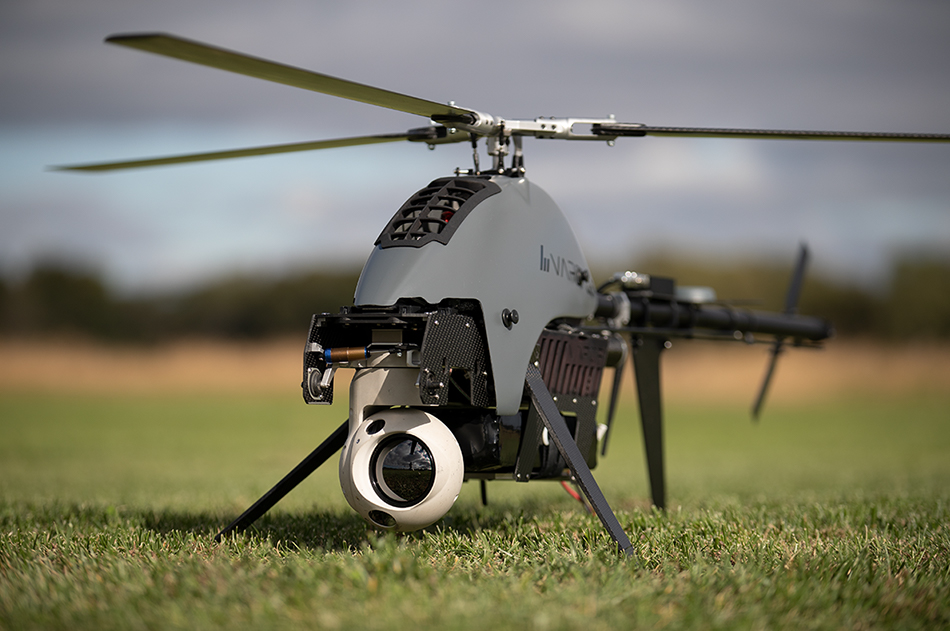

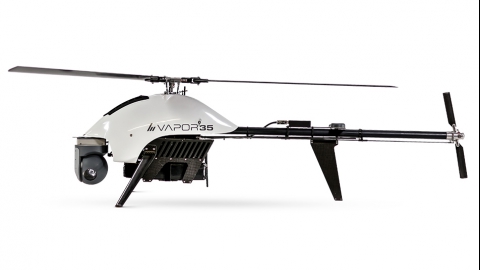

Vapor 35 American All-Electric Helicopter UAS

Vapor 35

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Vapor 35 American All-Electric Helicopter UAS
Designation
Vapor 35
Alternate Designation
Vapor 35
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
AeroVironment
Date of Introduction
2017
Description

With advanced autopilot and a variety of available sensors, the all-electric VAPOR 35 Helicopter UAS provides the operational flexibility to meet your most demanding missions. Featuring military-grade components, intelligent HW/SW system design, and high energy density lithium-polymer battery, VAPOR delivers enhanced flight stability and up to one hour of flight time on a single battery charge. Multi-mission capable, VAPOR 35’s modular payload bay provides access to a variety of available integrated sensors and third party payloads including gimbaled EO/IR, survey grade PPK mapping, LiDAR and hyperspectral sensors. VAPOR 35’s economical packout and single case mission configuration enables one-man lift operation. Every VAPOR Helicopter UAS incorporates proprietary HeliSynth™ technology for system level optimization including advanced autopilot, payload control & operation, and mission performance efficiency.

Air & Air Defense Specifications
Range 56.0 km
Rotor Diameter 1704.00 m
Payload Capacity 5 kg
Variants
Vapor 55 INA
System
Alternate Designation Vapor 35
Type Unmanned Aircraft Systems (UAS)
Manufacturer AeroVironment
Payload Capacity 5 lbs (2.27 kg) – 10 lbs (4.5 kg)
Payload Options EO/IR, LiDAR, Hyperspectral, PPK Mapping, Drop Mechanism
Data Links 900 MHz, 2.4 GHz, 5.8 GHz, Satellite
Dimensions
Aircraft Length 1,941 mm
Aircraft Width 625 mm
Aircraft Height 493 mm
Rotor Diameter 1,704 mm
Gross Weight 14.5 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Range 56 km
Operating Altitude INA
Max Cruise Endurance 60 minutes with full payload
Max Hover Endurance 45 minutes with full payload
Max Wind Peak 20 kts (23 MPH); Gusts 40 kts (45 MPH)
Operating Altitude 0-12,000 MSL
Details
Country of Origin United States
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
V
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.94 m
Width
0.63 m
Height
0.49 m
Weight
14.5 kg
Operators (1)
United States
