Bittium Tough Comnode Finnish Multi-Functional Terminal and IP Communication Device
Bittium Tough Comnode
Versatile Tactical IP Communication Device
Other
Basic Information
Name
Bittium Tough Comnode Finnish Multi-Functional Terminal and IP Communication Device
Designation
Bittium Tough Comnode
Alternate Designation
Bittium Tough Comnode
Equipment Type
Versatile Tactical IP Communication Device
Manufacturer
—
Date of Introduction
2018
Description

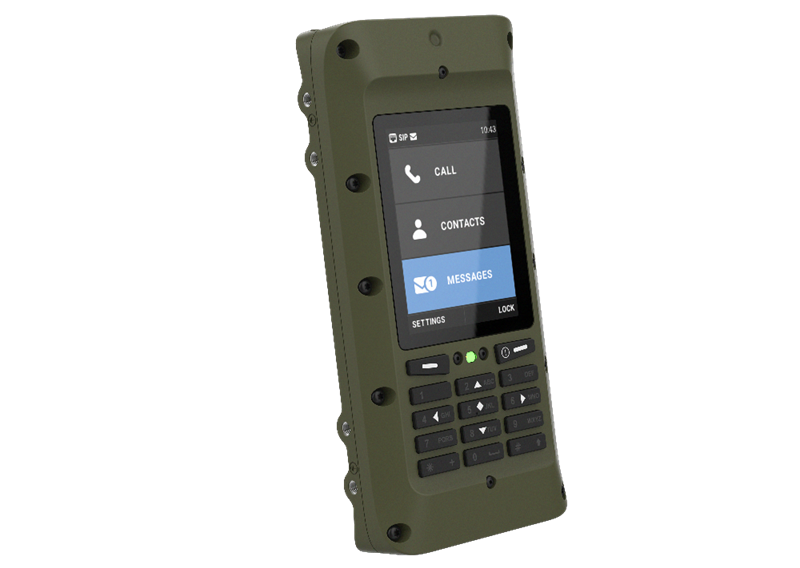

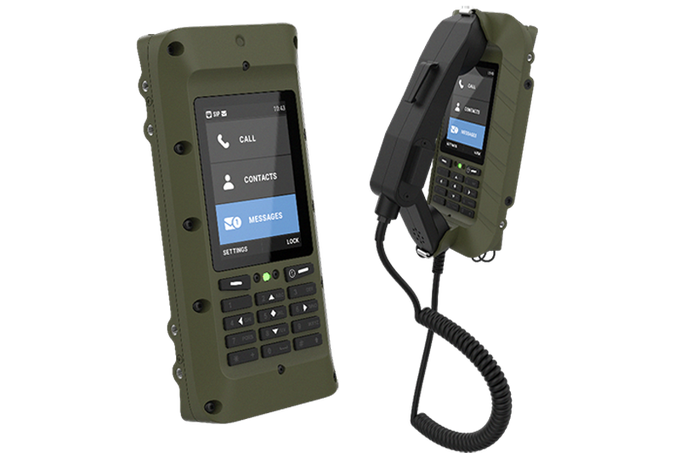

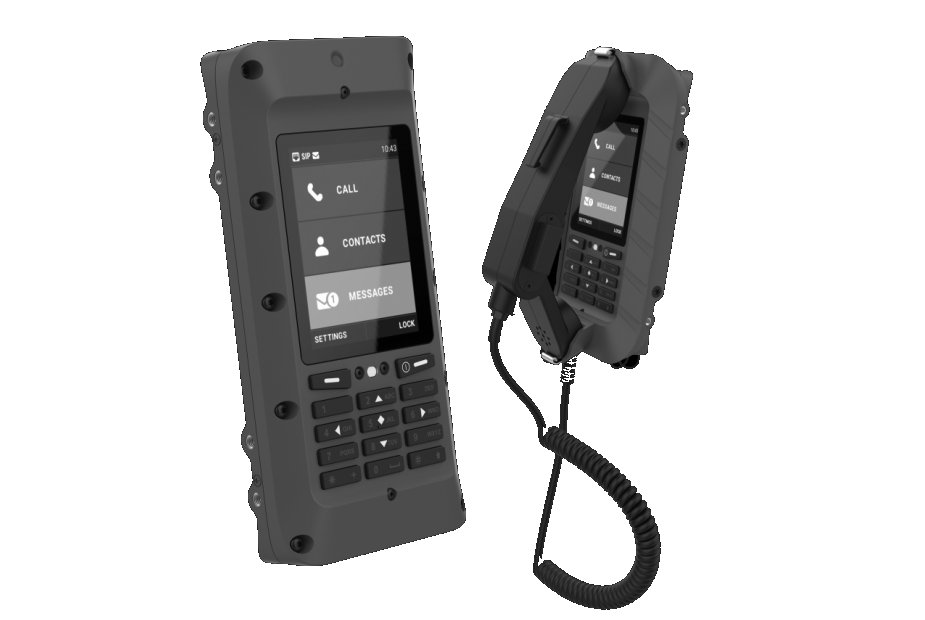

Bittium Tough Comnode is a versatile and rugged terminal and IP communication device for tactical networks. The device fulfils the data transfer needs for mobile troops for example as SIP phone, router and SHDSL modem. Bittium Tough VoIP Service™ can be run on the device to provide telephony and SIP server functionalities to other VoIP devices for accessing the VoIP network. Bittium Tough Comnode also provides wireless access point for mobile clients and enables using legacy Combat Net Radios (CNR) as part of the IP-based tactical communication system (Radio over IP, RoIP). Bittium Tough Comnode is also compatible with *Bittium Tactical Wireles IP Network™ (TAC WIN) system *Bittium Tough SDR™ products *Bittium Tough VoIP™ products
Ground Specifications
Crew
1
System
Alternative Designation
Bittium Tough Comnode
Type
Versatile Tactical IP Communication Device
Crew
1 ea
Interfaces
Audio interface for connecting handset/headset/CNR; incl. two serial ports and push-to-talk signals
2 x 10BASE-T/100BASE-TX interfaces with PoE 802.3af input;
USBv2.0 host port and USB power input; 2 x ITU-T G991.2 (G.SHDSL) interfaces, push-and-release connector for field wire; GPS
WLAN 802.11 bgn;
BT 3.0 for headset (Hands-Free Profile)
Versatile
The same device acts as a terminal, IP router, SHDSL repeater, CNR GW and SIP server.
Portable and Easy to Install
Small size and rugged form factor makes it easy to install anywhere and it is portable on the field.
Extensive Connectivity
Extensive connectivity with e.g. CNR interface, SHDSL, ETH, USB, WLAN, BT, SERIAL/AUDIO and GPS.
Military Grade IP Communications
Together with distributed VoIP service, Bittium Tough VoIP Service, and wide range of codecs.
Network Reliability
Dynamic routing capabilities improve network reliability.
Standard
MIL-STD-810G, MIL-STD-461G and MIL-STD-1275E standards compliant
Connectivity
Connectivity to 3rd party SIP servers and VoIP clients
IP address configuration
Automatic IP address configuration
Tactical IP Network
Fully independent tactical IP network using SHDSL and Ethernet connections
Operating Temperature
-40°C to +55°C
Display
3.5" diagonal TFT LCD full colour display (320 x 240 pixels)
Keypad
2 function keys below the display;
12 number keys
Protocols
Signalling protocol: SIP (RFC 3261), SDP (RFC 4566) and presence event package (RFC 3856);
Voice signalling: RTP/RTCP (RFC 3550), telephone events (RFC 2833)
Management Coding (Vocoder)
G.711, G.729AB, GSM, Speex, MELPe 2400
Management and Control
Web user interface for device configuration;
Setup of multiple devices via configuration file;
Remote SW update;
Software upgrade through web-based management;
Remote management support via Bittium Network Manager
Power Supply
12–32 V DC;
Alternate power inputs: LAN (PoE) and USB
Power Consumption
7 W (device);
Max. 7.5 W (USB power feed)
Dimensions
Length
183 mm
Width
90 mm
Height
30 mm
Weight, Combat
0.58 kg
Details
Country of Origin
Finland
Category
Tactical Routers
Land > Communication Equipment > Tactical Routers
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.18 m
Width
0.09 m
Height
0.03 m
Weight
0.58 kg
Operators (2)
Austria
Finland
