PLL-09 (Type 09) Chinese 122mm Self-Propelled Howitzer (SPH)
PLL-09, Type 09
122mm Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
PLL-09 (Type 09) Chinese 122mm Self-Propelled Howitzer (SPH)
Designation
PLL-09, Type 09
Alternate Designation
PLL-09, Type 09
Equipment Type
122mm Self-Propelled Howitzer (SPH)
Manufacturer
—
Date of Introduction
2009
Description

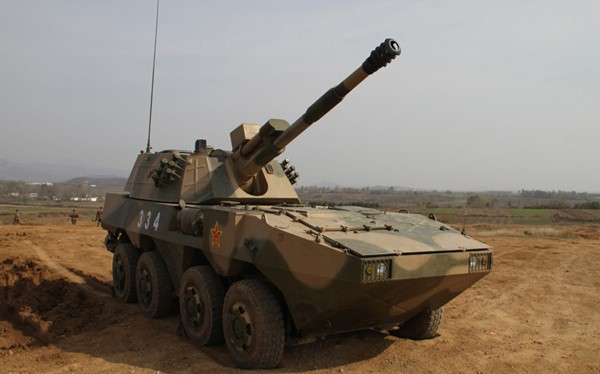

The PLL-09 is a Chinese 122 mm self-propelled howitzer. Currently, this howitzer is widely used by China's army. This artillery system is also used by China's marines. The PLL-09 provides indirect fire support for rapid deployment brigades. These Chinese brigades are similar in concept to the US Stryker brigades. These military units are equipped with lightly armored, but highly mobile 8x8 armored personnel carriers of all variants. Each rapid reaction brigade has numerous armored vehicles of all variants, including armored personnel carriers, reconnaissance vehicles, 105 mm fire support vehicles, command vehicles, engineer vehicles, and some other specialized vehicles. These brigades can be briefly redeployed over significant distances. Also, the PLL-09 SPH has good cross-country mobility and is capable of keeping pace with main battle tanks.
Ground Specifications
Crew
3
Engine
Diesel (440 hp)
Active Protection
Yes
NBC Protection
Yes
Variants
ZBL-09
ZBL-09 or Type 07P is a wheeled infantry armoured fighting vehicle designed and manufactured by the Chinese Defense Company NORINCO China North Industries Corp. The ZBD-09 was presented for the first during the military parade in Beijing for the 60th anniversary of the Chinese army (PLA), the 01 October 2009. The ZBD-09 was based to the chassis of the VN1 8x8 wheeled chassis.
System
Alternative Designation
PLL-09, Type 09
Manufactuerer
NORINCO
Type
122mm Self-Propelled Howitzer (SPH)
Family
PLL Family
Crew
3-4 ea
Chassis
based on a ZBL-09 Snow Leopard armored personnel carrier chassis
Displacement Time
INA min
Emplacement Time
INA min
Maximum Effective Range (Road)
800 km
Maximum Effective Range (Howitzer)
27 km
Dimensions
Length
8 m
Width
3 m
Height
3 m
Weight, Combat
21 tons
Ground Pressure
INA
Automotive
Engine Name
Deutz BF6M1015C
Engine Type
Diesel
Engine Power
440 hp
Cruising Range
800 km
Speed, Maximum Road
62 km/h
Speed, Average Cross
50 km/h
Speed Maximum Swim
6-8 km/h
Gradient
60 %
Side Slope
40 %
Vertical Step
0.55 m
Trench
1.8 m
Fording Depth
Amphibious m
Communications
TBR-142
VHF FM Transceiver
Yes, TBR-142(I)
VHF Range
1 to 50 km
Megahertz
40.000 to 59.975 MHz
Output Power
1 to 0.3 Watts
Power
12V Ni-Ca Rechargeable Battery or external 12V DC power source
Dimensions
217x135x58 mm
Weight
2.7 kg
Antennas
3 Total: a 1.3m whip antenna, a 0.3m short antenna, and a 10m wire antenna
Proliferated
Widely with Artillery/Gun/Missile/Reconnaissance/C2 Units
Control Device
TBR-142(II)
Multi-function Field Phone
TBR-142(IIID)
Anti-Aircraft Control Unit
TBR-142(IIIG)
ZXY88-200 C2 Capable
Yes
Messaging
Limited Capability
Amplifier
Available
Physical Conditions Limitations
Terrain and Weather favorable
Main Gun
System
Name
Type 96 Howitzer
Type
122mm Self-Propelled Howitzer (SPH)
Length, Barrel
32 Caliber
Loader Type
Semi-automatic loader
Max Rate of Fire
6-8 rds/min
Sustain Rate of Fire
6 rds/min
Time the Max Rate of Fire can be Sustained
INA
Muzzle Brake Type
INA
Max Elevation
+70 deg
Min Elevation
-3 deg
Traverse Range
360 deg
Range Finder Type
Laser
Ammunition (Option 1)
Type
High Explosion (HE)
Caliber
122 mm
Projectile Weight
14-22 kg
Diameter
39.2 mm
Fuse Type
INA
Muzzle Velocity
690 m/s
Maximum Effective Range
18-27 km
Armor Penetration
Yes, up to 85mm of conventional steel armour
Basic Load
40 Rounds total of any 122mm combination projectiles
Ammunition (Option 2)
Type
HE Hollow Base Projectile
Caliber
122 mm
Weight
21.76 kg
Diameter
39.2 mm
Muzzle Velocity
725 m/s
Fuse Type
INA
Maximum Effective Range
18 km
Armor Penetration
Yes, up to 85mm of conventional steel armour
Basic Load
40 Rounds total of any 122mm combination projectiles
Ammunition (Option 3)
Type
HE Base Bleed (BB) Projectile
Caliber
122 mm
Weight
22.5 kg
Diamter
39.2 mm
Muzzle Velocity
730 m/s
Fuse Type
INA
Maximum Effective Range
22 km
Armor Penetration
Yes, up to 85mm of conventional steel armour
Basic Load
40 Rounds total of any 122mm combination projectiles
Ammunition (Option 4)
Type
HE BB Rocket-Assist Projectile Type BEE2
Caliber
122 mm
Weight
INA
Diameter
39.2 mm
Muzzle Velocity
INA
Fuse Type
INA
Maximum Effective Range
27 km
Armor Penetration
Yes, up to 85mm of conventional steel armour
Basic Load
40 Rounds total of any 122mm combination projectiles
Coaxial Weapon System
System
Name
Type 54 (DShKM copy)
Type
Anti-Aircraft Machine Gun
Max Rate of Fire
INA
Range Finder Type
Iron/Optics
Armor Shield
Yes
Traverse Range
360 deg
Elevation
90 deg
Ammunition
Type
1120 Rounds: APDS (Tungsten Core); API, API-T,
Caliber
12.7 mm
Muzzle Velocity
850 m/s
Basic Load
500 ea
Effective Range
2,000 m
Armor Penetration
Yes, API: 21 at 500 m & 13 at 1000 m (RHA)
Fire Control
Name
INA
Computerized FCS
Yes
Digital Ballistic Computer
Yes
Digital Battlefield Management System
Yes, standard
Thermal Sight Vehicle Commander
Yes
Thermal Sight Gunner
Yes
Main Gun Stabilization
INA
Indirect Fire Support
Yes
Protection
Front Arc Armor
Welded steel hull, Front arc can withstand 12.7mm armor piercing rounds.
All Around Armor
Welded steel hull, Protection from 7.62mm armor-piercing rounds.
Automatic Fire Suppression Systems
Yes
Applique Armor
Available
Explosive Reactive Armor
No
Active Protection System
Yes
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
Yes, 12 Smoke Grenades on Turret
IR Signature
INA
Image Sources
Details
Country of Origin
China
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
3 m
Height
3 m
Weight
21000 kg
Operators (1)
China
