Buk-M3 | - | SA-27 GOLLUM | 9A317M

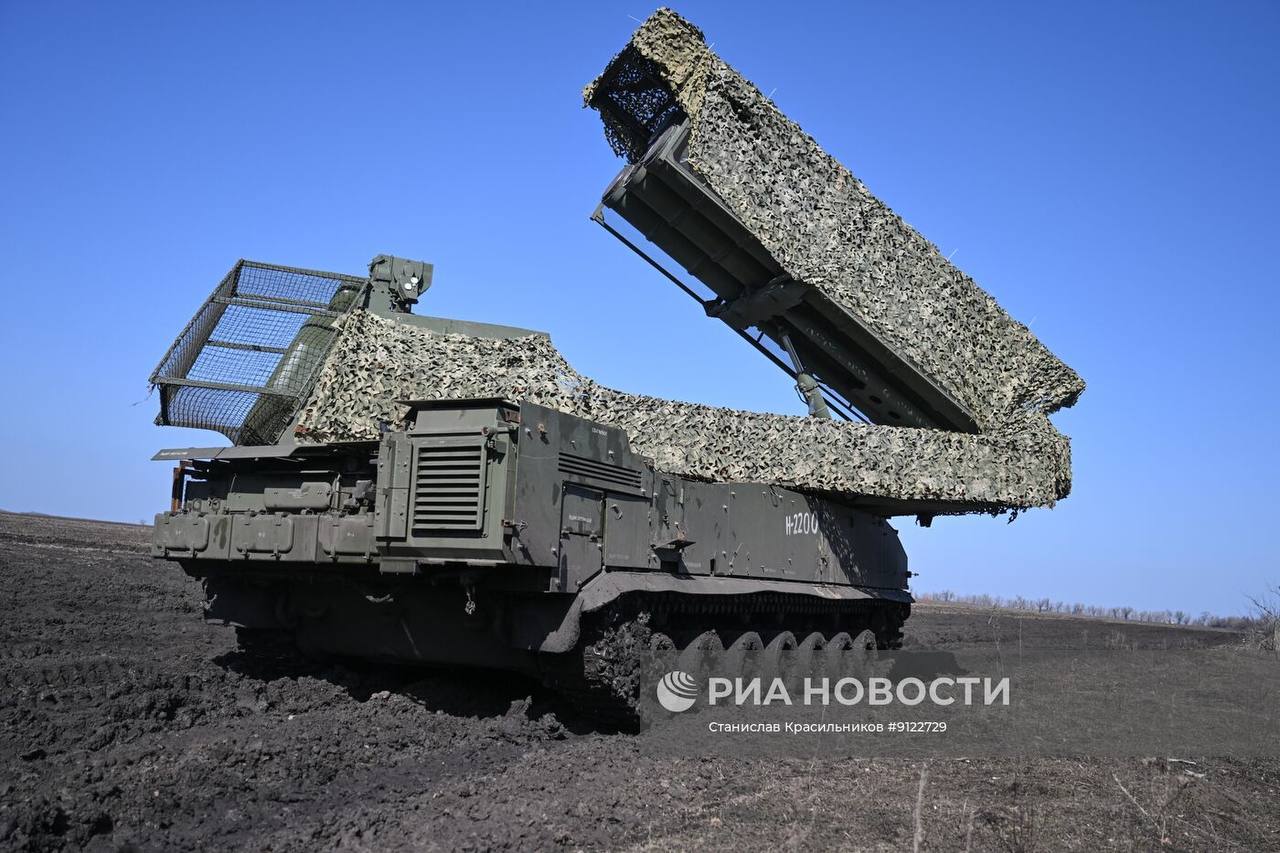

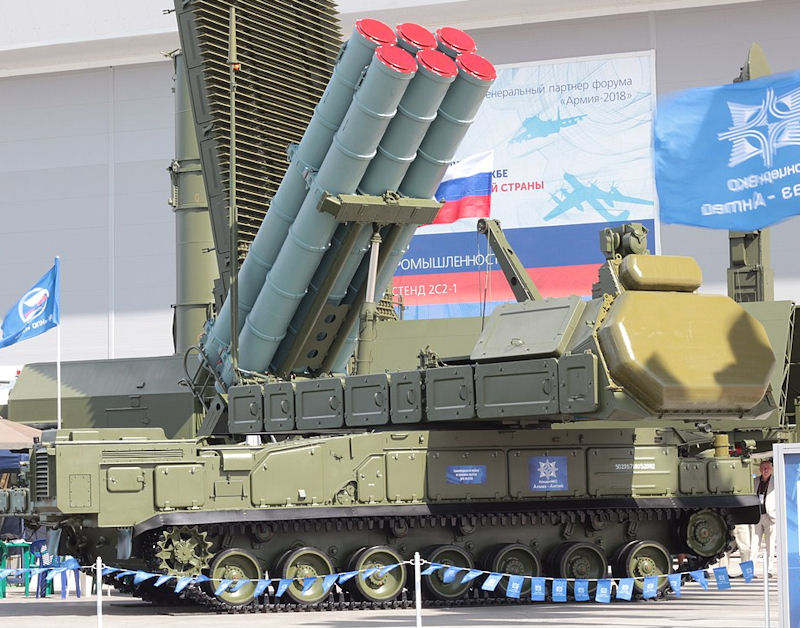

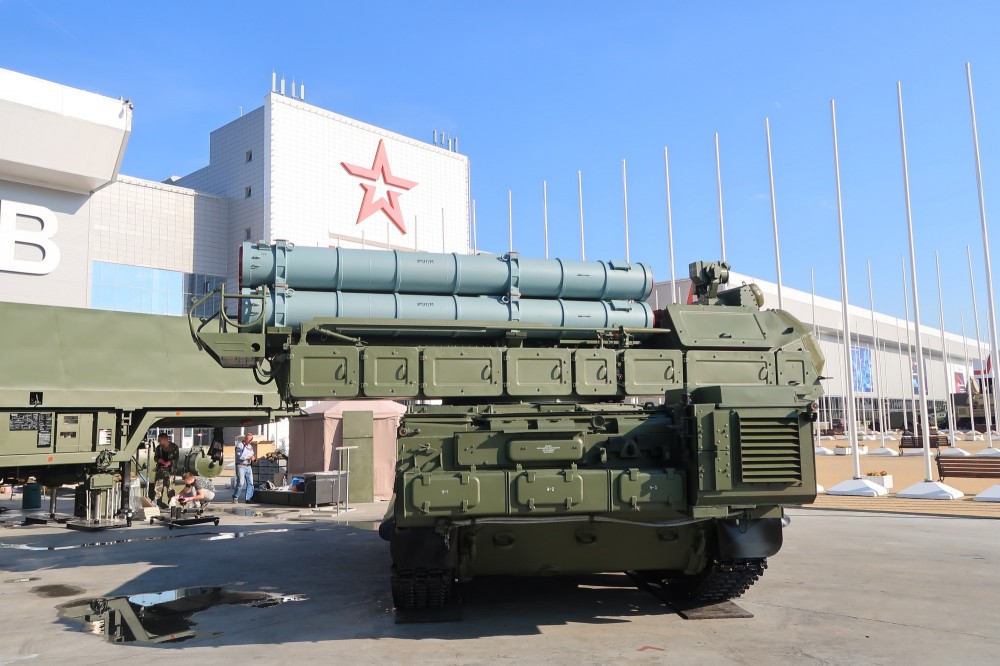

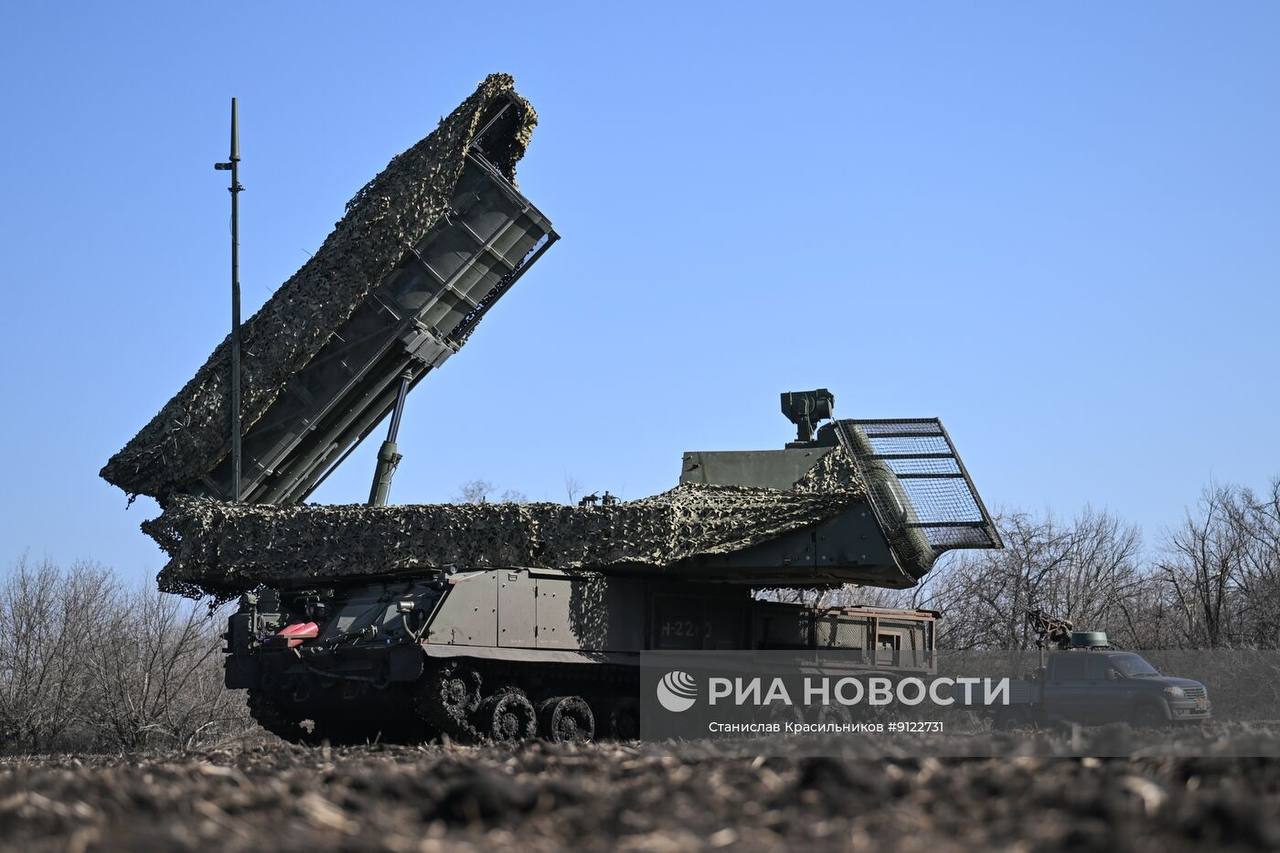

The 9A317M is the TELAR (Transporter Erector Launcher And Radar) of the Buk-M3 (SA-27 Gollum) air defense system. A fully autonomous combat vehicle with optical-electronic complex for passive tracking and 6 missiles in sealed transport-launch containers. SPECIFICATIONS Missiles: 6x 9M317M in sealed transport-launch containers Fire Control: Phased-array radar + optical-electronic complex (passive tracking) Simultaneous Engagements: 6 targets Chassis: GM-5969 (7-roller tracked) Crew: 4 KEY DIFFERENCES FROM 9A317 (BUK-M2) Missiles in sealed containers vs open rails 6 missiles vs 4 Optical-electronic complex for passive tracking New GM-5969 chassis (7-roller vs 6-roller) Fire-and-forget ARH missile capability (9M317M with Agat Slanets seeker)
