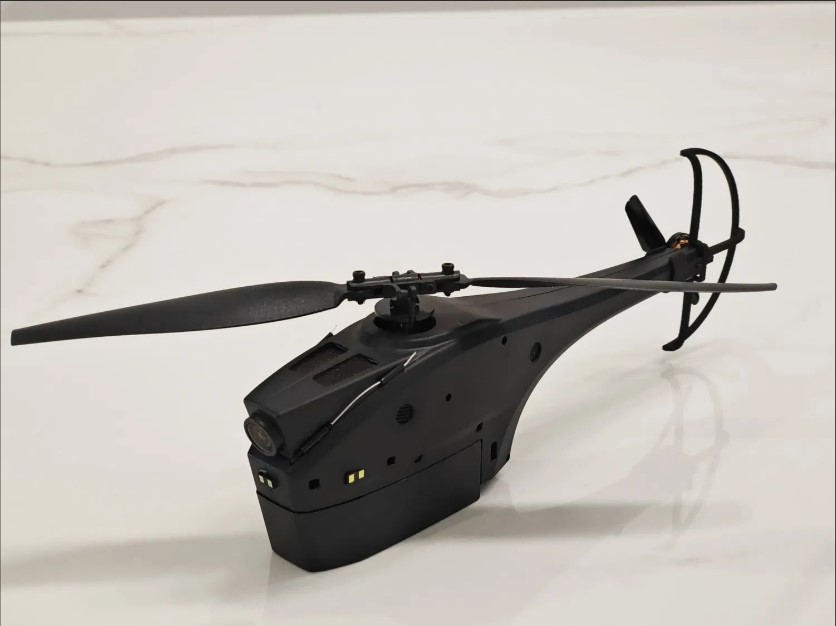

HF101D Chinese Unmanned Aerial Vehicle (UAV)

HF101D

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
HF101D Chinese Unmanned Aerial Vehicle (UAV)
Designation
HF101D
Alternate Designation
HF101D
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
HF Airtech Technology Co., Ltd (HF Airtech)
Date of Introduction
2024
Description

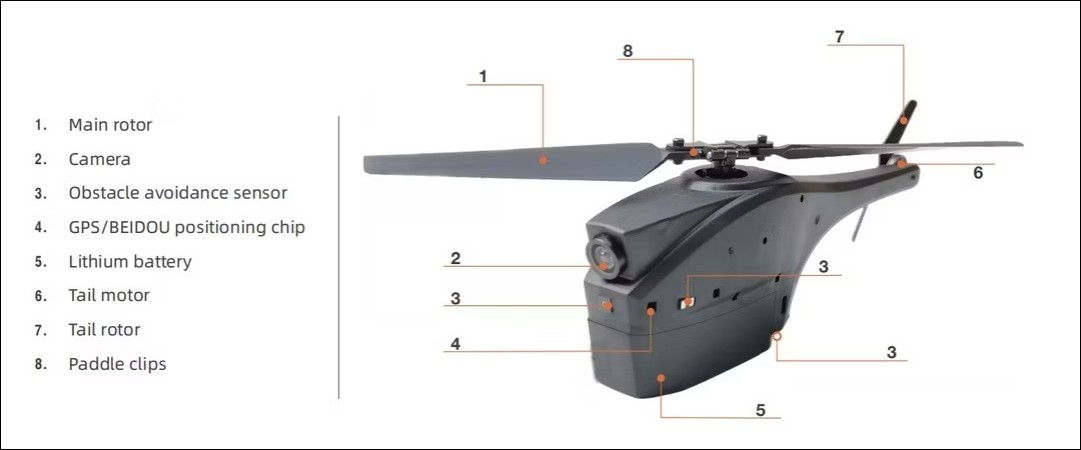

The HF101D Chinese Unmanned Aerial Vehicle (UAV) is a kind of ultra-miniature reconnaissance UAV, which integrates image, obstacle avoidance, self-stabilization, navigation, control, transmission and other functions in its 50g body. It is equipped with a data chain that can reach up to 2.5 kilometers, which ensures over-the-horizon measurement and control and anti-jamming transmission. The five features of quietness, compactness, covertness, flexibility and intelligent perception make it an excellent tool for urban combat and closed environment reconnaissance.

Air & Air Defense Specifications
Engine Battery
Max Speed 36.0 km/h
Range 2.5 km
Endurance 20.00 hrs
Wingspan 170.00 m
System
Alternate Designation HF101D
Type Unmanned Aerial Vehicle (UAV)
Manufacturer HF Airtech Technology Co., Ltd (HF Airtech)
Payload Capacity INA
Functions With six major functions: autonomous outdoor cruise, intelligent obstacle avoidance, pointing flight, fixed-point hovering, one-key return, and multi-mode recording.
Noise Level 50dB(distance 3m)
Camera Resolution 1080*720P
Image Transmission Resolution 640*380P

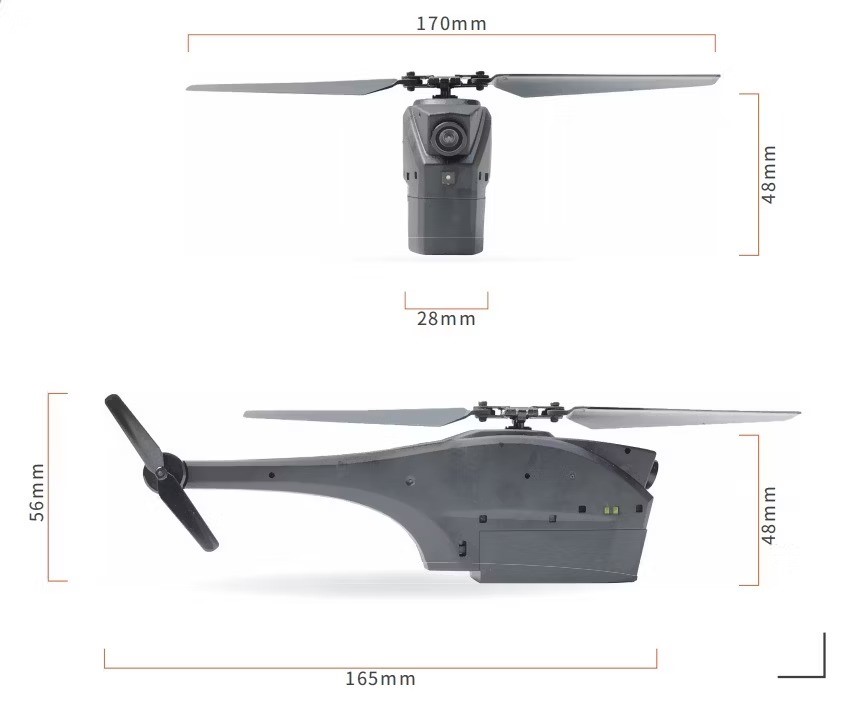

Dimensions
Length 165 mm
Height 56 mm
Wingspan 170 mm
Maximum Takeoff Weight 50 grams
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 36 km/h (10 m/s)
Maximum Range 2.5 km
Service Ceiling INA
Endurance 20 min
Details
Country of Origin China
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.17 m
Width
0.17 m
Height
0.06 m
Weight
0.05 kg
Operators (1)
China
