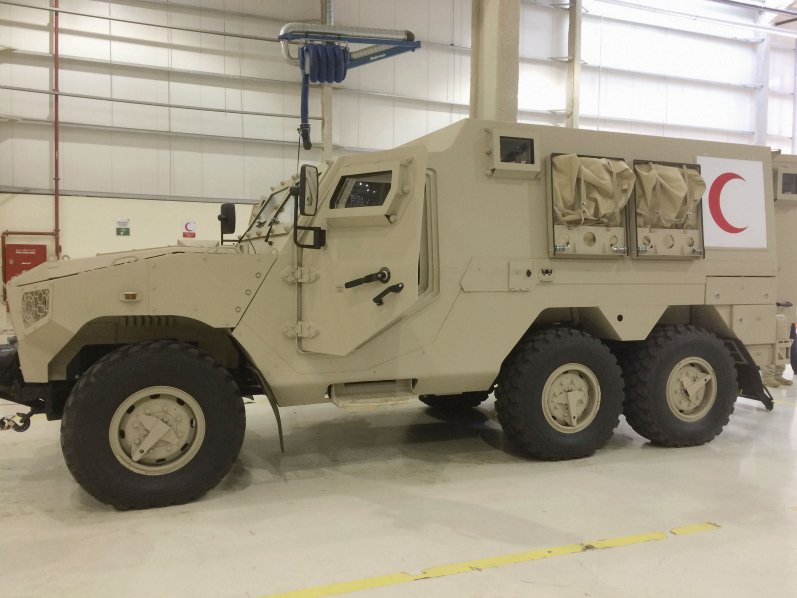

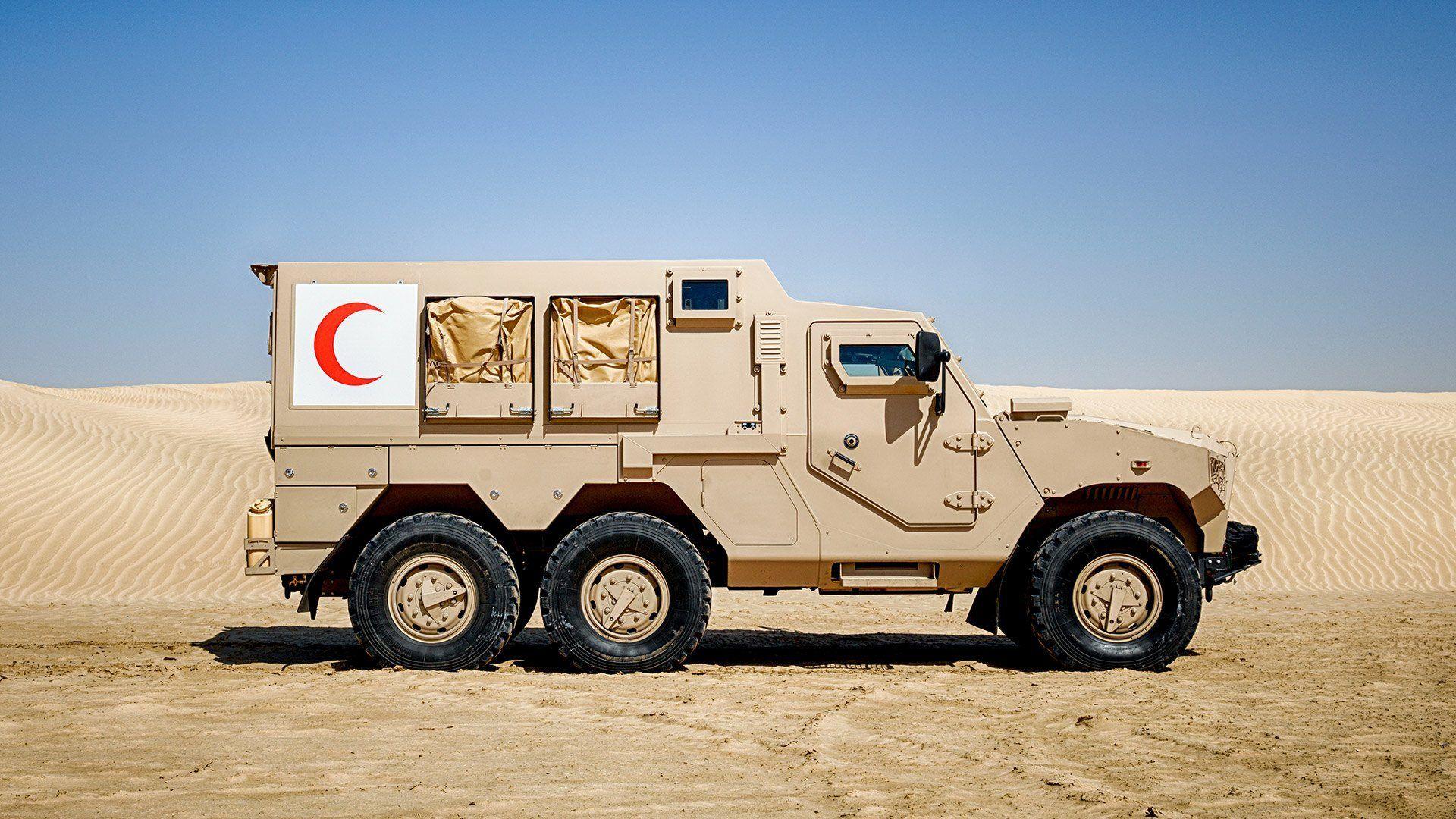

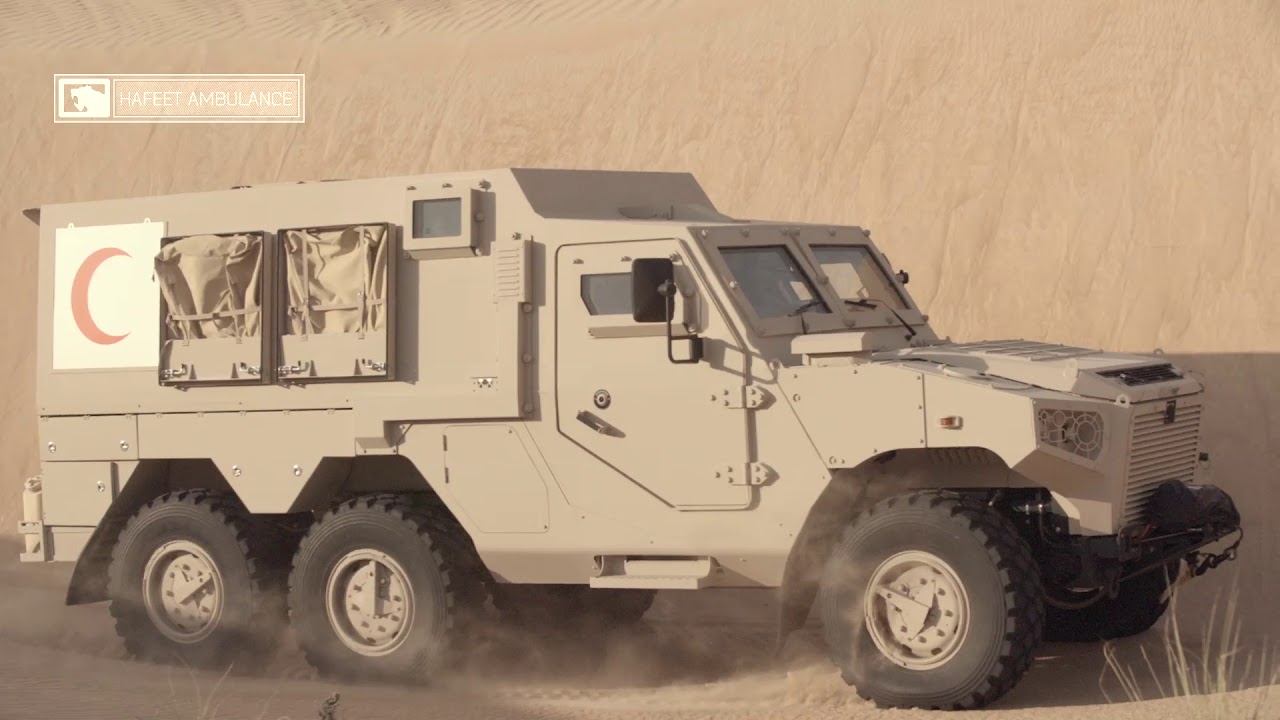

Nimr Hafeet Emirati 6x6 Armored Ambulance

Nimr Hafeet Amb

CBRN Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Nimr Hafeet Emirati 6x6 Armored Ambulance
Designation
Nimr Hafeet Amb
Alternate Designation
Nimr Hafeet Amb
Equipment Type
CBRN Vehicle
Manufacturer
NIMR
Date of Introduction
2018
Description

The Nimr Hafeet 6x6 Armored Ambulance is the medical version of the Nimr Hafeet 620. The HAFEET Class of 6x6 vehicles provides a multipurpose platform for all military requirements at 13,000 kg capacity from utility vehicles to fully protected patrol vehicles. A universal 6x6 chassis is utilised for a common logistic basis. All vehicles in the HAFEET Class can be protected, and specific protected models are included for crew survivability with fully tested and certified cabins. The main role of the Hafeet is to provide troops with logistical and utility support. Also there are some specialized versions of this vehicle. It is a purpose-designed military vehicle, which can operate in demanding conditions. It has good cross-country mobility and can travel over difficult terrain. The Hafeet has a payload capacity and size of a light truck. However due to its military nature the Hafeet can withstand heavy use or even abuse, far exceeding that of militarized commercial vehicles, or those based on commercial drivelines. Most versions of the Hafeet can carry loads with a maximum weight of 2 400-5 000 kg. This military vehicle can also tow trailers and light artillery pieces. There are 2-, 3- or 4-door versions of the Hafeet. All versions can be armored. The armored cab provides protection for the passengers against small arms fire and artillery shell splinters, mines and improvised explosive devices.

Ground Specifications
Engine Diesel (296 hp)
Range 650.0 km
Variants
Nimr Hafeet 620 A logistical and utility vehicle with a 2-door cab and a larger cargo area at the rear. It can carry various supplies and can be also configured to carry shelters.
Nimr Hafeet 620A An armored version of the Hafeet 620.
Nimr Hafeet 640A An armored version with a double cab.
Nimr Hafeet APC Armored Personnel Carrier.
Nimr Hafeet AMB Ambulance version.
System
Alternative Designation Nimr Hafeet Amb
Type Armored Ambulance
Configuration 6x6
Manufacturer Nimr LLC
Cab Seating 1 + 1/3 men ea
Airlift Capable INA
Number of Stetchers INA
Note There are 2-, 3- or 4-door versions of the Hafeet. All versions can be armored.
Dimensions
Length 6.9 m
Width 2.3 m
Height 2.1 m
Weight, Empty 8 - 11.5 tons
Payload Capacity 2.4-5 tons
Automotive
Engine Name Cummins ISBe 300
Engine Type Diesel
Engine Power 296 hp
Maximum Road Speed 110 km/h
Maximum Range 650 km
Gradient 43 %
Side Slope 30 %
Vertical Step 0.4 m
Trench 0.5 m
Fording 1 m
Note #1 This military vehicle can also tow trailers and light artillery pieces.
Note #2 Vehicle is fitted with a central tyre inflation system and run-flat tyres as standard. Also there is a recovery winch, which also comes as standard.
Main Weapon System
Note This armored vehicle has a roof hatch and can be fitted with a roof-mounted 7.62 mm or 12.7 mm machine gun machine gun, or 40-mm grenade launcher. Sometimes the Nimr II is even fitted with a heavy machine gun. Depending on customer requirements this vehicle can be fitted with remotely controlled weapon station. Some vehicles are fitted with smoke grenade dischargers.
System
Name Caracal Assault Rifle 817
Alternative Designation CAR 817
Date of Introduction 2016
Country United Arab Emirates
Manufactuer Caracal International company
Caliber 7.62 mm
Length, Stock Extended 884 mm
Length, Stock Retracted 802 mm
Barrel Length 406 mm
Weight, Without Magazine 3.3 kg
Muzzle Velocity 750 m/s
Cyclic Rate of Fire 650-750 rds/min
Practical Rate of Fire 30-90 rds/min
Magazine Capacity 10, 20, 25 rounds
Range of Effective Fire 600 m
Sight Iron
Ammunition
Type Rifle
Caliber 7.62 mm
Cartridge 7.62x51 mm
Protection
Armor The Hafeet Class features variants with a high degree of protection to enhance survivability of the crew to attack from roadside IEDs, under-vehicle mines and ballistic threats. The Hafeet Class vehicles can be armored with different level of ballistic and blast protection depending on the variant and customer needs. The vehicles can receive standard ballistic protection up to STANAG level IV and standard blast protection up to STANAG level III (a,b).
Applique Armor Available, There are numerous versions of the Nimr Hafeet. Due to its modular nature the vehicle can be configured to suit various battlefield roles.
Explosive Reactive Armor No
Active Protection System INA
NBC Protection Optional
Smoke Equipment Available, smoke grenade dischargers
Fire Suppression System Yes
Protective Net Protective net against anti-tank rocket launchers
Battle Field Management System Available
Details
Country of Origin United Arab Emirates
Category Medical Vehicles
Land > Combat Support Vehicles > Medical Vehicles
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Operators (7)
Czech Republic
Algeria
Jordan
Lebanon
Libya
Turkmenistan
United Arab Emirates
