DJI Mavic Air 2 Chinese Unmanned Aerial Vehicle (UAV)

DJI Mavic Air 2

Tactical Unmanned Aerial Vehicle (UAV)

Spotted an error? Sign in to suggest an edit.

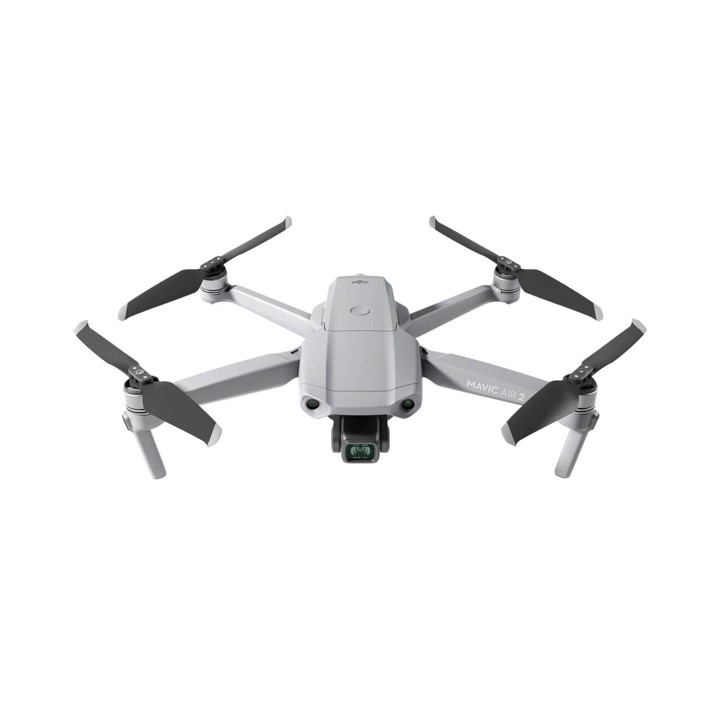

DJI Mavic Air 2 Chinese Unmanned Aerial Vehicle (UAV) (A)TRADOC ODIN WEG

Basic Information

Name

DJI Mavic Air 2 Chinese Unmanned Aerial Vehicle (UAV)

Designation

DJI Mavic Air 2

Alternate Designation

DJI Mavic Air 2

Equipment Type

Tactical Unmanned Aerial Vehicle (UAV)

Manufacturer

DJI

Date of Introduction

2023

Description

The DJI Mavic Air 2 Chinese Unmanned Aerial Vehicle (UAV) combines a foldable and portable frame, high-end camera system, and a host of accessories to get you flying quickly. The 3-axis gimbal sports a 1/2" CMOS sensor capable of capturing 8K Hyperlapse time-lapse shots, 4K60 video, 240 fps slow-motion 1080p video, and up to 48MP stills. In addition, photos, panoramas, and video can be captured in HDR for more dynamic results. All your footage can be saved to 8GB of internal storage and on optional SD cards up to 256GB in size.

Air & Air Defense Specifications

Engine Battery

Max Speed 68.4 km/h

Range 18.5 km

Endurance 34.00 hrs

Service Ceiling 5000 m

System

Alternate Designation DJI Mavic Air 2

Type Unmanned Aerial Vehicle (UAV)

Manufacturer DJI

Payload Capacity INA

Operating Temperature Range -10° to 40°C (14° to 104°F)

Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz

Transmitter Power (EIRP) 2.400-2.4835 GHz: FCC: ≤26 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm 5.725-5.850 GHz: FCC: ≤26 dBm CE: ≤14 dBm SRRC: ≤26 dBm

Hovering Accuracy Range Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.1 m (with vision positioning) ±1.5 m (with GPS positioning)

Satellite Systems GPS+GLONASS

Dimensions

Folded 180×97×84 mm (Length×Width×Height)

Unfolded 183×253×77 mm (Length×Width×Height)

Diagonal Distance 302 mm

Weight 570 grams

Automotive

Engine Name INA

Engine Type Battery

Engine Power INA

Maximum Horizontal Flight Speed 19 m/s (S Mode) 12 m/s (N Mode) 5 m/s (T Mode)

Maximum Ascent Speed 4 m/s (S Mode) 4 m/s (N Mode)

Maximum Descent Speed 3 m/s (S Mode) 3 m/s (N Mode) 5 m/s (S Mode and N Mode during a sharp descent) 3 m/s (all modes at elevations over 4500 m)

Maximum Range 18.5 km

Service Ceiling 5,000 m

Endurance 34 min

Image Sources

Notes https://store.dji.com/product/mavic-air-2?vid=91071;

Details

Country of Origin China

Category UAVs

Air > UAVs

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

—

Width

0.25 m

Height

0.08 m

Weight

0.57 kg

Operators (1)

China
