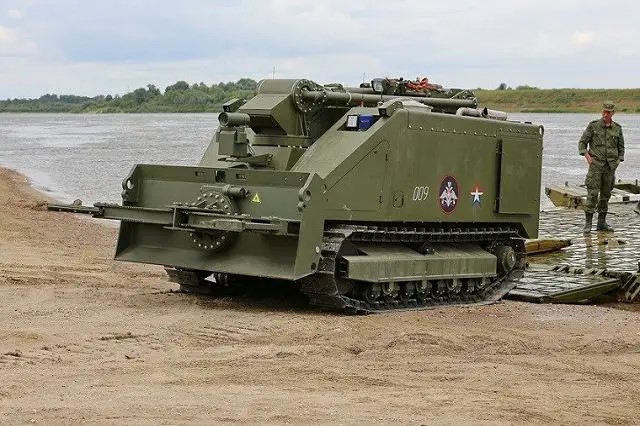

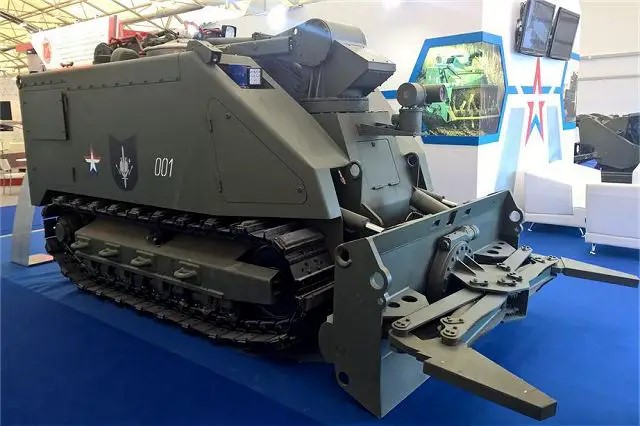

Uran-14 Russian Unmanned Ground Vehicle (UGV)
Uran-14
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Uran-14 Russian Unmanned Ground Vehicle (UGV)
Designation
Uran-14
Alternate Designation
Uran-14
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
JSC "766 UPTK"
Date of Introduction
2024
Description
The Uran-14 Russian Unmanned Ground Vehicle (UGV) is a multifunctional tracked robotic system designed to extinguish fires in life-threatening, hazardous environments and inaccessible areas.
Ground Specifications
Mobility Type
Tracked
Engine
6-Cylinder Turbocharged Diesel
Max Speed
10.0 km/h
Range
1.5 km
System
Alternative Designation
Uran-14
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
JSC “766 UPTK”
Configuration
Track
Operator
1 ea
Accessories

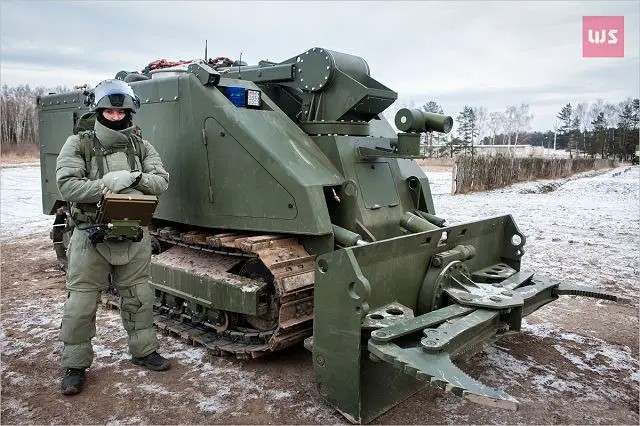

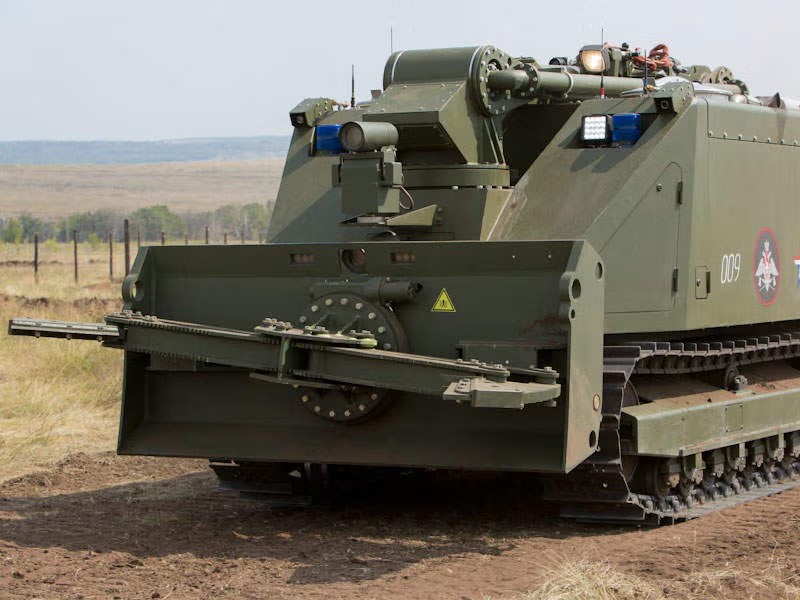

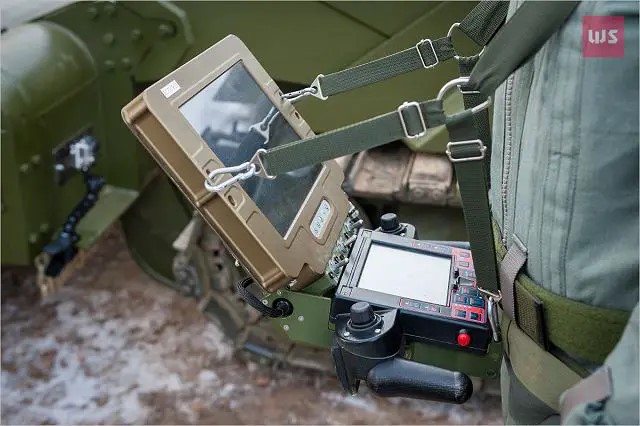

The URAN-14 can be configured as fire-fighting vehicle or as a mine/obstacle clearance vehicle. It can be fitted with fire-fighting technologies, plus two storage containers for water and foam; uran-14 can extinguish fires with minimal damage to itself and its operators, who remain outside the range of danger during operation. The fire-fighting system comprises a hydraulic arm fitted with an infrared thermal camera and a high-pressure water jet system with a 55m throw range. The front of the URAN-14 is equipped with one dozer blade, which pushes obstacles up to 10 tons of weight. A rotational gripper is also used for mine clearance and can lift barriers to 2 tons of weight. The gripper can also penetrate buildings, cut wires, and be used as the jaws of life. Claw equipment in shears can be installed on the front of the vehicle driven by hydraulic power. This tool can cut through obstacles with a maximum force of 18 kN. A hydraulic winch can be mounted on the rear side of the vehicle, with a rated pulling force of 7,100 kg and a steel rope with a length of 25m. A sophisticated video system lets the operator control the vehicle's movement during operation. The video system consists of six high-resolution and waterproof cameras. One of the cameras is a thermal camera, which allows the URAN-14 to operate during the reduced visibility conditions. The cameras are positioned on the water monitor, gripper attachment, and other components, allowing the operator to control the machine and its performance during various operational modes.
Note

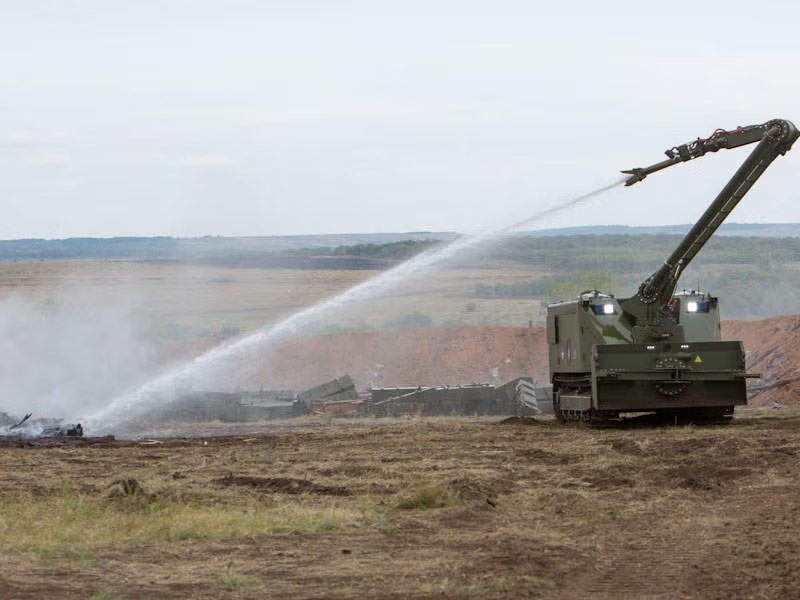

The vehicle's roof is equipped with a hydraulic arm, which is used as a water cannon up to a distance of 55m. The middle part of the vehicle is used as a water tank with a capacity of 2,000 liters of water or 500 liters of foam. A middle-pressure fire pump is also located at the rear of the vehicle. The URAN-14 can spray 2,000 liters of water or 500 liters of foam per minute. Tank capacity consists of 2,200 liters of water or 500 liters of foam. The water monitor is fitted on a specially designed 3-level hydraulic arm, which enables the delivery of extinguishing resources in all desired directions. Using the remote control technology, the URAN-14 system can be operated from a distance of up to 1,500 m in line of sight. GPS-INS (Global Position System – Inertial Navigation System) would turn the current system into a real robot, ensuring the URAN-14 returns to the original location, even if radio communication is lost. The URAN-14 is also equipped with highly sophisticated surveillance and multi-purpose tools that include functional sensors, CBR detectors (heat, explosive gases, and oxygen), several functional cameras for surveillance and reconnaissance tasks, tools for hazard removal, resource hauling, and a firefighting tool kit.
Dimensions
Length
5.32 m
Width
2.2 m
Height
2.05 m
Weight, Empty
11,000 kg
Weight, Combat
14,000 kg
Automotive
Engine Name
INA
Engine Type
6 cylinder Turbo-charged Diesel
Engine Power
INA
Maximum Range
INA
Maximum Speed
10 km/h
Amphibious
No
Endurance
8 hours
Protection
Armor
Steel armor tp provide protection against mine explosion.
Applique Armor
Available
Image Sources
Note
https://armyrecognition.com/military-products/army/unmanned-systems/unmanned-ground-vehicles/uran-14-mrtk-p-unmanned-robotic-mine-clearance-and-firefighting-tracked-vehicle-data-sheet-specifications-pictures-video11201166; https://www.army-technology.com/projects/uran-14-multi-mission-unmanned-ground-vehicle/
Details
Country of Origin
Russia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.32 m
Width
2.2 m
Height
2.05 m
Weight
14000 kg
Operators (1)
Russia
