9A52-4 Tornado Russian 300mm Multiple Rocket Launcher
9A52-4 Tornado, T-300 Kamaz

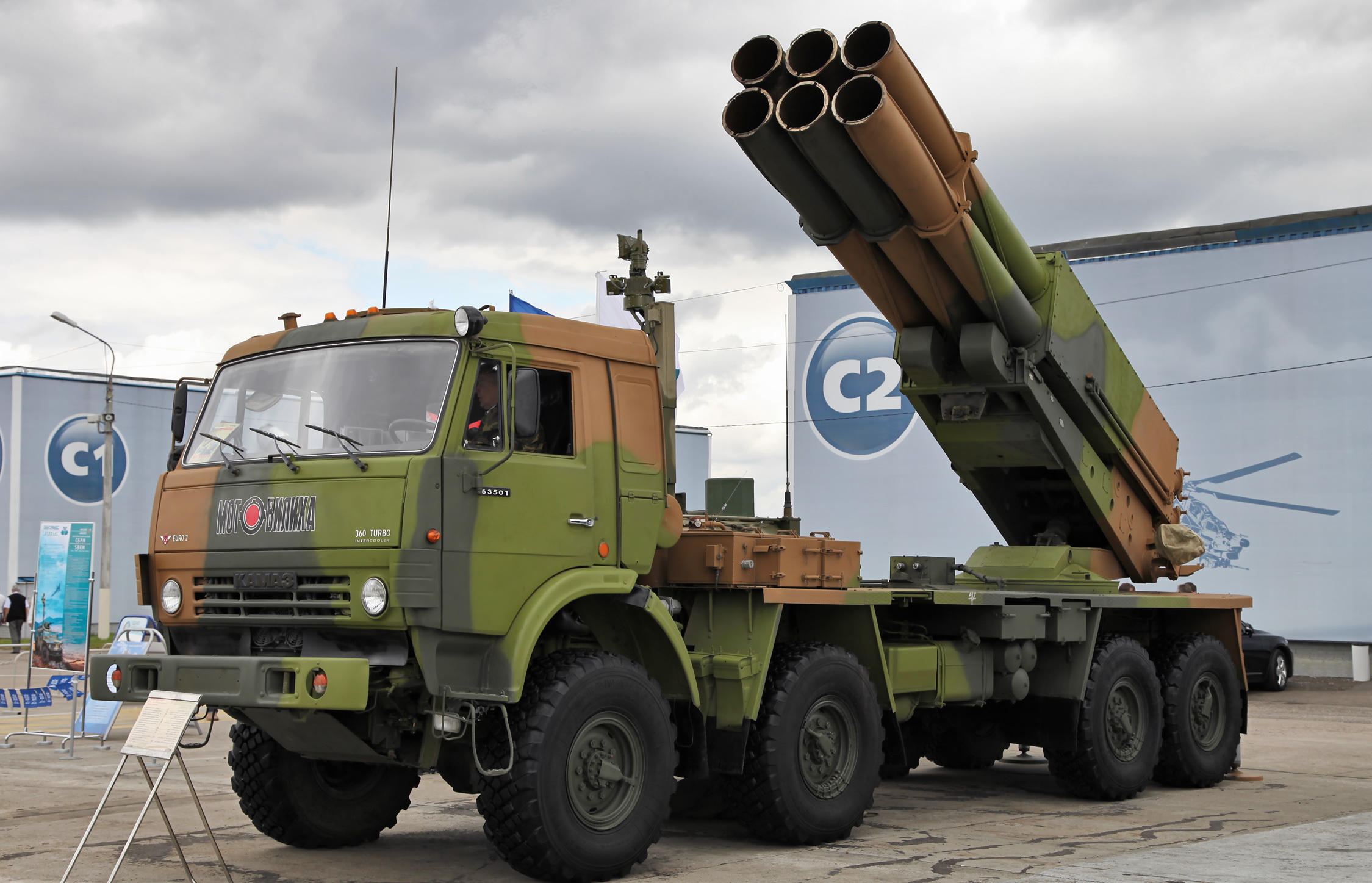

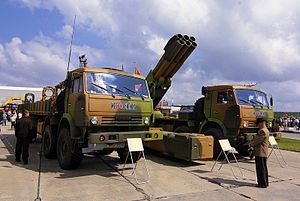

The 9A52-4 Tornado is Russia's newest universal multiple rocket launcher. It was designed as a lightweight and universal version of the BM-30 Smerch, dubbed 9A52-2. It was first unveiled in 2007 as a more strategically and tactically mobile launcher, albeit at the expense of a slight reduction in firepower. This model is aimed at replacing the previous generation of Russian multiple rocket launchers, including BM-21 Grad, BM-27 Uragan, and BM-30 Smerch. Currently, the sole operator is Russian Ground Forces. A version will be approved for export. The 9A52-4 Tornado system is based on the chassis of the KamAZ-63501 8x8 military truck, which provides good tactical mobility. It is equipped with a single container with six launcher tubes for 300-mm rockets, which can fire all current Smerch rockets, including HE-FRAG, incendiary, thermobaric, and cluster with anti-personnel or anti-tank mines. Cluster rounds may also carry self-targeting anti-tank munitions. The 800 kg standard rocket has a maximum range of 90 km. A range and direction correction system provide better accuracy compared to its predecessors. The 9A52-4 can launch rockets singularly, by a partial ripple or by a full salvo, which can cover an area of 32 hectares. A full salvo can be fired within 20 seconds. The 9A52-4 launching vehicle can be reloaded within 8 minutes. Launcher pods are designed for use with 122-mm and 220-mm rockets. The weapons system is equipped with an automated laying and fire control system, along with autonomous satellite navigation and positioning system. Positioning and firing data are exchanged between the launch vehicle and the command vehicle.
