Yugo Class North Korean Diesel-Electric Midget Submarine

Yugo Class

Nuclear-Powered Attack Submarine
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Yugo Class North Korean Diesel-Electric Midget Submarine
Designation
Yugo Class
Alternate Designation
Yugo Class
Equipment Type
Nuclear-Powered Attack Submarine
Manufacturer
Date of Introduction
1965
Description

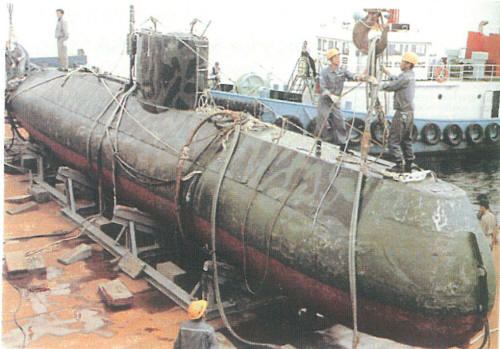

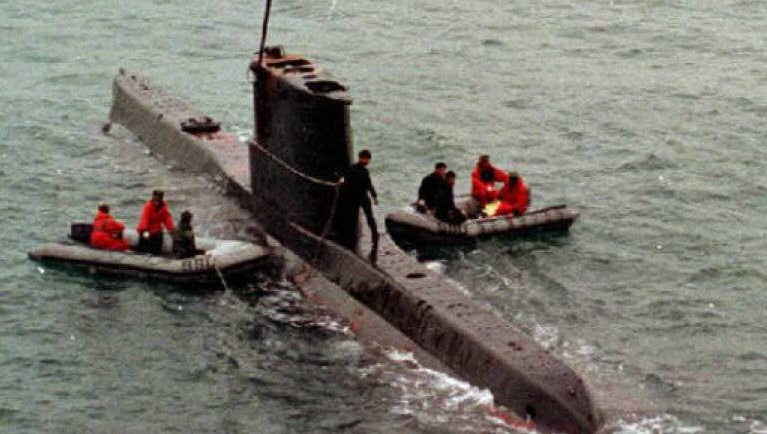

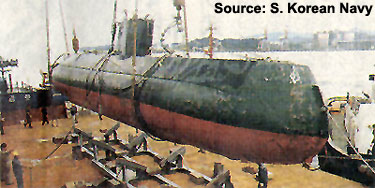

The North Korean Yugo class (NATO code name) is said by some sources to be so named because it was built to plans supplied by Yugoslavia in 1965. The Yugoslav Navy was designed to control the coast of the Adriatic with fast patrol boats, frigates, and small submarines. These submarines included three Heroj class submarines commissioned in the 1960s, no less than nine Una and Mala class midgets submarines (the same model was later sold to North Korea), and two more modern Sava class boats laid down in 1975. The Savas was 964 tons full load displacement and carried six 533mm forward torpedo tubes in a 65 meter (213 foot) long hull. Pyongyang exported some midget submarines to Vietnam in 1997. Vietnam purchased two Yugo-class midget submarines from North Korea that are torpedo-capable but are used mostly for swimmer/diver delivery. A Yugo-class midget submarine from North Korea was seized in late June 1998 on the territorial waters of South Korea. The North Korean Yugo-class midget submarine was found to have nine dead men, who were speculated to have preferred death instead of capture. The North Korean Yugo-class midget submarine, which sank after getting entangled in nets utilized for fishing, was believed to be performing an infiltration mission in South Korea.

Naval & Littoral Specifications
Crew 2
Beam 2.00 m
Draft 1.60 m
Variants
Note Names are unavailable, there are 36 units reported to have been built.
System
Alternative Designation Yugo Class
Type Midget Submarine
Builder Yukdaeso-ri shipyard
Crew 2 ea
Special Forces Soldiers 7 ea
Dimensions
Length 22.0 m
Beam 2.0 m
Draft 1.6 m
Displacement, Surface 76 tons
Displacement, Submerged 90 tons
Propulsion System
Engine Name 1 x MTU Diesel Electric
Engine Type Diesel Electric
Engine Power 160 shp
Primary Propeller 1 x 7-bladed
Auxiliary Propeller 1 x 5-bladed freewheeling
Surface Speed 10 kts
Submerged Speed 4 kts
Surface Range 1,019 km at 10 kts
Submerged Range 93 km at 4 kts
Torpedo Weapon Systems
Note 2 x 533-mm tubes (2 torpedoes carried)
Fire Control Systems
FCS Name INA
Computerized FCS Yes
Battle Management System INA
Radar Systems
Name INA
Type INA
Frequency INA
Range INA
Sonar Systems
Name INA
Type INA
Protection
Active Protection System INA
Countermeasures INA
NBC Water Washdown System INA
Details
Country of Origin North Korea
Category Submarines
Naval > Submarines
Filter Label
Y
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
22 m
Width
Height
Weight
Operators (3)
Iran
North Korea
Vietnam
