PMV Survivor II

PMV Survivor II

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PMV Survivor II
Designation
PMV Survivor II
Alternate Designation
—
Equipment Type
Tactical Vehicles
Manufacturer
Achleitner
Date of Introduction
2011
Description

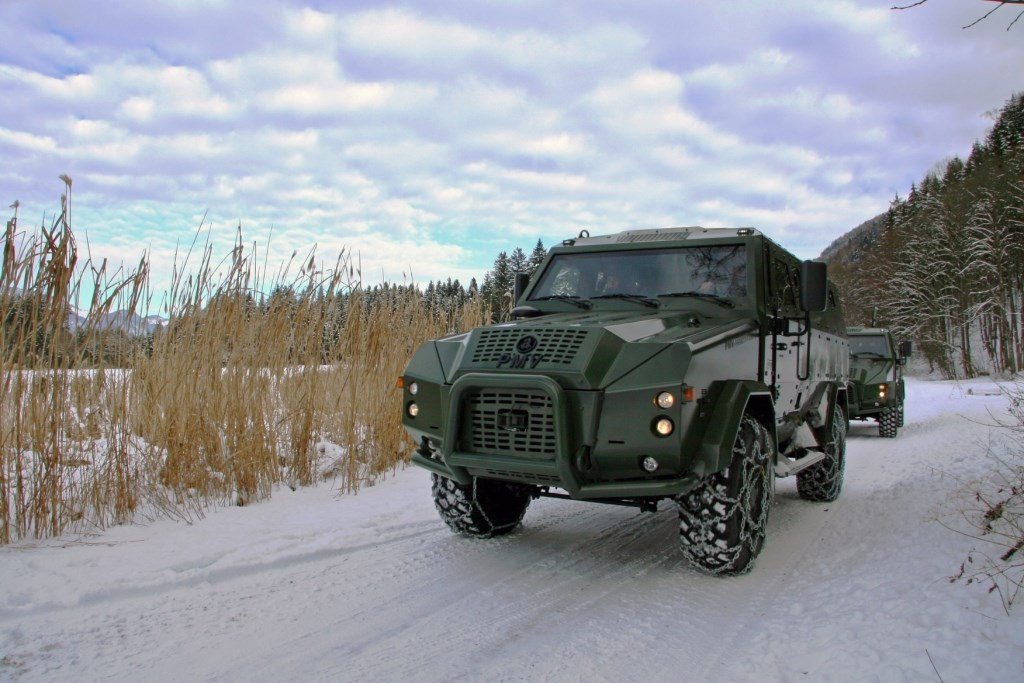

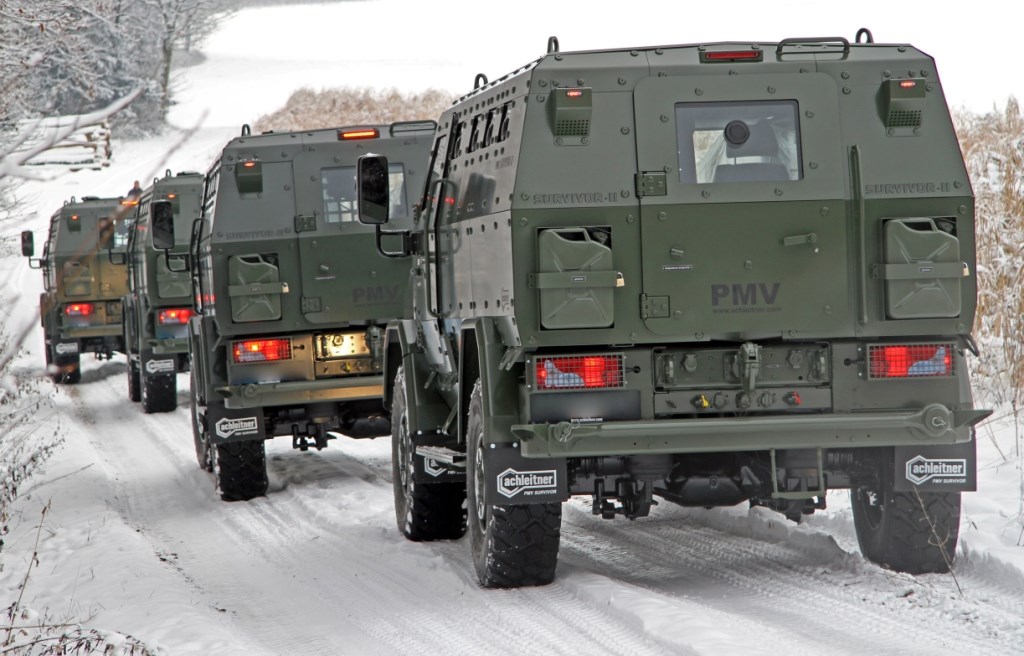

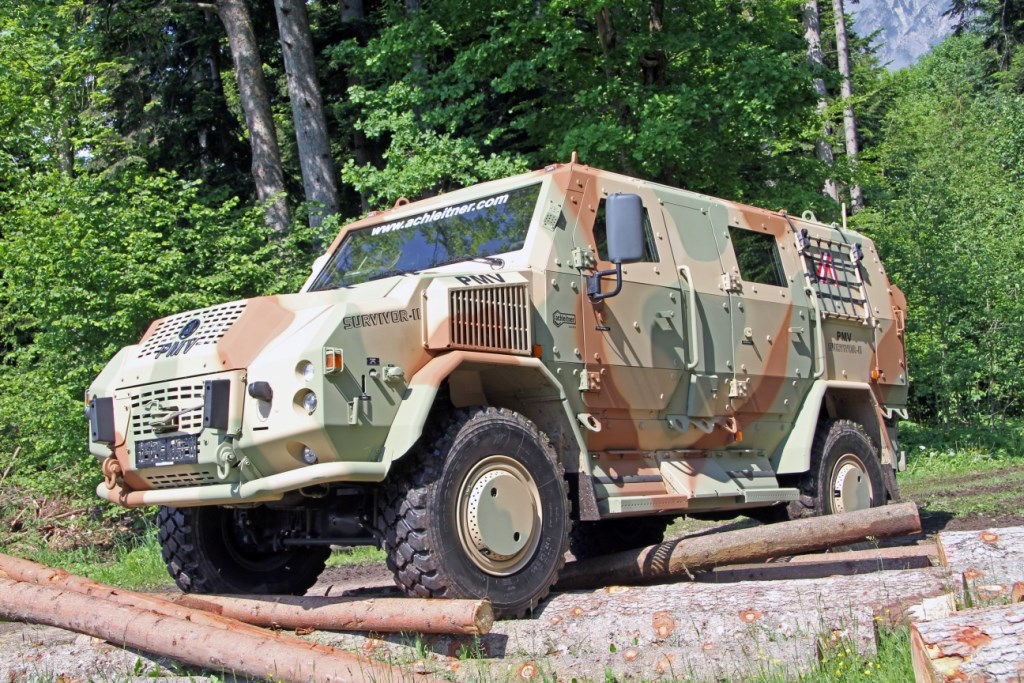

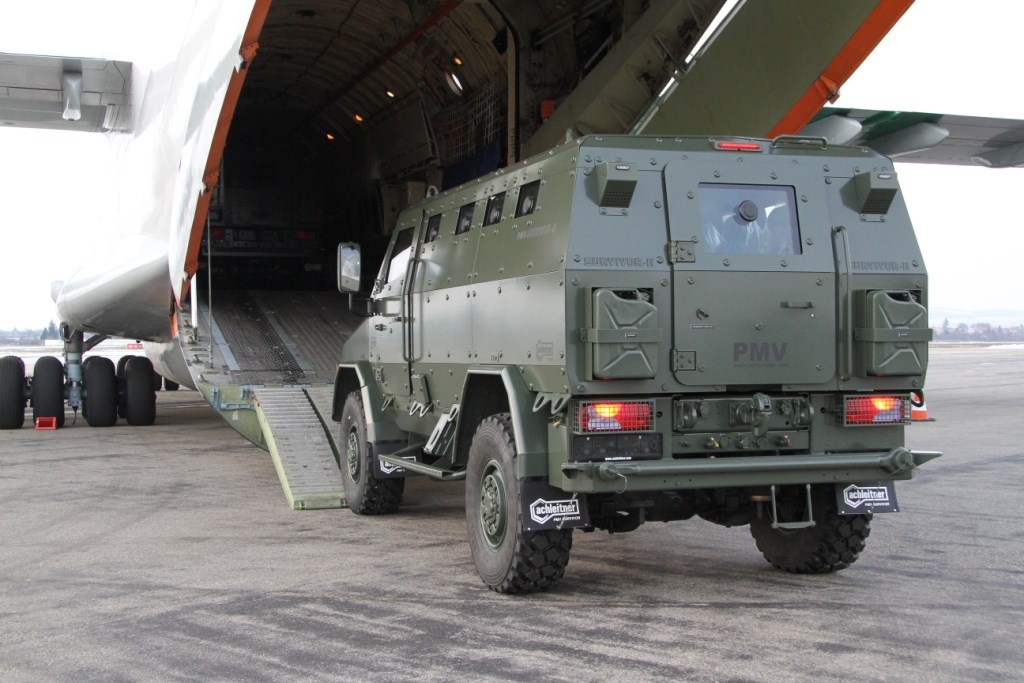

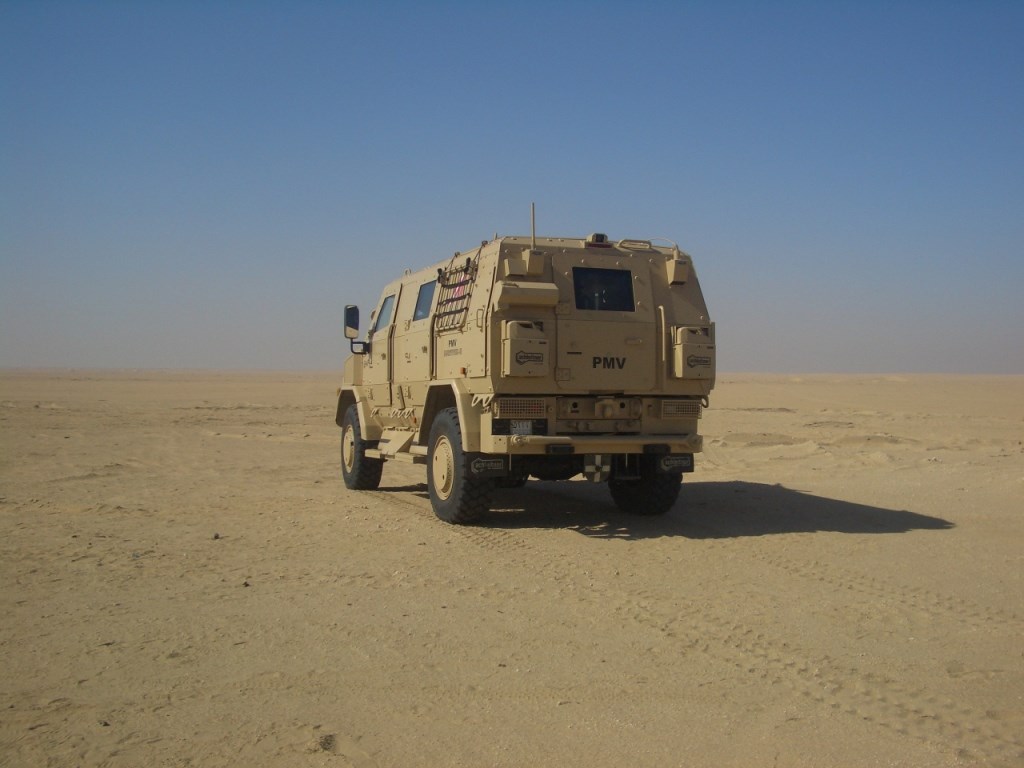

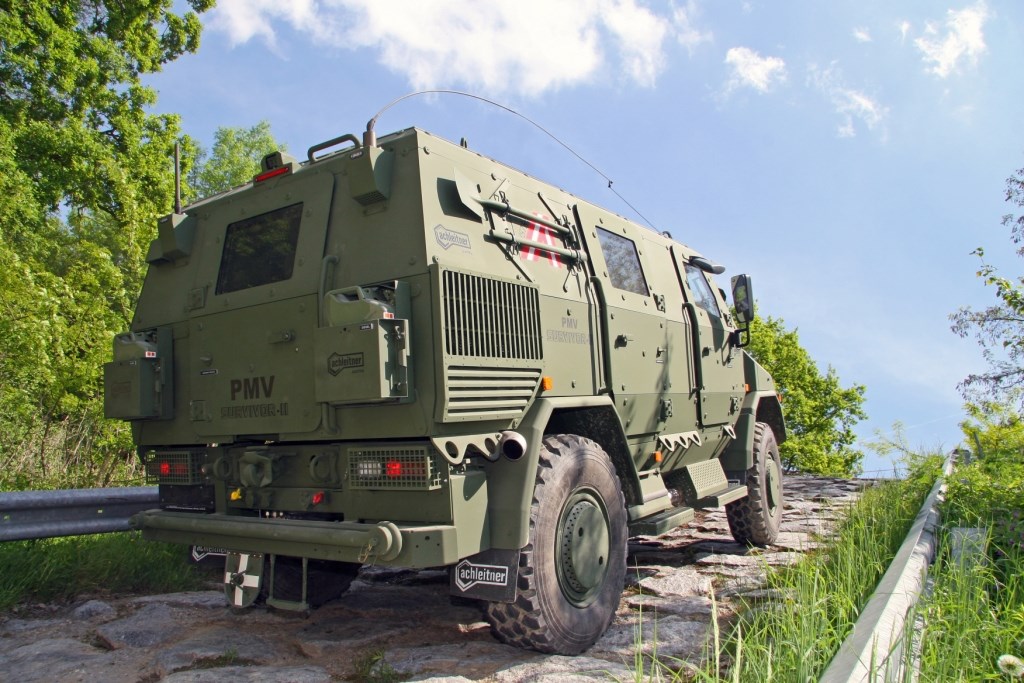

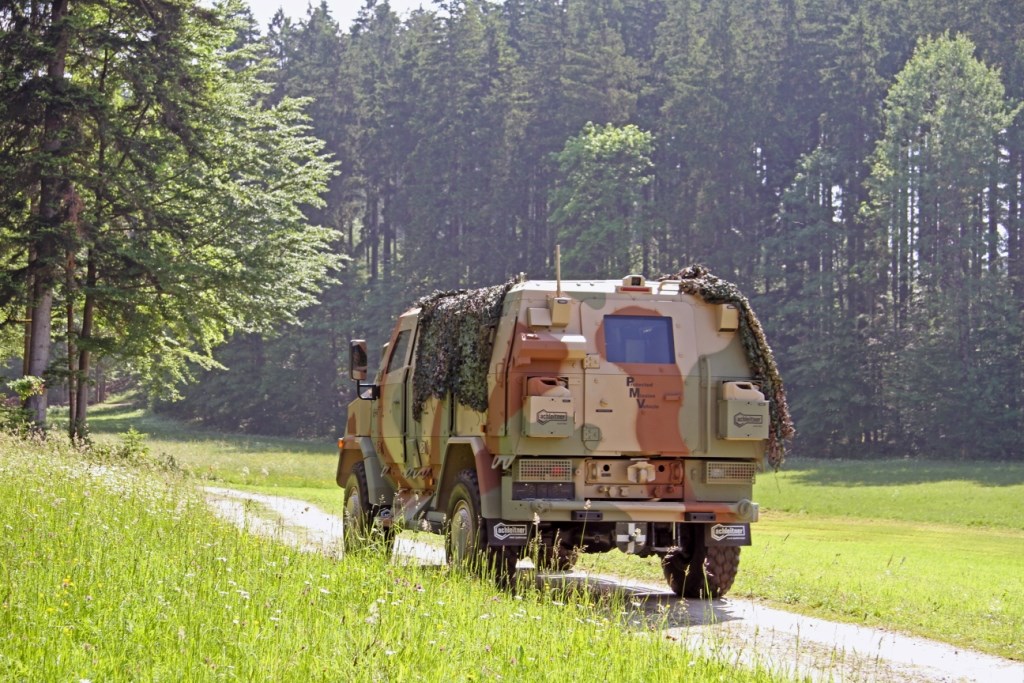

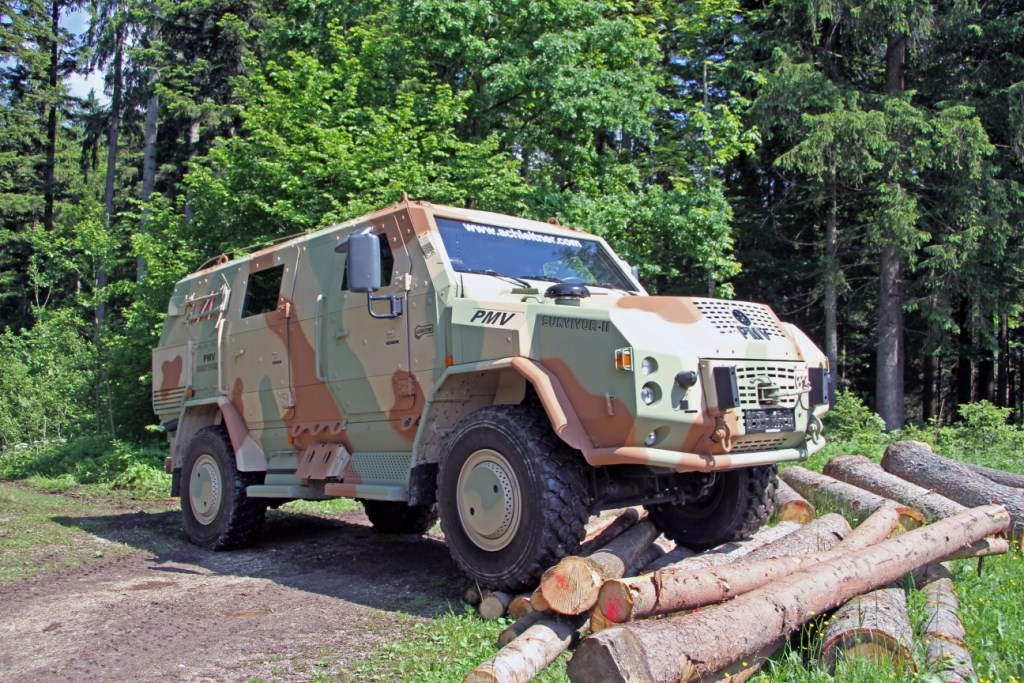

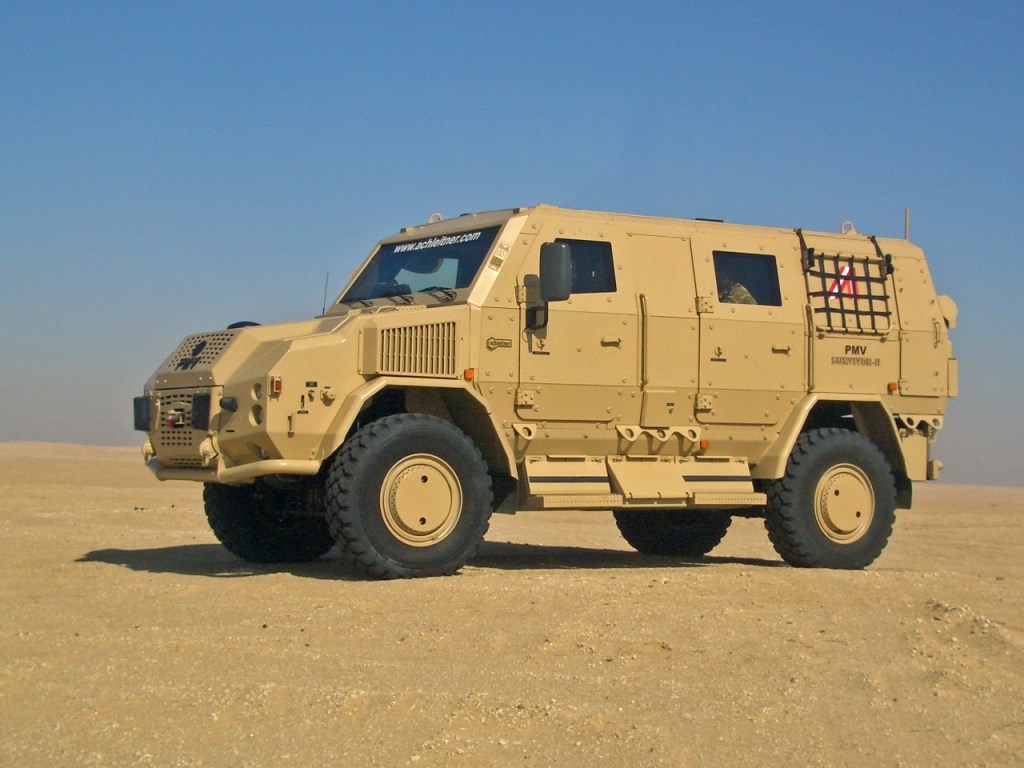

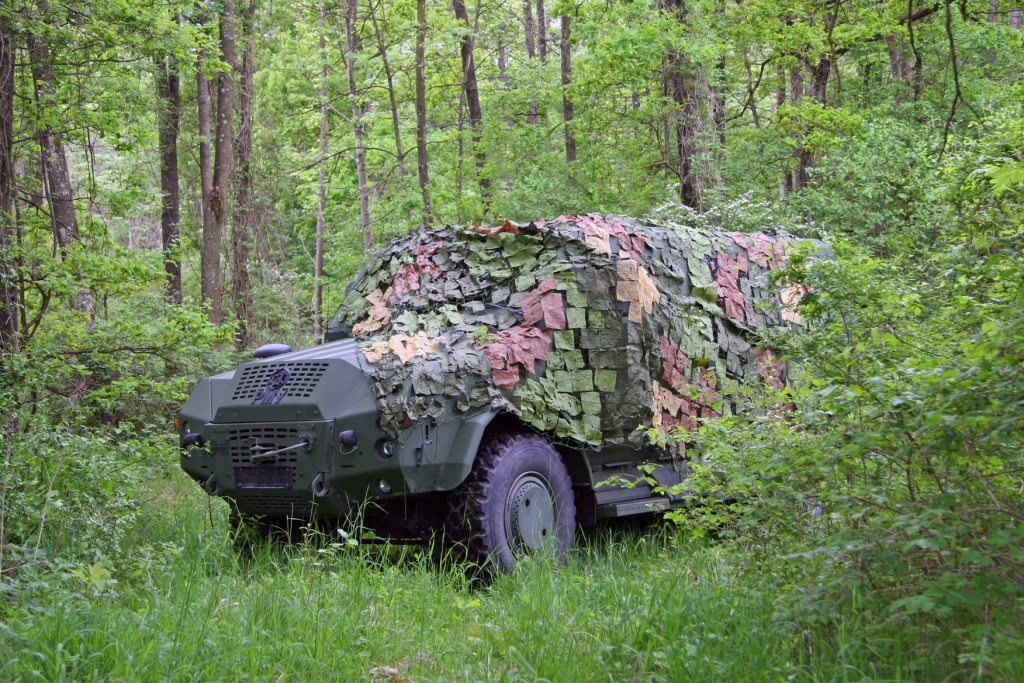

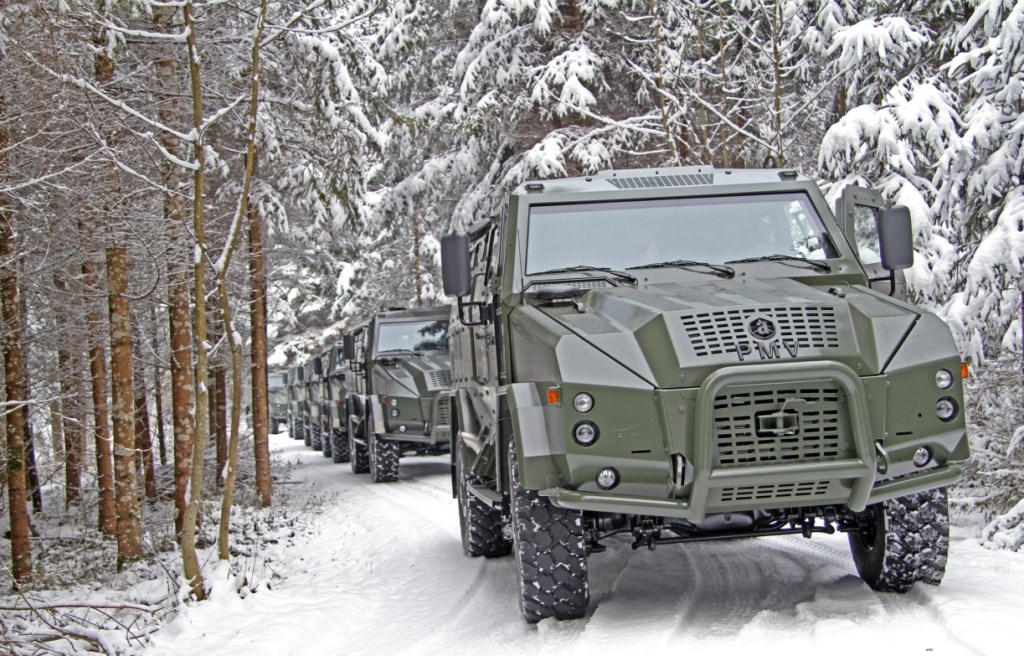

The Protected Mission Vehicle (PMV) Survivor II is a 4x4, 10-ton class, modular armored utility vehicle being developed by Austrian company Achleitner for military customers. It features a monocoque steel hull and high mobility thanks to its all wheel drive. It is powered by a 320-hp diesel engine developing a top speed of 100 kilometers per hour on road. PMV Survivor II features STANAG 4569 level protection with modular add-on armor kits providing Level 3 protection against bombardment and Level 4a/3b against mines and improvised explosive devices (IEDs). Two Survivor II vehicles can be airlifted by a single C-130 or C-160 transport aircraft. The PMV Survivor II vehicle can be equipped with Kongsberg's Protector station and other remote weapon stations operated under armor as well as a man-hatch with ladder cage. The basic configuration includes seating for five-man but can be expanded to up to 10-man with eight-man in the rear compartment. The PMV Survivor II is available as command and control vehicle, patrol vehicle, reconnaissance vehicle and ambulance with two stretches for injured.

Ground Specifications
Crew 2
Troop Capacity 8
Mobility Type Wheeled (4x4)
Max Speed 100.0 km/h
Range 1000.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Origin Austria
Contractor Achleitner
Initial Operational Capability (IOC) 2011
Total Production ?
Specifications (Deagel)
Crew 2
Troops 8
Wheel Drive 4
Wheels 4
Degree — Approach Angle 36 °
Degree — Departure Angle 38 °
Dimensions — Ground Clearance 400 millimeter
Dimensions — Height 2.7 meter
Dimensions — Length 6.4 meter
Dimensions — Wheelbase 3.7 meter
Dimensions — Width 2.4 meter
Energy — Max Torque 1,250 Nm
Mass — Max Weight 15,000 kilogram
Mass — Payload 4,000 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 35 %

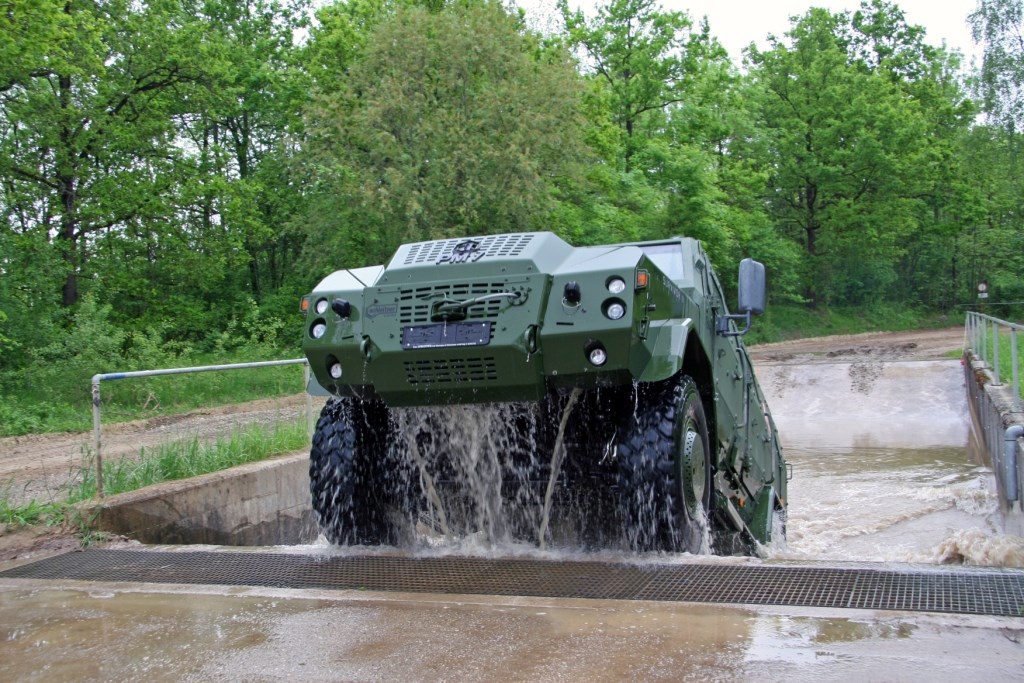

Performance — Fording Depth 1.1 meter
Performance — Max Range 1,000 kilometer
Performance — Turning Radius 9 meter
Power — Power 320 hp
Speed — Top Speed 100 kph
Gear (Deagel)
Item 1 Weapon Stations: Protector (1)
Details
Country of Origin Austria
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.4 m
Width
2.4 m
Height
2.7 m
Weight
15000 kg
Operators (1)
Austria
