Ilya Muromets Class (Project 21180 Class) Russian Icebreaker

Ilya Muromets Class

Icebreaker
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Ilya Muromets Class (Project 21180 Class) Russian Icebreaker
Designation
Ilya Muromets Class
Alternate Designation
Ilya Muromets Class; Project 21180 Class
Equipment Type
Icebreaker
Manufacturer
Date of Introduction
2017
Description

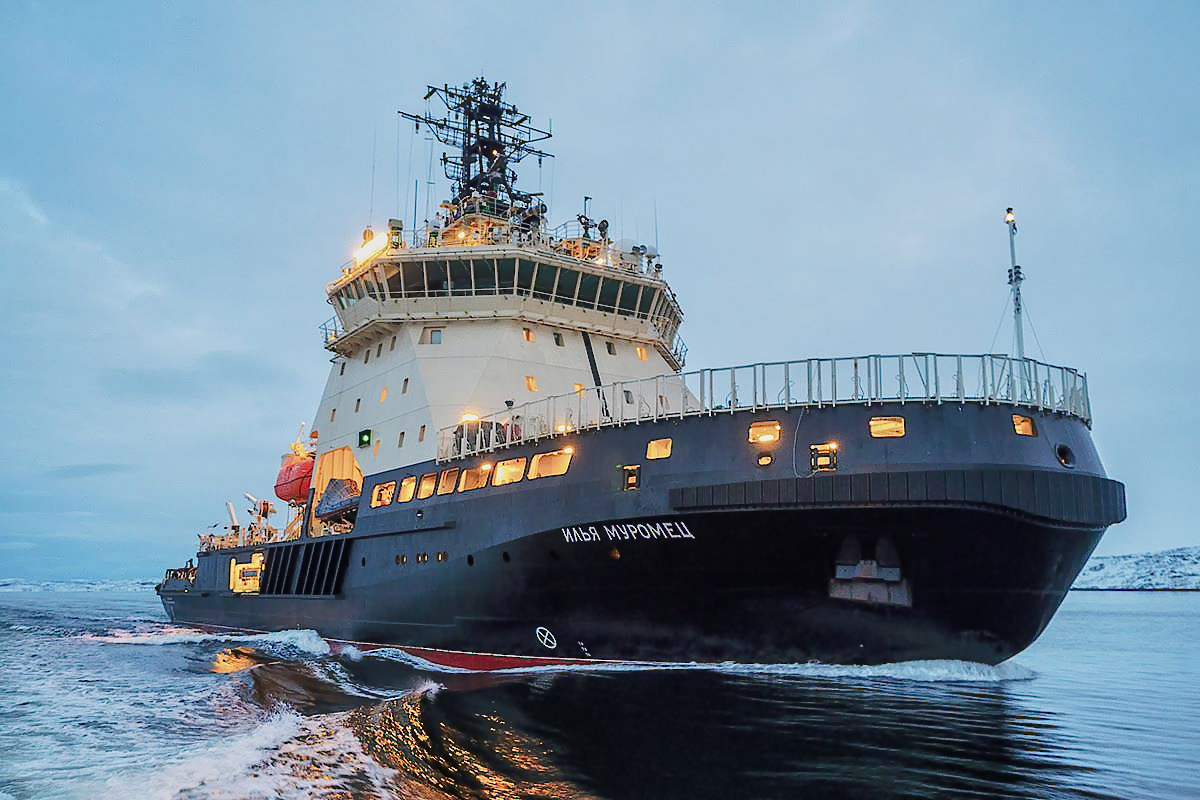

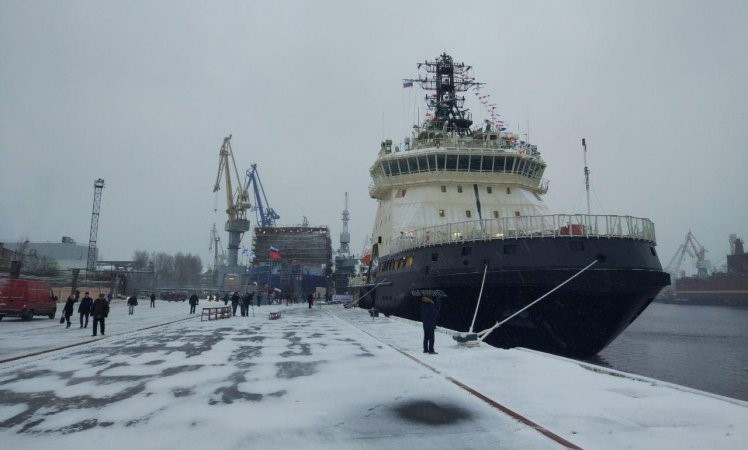

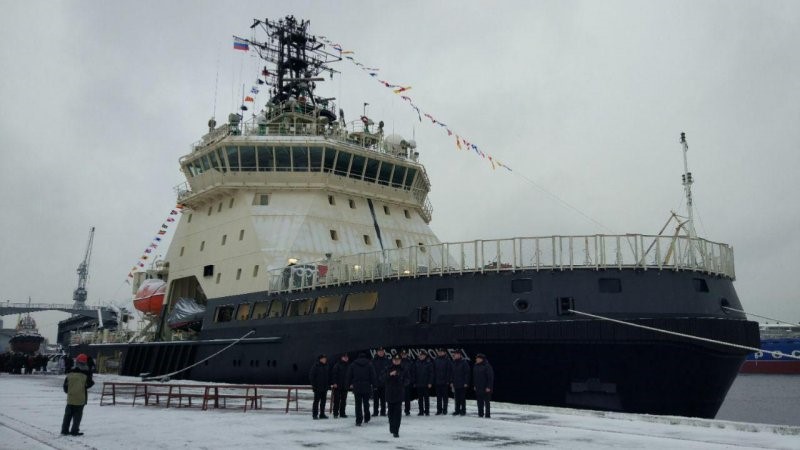

Ilya Muromets, Russian designation Project 21180, is a Russian icebreaker built by Admiralty Shipyard in Saint Petersburg and commissioned on 30 November 2017. She is the first icebreaker built for the Russian Navy in almost 40 years. Although the 6,000-ton Ilya Muromets is the largest icebreaker ever built for the Russian Navy, she is somewhat smaller than the civilian icebreakers operated by Atomflot, Rosmorport, and Sovcomflot. In terms of size and general layout, the 85-meter (279 ft) vessel is comparable to the civilian Project MPSV06 multi-purpose salvage vessels with a working deck aft, deckhouse amidships, and a helideck rated for Kamov Ka-27 helicopter. Like her civilian counterparts, Ilya Muromets is also equipped with a towing winch and stern notch for escorting other ships in ice conditions. She is served by a crew of 32 but can carry up to 50 marines in full combat gear.

Naval & Littoral Specifications
Crew 32
Beam 20.00 m
Draft 7.00 m
Variants
Ilya Muromes Commissioned: 2017 Status: Active Fleet: Northern
System
Alternative Designation Ilya Muromets Class; Project 21180 Class
Type Icebreaker
Builder Admiralty Shipyard, Saint Petersburg, Russia
Crew 32 ea
Troops can carry up to 50 marines in full combat gear.
Gross Tonnage 5,202 tons
Deadweight Tonnage 1,820 tons
Towing Winch Like her civilian counterparts, Ilya Muromets is also equipped with a towing winch and stern notch for escorting other ships in ice conditions.
Dimensions
Length 85 m
Beam 20 m
Draft 7 m
Displacement, Standard INA
Displacement, Full Load 6,000 tons
Propulsion System
Engine Name 2 x Steerprop SP120CRP ECO propulsion unit
Engine Type Diesel-Electric
Engine Power 2 × 3,500 kW
Maximum Range 12,000 nautical miles (22,000 km)
Maximum Speed 15 knots (28 km/h)
Endurance 60 days
Aviation
Facilities Helideck
Helicopter 1 x Kamov Ka-27 helicopter
Main Weapons System
Note Ilya Muromets is fitted for various weapon systems in service in the Russian Navy. She can reportedly be equipped with several types of cannons, including the six-barreled 30 mm AK-630, and also carry the containerized Club-K cruise missiles in her cargo hold.
Protection
Hull Ilya Muromets is classified by the Russian Maritime Register of Shipping. Her ice class, Icebreaker 6, requires the vessel to be capable of operating in level ice with a thickness of 1 meter in a continuous motion and her hull strengthened for navigation in Arctic waters where ice can be up to 1.5 meters thick.
Countermeasures INA
NBC Water Washdown System Yes
Details
Country of Origin Russia
Category Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
I
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
85 m
Width
Height
Weight
Operators (1)
Russia
