Club-K Russian Container Short-Range Anti-Ship Cruise Missile
Club-K
Cruise Missile
Other
Basic Information
Name
Club-K Russian Container Short-Range Anti-Ship Cruise Missile
Designation
Club-K
Alternate Designation
Club-K
Equipment Type
Cruise Missile
Manufacturer
—
Date of Introduction
2011
Description

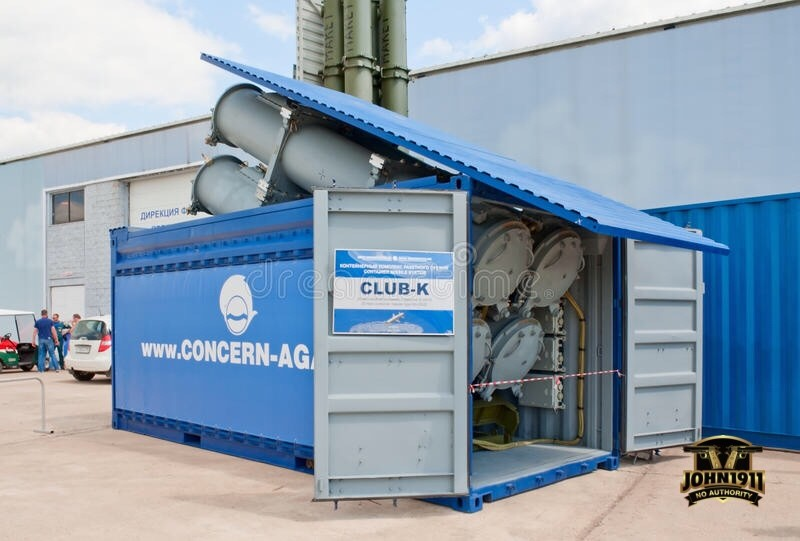

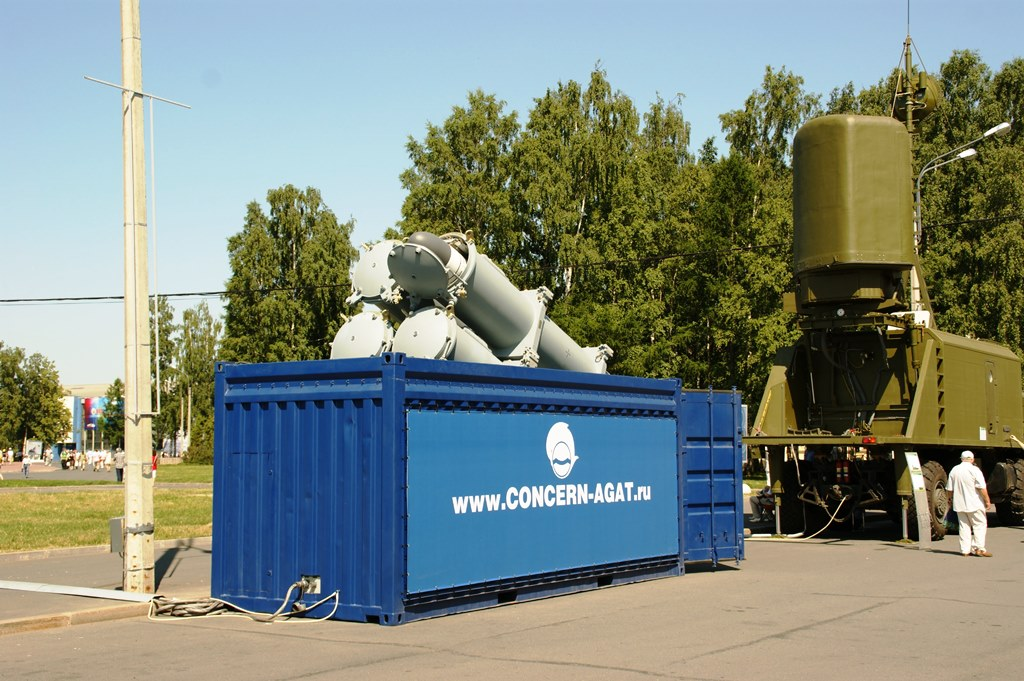

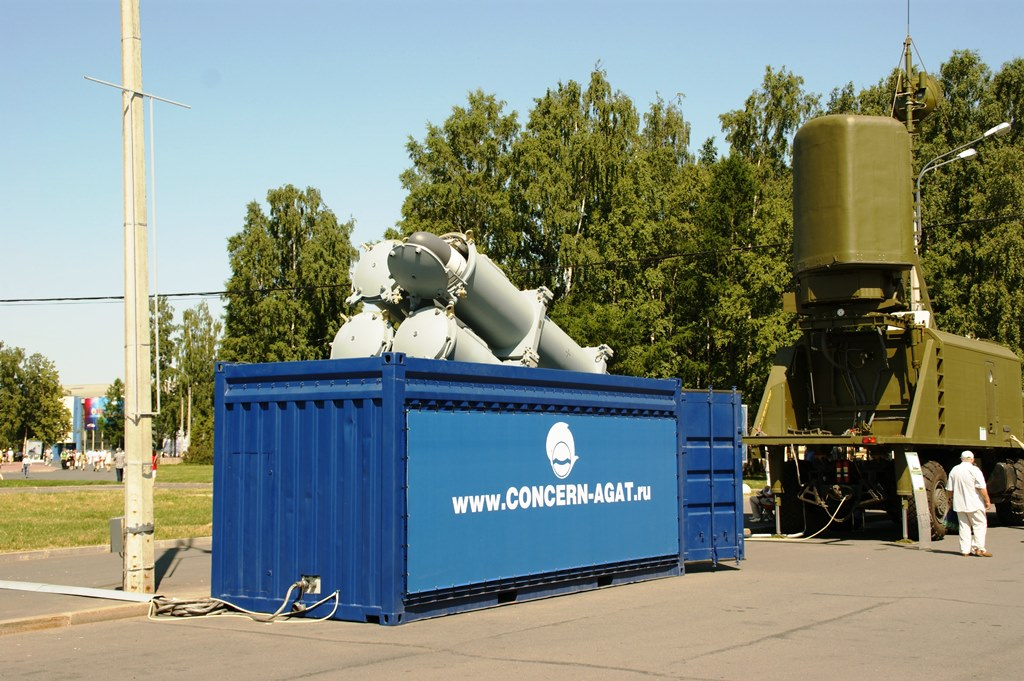

The Club-K container missile system is designed for engagement with surface ships of different classes and types and land and shore-based targets. Universal launching module, performed as the standard maritime container-type, is the basic unit of Club-K system. Club-K system basic configuration includes from one to four universal launching modules.
Variants
Missile Variants
M-54KE; 3М-54KE1; Kh-35UE anti-ship missiles;
3M-14KE; Kh-35UE land-attack missiles.
System
Alternate Designation
Club-K
Type
Container Cruise Missile System
Manufacturer
INA
Chassis

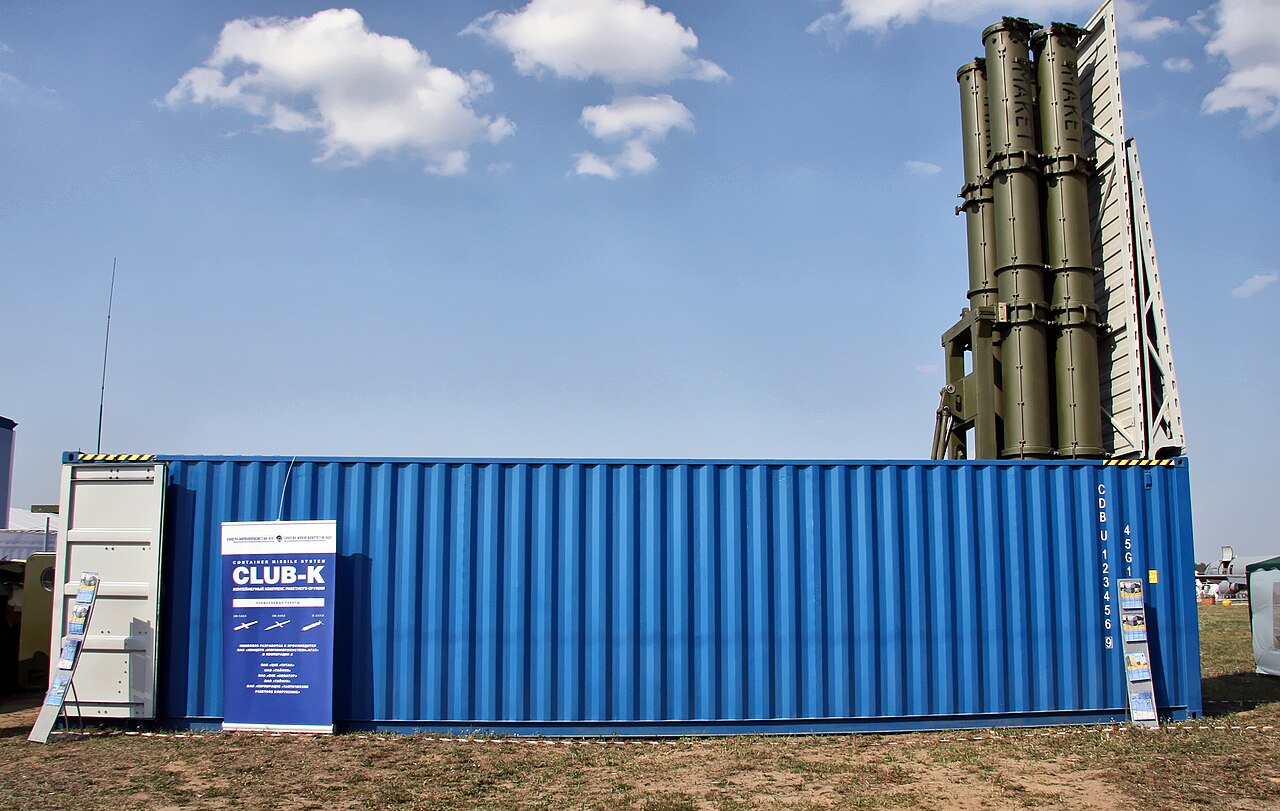

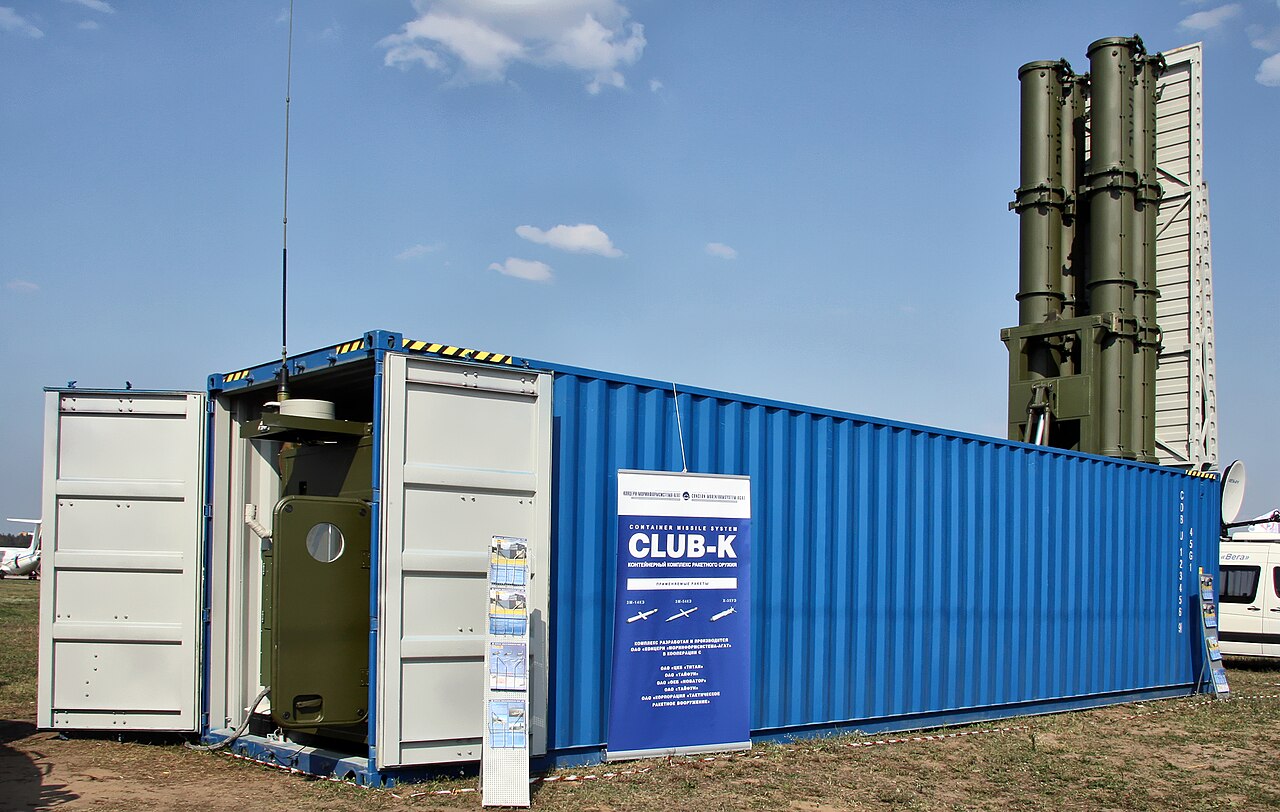

Standard 40’ Shipping Container
Platforms
Multi-platformity– possibility of the system’s implementation from sea, railway and automobile platforms as well as ground starting positions.
Mobility
The Possibility to deliver the system by any kind of transport capable of shipping marine containers using civil logistics.
Autonomy Capability
The system includes intelligence-surveillance means, is capable of launching missiles using target acquisition data from external sources, and all components have self-contained power supply units.
LEGO Capability

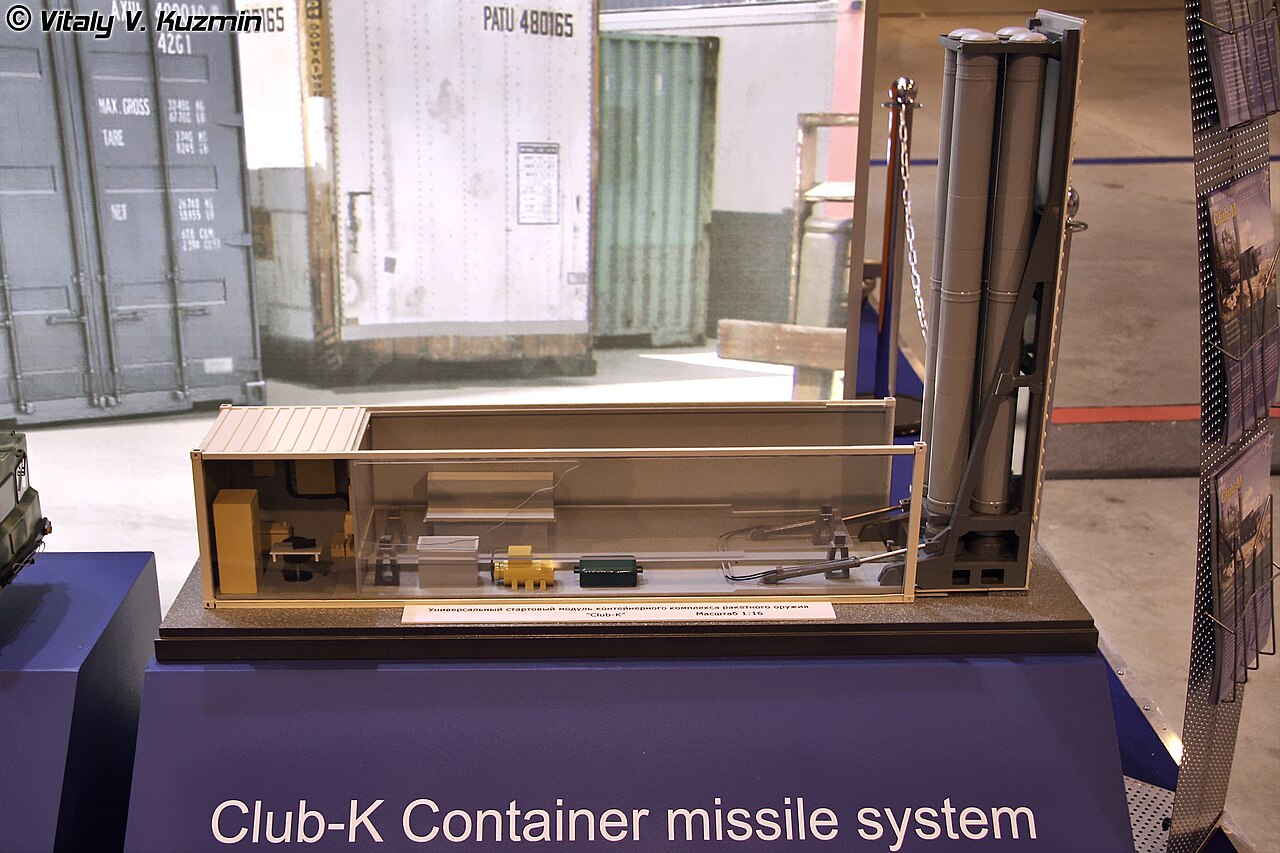

LEGO principle implementation possibility of placing modular components in containers of different loading capacity enabling a number of various configurations dependent of the Customer’s conditions and tasks.
Configuration
Club-K system basic configuration includes from one to four universal launching modules.
Range
3М54KE, 3М54KE1: up to 200 km;
Kh-35UE: up to 10 km;
3M-14E up to 275 km.
Combat Management
Yes
Navigation System
Yes
Communication System
Yes
Target Acquisition
Club-K system can be supplied with active and passive or passive target acquisition and designation systems (including the container type variant) that enables to detect, identify, bear and determine target coordinates at the distance exceeding the missile range.
Basic Load
Club-K universal launching module ammunition load includes 4 missiles.
Number of Missiles in a Salvo
16 x missiles (3М54KE, 3М54KE1, Kh-35UE, 3M-14E)
Maximum Number of Simultaneously Engaged
3М54KE, 3М54KE1, Kh-35UE: up to 10 Targets; 3M-14E: up to 16 Targets
Launching Angle
3М54KE, 3M-14E80-90: 80-90 deg
3М54KE1, Kh-35UE30: 30 deg

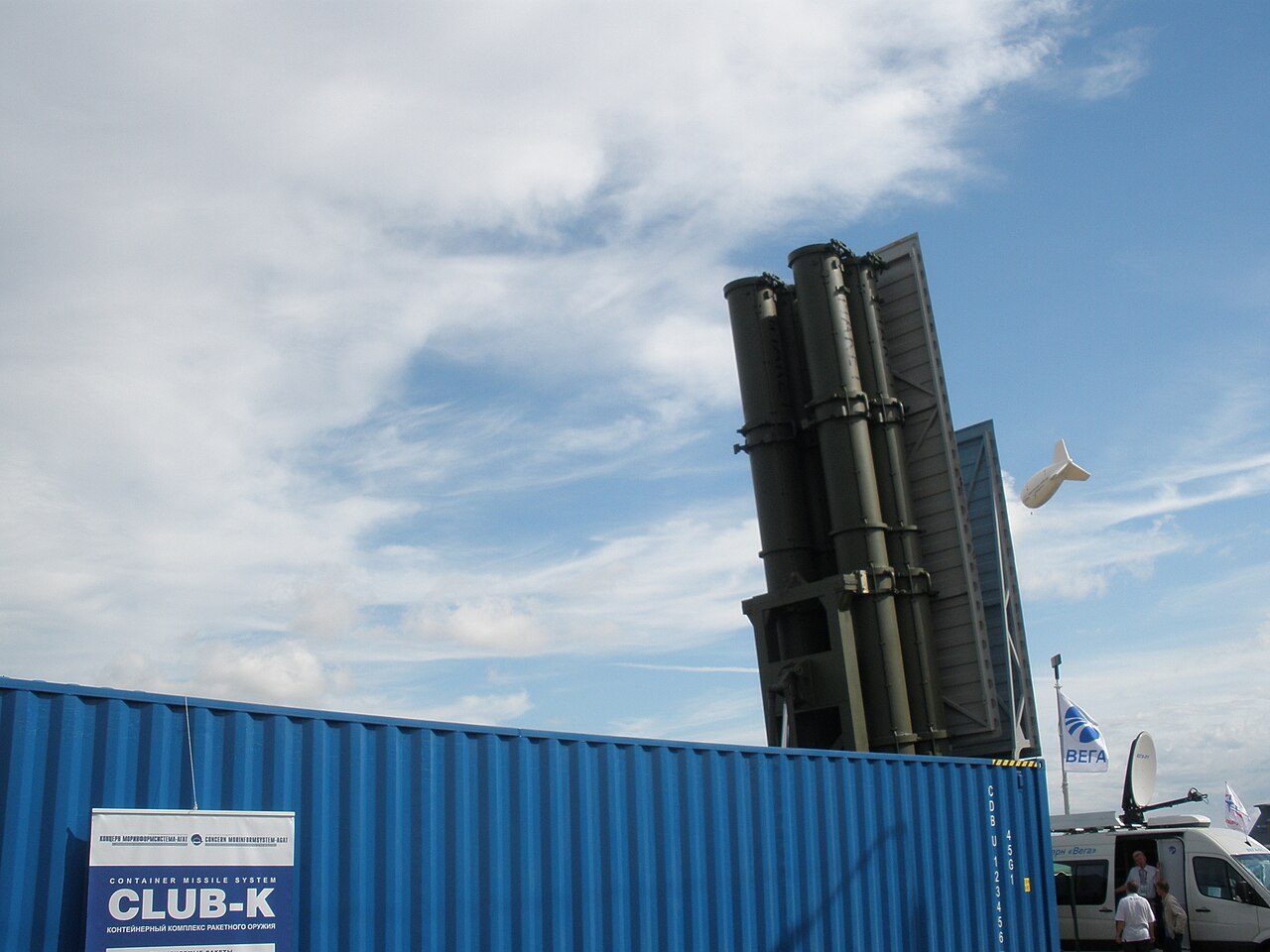

Time to Lift Tubes to the Starting Position
30 seconds
Pre-Launch Preparation Time
up to 5 min
Missile Launch Interval
5 seconds
Firing Position Altitude above Sea Level
2,000 m
Deployment Time
10-15 min
Displacement Time
5 min
Dimensions
Length
12.19 m
Width
2.44 m
Height
2.59 m
Volume
33 cubic meters
Empty Weight
3,780 kgs
Maximum Weight
26,700 kgs
Communications
Note
Technical means of Club-K system can also receive target designation data from any coastal, shipborne, aviation, satellite system and complex available to the customer.
Image Sources
Notes
https://www.dreamstime.com/stock-image-container-missile-system-st-petersburg-jul-modular-launcher-feet-marine-club-k-international-maritime-defence-show-imds-image34582001; https://www.dreamstime.com/royalty-free-stock-photography-club-k-container-missile-system-image26146327; https://john1911.com/club-k-container-missile-system/;
Details
Country of Origin
China
Category
Short-Range Cruise Missiles (SRCM) (Less than 600 km)
Air > Short-Range Cruise Missiles (SRCM) (Less than 600 km)
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
12.19 m
Width
2.44 m
Height
2.59 m
Weight
26700 kg
Operators (1)
China
