Hangu 200 (Mule 200) Chinese Tracked Unmanned Ground Vehicle (UGV)
Hangu 200
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Hangu 200 (Mule 200) Chinese Tracked Unmanned Ground Vehicle (UGV)
Designation
Hangu 200
Alternate Designation
Hangu 200; Mule 200; HN-200
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology
Date of Introduction
2018
Description
The Hangu 200 (Mule 200) Chinese Tracked Unmanned Ground Vehicle (UGV) are designed to be multirole for various missions and applications. The vehicle can be used in many fields such as team transportation, reconnaissance, evaluation, relay, penetration, strike, mine clearance, fire fighting, disaster relief, geophysical exploration, oil and so on.
Ground Specifications
Engine
Diesel-Electric Hybrid
Max Speed
50.0 km/h
Range
50.0 km
Variants
Hangu 500 (Mule 500)
This vehicle has a mission load of 500 kg.
Hangu 1000 (Mule 1000)
Its design allows it to mount heavier payloads and systems than the other vehicles.
System
Alternative Designation
Hangu 200; Mule 200; HN-200
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology (ZTT)
Mission
The Hangu 200 (Mule 200) can be used in many fields such as team transportation, reconnaissance, evaluation, relay, penetration, strike, mine clearance, fire fighting, disaster relief, geophysical exploration, oil and so on.
Configuration
Tracked
Crew
Unmanned
Control
The platforms can be controlled by a portable operator control unit or from a command and control center.
Payload Capacity
200 kg
Environmental
INA
Dimensions
Length
2.65 m
Width
1.50 m
Height
1.0 m
Weight
500 kg
Automotive
Engine Name
INA
Engine Type
Diesel-electric hybrid engine; 72 V/240 Ah Battery
Engine Power
INA
Range
50 km
Maximum Speed
50 km/h
Maximum Gradient Climb
35˚
Side Slope
25˚
Vertical Obstacle Avoidance
600 mm
Trench Crossing
800 mm
Fording
600 mm
Endurance
50 km
Communications
Note
The Hangu 200 (Mule 200) Chinese Tracked Unmanned Ground Vehicle (UGV) has wireless or wired optical cable remote control.
Main Weapons System
Note

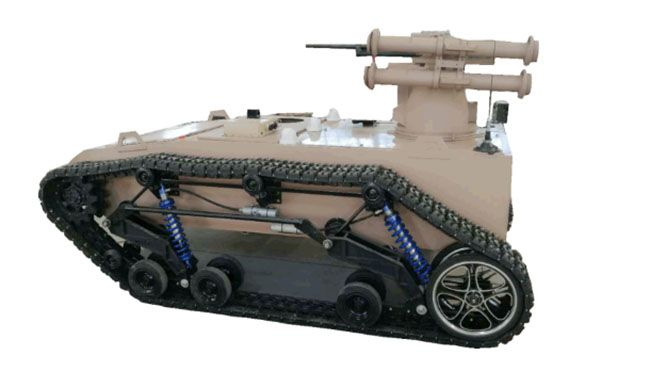

The Hangu 200 (Mule 200) Chinese Tracked Unmanned Ground Vehicle (UGV) can be equipped with a remote weapon station using a 7.62 or 12.7 mm machine gun (MG). Anti-Tank Missiles and Air-Defense can also be mounted.
Protection
Armor
Construction of the chassis is of a non-metallic material.
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
H
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.65 m
Width
1.5 m
Height
1 m
Weight
500 kg
Operators (1)
China
