ZALA T-22 Russian Unmanned Aerial Vehicle (UAV)

ZALA T-22

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ZALA T-22 Russian Unmanned Aerial Vehicle (UAV)
Designation
ZALA T-22
Alternate Designation
ZALA T-22; ZALA 421-22
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Zala Aero Group
Date of Introduction
2019
Description

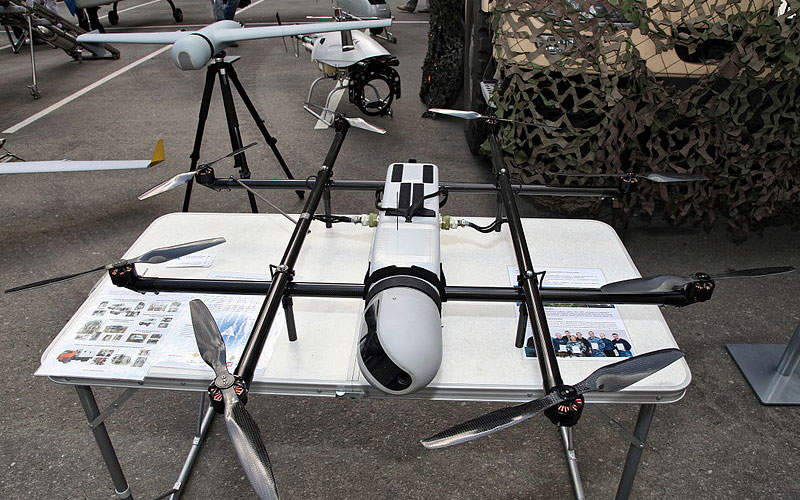

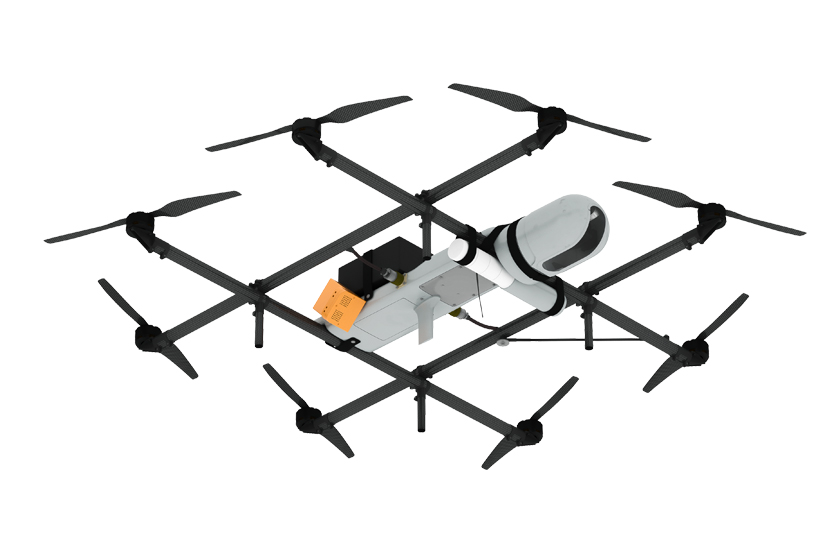

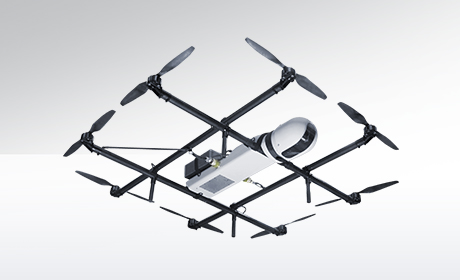

The ZALA T-22 Russian Unmanned Aerial Vehicle (UAV) is a compact, electric-powered vertical takeoff and landing (VTOL) unmanned aerial vehicle developed by ZALA Aero Group, based in Izhevsk, Russia. Positioned as a small-scale tactical reconnaissance and cargo delivery platform, the T-22 represents a distinct segment within the ZALA product family, combining hover-capable loitering with short-to-medium range intelligence, surveillance, and reconnaissance (ISR) capabilities. Designed for operation in complex terrain, urban environments, and scenarios requiring minimal pre-positioning infrastructure, the platform has found application in both civil and military contexts, including documented operational service in regional conflicts. The ZALA T-22 represents a deliberately engineered micro-tactical UAV optimized for immediate small-unit reconnaissance, urban environment surveillance, and short-range cargo resupply in austere or prepared environments. The platform's electric architecture, vertical launch/recovery capability, compact footprint, and rapid deployment profile position it as a tactical-level asset within modern military ISR architectures. While operational limitations in endurance, range, and altitude ceiling constrain its utility relative to larger ZALA platforms, the T-22's specialization for close-range, infrastructure-free operations addresses distinct tactical requirements in complex terrain and urban environments. Documented operational deployment in the Russia-Ukraine conflict validates combat relevance, while acknowledged vulnerability to counter-drone systems identifies airspace control as a prerequisite for effective employment. The platform's ongoing refinement and integration into multi-platform ISR workflows demonstrate continued operational relevance within Russian military doctrine for small-unit ISR and immediate-tactical support missions.

Air & Air Defense Specifications
Engine Electric
Max Speed 30.0 km/h
Range 5.0 km
Endurance 35.00 hrs
Wingspan 1065.00 m
System
Alternate Designation ZALA T-22; ZALA 421-22
Type Unmanned Aerial Vehicle UAV)
Manufacturer Zala Aero Group
Mission The ZALA T-22 Russian Unmanned Aerial Vehicle (UAV) is designed for aerial photography, video surveillance, laser scanning, and the delivery of goods. Its payloads are compatible with fixed-wing UAVs.
Navigation System SNS (GPS/GLONASS) and two independent radio-range finders.
Operating Temperature -40°С … +50°С
Maximum Payload Capacity 2 kg
Launch Method Automatic
Landing Method Automatic
Dimensions
Length 1,065 mm
Wingspan 1,065 mm
Height 240 mm
Takeoff Weight 8 kg
Maximum Payload Capacity 2 kg
Automotive
Engine Name INA
Engine Type Electric
Engine Power INA
Maximum Speed up to 30 km/h
Maximum Range 5 km
Maximum Altitude 1,000 m
Operational Altitude 30 -1,000 m
Endurance 35 min
Details
Country of Origin Russia
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.07 m
Width
1.07 m
Height
0.24 m
Weight
8 kg
Operators (1)
Russia
