Description
Tamara was the third generation Czechoslovak electronic support measures (ESM) system that used measurements of time difference of arrival (TDOA) of pulses at three or four sites to accurately detect and track airborne emitters by multilateration. Tamara's designations were KRTP-86 and KRTP-91 and it carried the NATO reporting name of Trash Can. The designation was derived from the Czech phrase "Komplet Radiotechnického Průzkumu" meaning "Radio Technical Reconnaissance Set". It was claimed to be the only one in the world able to detect military "invisible aircraft".
Ground Specifications
Mobility Type
Wheeled (8x8)
Active Protection
None
Range
450.0 km
System
Alternative Designation
KRTP-91 Tamara; NATO: Trash Can
Type
Czechoslovakian Electronic Support Measures System
Crew
INA
Chassis
Tatra T815
Appearance

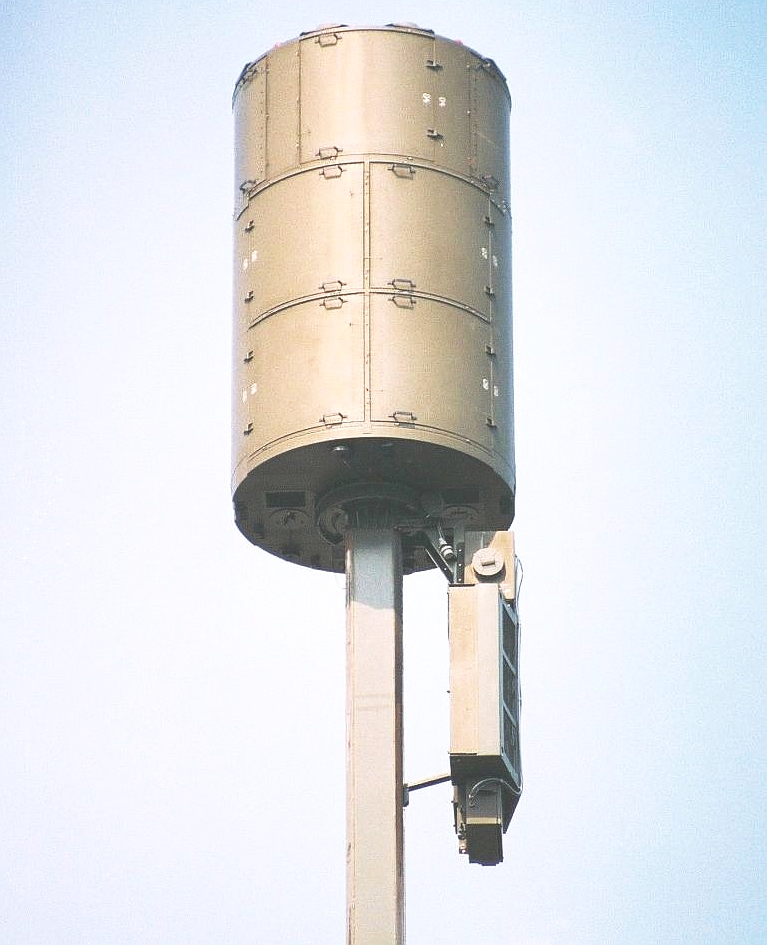

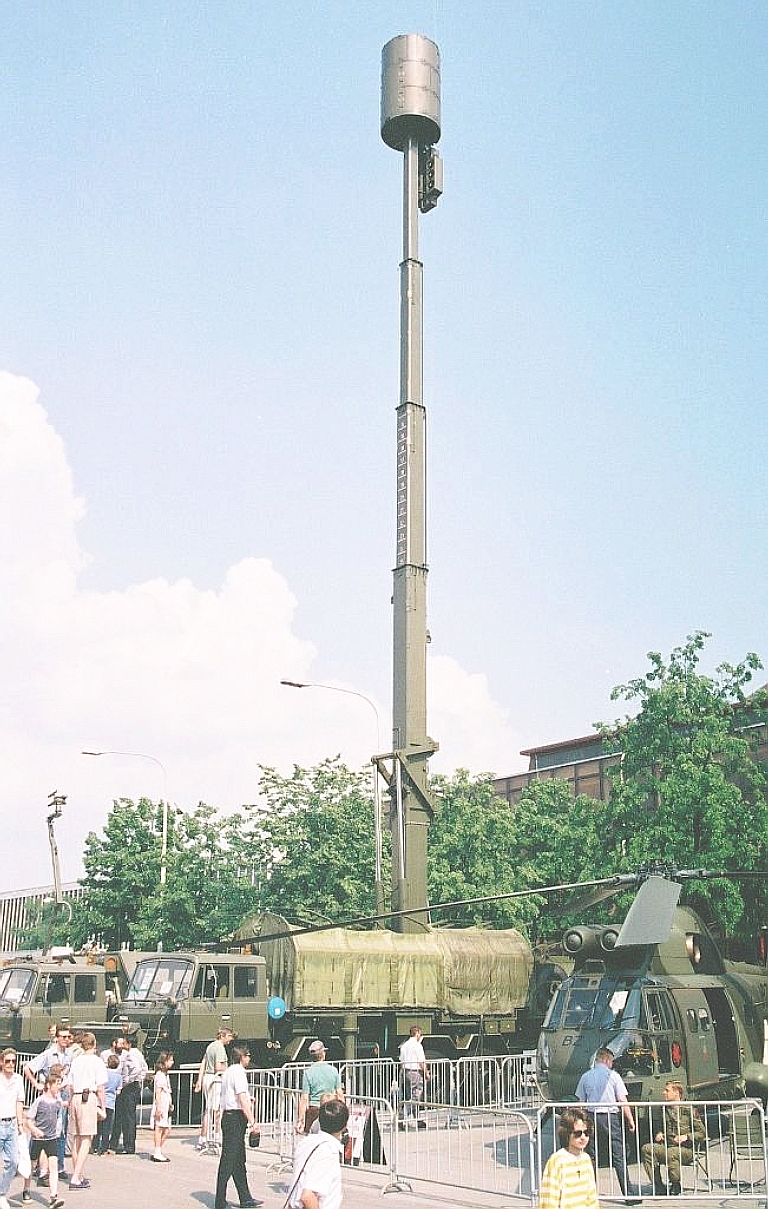

Unlike its predecessors, Tamara was a mobile system deployed on eight large Tatra T815 trucks and mounted upon a powerful 25 m hydraulic mast. Setup was completely automated and claimed to be of the order of twenty minutes from the moment of arrival at a site.
Unit
A single system is carried by eight Tatra 815 8x8 trucks (Equivalent to the MAZ-543), comprising three RS-AJ/M receiver systems with telescoping masts, and a mix of RS-KB hardware containers, RS-KM signal processing equipment container and a ZZP-5 command van.
Band
INA
Band Coverage
Cited band coverage is 820 MHz to 18 GHz.
Mode of Operation
The deployed system typically comprises a central site (containing the signal processing equipment and an ESM receiver) and two or three side sites containing only an ESM receiver. The side sites relay the signals received to the central site over a point-to-point microwave link. The central site uses the known propagation delay from the side sites to estimate the TDOA of the pulses at each site. The TDOA of a pulse between one side site and the central site locates the target on a hyperboloid. A second side site provides a second TDOA and hence a second hyperboloid. The intersection of these two hyperboloids places the target on a line, providing a 2D measurement of the target's location (no height). A third site provides a third hyperboloid and hence a measurement of height.
Tamara could automatically track 23 radar and 48 IFF targets simultaneously. Its frequency band is 0.8-18 GHz. The nominal range of the system is 450 km, and it is generally limited by the radio horizon. It provides surveillance over a sector of approximately 100 degrees, with the later KRTP-91 system offering a wider 120 degree sector of surveillance.
Displacement Time
INA
Emplacement Time
INA
Deployment Distance
In a typical deployment the receivers are stationed at distances of 5 to 20 NMI.
Cited Maximum Range
cited range limit being 240 NMI and limited primarily by the curvature of the earth.
Tracked Targets
Russian sources claim that 72 targets can be tracked within a 100° angular sector, these including emitting JTIDS/Link-16 terminals. In 1991 the baseline KRTP-86 was superceded in production by improved the KRTP-91 Tamara-M.
