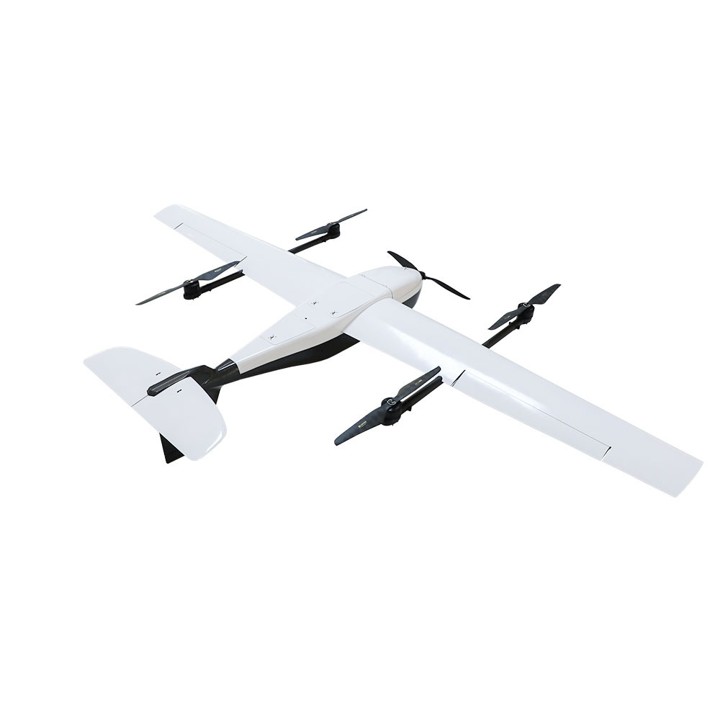

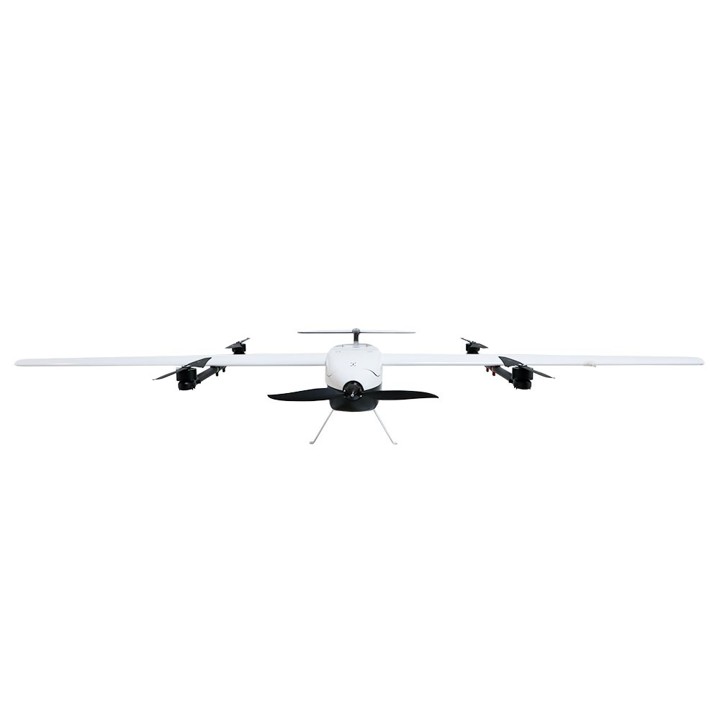

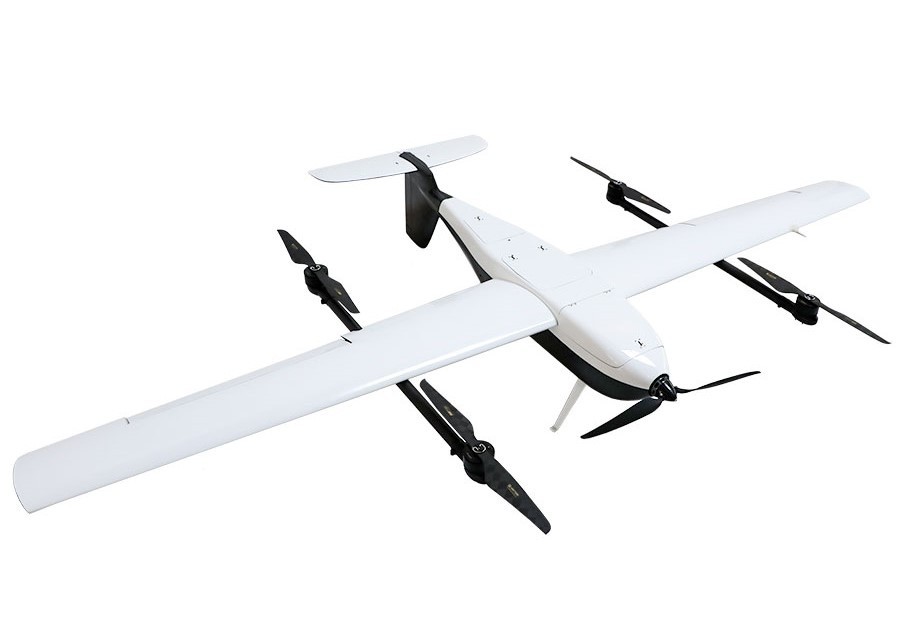

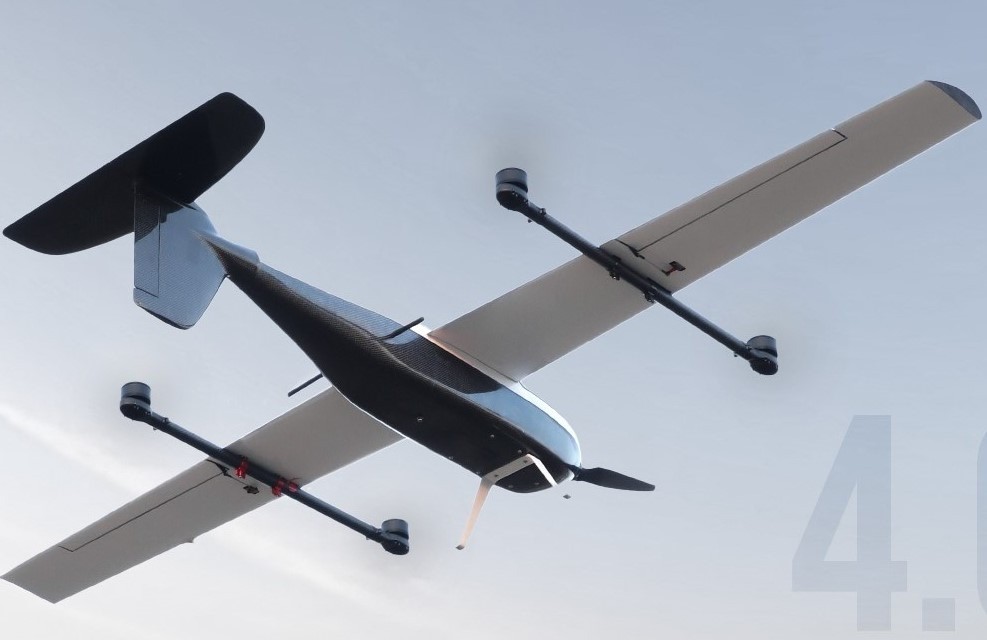

VA23 Chinese Unmanned Aerial Vehicle (UAV)

VA23

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VA23 Chinese Unmanned Aerial Vehicle (UAV)
Designation
VA23
Alternate Designation
VA23
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
T-Drones
Date of Introduction
2024
Description

The VA23 Chinese Unmanned Aerial Vehicle (UAV) offers convenient flight capabilities, allowing you to navigate the skies effortlessly and explore new environments. This long-endurance eVTOL fixed-wing UAV can achieve an unloaded flight time of over 240 minutes, and when carrying a 1.5 kg load, it can fly for more than 180 minutes. Equipped with a power management module and a locking propeller function, the VA23 is designed using lightweight and durable carbon fiber materials, which contribute to its extended flight times. The drone's frame weighs only 2 kg, ensuring a balance of lightweight construction, high strength, and excellent flight performance. With a maximum flight time of up to 4 hours, the VA23 enhances your work efficiency. The locking propeller design reduces air resistance, resulting in a more stable and safer flight experience. Additionally, a dual-circuit flight control servo power supply ensures flight safety, while a dual-circuit relay allows for remote control of the camera and lights. The VA23 features a quick-disassembly design that requires no tools for assembly, allowing you to put it together in just 3 minutes. It comes with a backpack-type packing box, making it compact and lightweight for easy transport. The dimensions of the packed drone are 120 x 30 x 35 cm.

Air & Air Defense Specifications
Engine Battery
Max Speed 126.0 km/h
Cruise Speed 68.0 km/h
Range 240.0 km
Service Ceiling 4500 m
Wingspan 2300.00 m
Payload Capacity 2 kg
System
Alternate Designation VA23
Type Unmanned Aerial Vehicle (UAV)
Manufacturer T-Drones
Payload Capacity 2.5 kg
Frame Material Carbon Fiber
Operating Temperature -10-40℃
Dimensions
Length 1,250 mm
Height INA
Wingspan 2,300mm
Maximum Takeoff Weight 12.5 kg
Automotive
Engine Name INA
Engine Type Battery (12s 22000mah/12s 27000mah/12s 30000mah )
Engine Power INA
Maximum Speed 126 km/h
Cruise Speed 68 km/h
Maximum Range 240 km
Service Ceiling 4,500 m
Endurance Max. 240min (Without Payload; Max. 180min (1.5kg payload)
Wind Resistance Level 5
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
V
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.25 m
Width
2.3 m
Height
Weight
12.5 kg
Operators (1)
China
