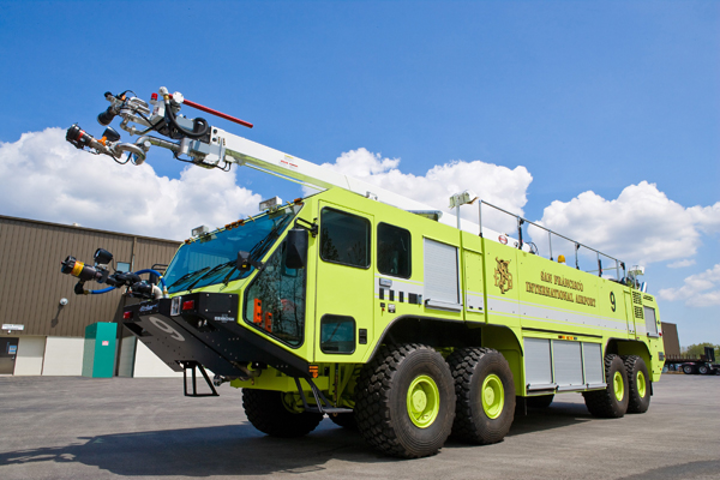

Striker 4500 American 8x8 Aircraft Rescue and Firefighting (ARFF) Vehicle

Striker 4500

Aircraft Rescue and Firefighting (AAFF) Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Striker 4500 American 8x8 Aircraft Rescue and Firefighting (ARFF) Vehicle
Designation
Striker 4500
Alternate Designation
Striker 4500
Equipment Type
Aircraft Rescue and Firefighting (AAFF) Vehicle
Manufacturer
Oshkosh
Date of Introduction
2015
Description

The Oshkosh Striker is a specialized aircraft rescue and firefighting (ARFF) vehicle built by Oshkosh Corporation at the Pierce Mfg. facilities Appleton, Wisconsin. There are three models of the Striker: 1500, 3000, 4500. All models are available with a snozzle capable of piercing an aircraft fuselage to dispense fire retardant material within a cabin or cargo area. On April 17, 2015 Oshkosh announced they will debut a new twin engine Striker 8 X 8 at Interschutz 2015. The Striker 4500, a.k.a. Striker 8x8, is the 4 axle model. It features: 4,500-US-gallon (17,000 l) water tank 630-US-gallon (2,400 l) foam tank 500 pounds (230 kg) of dry chemical 460 pounds (210 kg) of Halotron 1 Innovative Fire Suppression Snozzle HRET in multiple lengths with below-grade discharge Optional crosslays to access hand lines from either side of the truck. Extreme Mobility & Maneuverability Oshkosh patented TAK-4 all-wheel independent suspension Decreased weight for faster acceleration Dual engines for faster response time Wide track and low center of gravity for side slope stability of at least 30° Available central tire inflation increases stability Center steer for advanced visibility and control Firefighter-Inspired Design Panoramic forward view for unmatched visibility Best-in-class space seats up to five - 275 cubic ft. (7.8 cubic m) Exceptional comfort and ride quality New cab and firefighter options Indicator lighting clearly identifies water, foam, and clean agent controls, which are grouped by function Advanced electronics for easier troubleshooting and better user interface Exceeds NFPA, ICAO, and EU standards Easy Maintenance Single point access for lubrication fills, air tank drains, and electrical connections including circuit breaker box

Ground Specifications
Active Protection None
Variants
Striker 1500 (4x4) The Striker 1500, a.k.a. Striker 4x4, is the 2 axle model. It features 1,500-US-gallon (5,700 l) water tank 210-US-gallon (790 l) foam tank 450 pounds (200 kg) of dry chemical 460 pounds (210 kg) of Halotron 1 Oshkosh unveiled a new modernized Striker at FDIC-Indianapolis, April 2010. It is 2,000 pounds lighter so it is faster and more maneuverable. The new Striker was designed with extensive feedback from firefighters and fire chiefs. It has a 700 HP Deutz TCD 16.0L V8 Diesel engine with over 2,000 pound-feet of torque. This new edition has 84 sq. ft. of glass in the front windscreen, and for the first time has crosslays. Engine maintenance is facilitated by a walk-in, step-up platform incorporated into the rear of the unit, making major systems easily serviced.
Striker 3000 (6x6) The Striker 3000, a.k.a. Striker 6x6, is the 3 axle model. It features: 3,000-US-gallon (11,000 l) water tank 420-US-gallon (1,600 l) foam tank 500 pounds (230 kg) of dry chemical 460 pounds (210 kg) of Halotron 1
Striker 4500 (8x8) The Striker 4500, a.k.a. Striker 8x8, is the 4 axle model. It features: 4,500-US-gallon (17,000 l) water tank 630-US-gallon (2,400 l) foam tank 500 pounds (230 kg) of dry chemical 460 pounds (210 kg) of Halotron 1
System
Alternative Designation Striker 4500
Type Aircraft Rescue and Firefighting (AAFF) Vehicle
Manufacturer Oshkosh
Configuration 8x8
In Service 2015-Present
Crew INA
Cab 5-person seating; aluminum frame construction with center steering position; wrap-around, cockpit style instrument panel; easy-read backlit gauges and controls
Dimensions
Length 426 in. (1082 cm)
Width 120 in. (305 cm)
Height without HRET ≤ 140 in. (356 cm) (with full water tank)
Wheelbase 219 in. (556 cm)
Automotive
Engine Name Dual Scania DC16 engines; 550-770 hp each
Engine Type INA
Transmission Dual Allison 4800 EVS transmissions; electronic / 7-speed / automatic
Anti-Lock Braking System (ABS) Yes
Transfer Case Oshkosh; independently mounted; torque proportioning differential and driver selected locking mechanism
Front Axle 2 x 31,000 lb. (14061 kg) for 62,000 lb. (28123 kg); Oshkosh double reduction with bevel gear differential; driver operated differential lock
Front Brakes Dual wedge type
Rear Axle 2 x 31,000 lb. (14061 kg) 62,000 lb. (28123 kg);Oshkosh double reduction with bevel gear differential; driver operated differential lock
Rear Brakes: S-cam type; air/mechanical spring actuation
Suspension Oshkosh TAK-4 independent system with dual control arms and single coil spring; up to 16 in. (40.6 cm) of wheel end travel with superior all-terrain mobility, ride quality and handling
Tires Emergancy Off Road 24R21
Acceleration 0 to 50 mph (80 km/h) in 20 seconds
Top Speed 77.6 mph (125 km/h)
Side Slope Stability (Static) >30°
Gradeability Ascend/descend a 60% grade
Power Uniter Proprietary Oshkosh design directs engine power to drive components and firefighting systems smoothly and efficiently
Fire Fighting System
Roof Turret Non-aspirating and aspirating options available, electric joystick control; 625/1250 gpm (2366/4732 lpm), options available up to 1,585 gpm (6000 lpm)
Bumper Turret Non-aspirating; electric joystick control; 300 gpm (1136 lpm), higher flow options available
Water Tank 4,500 gallon (17029 l) capacity; constructed of corrosion and UV resistant polypropylene
Foam Tank 540 gallon (2384 l) capacity; constructed of corrosion and UV resistant polypropylene
Fire Pump Power divider driven Waterous CRQA; single stage centrifugal; cast iron body; brass impeller; stainless steel shaft; pump-and-roll capable; 1,950 gpm (7,381 lpm) at 240 psi (1657 kPa)
Foam Proportioning System Around-the-pump
Protection
Armor No
Applique Armor No
Active Protection System No
Mine Clearing No
Self-Entrenching Blade No
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin United States
Category Land
Land
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.26 m
Width
1.2 m
Height
Weight
Operators (1)
United States
