Alpha American Unmanned Aerial Vehicle (UAV)
Alpha
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Alpha American Unmanned Aerial Vehicle (UAV)
Designation
Alpha
Alternate Designation
Alpha
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
Date of Introduction
2024
Description

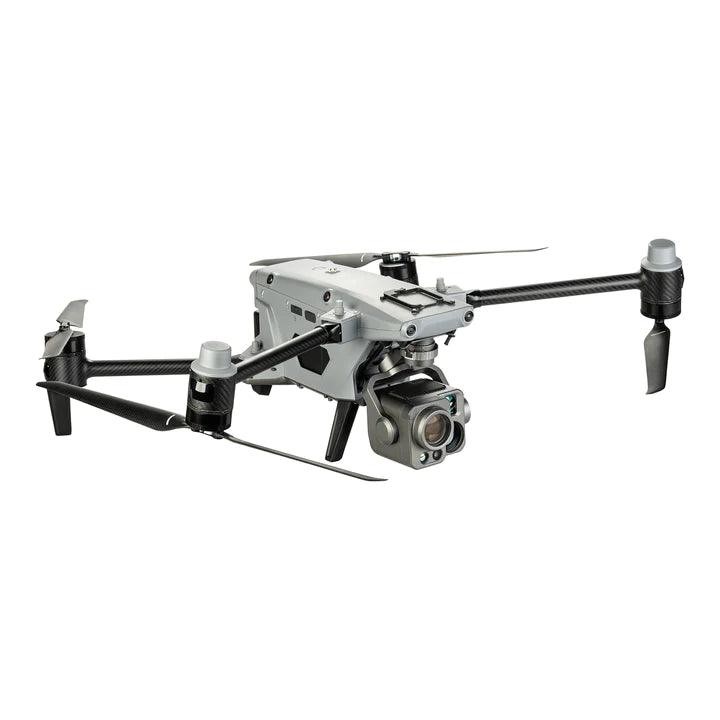

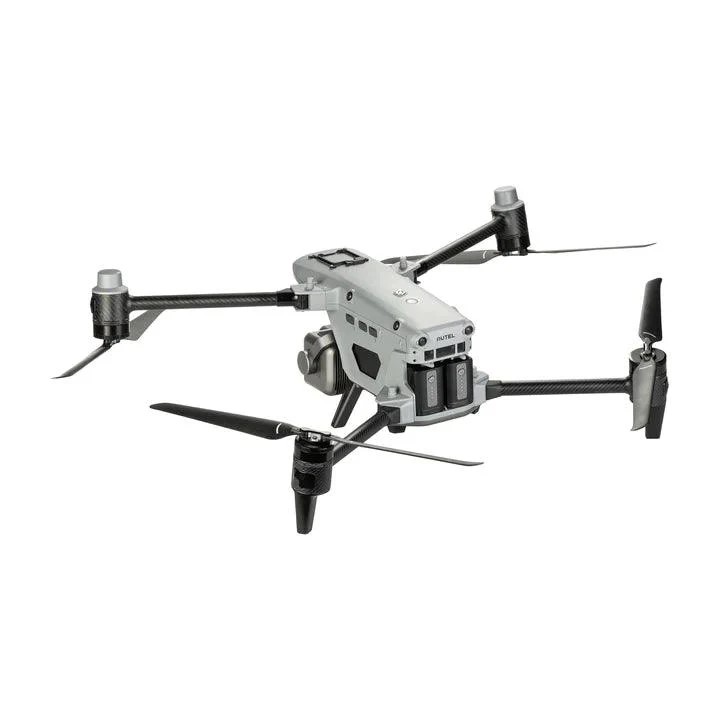

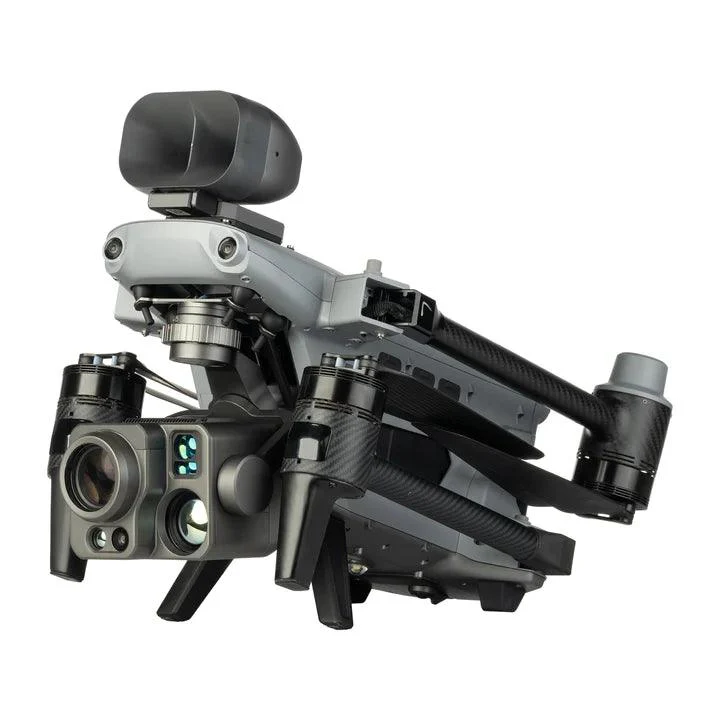

The Alpha American Unmanned Aerial Vehicle (UAV) with 5-in-1 Gimbal from Autel Robotics offers law enforcement and industrial professions a wide range of imagine capabilities, along with the ability to fly safely, day or night, near critical equipment, and in adverse weather conditions. When it comes to imaging, the L35T gimbal offers five different abilities. You get both wide and telephoto visual capture up to 4K, wide and telephoto thermal imaging up to 1022°F, and laser rangefinder targeting up to 1.25 miles away. Flights are made safe with 720° omnidirectional obstacle avoidance, anti-interference technology, and dual-antenna millimeter-level RTK-based precise control.
Air & Air Defense Specifications
Engine
Battery
Max Speed
90.0 km/h
Range
2.0 km
System
Alternate Designation
Alpha
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Autel Robotics
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Transmission System
Wi-Fi 5 (802.11ac)
Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.8 GHz (5.725 to 5.750)
Power at 2.4G: 30 dBm (FCC/ISED) / 20 dBm (CE/SRRC/UKCA)
Power at 5.8G: 30 dBm (FCC/ISED/SRRC) / 14 dBm (CE/UKCA)
Bluetooth 5.0
Frequencies: 2.4 GHz (2.400 to 2.4835)
Power at 2.4G: 20 dBm
Proprietary
Frequencies: 900 MHz (902.000 to 928.000) / 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.15 to 5.25) / 5.8 GHz (5.725 to 5.850)
Power at 0.9G: 30 dBm (FCC/ISED)
Power at 2.4G: 30 dBm (FCC/ISED) / 20 dBm (CE/SRRC/UKCA)
Power at 5.1G: 30 dBm (FCC) / 23 dBm (CE/UKCA)
Power at 5.8G: 30 dBm (FCC/ISED/SRRC) / 14 dBm (CE/UKCA)
Camera System
Wide
1/2"-Type CMOS Sensor with 24mm-Equivalent, f/2.8 Lens
Zoom
1/1.8"-Type CMOS Sensor with 34.7 to 838mm-Equivalent, f/1.6 Lens
Wide Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (12.3° FoV)
Thermal
Vanadium Oxide (VOX) Sensor with -4 to 1022°F / -20 to 550°C Measurement Range with Lens (42° FoV)
Maximum Video Resolution
Wide
Up to 4000 x 3000 at 25 fps
Zoom
Up to UHD 4K at 30 fps
Thermal
Up to 640 x 512 at 25 fps
Still Image Support
Wide
Up to 12 MP (JPEG)
Zoom
Up to 8 MP (JPEG)
Thermal
Up to .3 MP (JPEG)
Sensing System
Omnidirectional with Radar Enhancement
Control Method
Included Transmitter
Operating Conditions
-4 to 122°F / -20 to 50°C
Dimensions
Folded
1.5 x 0.9 x 0.8' / 455.0 x 263.0 x 245.0 mm
Unfolded
4.0 x 3.2 x 0.9' / 1205.0 x 980.0 x 278.0 mm
Weight
13.98 lb / 6.34 kg
Maximum Takeoff Weight
18.5 lb / 8.4 kg
Automotive
Engine Name
INA
Engine Type
Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)
Engine Power
INA
Maximum Operating Distance
12.4 Miles / 20 km
Maximum Horizontal Speed
55.9 mph / 25 m/s
Maximum Ascent Speed
33.6 mph / 15 m/s
Maximum Descent Speed
6.2 mph / 10 km/h
Maximum Wind Resistance
26.8 mph / 12 m/s
Maximum Take-Off Altitude
2.8 Miles / 4500 m
Maximum Flight Time
40 Minutes
Maximum Hover Time
38 Minutes
Maximum Tilt Angle
36°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±0.49' / 0.15 m
RTK
Vertical: ±0.3' / 0.1 m
Horizontal: ±0.3' / 0.1 m
GNSS
Vertical: ±1.0' / 0.3 m
Horizontal: ±1.0' / 0.3 m
Maximum Angular Velocity
300°/s (Pitch)
120°/s (Yaw)
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.21 m
Width
0.98 m
Height
—
Weight
6.34 kg
Operators (1)
United States
