9K32 Strela-2 (SA-7 Grail) Russian Man Portable Surface-to-Air Missile (MANPAD)

9K32

Man-Portable Air Defense System (MANPADS)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
9K32 Strela-2 (SA-7 Grail) Russian Man Portable Surface-to-Air Missile (MANPAD)
Designation
9K32
Alternate Designation
Equipment Type
Man-Portable Air Defense System (MANPADS)
Manufacturer
Konstruktorskoye Byuro Mashinostroenia (KBM)
Date of Introduction
1970
Description

Hezbollah Proliferation. The 9K32 Strela-2 (Russian: Cтрела, "arrow"; NATO reporting name SA-7 Grail) is a light-weight, shoulder-fired, surface-to-air missile (or MANPAD) system. It is designed to target aircraft at low altitudes, with passive infrared homing guidance, and destroy them with a high explosive warhead. Broadly comparable in performance with the US Army FIM-43 Redeye, the Strela-2 was the first Soviet man-portable SAM – it entered use in 1968, and full-scale production began in 1970. The Strela-2 was a staple of the Cold War and was produced in huge numbers for the Soviet Union and their allies, as well as revolutionary movements. Though since replaced with more modern systems, the Strela and its variants remain in service in many countries and have seen widespread use in nearly every regional conflict since 1972.

Ground Specifications
Crew 1
Main Weapon high explosive fragmentation warhead
Max Speed 1548.0 km/h
Range 3.4 km
Variants
Strela-2 The Strela (Russian for 'arrow') family of man-portable air defence (MANPAD) systems were first developed in the Soviet Union by the Konstruktorskoye Byuro Mashinostroenia (KBM).
Strela-2M The Strela-2M system has also been produced in Bulgaria, Czech Republic, Poland, Romania, and Slovakia, under licence. It should be noted that some of the information given from Bulgarian sources differs from that given by Russian sources.
Strela-3 The Strela-3 was commissioned by the Soviet military due to the limitations and capabilities of its preceding 9K32/9K32M Strela-2/Strela-2M systems.
Strela-2M/A The Strela-2M/A is a Serbian man-portable air defence system (MANPADS) that is a licence-produced copy of the Strela-2M.
HN-5/ HN-5A The HN-5 (Hong Nu or Red Cherry) is a product-improved version of the first-generation Russian Strela-2.
Sakr Eye An Egyptian reverse engineered and improved model of the Strela-2M.
System
Alternative Designations 9K32 Strela-2; SA-7 Grail
Type Man Portable Surface-to-Air Missile (MANPAD)
Manufacturer Konstruktorskoye Byuro Mashinostroenia (KBM).
Proliferation Hezbollah
Crew 1, Normally 2 with a loader

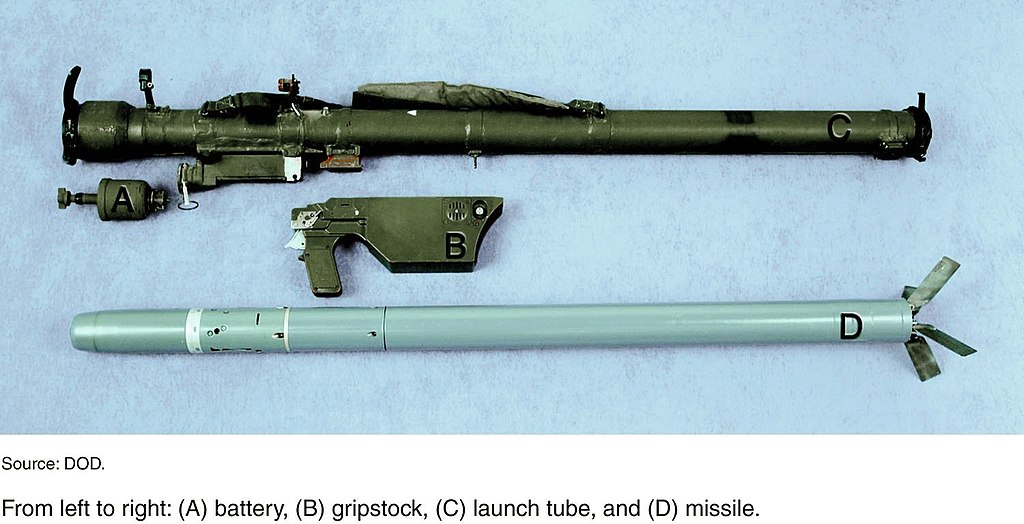

Launcher The re-loadable launch container canister has the GRAU code 9P54 and the grip-stock has the GRAU code 9P53, which has a 24 pin connector between it and the canister.
Guidance System passive, IR
Propulsion solid propellant (sustain stage)
Warhead HE fragmentation
Fuze impact
Maximum Speed 1,548 km/h
Minimum Range 0.8 km
Maximum Range 3.4 km
Maximum Altitude 1,500 m
Minimum Altitude 50 m
Self-Destruct Time 12 to 15 seconds after launch
Dimensions
Length 1.438 m
Diameter 72 mm
Warhead Weight 1.17 kg HE fragmentation
Weight 9.15 kg
Details
Country of Origin Russia
Category Man-Portable Air-Defense Systems (MANPADS)
Land > Air Defense > Man-Portable Air-Defense Systems (MANPADS)
Filter Label
9
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.44 m
Width
0.07 m
Height
Weight
9.15 kg
Operators (56)
Russia
China
Ukraine
Poland
India
Iran
North Korea
Pakistan
Czech Republic
Serbia
Afghanistan
Algeria
Bangladesh
Bosnia and Herzegovina
Bulgaria
Burundi
Cabo Verde
Cambodia
Congo, Republic of the
Côte d'Ivoire
Croatia
Cuba
Egypt
Eritrea
Ethiopia
Georgia
Ghana
Guinea
Guinea-Bissau
Jordan
Laos
Lebanon
Libya
Mali
Mauritania
Montenegro
Morocco
Mozambique
Namibia
Nicaragua
Nigeria
Oman
Peru
Qatar
Rwanda
Slovakia
Sudan
Syria
Tanzania
Uganda
Venezuela
Vietnam
Yemen
Zambia
Zimbabwe
Non-State Actors
