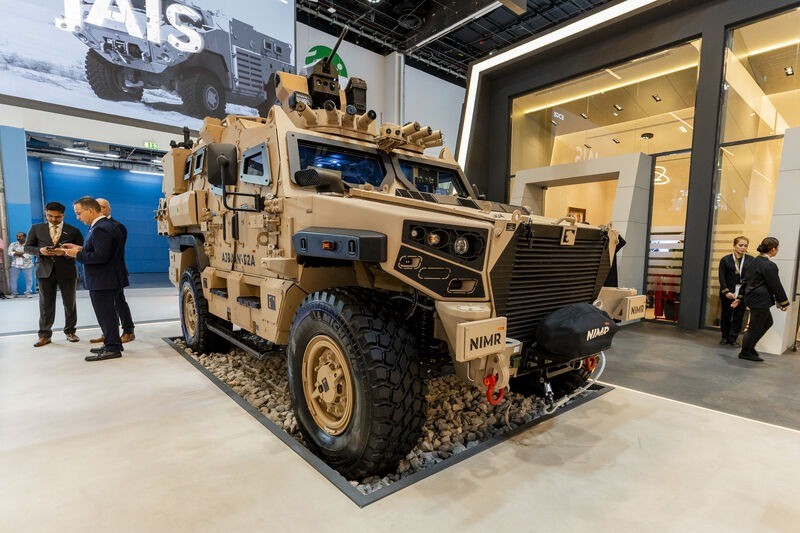

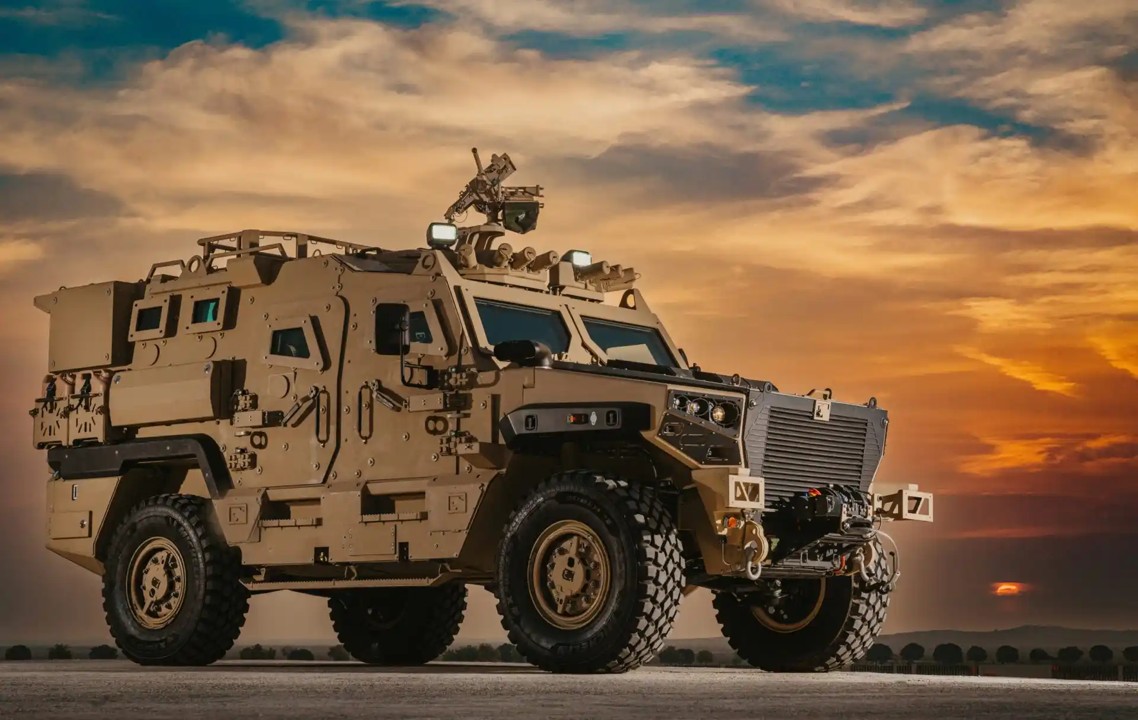

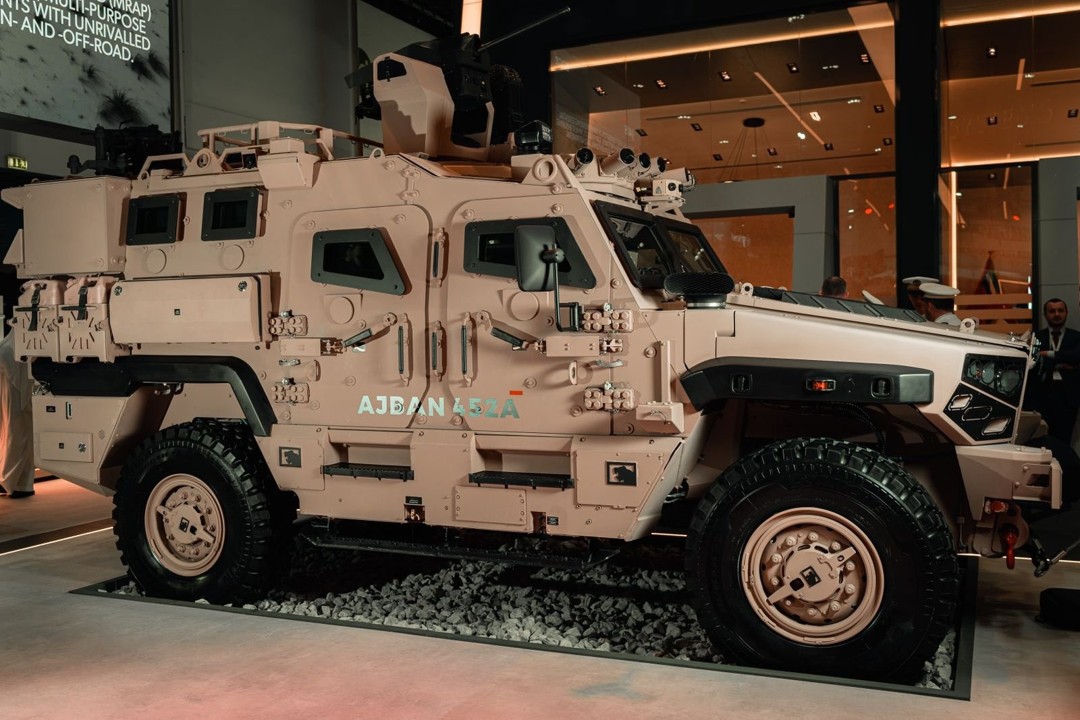

AJBAN 452A Emirati 4x4 Light Tactical Patrol Vehicle

AJBAN 452A

Light Utility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AJBAN 452A Emirati 4x4 Light Tactical Patrol Vehicle
Designation
AJBAN 452A
Alternate Designation
AJBAN 452A
Equipment Type
Light Utility Vehicle
Manufacturer
NIMR
Date of Introduction
2025
Description

The AJBAN 452A is an Emirati 4x4 Light Tactical Patrol Vehicle that represents the high-capacity variant within the AJBAN MK2 family. Designed to carry a crew of 11, this versatile tactical vehicle can easily adapt to various roles including armored personnel carrier (APC), command and control, artillery observation, and internal security. The additional space allows for an ambulance configuration, ensuring that medical teams can access hostile environments to evacuate and stabilize casualties while being protected. With a payload capacity of up to 3,500 kg, the AJBAN 452A enables forces to transport specialized equipment and critical combat support systems without compromising speed or performance. Moreover, the vehicle’s interior layout offers ample room for integrating command, control, and communication systems tailored to specific mission requirements. Engineered for endurance and adaptability, this mission-ready platform delivers reliable performance across a wide range of mission profiles, enhancing both operational effectiveness and fleet efficiency—key priorities for modern ground forces.

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Engine Diesel (268 hp)
NBC Protection Yes
Max Speed 110.0 km/h
Range 700.0 km
System
Alternative Designation AJBAN 452A
Type Light Tactical Patrol Vehicle
Manufacturer NIMR
Configuration 4x4
Crew 2 ea
Passengers 9 ea
Payload Capacity 3,500 kg
Dimensions
Length 5,965 mm
Width 2,520 mm
Height 2,740mm
Wheelbase 3,600 mm
Weight, Combat 16,000 kg
Automotive
Engine Name INA
Engine Type Diesel
Engine Power 268kW (360hp)
Engine Torque 1100Nm
Transmission 6-speed automatic(6 Forward, 1 Reverse)
Maximum Range 700 km at 80km/h
Maximum Speed 110 km/h
Amphibious No
Angle of Approach 35 deg
Angle of Departure 35 deg
Main Weapon System
Note The AJBAN 452A tactical vehicle can be equipped with various weapons, including roof-mounted machine guns, automatic grenade launchers, and other support systems. The weapon configuration depends on its specific role, as it is a multi-role armored personnel carrier (APC).
Protection
Armor Provides advanced protection through a modular armored hull with a V-shaped design for enhanced mine blast resistance, alongside ballistic protection up to STANAG 4569 Level 3 or 4.
Applique Armor Available
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin United Arab Emirates
Category Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.97 m
Width
2.52 m
Height
2.74 m
Weight
16000 kg
Operators (1)
United Arab Emirates
