HW-18 Chinese Unmanned Ground Vehicle (UGV)

HW-18

Unmanned Ground Vehicle (UGV)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

HW-18 Chinese Unmanned Ground Vehicle (UGV)

Designation

HW-18

Alternate Designation

HW-18

Equipment Type

Unmanned Ground Vehicle (UGV)

Manufacturer

Beijing Heweiyongtai Sci & Tech Co., Ltd

Date of Introduction

2023

Description

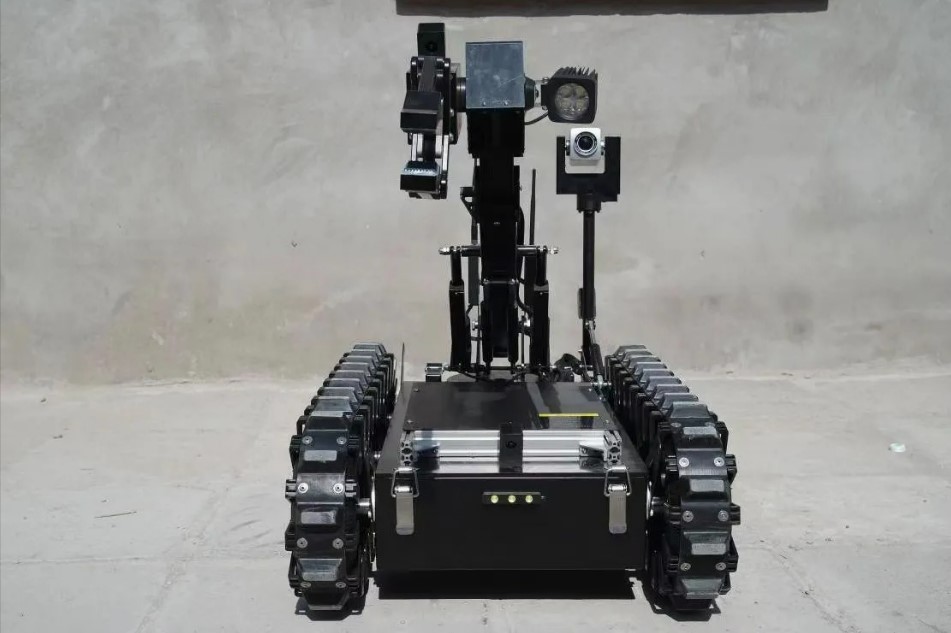

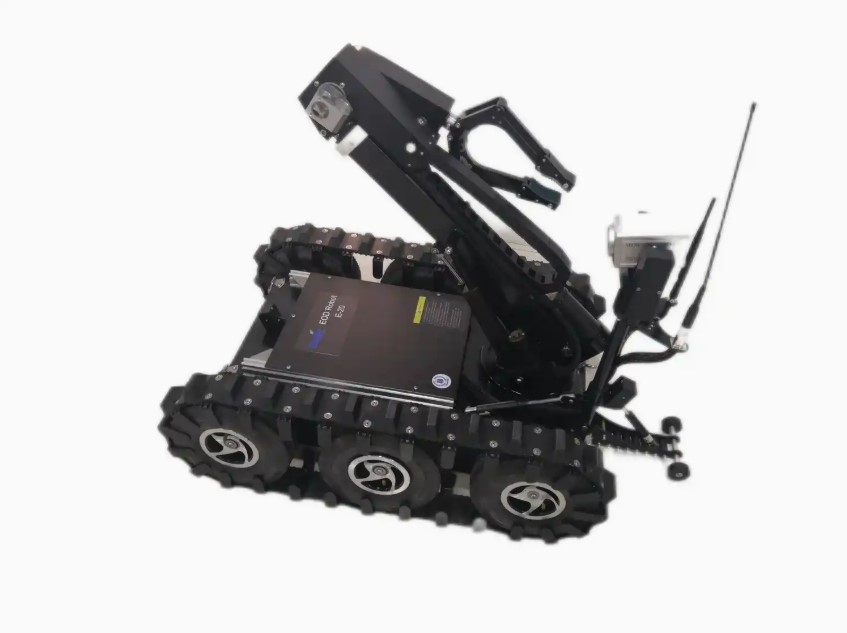

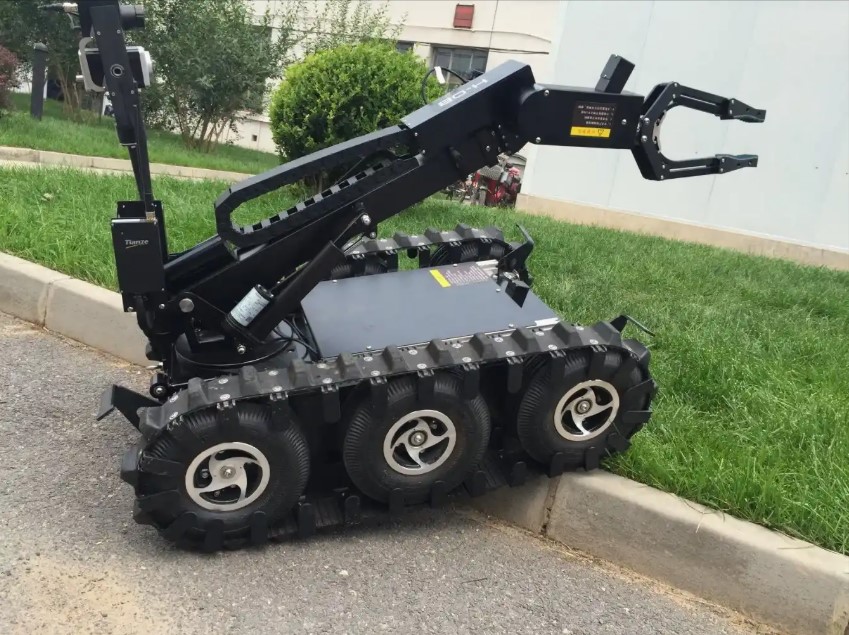

The HW-18 Chinese Unmanned Ground Vehicle (UGV) consists of mobile robot body and control system. Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc. Mechanical arm is made up of big arm, telescopic arm, small arm and manipulator. It is installed on kidney basin and its diameter is 220mm. Double electric stay pole and double air-operated stay pole are installed on mechanical arm. Cradle head is collapsible. Air-operated stay pole, Camera and antenna are installed on cradle head. Monitoring system is made up of camera, monitor, antenna, etc.. One set of LED lights is mounted on the front of body and on the back of body. This system is powered by DC24V lead-acid rechargeable battery.

Ground Specifications

Mobility Type Track

Engine Battery

Max Speed 5.4 km/h

System

Alternative Designation HW-18

Type Unmanned Ground Vehicle (UGV)

Manufacturer Beijing Heweiyongtai Sci & Tech Co., Ltd.

Configuration Track

Crew Unmanned

Application Environment Robots are mainly used to deal with explosives-related tasks, and can also be used to detect terrain that is difficult for humans to reach. 1. Transfer and destruction of the suspicious objects in public places (metro, airport, railway station, shopping mall, conference center, etc. 2. Applied in such roadside bomb elimination and mine elimination, etc. 3. Material fetching and transfer under hazardous biological and toxic environment. 4. Reconnaissance, detection, material fetching and transfer within the ruins environment after disaster. Material fetching and transfer under nuclear radiation environment, simple detection and maintenance work.

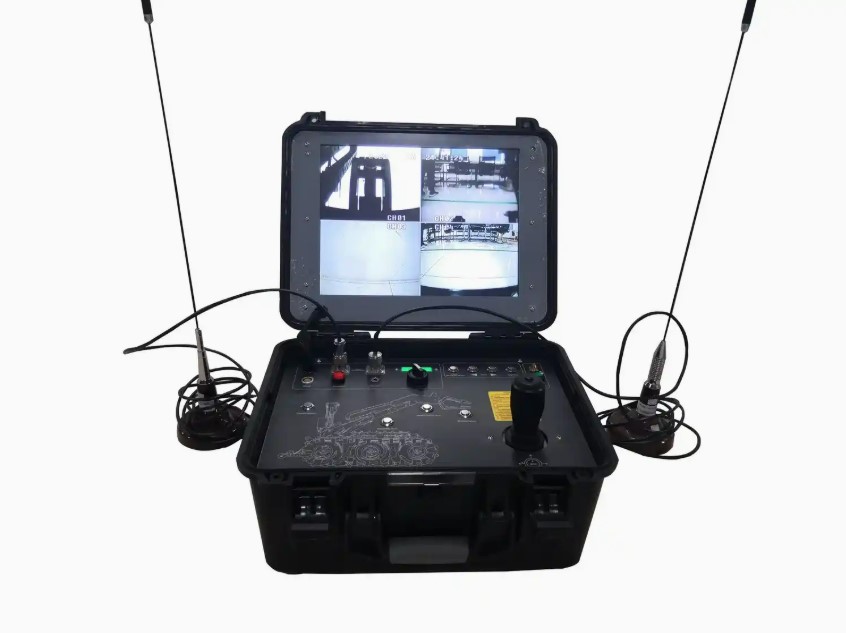

Control Box Via the buttons and handle of control box, the operators can control video switch, zoom, moving, cradle rotating, floodlight, telescopic arm, gripper opening and closing, small arm rotating, big arm lifting, kidney basin rotating, wrist rotating, etc.

Loading Capacity Loading 140 kg

Lift Capability 40 kg

Max. Mechanical Arms Spread 1,650mm

Dimensions

Length 910 mm

Width 650 mm

Height 500 mm

Weight, Combat 90 kg

Automotive

Engine Name INA

Engine Type Rechargeable Lithium battery

Engine Power INA

Maximum Range INA

Maximum Speed 5.4 km/h

Amphibious No

Gradient 45 deg

Endurance 5 hours

Over-Obstacle Capacity 320 mm Height

Limited Passage Width Less Than 700 mm

Gripper of Manipulator Maximum Expansion 250 mm

Arm Extension When Stretch out and Draw 500 mm

Protection

Armor INA

Image Sources

Notes https://heweigroup.en.made-in-china.com/product/lEMYPFWcsfUa/China-China-Best-Unmanned-Ground-Vehicles-Remotely-Operated-Eod-Robot-for-Bomb-Disposal.html

Details

Country of Origin China

Category Unmanned Ground Vehicles (UGV)

Land > Unmanned Ground Vehicles (UGV)

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

0.91 m

Width

0.65 m

Height

0.5 m

Weight

90 kg

Operators (1)

China
