Shanyi 05 Chinese Tracked Unmanned Ground Vehicle (UGV)
Shanyi 05
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Shanyi 05 Chinese Tracked Unmanned Ground Vehicle (UGV)
Designation
Shanyi 05
Alternate Designation
Shanyi 05; Mini Shanyi; Mountain Ant 05 Micro Platform
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology
Date of Introduction
2018
Description
The Shanyi 05 Chinese Tracked Unmanned Ground Vehicle (UGV) has been developed for field reconnaissance, battlefield assessment, anti-terrorism EOD, rescue in small spaces.
Ground Specifications
Engine
Electric
Max Speed
50.0 km/h
System
Alternative Designation
Shanyi 05; Mini Shanyi; Mountain Ant 05 Micro Platform
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Zhong Tian Guide Control Technology Co Ltd
Mission
The Shanyi 05 Chinese Tracked Unmanned Ground Vehicle (UGV) has been developed for field reconnaissance, battlefield assessment, anti-terrorism EOD, rescue in small spaces.
Configuration
Tracked
Crew
Unmanned
Control
Control of the platform is carried out by a standard portable control unit.
Payload Capacity
A large internal bay area inside the chassis permits a number of payloads (reconnaissance strike, etc) to be mounted.
Environmental
IP67
Dimensions
Length
0.75 m
Width
0.42 m
Height
0.20 m
Weight
11 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Range
INA
Maximum Speed
50 km/h
Maximum Gradient Climb
35˚
Side Slope
25˚
Endurance
5 hours
Manipulator Arm
Note

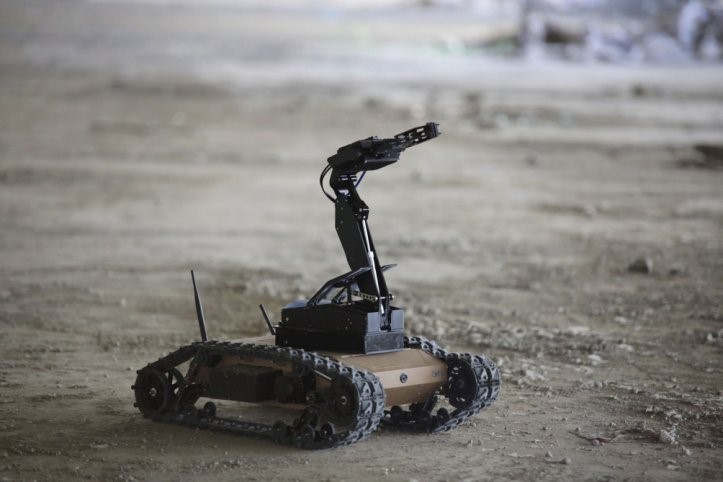

Robotic arms can be mounted to the upper part of the robot.
Protection
Armor
The chassis is constructed from a high-strength non-metallic plate.
Applique Armor
INA
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.75 m
Width
0.42 m
Height
0.2 m
Weight
11 kg
Operators (1)
China
