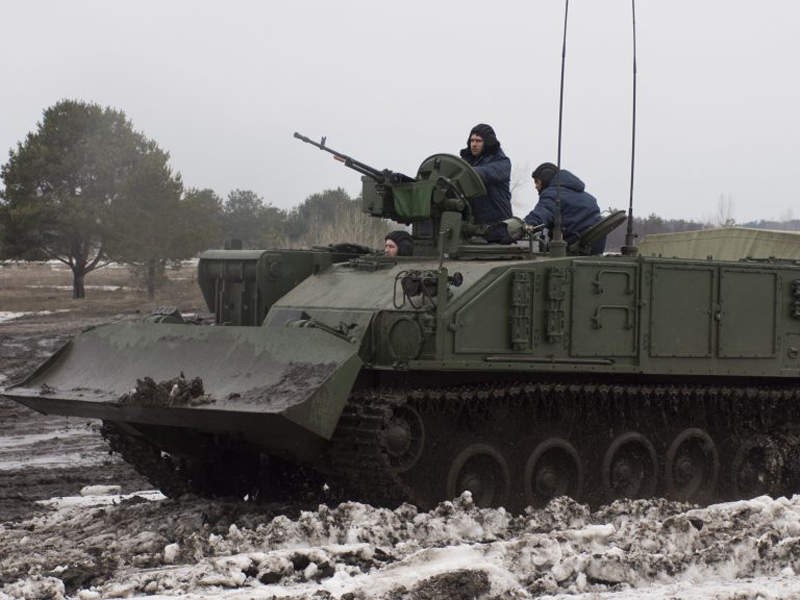

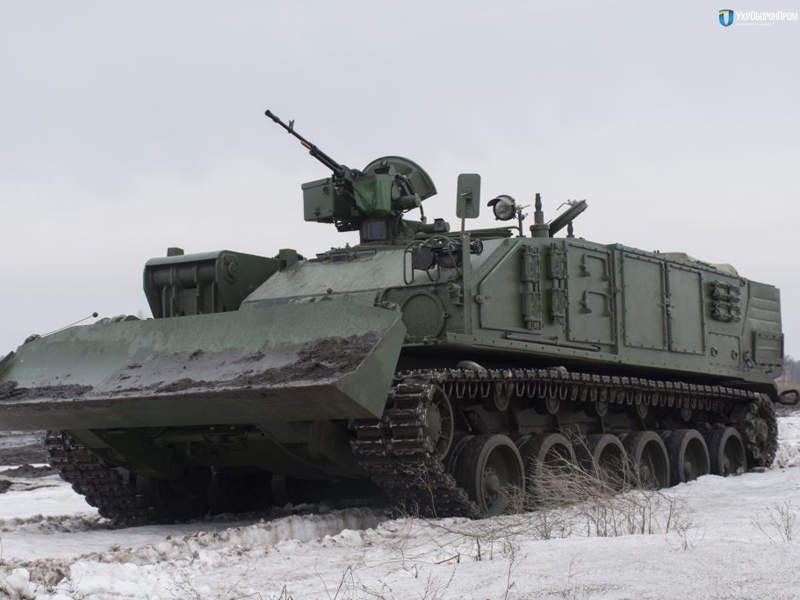

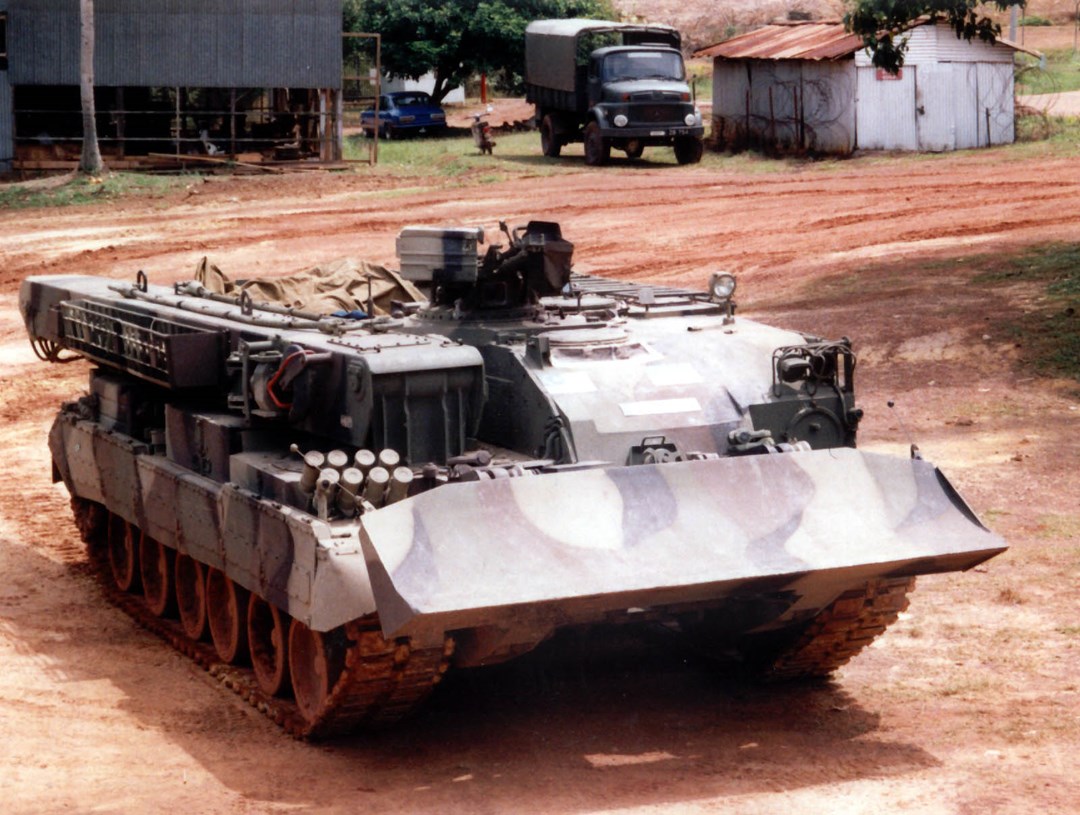

BREM-84 (Atlet) Ukrainian Armored Recovery Vehicle
BREM-84
Armored Recovery Vehicle
Other
Basic Information
Name
BREM-84 (Atlet) Ukrainian Armored Recovery Vehicle
Designation
BREM-84
Alternate Designation
BREM-84; Atlet
Equipment Type
Armored Recovery Vehicle
Manufacturer
Kharkiv Morozov Design Bureau (KMDB)
Date of Introduction
2008
Description
The BREM-84 (Atlet) Ukrainian Armored Recovery Vehicle is designed to repair and recover damaged infantry fighting vehicles (IFVs) and combat equipment on the battlefield. It is also used to tow damaged vehicles to the maintenance depots. The first prototype was built in 1997 and the vehicle was accepted for service with the Ukrainian Army in November 2008. Serial production of the vehicle began in April 2018 to meet the requirements of the Armed Forces of Ukraine.
Ground Specifications
Crew
3
Engine
Inline 6-Cylinder Diesel (1000 hp)
NBC Protection
Yes
Max Speed
60.0 km/h
Range
450.0 km
System
Alternative Designation
BREM-84; Atlet
Type
Armored Recovery Vehicle
Manufacturer
Kharkiv Morozov Design Bureau (KMDB)
Crew
3 ea
Crane

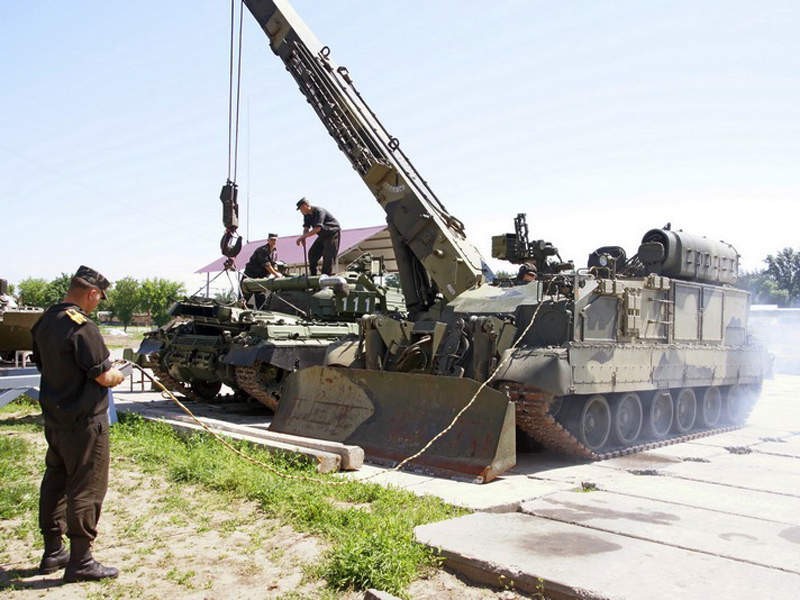

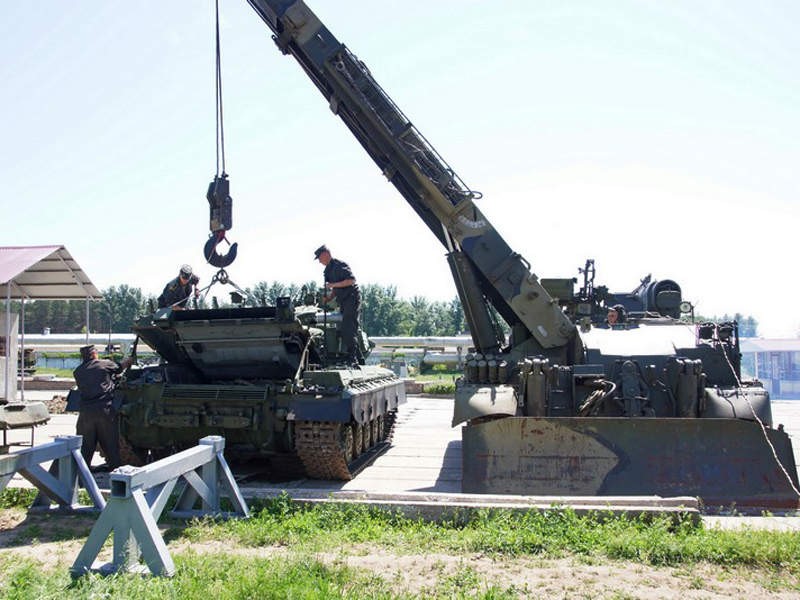

The crane is installed on a rotary platform. It is capable of lifting the turret of most main battle tanks. When not required the crane lays along the right side of the hull.
Lifting Capability
25 tons
Winch Capacity
25-75 tons
Towing Capacity
50 tons
Earth Working Capacity
120 m³/h
Dimensions
Length
8.89 m
Width
3.56 m
Height
2.74 m
Ground Clearance
0.515 m
Track Length
2.80 m
Track Width
580 mm
Length of Track on Ground
4.29 m
Ground Pressure
0.93kg/cm² (13.23psi)
Weight, Combat
46,000 kg
Automotive
Engine Name
6TF series
Engine Type
6 cylinders, water cooled, 2 stroke, multifuel
Engine Power
1,000 hp
Power-to-Weight Ratio
21.74 hp/t
Fuel Capacity
1,300 liters
Electrical System
27 V
Steering
Clutch and brake
Maximum Range
450 km
Maximum Speed
60 km/h
Amphibious
No
Gradient
63%
Side Slope
36%
Vertical Obstacle
1.0 m
Trench
2.85 m
Main Weapon System
System
Name
1 x NSVT 12.7mm Heavy Machine Gun
Type
Heavy Machine Gun
Caliber
12.7 mm
Length
1,560 mm
Barrel Length
1,100 mm
Weight
24.8 kg
Action
Gas operated
Elevation
66 mils
Traverse
360 mils
Maximum Effective Firing Range
2,000 m
Maximum Rate of Fire
700-800 rpm
Belt
50 rounds
Sights
Iron sights
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7x108mm
Basic Load
INA
Protection
Hull Armor
Steel. Front arc withstands small-caliber projectile hits, while all-round protection is against heavy machine gun fire and artillery shell splinters.
Applique Armor
Available
Mine Clearing
INA
NBC Protection
Yes
Smoke Equipment
8 × hull mounted 81mm smoke grenade launcher
Details
Country of Origin
Ukraine
Category
Survivability
Land > Survivability
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.89 m
Width
3.56 m
Height
2.74 m
Weight
46000 kg
Operators (3)
Ukraine
Pakistan
Thailand
