GQL-321 Chinese Light Companying Bridge (LCB)
GQL-321
Light Pontoon Bridge / Raft
Other
Basic Information
Name
GQL-321 Chinese Light Companying Bridge (LCB)
Designation
GQL-321
Alternate Designation
GQL-321
Equipment Type
Light Pontoon Bridge / Raft
Manufacturer
NORINCO
Date of Introduction
1997
Description
The GQL-321 Chinese Light Companying Bridge (LCB) s designed to provide a mechanized force with an organic bridging capability.
Ground Specifications
Crew
3
Mobility Type
Wheeled (6x6)
System
Alternative Designation
GQL-321
Type
Light Companying Bridge (LCB)
Manufacturer
Norinco
Chassis

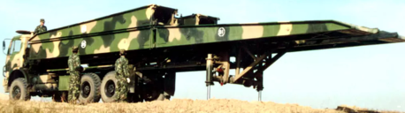

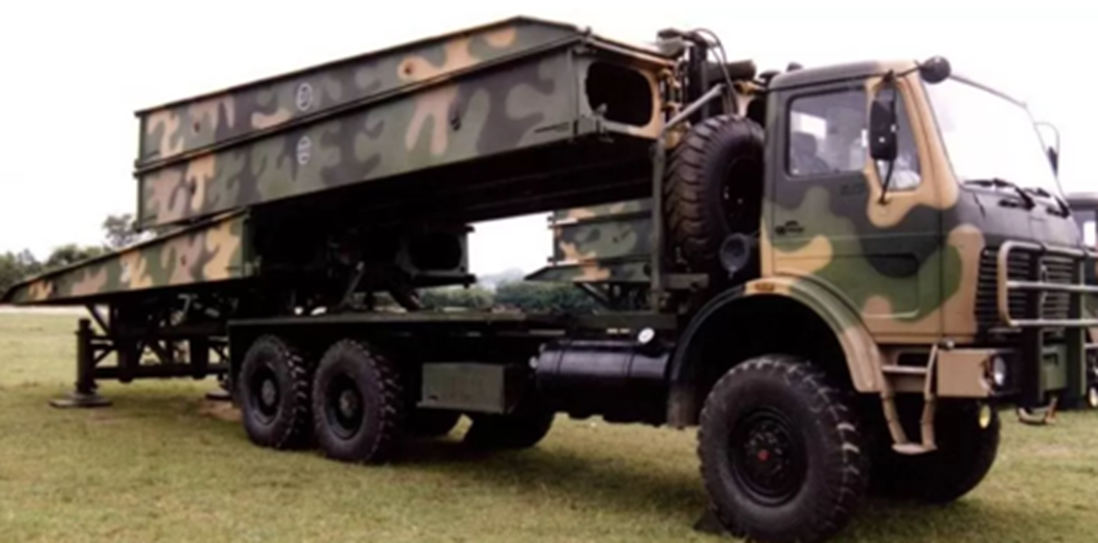

The Norinco LCB is transported and launched from a locally manufactured Norinco 6×6 Mercedes-Benz forward control cross-country truck chassis. Mounted to the rear of the chassis is the three-part bridge system.
Configuration
6x6
Crew
3 ea
Emplacement TIme
Less than 10 min
Displacement Time
Less than 10 min
Dimensions (Bridgelayer)
Length
10.96 m
Width
3.2 m
Height
3.64 m
Weight
21,800 kg
Bridging System
Span Length
20.5 m
Deployed Length
22.5 m
Roadway Width
3.2 m
Trackway Width
1.2 m
Weight
6,500 kg
Load Classification
22,000 kg (tracked vehicles), 10,000 kg (axle load)
Maximum Twist in Erection
+/- 5 deg
Maximum Allowable Bank Difference
2 m
Automotive
Note
The Norinco LCB is transported and launched from a locally manufactured Norinco 6×6 Mercedes-Benz forward control cross-country truck chassis. Mounted to the rear of the chassis is the three-part bridge system.
Protection
Hull Armor
INA
Applique Armor
INA
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
China
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.96 m
Width
3.2 m
Height
3.64 m
Weight
21800 kg
Operators (2)
Russia
China
