Z-STS Akhmat Russian 6x6 Mine Resistant Ambush Protected (MRAP)
Z-STS Akhmat
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
Z-STS Akhmat Russian 6x6 Mine Resistant Ambush Protected (MRAP)
Designation
Z-STS Akhmat
Alternate Designation
Z-STS Akhmat
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
Remdiesel
Date of Introduction
2022
Description

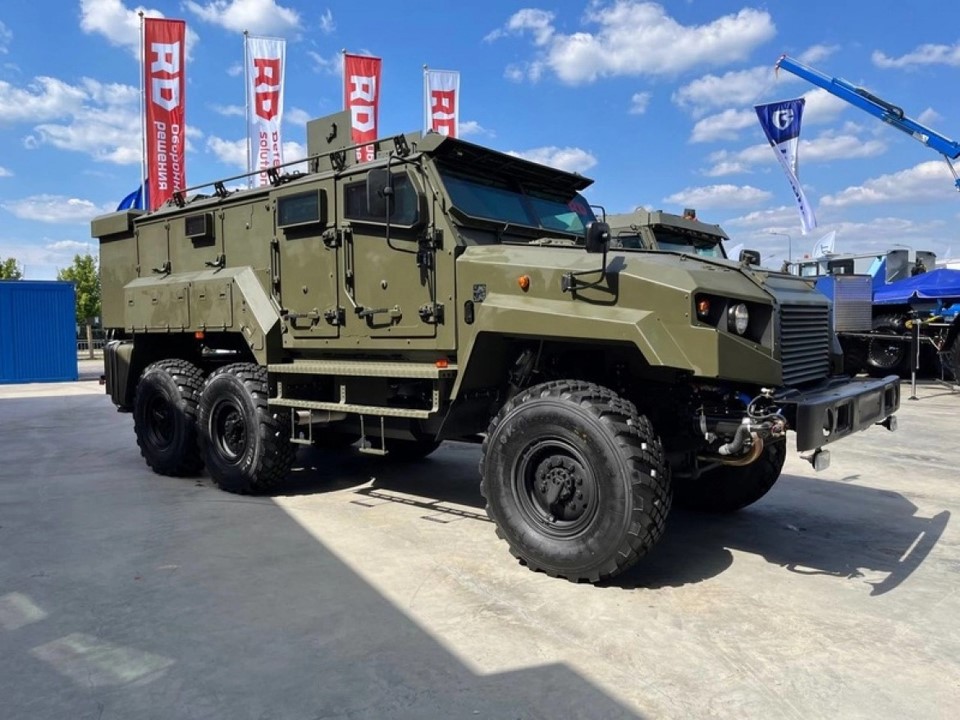

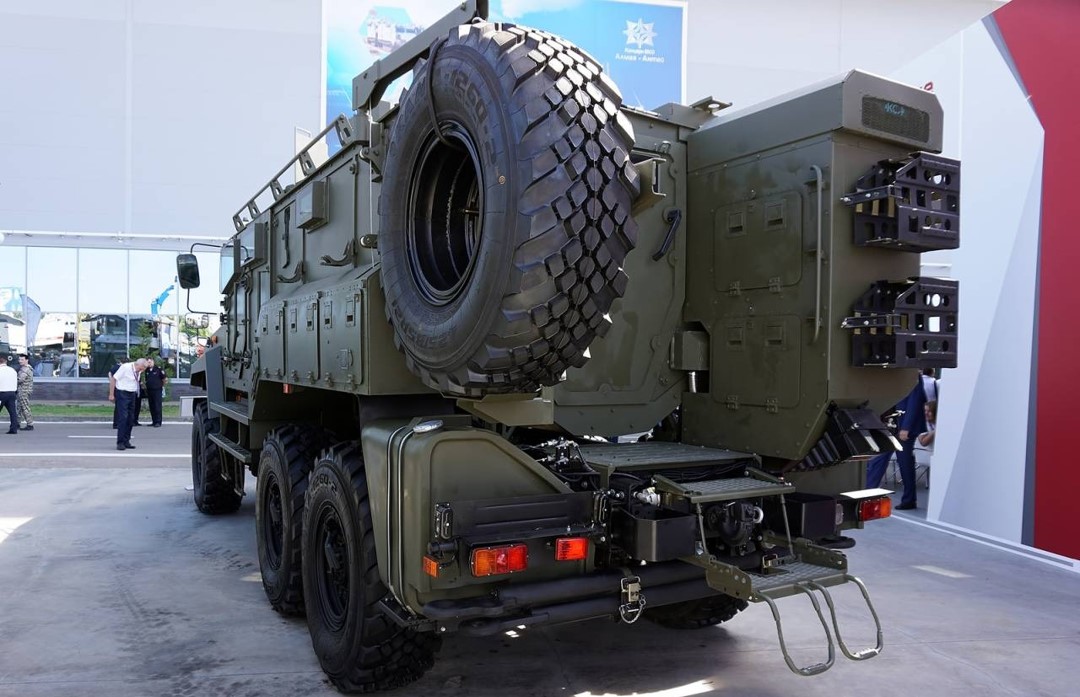

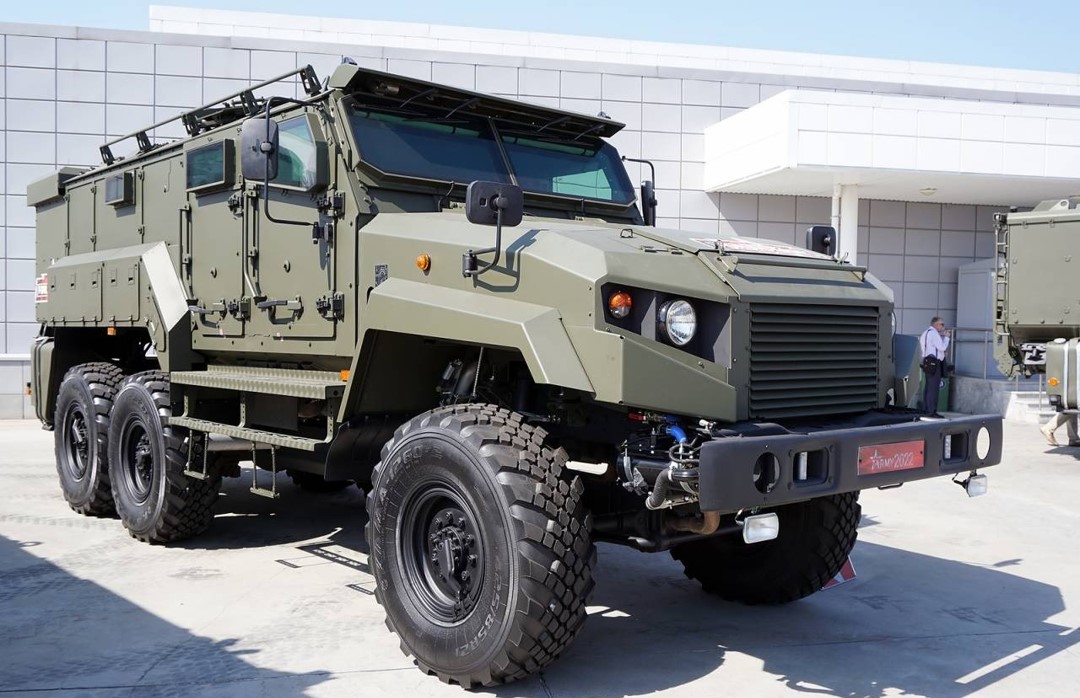

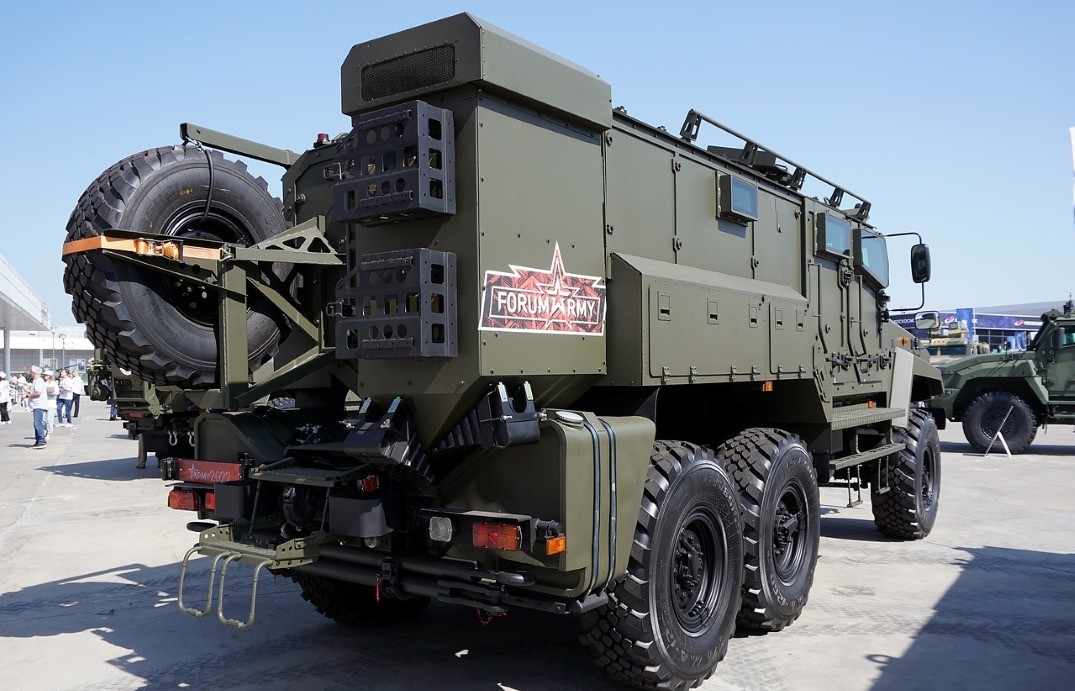

The Z-STS Akhmat Russian 6x6 Mine Resistant Ambush Protected (MRAP) was introduced in 2022 to meet the security needs of the Chechen security services, necessitating a rapidly producible and deployable transport solution. Built on the chassis of the KamAZ-5350 6x6 truck, the Z-STS utilizes a frame system instead of a monocoque body, simplifying production and enabling the interchangeability of different body types on the same chassis, albeit at the cost of reduced load-bearing capacity.
Ground Specifications
Crew
2
Engine
Diesel (260 hp)
NBC Protection
Yes
System
Alternative Designation
Z-STS Akhmat
Type
Mine Resistant Ambush Protected (MRAP)
Manufacturer
Remdiesel Plant
Configuration
6x6
Crew
2 ea
Passengers
8 ea
Dimensions
Length
8.43 m
Width
2.55 m
Height
3.10 m
Weight
18,000 kg
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
260 hp
Cruising Range
1,000 km
Speed, Maximum Road
100 km/h
Gradient
60 %
Side Slope
30% %
Vertical Step
0.6 m
Trench
0.6 m
Fording Depth
1.75 m
Main Weapon System
Note
The vehicle's design, separating the crew area from the vehicle's front, allows for the installation of weapon systems such as a machine gun through a roof hatch. Additionally, it can be equipped with the Arbalet-DM module, which features a 12.7-mm Kord machine gun and surveillance devices.
Protection
Armor
The Z-STS is designed to provide a comparable level of protection against 7.62 mm caliber rounds. Its V-shaped undercarriage is intended to protect against blasts equivalent to 6 kg of TNT, with safety seats incorporated to enhance occupant protection.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
No
Image Sources
Notes
https://armyrecognition.com/news/army-news/army-news-2022/chechnya-first-to-buy-remdiesel-ahmat-z-sts-armored-vehicle; https://en.defence-ua.com/weapon_and_tech/ukraines_military_destroyed_another_z_sts_akhmat_which_was_manufactured_in_25_days_for_kadyrov_mercenaries-4843.html; https://armyrecognition.com/news/army-news/army-news-2022/chechnya-first-to-buy-remdiesel-ahmat-z-sts-armored-vehicle; https://www.russiadefence.net/t8819p100-army-2022-international-military-technical-forum;
Details
Country of Origin
Russia
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.43 m
Width
2.55 m
Height
3.1 m
Weight
18000 kg
